ac filter capacitors
2.Frequency: 50/60Hz.
3.Operating: indoor or outdoor.
4.Ambient temperature: -40°C ~ +45°C_x000b_( Freezing field can meet - 45C).
5.Wind load: not exceed 35m/s.
6.Altitude: not exceed 2000m.
7.Icing thickness: not exceed 10mm.
8.Seismic strength: 8.
9.Pollution level: III or IV.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction

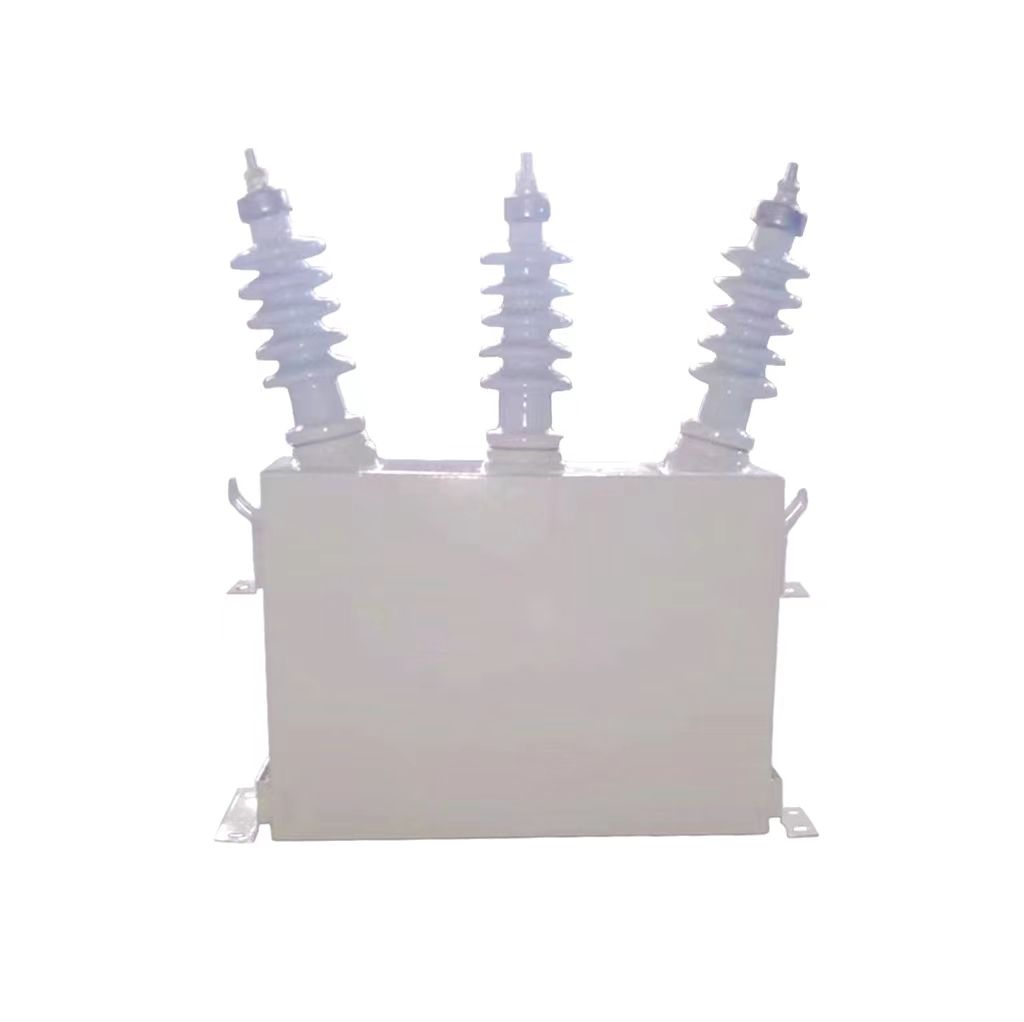

AC Filter Capacitors - Professional Power Electronics Solutions
Product Introduction
When it comes to power quality enhancement in electrical systems, ac filter capacitors stand as the cornerstone components for harmonic mitigation and waveform optimization. These specialized electronic components are designed to operate under continuous alternating current conditions, utilizing advanced metallized polypropylene film technology. They effectively reduce harmonic distortion and improve AC waveform quality in inverters, UPS systems, and renewable energy applications. Our ac filter capacitors deliver exceptional performance in demanding power electronic environments while ensuring long-term reliability.
Technical Parameters Table:
| Parameter | Specification |
|---|---|
| Rated Voltage | 10kV |
| Frequency | 50/60Hz |
| Operating Environment | Indoor/Outdoor |
| Ambient Temperature | -40°C to +45°C |
| Wind Load Resistance | ≤35m/s |
| Maximum Altitude | 2000m |
| Icing Thickness | ≤10mm |
| Seismic Strength | Grade 8 |
| Pollution Level | III or IV |
Technical Specifications
Our power capacitors feature cutting-edge metallized polypropylene film dielectric with self-healing properties. The technical architecture includes ultra-low Equivalent Series Resistance and minimal inductance for maximum ripple current handling capability.
Performance Specifications Table:
| Electrical Parameter | Value |
|---|---|
| Capacitance Tolerance | ±5% / ±10% |
| Dissipation Factor | <0.0005 at 1kHz |
| Operating Life | >100,000 hours |
| Maximum Hot-spot Temperature | 85°C |
| Voltage Proof Test | 1.5x - 2x rated voltage |
Main Features and Advantages
Our capacitors excel through advanced engineering design that addresses critical industry challenges. The self-healing mechanism automatically isolates localized breakdowns without ending the component's operational life. Heavy-edge metallization ensures superior surge current capability while maintaining thermal stability.
The overpressure disconnector system provides fail-safe protection by physically interrupting the circuit when internal pressure rises. This prevents catastrophic failures and ensures personnel safety. The non-toxic resin filling enhances thermal dissipation and vibration resistance.
Practical Applications
These power components find extensive use across multiple industrial sectors. Power generation facilities utilize them for grid connection filtering. Manufacturing plants integrate them into motor drive systems for harmonic reduction. Renewable energy installations depend on them for inverter output filtering.
Data centers rely on our capacitors for UPS system optimization. Transportation infrastructure incorporates them in railway power systems. Industrial automation systems benefit from improved power quality and reduced electromagnetic interference.
How It Works
The operating principle centers on continuous AC voltage stress management through advanced film technology. Metallized polypropylene layers respond rapidly to voltage transients while maintaining electrical integrity. The self-healing process vaporizes fault areas instantly, restoring normal operation.
Thermal management occurs through efficient heat dissipation via aluminum housings and resin filling. The overpressure safety mechanism activates automatically when internal conditions exceed safe parameters, ensuring system protection.
Manufacturing Excellence
Our production facility maintains stringent quality control throughout the manufacturing process. Every unit undergoes comprehensive routine testing including capacitance verification, tangent delta measurement, and voltage proof validation.
Type testing validates thermal stability through extended endurance cycles. Environmental stress screening confirms hermetic sealing integrity under extreme conditions. Destruction testing verifies safety mechanism reliability before product release.
Why Choose Us
Xi'an Xikai Medium And Low Voltage Electric Co., Ltd. brings decades of expertise in power electronics manufacturing. Our ISO9001, ISO14001, and OHSAS18001 certifications demonstrate commitment to quality, environmental responsibility, and safety standards.
We provide comprehensive technical support throughout your project lifecycle. Our engineering team offers customized solutions for specific application requirements. Fast delivery and reliable after-sales service ensure your operations continue smoothly.
FAQ
Q: What distinguishes these from standard capacitors?
A: Our units are specifically engineered for continuous AC stress and high ripple currents, featuring enhanced thermal management and safety mechanisms.
Q: How do you determine expected operational life?
A: We calculate lifespan using the 10-degree rule and Arrhenius models based on operating voltage and temperature conditions per IEC 61071 standards.
Q: Can installation orientation vary?
A: Yes, our dry-type resin-filled design allows flexible mounting positions with proper clearance for safety disconnector operation.
Q: Why might audible noise occur?
A: Electrostriction effects cause minor vibrations at grid frequencies. Our tight winding and solid filling minimize acoustic emissions.
Contact Us
Ready to enhance your power system performance with professional ac filter capacitors? Our technical team stands ready to discuss your specific requirements and provide optimal solutions.
Contact our engineering specialists today at serina@xaxd-electric.com for detailed specifications, custom configurations, and technical consultation. Experience the reliability and performance that industry leaders trust.
