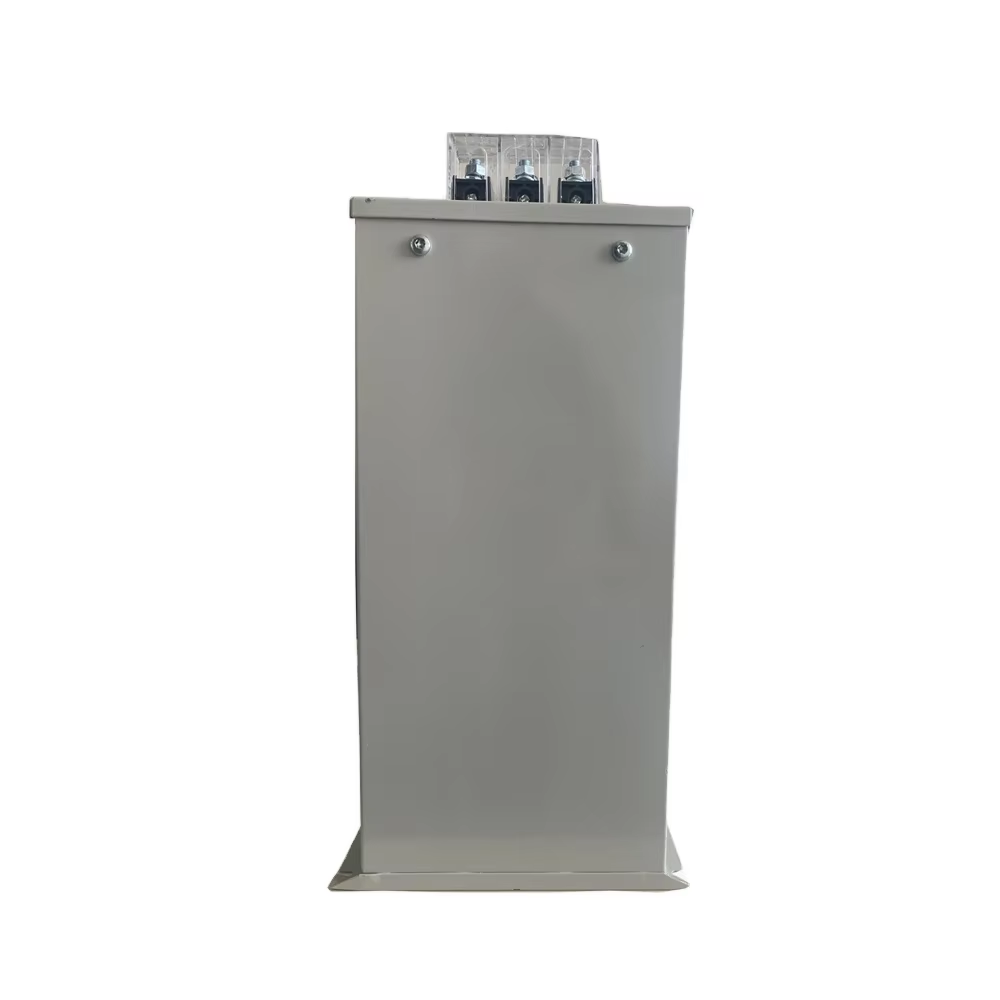

Self-Healing Low Voltage Filter Capacitor

Self-Healing Low Voltage Filter Capacitor

Product Introduction

Are you struggling with power factor penalties and harmonic distortions in your electrical system? Our Self-Healing Low Voltage Filter Capacitor offers the perfect solution for modern power quality challenges. This advanced capacitor combines reliability with environmental safety through cutting-edge metallized polypropylene film technology. When localized breakdowns occur, the surrounding metal layer evaporates instantly, restoring insulation and preventing catastrophic failures. Our dry-type design eliminates oil leakage risks while meeting strict environmental standards. These capacitors excel in industrial environments where traditional units often fail, making them your go-to choice for reliable power factor correction.

Technical Specifications

Main Features and Advantages

Self-Healing Technology

Our proprietary zinc-aluminum alloy metallization instantly isolates faults within microseconds. This prevents explosive failures common in traditional paper-dielectric capacitors.

Dry-Type Construction

Zero oil leakage risk makes these units environmentally friendly and maintenance-free. Perfect for indoor installations where safety is paramount.

Harmonic Resilience

Engineered to withstand high harmonic content from variable frequency drives and non-linear loads. Works seamlessly with detuned reactors.

Compact Design

High capacitance-to-volume ratio saves valuable panel space while delivering superior performance.

Built-in Safety

Overpressure disconnector mechanically isolates failed units, preventing damage to surrounding equipment.

Practical Applications

Industrial Power Factor Correction

Manufacturing facilities use our capacitors in automatic power factor correction banks. They handle fluctuating reactive power from heavy machinery while filtering harmful harmonics.

Renewable Energy Systems

Wind and solar installations rely on these units to filter switching harmonics from IGBT inverters. Their robust design withstands rapid voltage fluctuations in outdoor environments.

Commercial Buildings

Modern office complexes and data centers benefit from our Self-Healing Low Voltage Filter Capacitor technology when dealing with LED lighting, UPS systems, and HVAC drives that create harmonic pollution.

Motor Control Centers

These capacitors protect sensitive control equipment from voltage distortions while maintaining optimal power factor across varying load conditions.

How It Works

The self-healing process begins when electrical stress causes a microscopic breakdown in the polypropylene film dielectric. The arc energy instantly vaporizes the thin metal layer around the fault point, creating an insulating gap. This isolation prevents current flow through the damaged area while maintaining overall capacitor function.

The metallized film construction provides thousands of potential healing sites throughout the dielectric. Each healing event removes only a tiny portion of the active surface area, ensuring long-term reliability.

When paired with harmonic filter reactors, these capacitors create tuned circuits that absorb specific harmonic frequencies while providing reactive power compensation.

Manufacturing Excellence

Xi'an Xikai Medium and Low Voltage Electric Co., Ltd. brings decades of expertise to every Self-Healing Low Voltage Filter Capacitor we produce. Our ISO9001-certified manufacturing processes ensure consistent quality across our entire product range.

We maintain strict quality control through automated thermal cycling tests and voltage withstand verification. Each unit undergoes rigorous self-healing testing to confirm proper metallization performance.

Our advanced production facilities can accommodate custom voltage ratings up to 1000V and specialized configurations for unique applications.

Why Choose Us

Proven Reliability

Our capacitors serve critical applications across power generation, industrial automation, and infrastructure projects. Field-proven performance in demanding environments sets us apart.

Technical Support

Our engineering team provides comprehensive application assistance, helping you select the right capacitor configuration for your specific harmonic environment.

Quality Assurance

Every unit meets international standards including IEC 60831 and UL 810. Our quality management systems ensure consistent performance you can trust.

Competitive Solutions

We offer complete power quality solutions beyond individual components. Our system integration expertise helps optimize your entire electrical installation.

FAQ

Q: What happens when the self-healing mechanism activates?

A: The capacitor continues operating normally. You won't notice any immediate performance change, as each healing event affects only a microscopic area of the dielectric.

Q: How do I know if the overpressure disconnector has triggered?

A: The aluminum case top will appear bulged, and electrical testing will show an open circuit. Once activated, the unit requires replacement.

Q: Can these capacitors handle voltage fluctuations?

A: Yes, but staying within rated voltage limits is crucial. Even 10% overvoltage can reduce lifespan by 50% or more.

Q: Do I need special ventilation for installation?

A: Adequate airflow is essential. Ambient temperatures above 55°C significantly reduce capacitor life expectancy.

Q: How do these compare to oil-filled capacitors?

A: Our dry-type design eliminates leakage risks while providing superior harmonic handling capability and enhanced safety features.

Contact Us

Ready to improve your power quality with our advanced Self-Healing Low Voltage Filter Capacitor technology? Our technical experts are standing by to help you find the perfect solution for your application.

Contact our team today at serina@xaxd-electric.com for detailed specifications, custom configurations, and technical support. Let us help you eliminate power factor penalties while protecting your valuable electrical equipment from harmonic damage.
