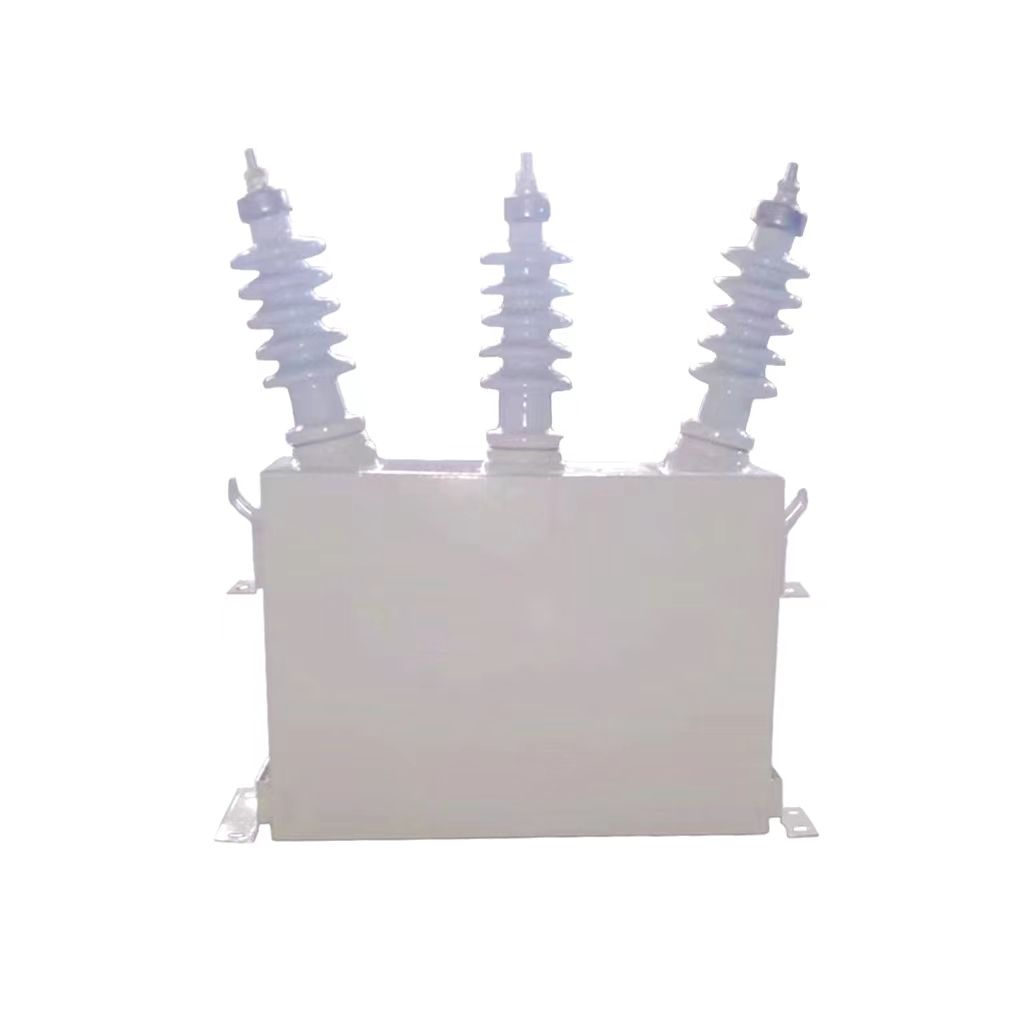

60 Hz Filter Capacitor - Premium Power Quality Solutions

Product Introduction

When you're dealing with power quality issues in 60 Hz electrical systems, our 60 hz filter capacitor is your reliable solution. These specialized components are engineered to eliminate voltage ripple and stabilize DC outputs in rectification circuits powered by standard 60 Hz AC mains. You'll find them essential for maintaining clean power in industrial applications, audio equipment, and medical devices.

Our capacitors are specifically optimized to handle the charge/discharge cycles associated with full-wave rectification. They solve the critical industry pain point of ripple voltage mitigation. This ensures your sensitive downstream semiconductors like IGBTs and MOSFETs operate safely and efficiently. With our advanced design, you get superior performance that bridges voltage gaps between AC peaks.

Technical Specifications

Main Features and Advantages

Superior Energy Density: Our capacitors utilize advanced etched aluminum foils that maximize energy storage within compact footprints. You benefit from space-saving installations without compromising performance.

Ultra-Low ESR Design: The low Equivalent Series Resistance minimizes power loss and self-heating during high ripple current events. This translates to longer service life and improved reliability for your systems.

Exceptional Thermal Stability: Engineered for operation at extreme temperatures with stable electrolytes that resist evaporation. Your equipment stays protected even in harsh industrial environments.

High Ripple Current Handling: Reinforced internal terminations withstand mechanical forces from 120 Hz electromechanical resonance. This ensures consistent performance under demanding load conditions.

Practical Applications

Industrial Variable Frequency Drives: Our 60 hz filter capacitor serves as the critical DC Link component in VFDs. It smooths rectified voltage before inversion, preventing costly drive trips and maintaining operational efficiency.

Audio Equipment: You'll appreciate the exceptional leakage current characteristics that eliminate the characteristic '60 cycle hum' in high-fidelity amplifiers and audio systems.

Medical Imaging Systems: In MRI and X-ray machines, our large can-type capacitors provide massive energy storage for pulsed loads. This ensures voltage stability and prevents image artifacts.

Power Electronics: These capacitors are essential in switch-mode power supplies, UPS systems, and renewable energy converters where clean DC power is critical.

How It Works

The 60 hz filter capacitor operates as a dynamic energy reservoir in rectification circuits. When AC voltage peaks, the capacitor charges rapidly. During voltage valleys, it discharges stored energy to maintain steady DC output.

This charge-discharge cycle happens at 120 Hz (twice the line frequency). The capacitor's large capacitance value and low ESR ensure minimal voltage ripple. The result is smooth, stable DC power that protects your sensitive electronic components.

The advanced dielectric materials and electrode design optimize performance specifically for 60 Hz applications. This specialization delivers superior filtering compared to generic capacitors.

Manufacturing Excellence

At Xi'an Xidian Medium and Low Voltage Electric Co., Ltd., we maintain rigorous quality standards throughout production. Our manufacturing processes include:

Advanced Material Selection: We use only premium-grade dielectric materials and high-purity aluminum foils to ensure consistent performance.

Precision Assembly: Automated winding and assembly processes maintain tight tolerances and eliminate human error factors.

Comprehensive Testing: Every 60 hz filter capacitor undergoes extensive testing including high-temperature reverse bias, ripple current load tests, and surge voltage verification.

Quality Certifications: Our facility maintains ISO9001, ISO14001, and OHSAS18001 certifications, ensuring consistent quality and environmental responsibility.

Why Choose Us

With over 100 varieties across 9 product categories, we're your comprehensive power solutions partner. Our rated current range of 630A-4000A and voltage capabilities up to 40.5kV cover diverse application needs.

You benefit from our extensive experience in medium and low voltage power distribution systems. Our products meet national and industry standards while achieving domestic and international advanced levels.

Our technical team provides expert support for system integration and custom solutions. We understand the unique challenges of power quality management in industrial environments.

FAQ

Q: Can these capacitors handle voltage surges?

A: Yes, our capacitors are tested at 110-115% of rated voltage to ensure they withstand grid transients without failure.

Q: How do I determine the right capacitance value?

A: The required capacitance depends on your load current and acceptable ripple voltage. Our technical team can help with calculations based on your specific requirements.

Q: What's the expected lifespan?

A: Following the Arrhenius Law, lifespan doubles for every 10°C reduction in operating temperature below maximum rating. Typical industrial life exceeds 10 years under normal conditions.

Q: Are these suitable for outdoor installations?

A: Absolutely. Our capacitors are designed for both indoor and outdoor use, with appropriate environmental protection ratings.

Contact Us

Ready to improve your power quality with our premium filter capacitors? Our technical experts are standing by to help you select the perfect solution for your application.

Contact our sales team today at serina@xaxd-electric.com for detailed specifications, custom configurations, and competitive pricing. We'll work with you to ensure optimal performance and reliability in your electrical systems.
