Capacitor for VFD Harmonic Mitigation - Professional Power Quality Solution

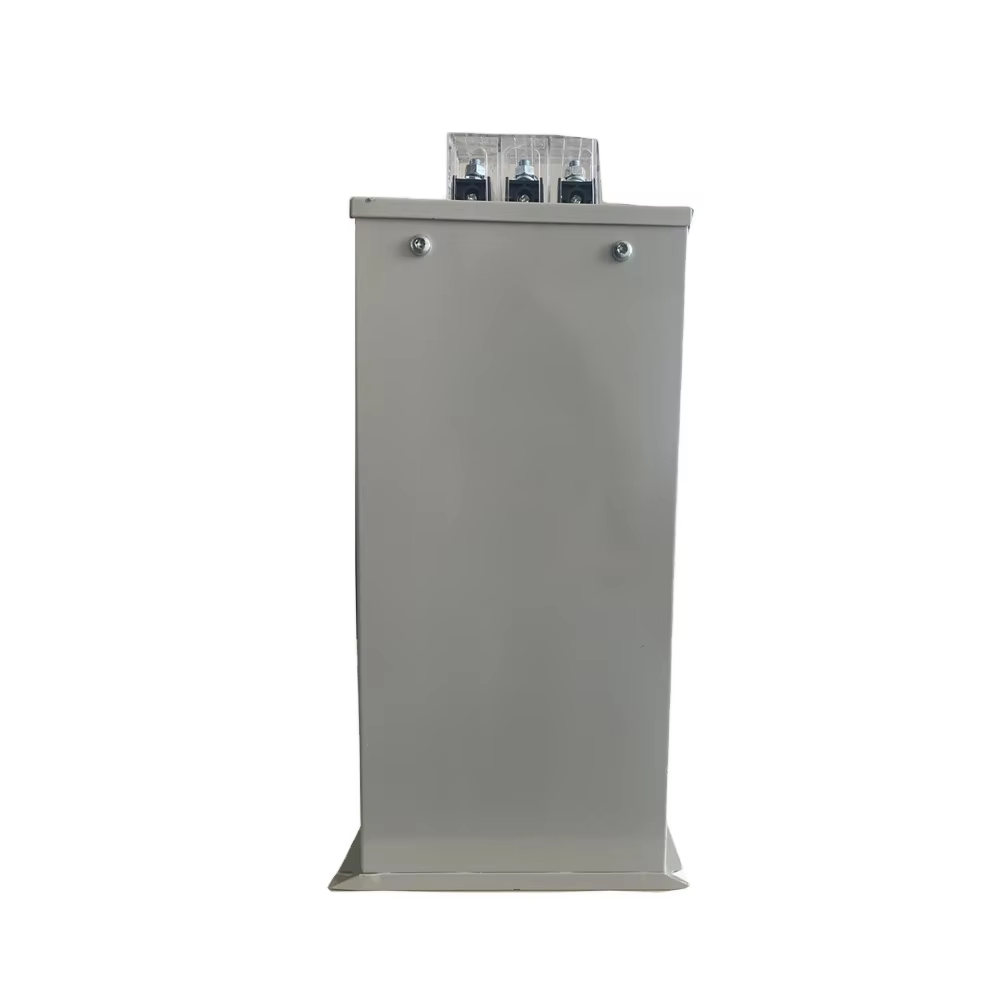

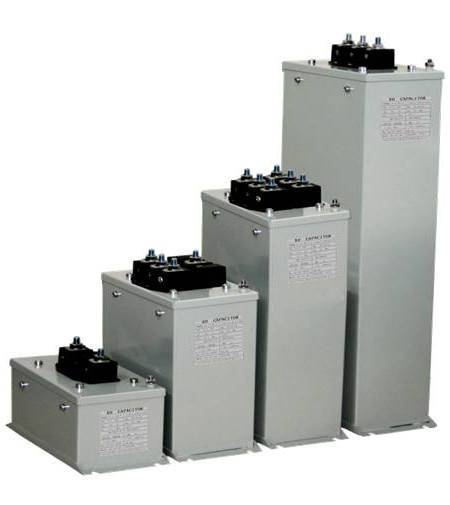

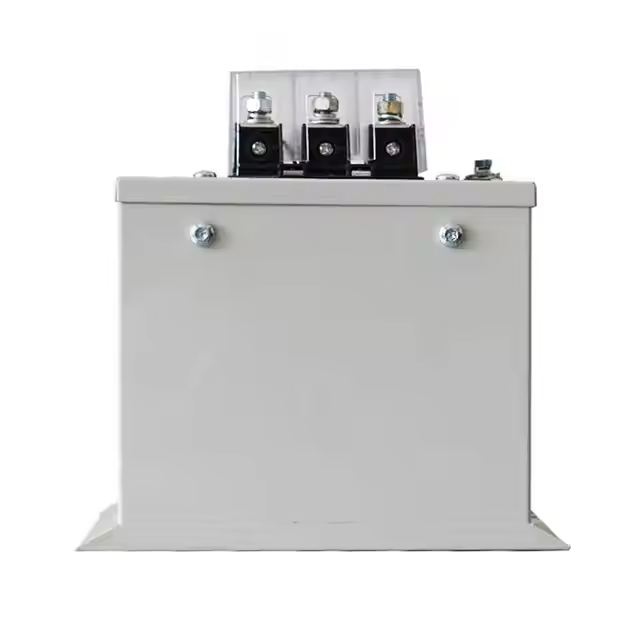

Product Introduction

When your VFD systems create harmonic distortion that threatens equipment reliability, our Capacitor for VFD Harmonic Mitigation provides the solution you need. This specialized heavy-duty AC power capacitor works within tuned filter banks to handle the harsh electrical environment created by variable frequency drives. Unlike standard power factor correction capacitors, our units withstand high-frequency currents and voltage stresses that would destroy conventional capacitors. Your industrial operations demand reliable power quality, and our Capacitor for VFD Harmonic Mitigation delivers exactly that protection.

Technical Specifications

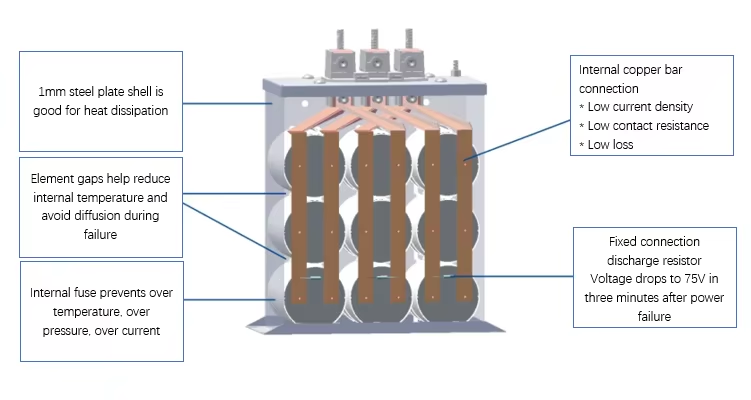

Main Features and Advantages

Self-Healing Technology: Our metallized polypropylene film instantly recovers from localized breakdowns. When damage occurs, the metal layer evaporates and restores insulation automatically.

Environmental Safety: The epoxy resin encapsulation eliminates oil leakage risks completely. Your facility stays clean and meets environmental standards.

High Current Handling: These units manage continuous currents up to 2.0x nominal rating. Your system handles both fundamental and harmonic currents safely.

Superior Thermal Performance: Low dissipation factor keeps internal heating minimal. Your capacitors operate reliably even in demanding industrial environments.

Overpressure Protection: Built-in disconnection systems prevent catastrophic failures. Your electrical system stays protected when internal faults occur.

Practical Applications

Municipal Water Treatment: Large intake pumps and aeration blowers create significant harmonic distortion. Our capacitors work in detuned filter banks to protect PLC control signals and meet utility requirements.

Marine Propulsion Systems: Oil rigs and electric ships need compact, vibration-resistant solutions. These capacitors maintain power stability in island-mode generation systems while meeting marine classification standards.

Heavy Manufacturing: Steel mills and cement plants face extreme electrical environments. Our Capacitor for VFD Harmonic Mitigation handles rapid load changes while preventing transformer overheating from harmonic currents.

How It Works

Your VFD creates non-sinusoidal current pulses that generate harmful harmonics. Our capacitor connects in series with a reactor to form an L-C circuit. This combination provides a low-impedance path for specific harmonic frequencies like 5th, 7th, and 11th orders.

The reactor creates voltage rise across the capacitor terminals. That's why we rate our units 10-20% higher than system voltage. This design prevents parallel resonance that would amplify harmonics and damage equipment.

The result is dramatically reduced total harmonic distortion. Your transformers run cooler, circuit breakers stop nuisance tripping, and you meet IEEE 519 compliance standards.

Manufacturing Excellence

At Xi'an Xikai Medium And Low Voltage Electric Co., Ltd., we maintain strict quality control throughout production. Every Capacitor for VFD Harmonic Mitigation undergoes comprehensive testing including capacitance verification, tan delta measurement, and voltage proof testing.

Our ISO 9001 certified facility ensures consistent quality. We test overpressure disconnector functionality and verify sealing integrity under thermal stress. This rigorous process guarantees reliable performance in your critical applications.

Why Choose Us

Proven Industry Experience: We serve power distribution needs across multiple industries with over 100 product varieties. Your specific requirements get solutions backed by decades of expertise.

Complete System Integration: Our product range covers the entire 0.4kV-40.5kV spectrum. You work with one trusted partner for all power distribution needs.

High Altitude Performance: Our products function reliably up to 4000m elevation. Your mountain or plateau installations get the same dependable performance.

Comprehensive Certifications: ISO 9001, ISO 14001, and OHSAS 18001 certifications demonstrate our commitment to quality, environment, and safety standards.

FAQ

Can I use standard power factor capacitors with VFDs?

Never connect standard capacitors directly to VFD systems. Parallel resonance will amplify harmonics and cause rapid failure or explosion. Always use capacitors designed for detuned reactor circuits.

How do I select the correct voltage rating?

The series reactor creates voltage rise across capacitor terminals. For 400V systems with 7% detuning, choose 440V or 480V rated units. For 480V systems, select 525V or 600V ratings.

What causes premature capacitor failure?

Excessive ambient temperature, over-voltage conditions, and harmonic currents exceeding maximum RMS ratings are primary failure causes. Proper ventilation and correct sizing prevent these issues.

How often should I check capacitance values?

Annual inspections are recommended in VFD environments. Replace capacitors immediately when capacitance drops more than 5-10% to maintain effective harmonic filtering.

Do these capacitors reduce current or voltage distortion?

Our capacitors primarily reduce THDi (current distortion) by providing low impedance paths for harmonics. This consequently lowers THDv (voltage distortion) across system impedance.

Contact Us

Ready to solve your VFD harmonic problems? Contact our technical team for customized solutions that match your specific requirements.

Email: serina@xaxd-electric.com

Our engineers will help you select the right capacitor specifications and provide complete harmonic mitigation system design. Get reliable power quality protection that keeps your operations running smoothly.
