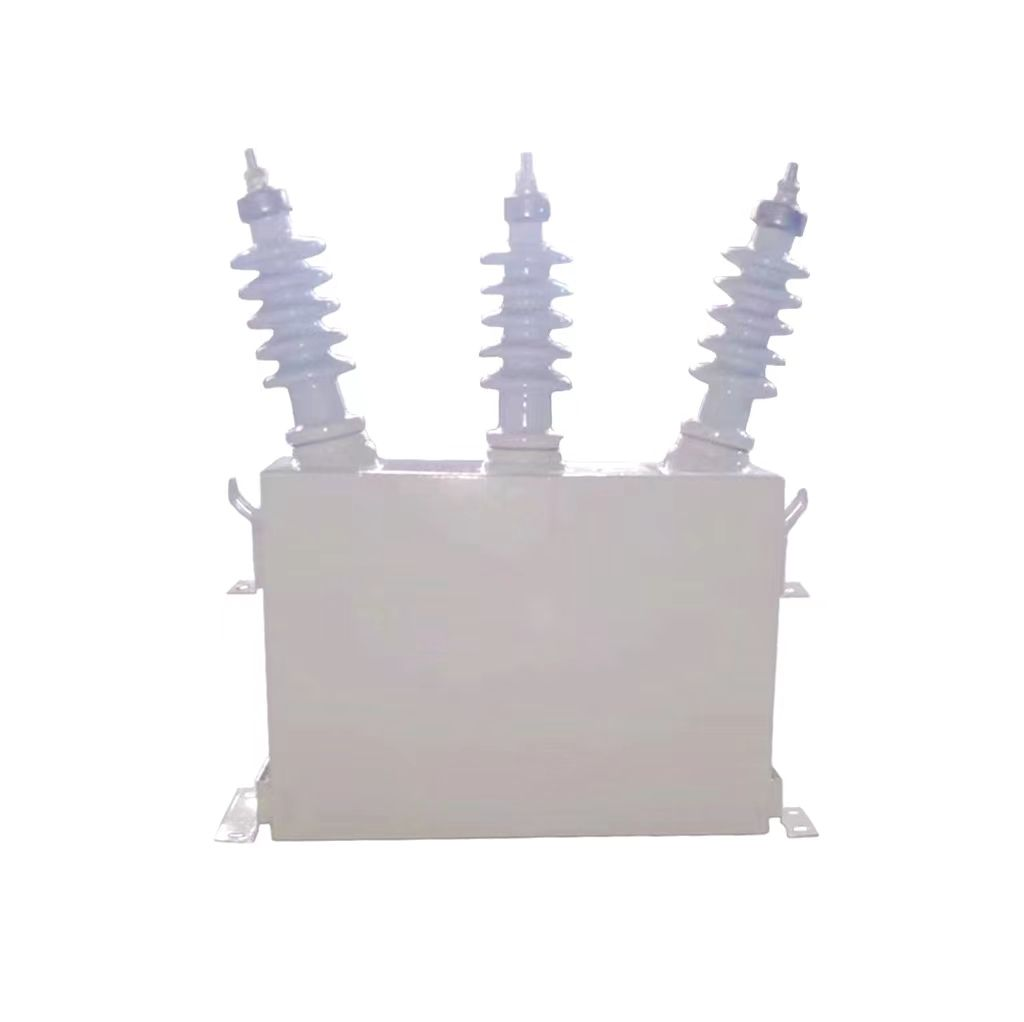

10KV Filter Capacitor

10KV Filter Capacitor - Professional High Voltage Power Solutions

Product Introduction

When you need reliable power quality solutions for your electrical systems, our 10KV Filter Capacitor delivers exceptional performance and durability. These specialized high-voltage components are engineered to operate at 10,000 volts, providing superior filtering capabilities for industrial and utility applications. Our capacitors effectively suppress voltage spikes, smooth ripple currents, and eliminate harmful harmonics that can damage expensive equipment. With advanced dielectric materials and robust construction, you get the reliability your critical systems demand. Whether you're managing power distribution networks or industrial processes, our solutions ensure stable operation and extended equipment life.

Technical Specifications

Main Features and Advantages

Our filter capacitors incorporate cutting-edge technology for superior performance. The polypropylene film dielectric system with biodegradable synthetic fluid impregnation ensures excellent partial discharge resistance. You benefit from self-healing capabilities that allow automatic recovery from micro-breakdowns without total failure.

The extended aluminum foil design provides exceptional thermal management. Internal discharge resistors safely reduce residual voltage to less than 50V within 5 minutes. Stainless steel construction with porcelain or silicone rubber bushings offers outstanding durability in harsh environments.

Low loss operation minimizes energy waste and heat generation. Tight capacitance tolerances maintain precise filter tuning. High surge current withstand capability protects against transient events.

Practical Applications

These capacitors excel in power factor correction systems where harmonic distortion is present. Industrial facilities use them in passive harmonic filters to eliminate troublesome frequency components. Electric utilities deploy them in transmission substations for voltage regulation and power quality improvement.

Mining operations rely on them for motor drive applications. Steel mills and chemical plants use them to filter rectifier harmonics. Data centers install them to ensure clean power for sensitive equipment.

Wind farms and solar installations incorporate them for grid connection filtering. Railway systems use them for traction power quality improvement.

How It Works

The 10KV Filter Capacitor operates by creating a low-impedance path for specific harmonic frequencies while blocking fundamental frequency current. When connected in series with an inductor, it forms a tuned circuit resonant at the target harmonic frequency.

The polypropylene dielectric stores electrical energy efficiently while the impregnating fluid prevents corona discharge. During harmonic events, the capacitor absorbs reactive power and provides a path for harmonic currents to bypass sensitive equipment.

The self-healing mechanism automatically clears minor insulation breakdowns by vaporizing the metallized film around fault points. This ensures continued operation without catastrophic failure.

Manufacturing Excellence

Xi'an Xikai Medium And Low Voltage Electric Co., Ltd. brings decades of expertise to capacitor manufacturing. Our state-of-the-art facility produces components that exceed international standards including IEC 60871 and IEEE 18.

We use premium materials sourced from certified suppliers. Each unit undergoes rigorous testing including partial discharge testing, thermal cycling, and overvoltage stress testing. Our quality management systems ensure consistent performance and reliability.

Advanced manufacturing techniques like precision winding and controlled impregnation create products with exceptional electrical characteristics. Every 10KV Filter Capacitor meets strict specifications before leaving our facility.

Why Choose Us

Our comprehensive product range covers 0.4kV to 40.5kV applications with current ratings from 630A to 4000A. We offer customized solutions for altitudes up to 4000m and extreme environmental conditions.

ISO9001, ISO14001, and OHSAS18001 certifications demonstrate our commitment to quality, environmental responsibility, and safety. Our products have earned recognition as famous brand products in China.

Technical support from our experienced engineering team ensures proper application and installation. We provide complete system solutions beyond just components. Our track record spans multiple industries and challenging applications worldwide.

FAQ

Q: Why do I need a higher voltage rating than my 10kV system?

A: In filter applications, voltage rise across the capacitor exceeds system voltage due to series reactor interaction. We recommend 11kV or 12kV rated units for 10kV systems.

Q: Can I use standard capacitors instead of filter capacitors?

A: No. Filter capacitors are specifically designed to handle harmonic currents. Standard units will overheat and fail quickly in harmonic environments.

Q: What's the expected service life?

A: With proper installation and operation within specified limits, expect 15-20 years of reliable service.

Q: How do I know if my capacitor is failing?

A: Watch for bulging cases, oil leaks, significant capacitance changes, or protection system alarms.

Q: Do you provide installation support?

A: Yes, our technical team offers comprehensive installation guidance and commissioning support.

Contact Us

Ready to improve your power quality with professional 10KV Filter Capacitor solutions? Our experts are here to help you select the right components for your application.

Get in touch with us today for technical specifications, custom solutions, or project consultation. We're committed to providing the reliable power components your systems need.

Email: serina@xaxd-electric.com

Let us help you achieve superior power quality and system reliability with our proven high-voltage capacitor technology.
