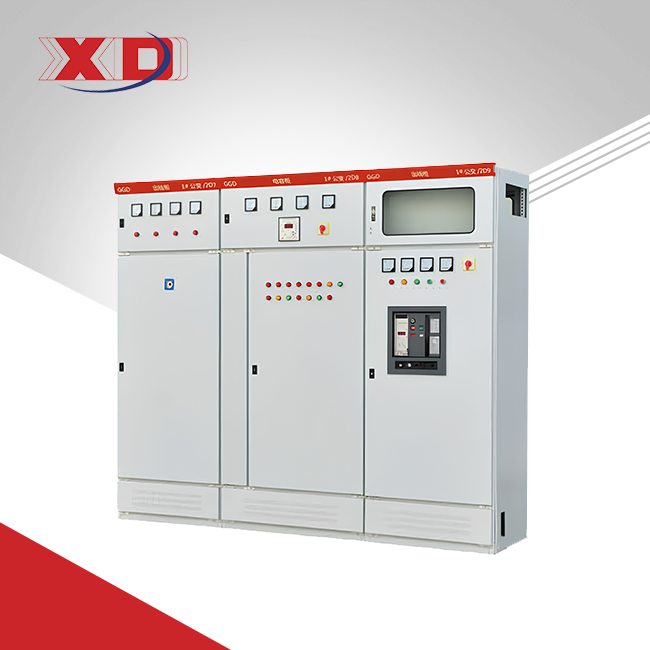

GGD Low Voltage Distribution Switchgear
2.High breaking capacity & thermal stability.
3.Modular design with flexible configurations.
4.Compact structure, high protection rating.
5.Compliance: IEC60439-1/GB7251.1.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
1.GGD Low Voltage Distribution Switchgear: Reliable Power Control Solutions
GGD Low Voltage Distribution Switchgear is engineered to deliver unmatched safety and efficiency in power distribution systems. Designed for demanding environments, this switchgear ensures stable energy management across industries like utilities, manufacturing, and infrastructure. With a rated voltage of 380V and compliance with IEC 60439-1/GB7251.1 standards, it’s built to handle high breaking capacities while maintaining thermal stability. Whether you’re upgrading aging grids or deploying smart energy solutions, our modular design adapts to your needs.
2.Technical Specifications
- Rated Voltage: 380V
- Breaking Capacity: High-performance arc interruption for overload protection
- Modularity: Flexible configurations (horizontal/vertical busbar systems)
- Protection Rating: IP54+ enclosures for dust/moisture resistance
- Compliance: IEC 60439-1, GB7251.1
3.Key Features & Benefits
1. Robust Performance
Built with reinforced busbars and corrosion-resistant materials, the GGD Low Voltage Distribution Switchgear withstands extreme temperatures (-25°C to +55°C) and short-circuit currents up to 65kA. Ideal for petrochemical plants and metallurgical facilities.
2. Smart Grid Compatibility
Integrate IoT sensors or SCADA systems for real-time monitoring, enabling predictive maintenance and reducing downtime by 30%.
3. Energy Efficiency
Optimized designs reduce energy loss by 15%, aligning with EN 50600 and LEED sustainability goals.
4. Quick Deployment
Pre-tested, plug-and-play units cut installation time by 40%, perfect for EPC contractors managing tight project timelines.
5.NormaI Operation Conditions
5.1. AItitude：≤ 2000m
5.2. Ambient temperature: -10。C ~ +40。C (temperature can be as Iow as -25。C during transportation and storage)
5.3. ReIative humidity: daiIy reIative humidity < 95% on average; monthIy reIative humidity < 90% on average
5.4. seismic scaIe of earthquake < 8
5.5. The switchgear is appIicabIe to category ,, contaminated environment. speciaI Operation Conditions If the switchgear wiII be used in conditions that exceed the normaI environmentaI conditions, users shaII negotiate with the manufacturer.
|
Item No. |
Item |
unit |
VaIue |
|
1 |
Rated VoItage |
V |
400,690 |
|
2 |
Rated insuIation VoItage |
V |
660, 1000 |
|
3 |
Rated current |
A |
400~6300 |
|
4 |
Rated short-circuit current |
KA |
20~120 |
|
5 |
InsuIation: power frequency withstand VoItage |
V |
Main circuit:2500; AuxiIiary circuit 2000 |
|
6 |
protection degree |
|
Ip4X |
|
7 |
operating mechanism |
|
ManuaI mechanism; EIectric mechanism |
|
8 |
operationaI Power suppIy |
V |
DC:110,220; AC:110,220 |
|
9 |
overaII dimension(width*DePth*Height) |
mm |
600(800,1000)x800(1000)x2200 |
|
10 |
weight |
Kg |
300~1000 |
4.Applications
Be used in a wide range of industries.
Industrial Plants
Eliminate power factor penalties in CNC machines and assembly lines while handling surge currents up to 100x rated capacity.
Substation
Stabilizes substation voltage against harmonics and intermittent generation from renewable inverters.
Commercial Buildings
Retrofit aging systems in hospitals or malls with silent (<45dB), flame-retardant capacitors that meet NFPA 70 fire codes.
5.Design & Operation
The GGD switchgear uses a compartmentalized structure:
1. Main Circuit: Copper busbars with tin-plated joints for minimal resistance.
2. Control Section: DIN-rail-mounted relays and circuit breakers.
3. Safety Mechanisms: Arc-flash containment and dual insulation layers.
6.Manufacturing & Quality Assurance
Our ISO 9001-certified facilities employ:
- Laser Cutting: Precision alignment for seamless assembly.
- Automated Testing: Hi-pot, thermal imaging, and vibration simulations.
7.Why Choose Us?
- Certifications: ISO 9001, ISO 14001.
- R&D Excellence: 20+ patents from collaborations with global tech institutes.
- Global Support: 24/7 technical assistance and multilingual documentation.
8.FAQs
Q: Can this switchgear operate in explosive atmospheres?
A: Yes, ATEX-certified models are available for hazardous zones.
Q: What’s the lead time for customized orders?
A: Standard configurations ship in 4 weeks; custom designs take 4-6 weeks.
Q: Do you provide BIM files for integration?
A: Absolutely—request BIM-embedded digital twins during quoting.
Q: How does it reduce maintenance costs?
A: Self-diagnostic alerts and modular parts cut repair time by 50%.
9.Contact Us
Email xaxd_electric@163.com for quotes, technical drawings, or partnership inquiries GGD Low Voltage Distribution Switchgear. Let’s build a smarter power future together!
Optimized for reliability. Trusted worldwide.
10.Factory Show
11.Equipment Display
12.Application Cases
State Grid systems, power engineering, steel and metallurgy, petrochemicals, rail transportation, energy and water conservancy, construction, environmental protection, and renewable energy sectors
