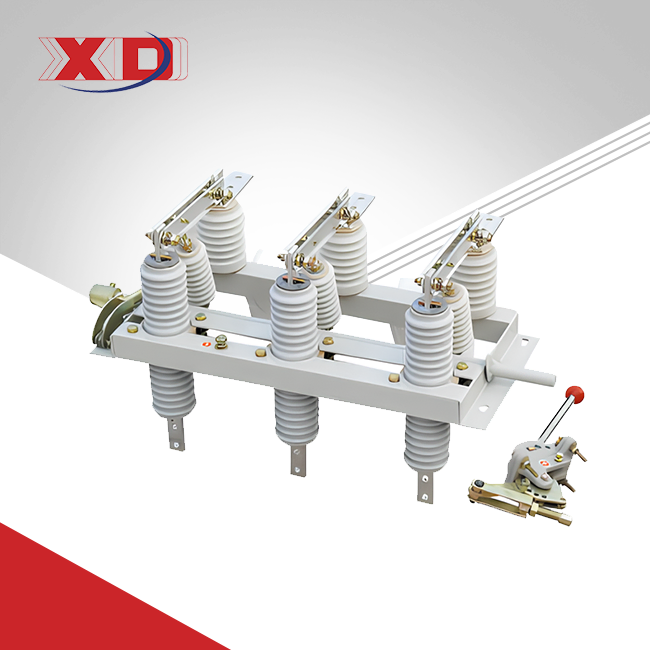

GN19 High Voltage Disconnect Switch
2.Rated Current:400,630,1000,1250A
3.Operated via manual mechanism.
4.Options include pollution, high-altitude, and voltage indicator types
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
1.GN19 High Voltage Disconnect Switch: Reliable Power Control for Demanding Applications
When managing high-voltage electrical systems, safety and reliability are non-negotiable. The GN19 High Voltage Disconnect Switch stands out as a robust solution for utilities, industrial plants, and renewable energy projects. Designed for 12kV systems with current ratings up to 1250A, this manually operated switch ensures secure electrical isolation while minimizing downtime. Its modular design adapts to harsh environments, from coastal salt spray to extreme temperatures, making it a trusted choice for global operators.
2.Technical Specifications
- Rated Voltage: 12kV
- Rated Current: 400A, 630A, 1000A, 1250A
- Operation: Manual lever mechanism
- Custom Options:
- Pollution-resistant coatings (ideal for industrial zones)
- High-altitude adaptation (up to 4000m above sea level)
- Integrated voltage indicators
| Model | Rated voltage (kV) | Rated current (A) | Rated short-time withstand current (kA/4s) | Rated peak withstand current (KA) |
| GN19-12/400-12.5 | 12 | 400 | 12.5 | 31.5 |
| GN19-12/630-20 | 12 | 630 | 20 | 50 |
| GN19-12/1000-31.5 | 12 | 1000 | 31.5 | 80 |
| GN19-12/1250-31.5 | 12 | 1250 | 31.5 | 80 |
| GN19-12C/400-12.5 | 12 | 400 | 12.5 | 31.5 |
| GN19-12C/630-20 | 12 | 630 | 20 | 50 |
| GN19-12C/1000-31.5 | 12 | 1000 | 31.5 | 80 |
| GN19-1C2/1250-31.5 | 12 | 1250 | 31.5 | 80 |
3.Key Features & Advantages
1. Engineered for Durability
Crafted from corrosion-resistant alloys and high-strength insulators, the GN19 withstands UV exposure, moisture, and chemical contaminants. Its triple-seal design ensures IP67 protection in outdoor installations.
2. Enhanced Safety
- Visible isolation gap for zero-voltage confirmation.
- Interlocking mechanisms prevent accidental operation during maintenance.
3. Grid Efficiency
Precision-engineered contacts reduce arc generation, lowering energy loss by up to 15% compared to conventional switches.
4. Customizable Configurations
Tailor the product for solar farms, railway substations, or mining sites with optional seismic bracing, extended busbars, or smart sensors.
4.Applications
Be used in a wide range of industries.
Industrial Plants
Eliminate power factor penalties in CNC machines and assembly lines while handling surge currents up to 100x rated capacity.
Substation
Stabilizes substation voltage against harmonics and intermittent generation from renewable inverters.
Commercial Buildings
Retrofit aging systems in hospitals or malls with silent (<45dB), flame-retardant capacitors that meet NFPA 70 fire codes.
5.How It Works?
The GN19 uses a rotating blade mechanism to physically disconnect circuits. When the lever is engaged:
1. The blade pivots away from the contact point.
2. A 15mm isolation gap is created, visible through the inspection window.
3. Spring-loaded latches lock the switch in the "OFF" position.
6.Manufacturing & Quality Assurance
Every GN19 High Voltage Disconnect Switch is produced in our ISO 9001-certified facility. Rigorous tests include:
- Dielectric Tests: 42kV for 1 minute.
- Mechanical Endurance: 10,000+ operation cycles.
- Environmental Simulation: Salt fog tests per IEC 60068-2-52.
7.Why Choose Us?
- Certifications: ISO 9001, ISO 14001, and 3C-certified manufacturing.
- Global Support: 24/7 technical assistance and spare parts logistics.
8.FAQs
Q: Does the GN19 comply with IEC 62271-102?
A: Yes. Third-party lab reports confirm full compliance for dielectric and mechanical performance.
Q: Can it handle -40°C environments?
A: Absolutely. Arctic-grade models with low-temperature lubricants are available.
Q: How often should I inspect the contacts?
A: Annual visual checks are recommended. In high-pollution areas, clean contacts every 6 months.
Q: Is customization possible for 15kV systems?
A: Yes. Contact our team for bespoke solutions.
9.Contact Us
Need a Quote GN19 High Voltage Disconnect Switch?
Email: xaxd_electric@163.com
Serving utilities, EPC contractors, and industrial clients in 30+ countries.
10.Factory Show
11.Equipment Display
12.Application Cases
State Grid systems, power engineering, steel and metallurgy, petrochemicals, rail transportation, energy and water conservancy, construction, environmental protection, and renewable energy sectors
