Filter Reactor

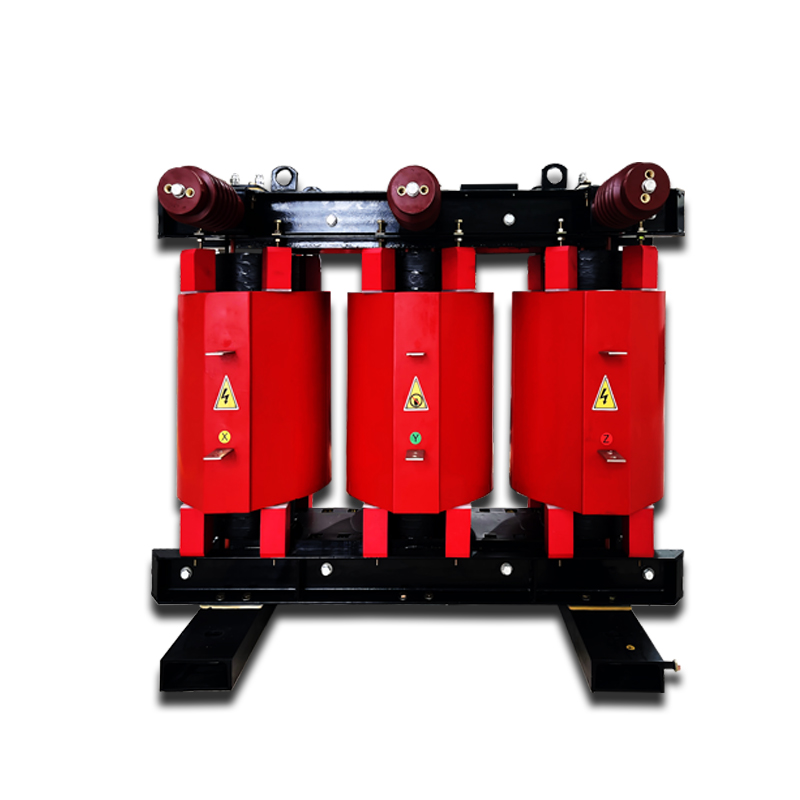

Filter Reactor - Advanced Harmonic Suppression Solution

Product Introduction

Looking for reliable harmonic suppression in your power system? Our Filter Reactor is the perfect solution for your electrical infrastructure needs. Designed specifically for medium and low voltage applications, this advanced inductive component works seamlessly with capacitor banks to eliminate harmful harmonics and protect your valuable equipment. At Xian Xikai Medium And Low Voltage Electric Co., Ltd., we understand the challenges you face with power quality issues in modern industrial environments. Our Filter Reactor delivers exceptional performance while ensuring your electrical systems operate efficiently and safely, making it an essential component for any serious power management strategy.

Technical Specifications

Main Features and Advantages

Superior Harmonic Suppression: Our reactors effectively suppress harmonics at different levels - 7% for harmonics above 5th order, 14% for 3rd order and above, and 27% for 2nd order and above.

Advanced Core Technology: Features imported cold-rolled silicon steel laminations with epoxy-laminated glass spacers that maintain stable air gaps and minimize losses.

High-Temperature Performance: Class H/C enamel-coated flat copper windings ensure silent operation and exceptional temperature resistance.

Robust Construction: Non-magnetic fasteners and vacuum-impregnated assembly create a bond between core and windings that guarantees low losses and superior harmonic suppression.

Compact Design: Lightweight and cabinet-compatible design reduces installation costs while maximizing space efficiency in your electrical panels.

Practical Applications

Industrial Manufacturing: Perfect for automotive plants with robotic welding lines where rapid harmonic fluctuations occur.

VFD Motor Centers: Essential in water treatment facilities and HVAC systems using variable frequency drives.

Power Generation: Critical for renewable energy integration points including solar and wind systems.

Commercial Buildings: Ideal for office complexes and shopping centers with diverse electrical loads.

Infrastructure Projects: Suitable for railway systems, substations, and urban development projects requiring stable power quality.

How It Works

Your power system generates harmonics through non-linear loads like drives and rectifiers. Our Filter Reactor connects in series with capacitor banks to create a tuned circuit. This configuration shifts the resonant frequency below harmful harmonics, preventing amplification and protecting your equipment. The reactor acts as a high-impedance barrier to harmonic frequencies while allowing fundamental frequency power to flow freely for reactive power compensation.

Manufacturing Excellence

We employ state-of-the-art manufacturing processes to ensure every reactor meets the highest standards. Our production includes pre-baking, vacuum impregnation, and thermal curing processes that create exceptional durability. Each unit undergoes rigorous testing to verify inductance precision and thermal performance. Our quality management systems include ISO9001, ISO14001, and OHSAS18001 certifications, ensuring consistent product excellence.

Why Choose Us

Proven Track Record: As a leading medium and low voltage power distribution equipment provider, we bring decades of expertise to every project.

Comprehensive Product Range: Our 9 categories and 34 series of products offer complete system solutions for your electrical needs.

Advanced Technology: All products meet national and international standards with many achieving domestic and international advanced levels.

Altitude Capability: Our high-prototype products perform reliably at elevations up to 4000m above sea level.

System Integration: We provide complete system solutions, not just individual components, ensuring optimal performance across your entire electrical infrastructure.

FAQ

Q: What maintenance does a Filter Reactor require?

A: Regular visual inspections and thermal monitoring are recommended. Check for loose connections and unusual noise levels annually.

Q: Can I retrofit existing capacitor banks?

A: Yes, but ensure your capacitors can handle the voltage rise caused by the reactor. Consult our engineers for compatibility assessment.

Q: How do I select the correct reactance rate?

A: This depends on your harmonic spectrum. 7% suits most general applications, while 14% and 27% address more severe harmonic environments.

Q: What's the typical lifespan?

A: With proper installation and maintenance, expect 20-25 years of reliable operation under normal conditions.

Q: Do you provide installation support?

A: Yes, we offer comprehensive technical support including installation guidance and commissioning assistance.

Contact Us

Ready to improve your power quality with our advanced Filter Reactor solutions? Our technical team is standing by to help you select the perfect reactor for your specific application. Whether you need standard configurations or custom solutions, we have the expertise and manufacturing capability to meet your requirements.

For technical consultations, quotes, or detailed specifications, reach out to us at serina@xaxd-electric.com. Let us help you achieve optimal power quality and protect your valuable electrical equipment with our proven harmonic suppression technology.
