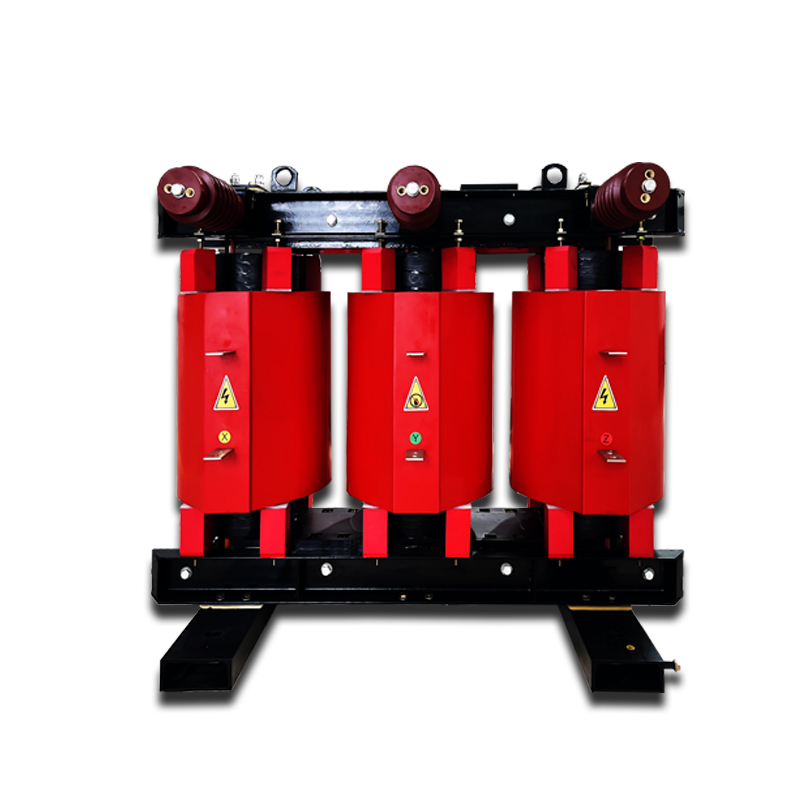

Dry-type Series Reactor

Dry-type Series Reactor - Advanced Power Quality Solutions

Product Introduction

Looking for reliable power quality management? Our Dry-type Series Reactor delivers exceptional performance for your electrical systems. This specialized inductive component connects in series with shunt capacitor banks to enhance power factor correction. Unlike traditional oil-immersed reactors, our Dry-type Series Reactor uses advanced epoxy resin vacuum casting technology. The coil undergoes high-temperature curing for superior durability. You get excellent insulation performance with high mechanical strength. Glass fiber reinforcement protects against large current shocks and thermal cycling. The moisture-proof design ensures long-term reliability in demanding environments.

Technical Specifications

Main Features and Advantages

Superior Construction Technology

• Epoxy resin vacuum casting provides excellent moisture resistance
• Glass fiber reinforcement withstands electrodynamic forces
• Air or solid insulation eliminates fire and explosion risks

Outstanding Performance

• Perfect inductance linearity prevents magnetic saturation
• Low noise operation compared to iron-core alternatives
• Minimal maintenance requirements with no oil changes needed

Environmental Resilience

• UV radiation and salt fog resistance
• Extreme temperature tolerance
• Zero oil maintenance for reduced environmental impact

Enhanced Safety Features

• No fire or leakage hazards
• Robust short-circuit withstand capability
• Partial discharge immunity through advanced insulation

Practical Applications

Industrial Power Factor Correction

Your manufacturing facilities benefit from improved power factor and reduced utility penalties. Our reactors work seamlessly with capacitor banks in heavy industry applications.

Renewable Energy Integration

Wind farms and solar installations rely on our reactors to filter harmonics from inverters. They ensure grid code compliance while maintaining system stability.

Utility Substations

Power companies use our reactors in static var generators and switchgear. They limit inrush currents and prevent equipment damage during capacitor switching.

Metallurgy and Steel Mills

Electric arc furnaces create challenging electrical environments. Our Dry-type Series Reactor handles rapid load fluctuations while filtering harmful harmonics.

How It Works

The reactor operates by creating controlled inductance in series with capacitor banks. When you energize capacitors, it limits dangerous inrush currents to safe levels. The inductive reactance counteracts capacitive reactance at specific harmonic frequencies.

This prevents parallel resonance between your capacitor bank and system impedance. The result is cleaner power with reduced total harmonic distortion. Your electrical equipment experiences less stress and enjoys longer operational life.

The air-core design maintains constant inductance regardless of current magnitude. This linearity ensures consistent performance during varying load conditions.

Manufacturing Excellence

Xi'an Xidian Medium and Low Voltage Electric Co., Ltd. brings decades of expertise to every reactor. We maintain strict quality control throughout production. Our ISO9001 certified processes ensure consistent product quality.

Advanced vacuum pressure impregnation technology creates superior insulation systems. Each reactor undergoes rigorous testing before shipment. We verify electrical parameters and mechanical integrity.

Our experienced engineering team designs custom solutions for unique applications. You receive products optimized for your specific operating conditions.

Why Choose Us

Comprehensive Product Range

We offer 9 categories, 34 series, and over 100 varieties of electrical equipment. This extensive portfolio meets diverse customer needs.

Technical Leadership

Our products meet national and international standards. Leading domestic and international technology ensures reliable performance.

Quality Certifications

ISO9001, ISO14001, and OHSAS18001 certifications demonstrate our commitment to excellence. These systems ensure consistent quality and environmental responsibility.

Custom Solutions

Our engineering team develops tailored solutions for unique requirements. You get products designed specifically for your applications.

Proven Track Record

Recognition as a famous brand product in China reflects our market leadership. Years of successful installations validate our technology.

FAQ

Q: What's the difference between air-core and iron-core reactors?

A: Air-core reactors offer perfect linearity and lower noise. Iron-core designs provide more compact size with contained magnetic flux.

Q: How do I select the correct reactance percentage?

A: Choose 6% for 5th harmonic filtering, 7% for general applications, or 13% for severe harmonic environments. Our engineers can help determine the optimal selection.

Q: What maintenance is required?

A: Minimal maintenance needed. Regular visual inspections and connection tightness checks are typically sufficient. No oil changes required.

Q: Can these reactors operate at high altitude?

A: Yes, our high-plateau products work reliably at altitudes up to 4000m above sea level.

Q: What's the typical lifespan?

A: With proper installation and normal operating conditions, expect 20-30 years of reliable service life.

Contact Us

Ready to improve your power quality with our Dry-type Series Reactor solutions? Our technical team is here to help you select the right product for your application.

Email: serina@xaxd-electric.com

Contact us today for detailed specifications, custom engineering, and competitive pricing. We're committed to delivering the power quality solutions your business needs.
