10KV SVG Reactor
2.altitude:1000m or less.
3. the highest monthly average relative humidity: 95% or less.
4. the highest temperature: +45 °C.
5. the lowest ambient temperature: -10 °C.
6. the maximum daily temperature difference: 25 °C.
7. seismic intensity: 8 degrees.
8. installation requirements: indoor.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
10KV SVG Reactor - Professional Power Quality Solutions
Product Introduction

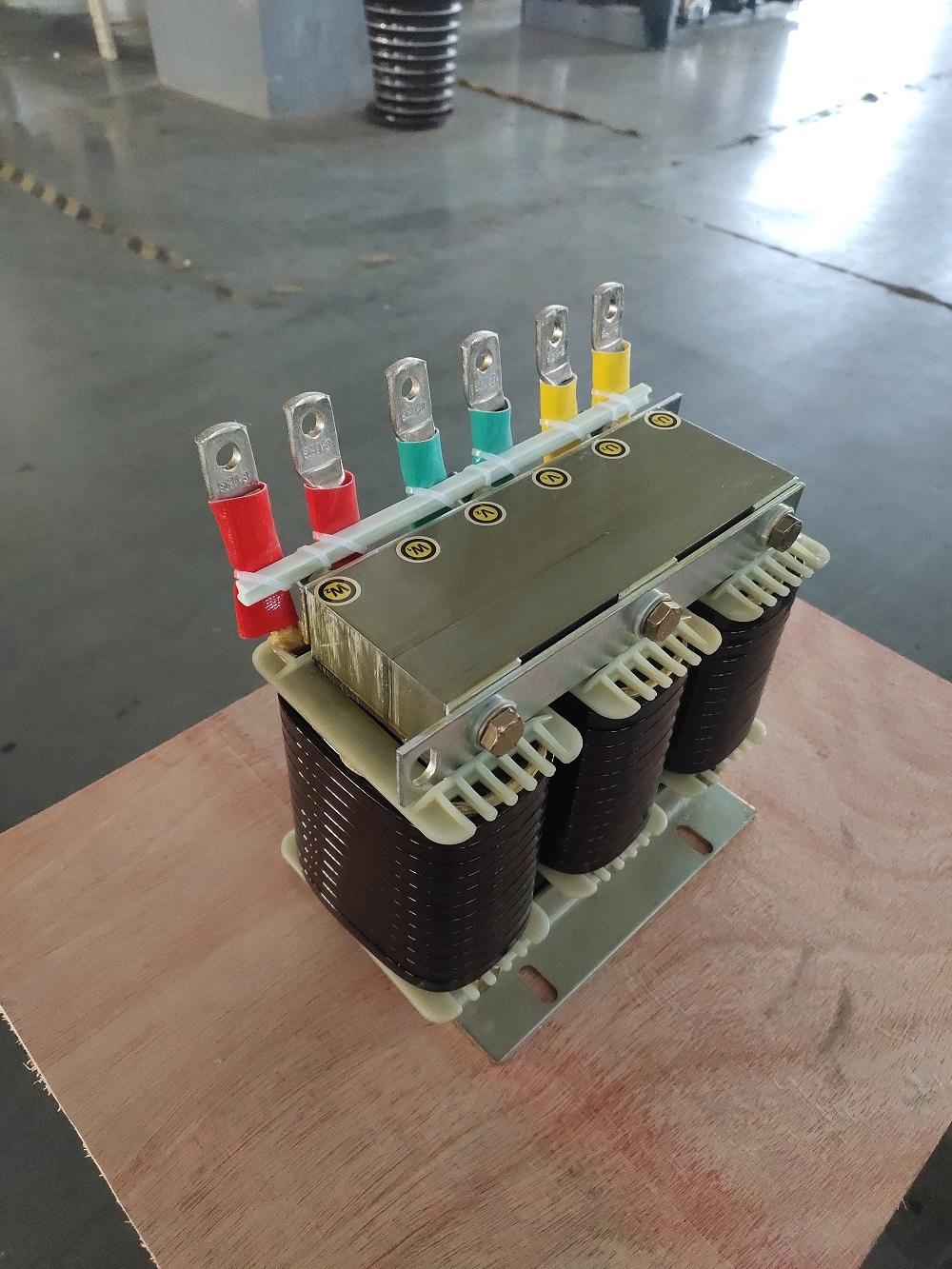

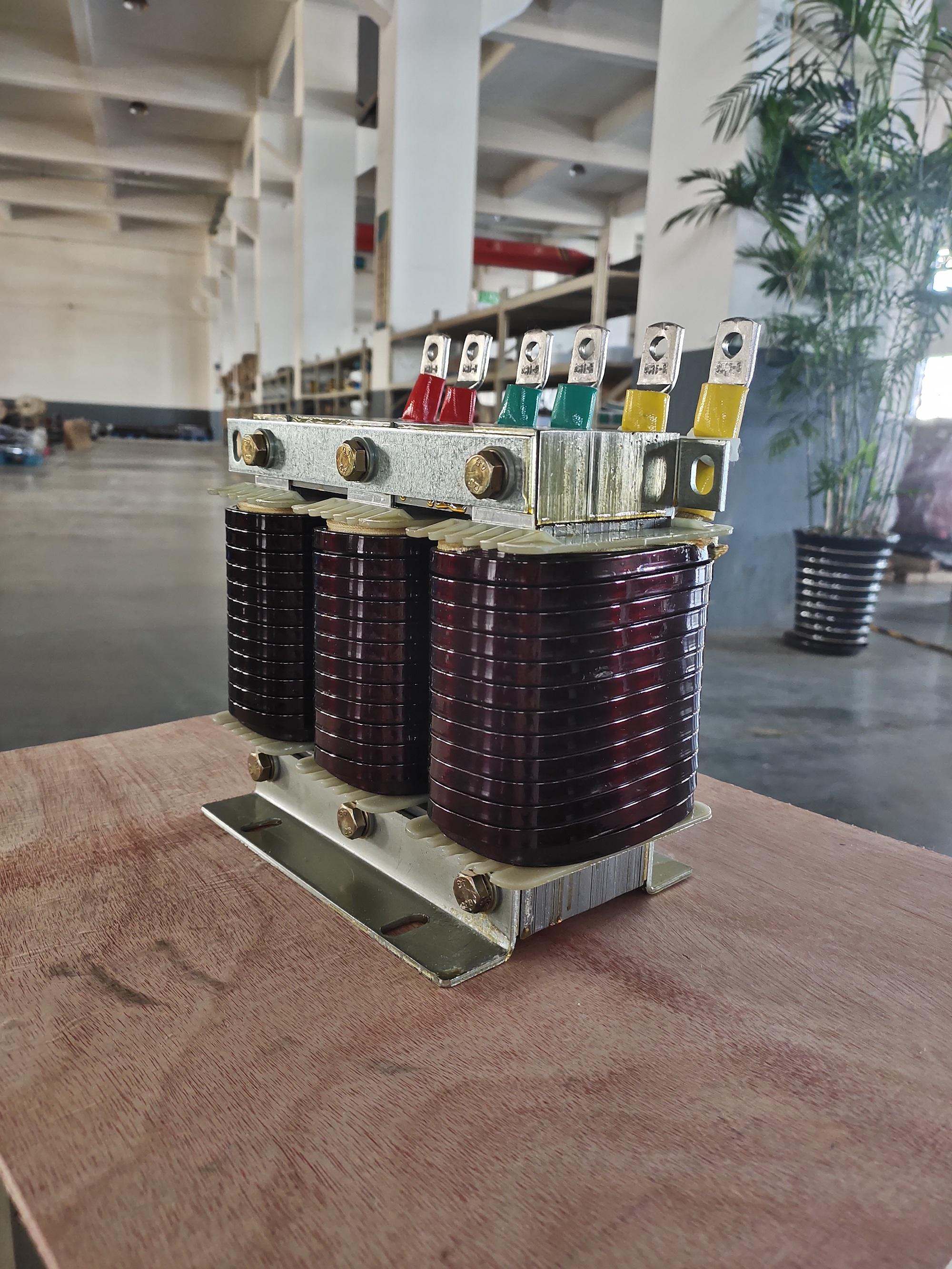

Looking for reliable power quality solutions for your 10kV electrical systems? Our 10KV SVG Reactor is specifically engineered to serve as a critical interface component between IGBT-based Voltage Source Converters and medium-voltage power grids. This specialized link inductor goes beyond traditional reactive power compensation by functioning as an advanced L-filter that smooths high-frequency switching ripples generated by Pulse Width Modulation systems. Your power infrastructure deserves protection from harmonic pollution and current surge damage. Our reactor ensures your IGBT modules remain protected while maintaining optimal power quality stability in demanding industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 10kV |
| Voltage Range | 0.4kV, 6kV, 10kV |
| Operating Altitude | ≤1000m |
| Maximum Ambient Temperature | +45°C |
| Minimum Ambient Temperature | -10°C |
| Maximum Daily Temperature Difference | 25°C |
| Monthly Average Relative Humidity | ≤95% |
| Seismic Resistance | 8 degrees |
| Installation Type | Indoor |
| Core Type | Iron Core/Air Core options |
| Insulation Class | Dry-type |
Main Features and Advantages
Superior Harmonic Filtering: Your electrical system benefits from advanced high-frequency switching noise suppression, effectively managing PWM-generated harmonics in the 2kHz-5kHz range.
IGBT Protection: Built-in current rate limiting (di/dt) safeguards expensive power electronics from sudden grid disturbances and fault currents.
Compact Design: Space-efficient iron core construction reduces footprint by up to 50% compared to air-core alternatives, perfect for containerized substations.
Magnetic Field Containment: Eliminates stray flux interference with sensitive control electronics, ensuring reliable operation in compact SVG cabinets.
Linear Performance: Advanced core design prevents magnetic saturation during dynamic reactive power compensation surges.
Practical Applications
Renewable Energy Integration: Your wind and solar farms require stable grid connection during voltage fluctuations. Our reactors enable effective Low Voltage Ride Through capability at Point of Common Coupling installations.
Industrial Manufacturing: Electric arc furnaces and heavy machinery generate severe power quality issues. The 10KV SVG Reactor provides millisecond-response reactive power compensation, eliminating voltage flicker.
Railway Traction Systems: Balance negative sequence currents in single-phase locomotive loads while protecting sensitive onboard electronics.
Urban Infrastructure: Underground substations benefit from compact, low-noise design that meets strict space and acoustic requirements.
How It Works
Your SVG system converts DC power to AC through high-frequency IGBT switching. Our reactor acts as the crucial interface between this converter and your 10kV grid. The inductive impedance smooths the stepped waveform output, creating clean sinusoidal current. During grid faults, the reactor limits current rise rates, preventing IGBT damage. The magnetic core design contains electromagnetic fields while providing the necessary inductance for proper SVG operation.
Manufacturing Excellence
We maintain strict quality control throughout our production process. Each 10KV SVG Reactor undergoes comprehensive testing including insulation resistance, partial discharge, and temperature rise verification. Our laminated silicon steel cores minimize losses while our VPI (Vacuum Pressure Impregnation) treatment ensures superior moisture resistance and mechanical strength.
Why Choose Us
Proven Expertise: Xi'an Xikai brings decades of medium and low voltage equipment experience to every project.
Quality Certifications: Our ISO9001, ISO14001, and OHSAS18001 certifications demonstrate our commitment to quality and safety.
Comprehensive Solutions: Beyond reactors, we provide complete power distribution system integration and ongoing technical support.
Customization Capability: We tailor solutions to your specific voltage, current, and environmental requirements.
FAQ
How does this differ from standard detuned reactors?
Standard detuned reactors work at fundamental frequency for capacitor protection. Our 10KV SVG Reactor handles high-frequency IGBT switching harmonics and serves as a grid interface component.
Should I choose iron-core or air-core design?
Iron-core is ideal when space is limited and indoor installation is required. Air-core works better for outdoor applications with ample space.
What maintenance is required?
These are largely maintenance-free units. Annual inspections should verify electrical connections and check for dust accumulation in cooling areas.
How does it protect expensive IGBT modules?
The reactor provides inductive impedance that limits current rise rates during grid disturbances, preventing damage to sensitive power electronics.
Contact Us
Ready to enhance your power quality with professional-grade reactor solutions? Our technical team is here to help you select the optimal configuration for your specific application requirements.
Email: serina@xaxd-electric.com
Connect with us today for detailed technical specifications, custom engineering solutions, and comprehensive project support. Your power quality challenges deserve expert attention and proven solutions.
