Active Harmonic Filters: Specs, Uses & Expert Tips
2025-12-04 11:27:40

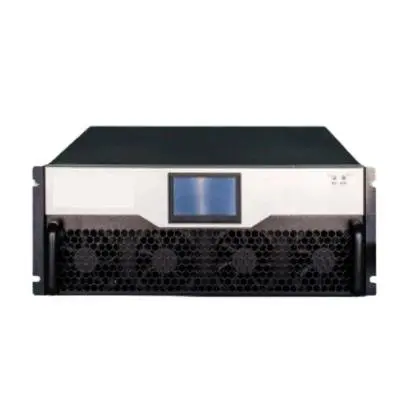

Active Harmonic Filters (AHFs) are essential for power quality and efficiency in industrial and commercial applications. These advanced devices reduce electrical harmonic distortions, improving performance and reliability. The important requirements, typical use cases, and professional insights for choosing and deploying Active Harmonic Filter systems are covered in this thorough reference. Optimizing power systems and lowering energy costs requires knowledge of AHFs, whether you manage a major industrial site, utility operations, or sophisticated electrical engineering projects. Explore Active Harmonic Filters and how they might improve your electrical infrastructure.
Defining Key Specifications for Active Harmonic Filters
When evaluating Active Harmonic Filters, it's essential to understand the key specifications that define their performance and capabilities. These specifications not only determine the filter's effectiveness in mitigating harmonics but also its suitability for specific applications.
Harmonic Mitigation Range
Harmonic mitigation range is a key specification. High-quality AHFs can handle harmonic orders up to the 50th or more. This extensive coverage suppresses low and high-order harmonics in electrical systems across several frequency bands.
Fast Response and Dynamic Performance
To respond quickly to harmonic content changes, an Active Harmonic Filter needs a fast reaction time. Advanced AHFs can swiftly respond to changing harmonic loads with millisecond reaction times. This dynamic performance is useful in variable frequency drives and fast-changing industrial processes.
Current Modularity and Capability
AHFs can manage harmonic currents based on their current capacity. Modern filters generally incorporate modular designs, allowing for flexibility and simple extension as system needs develop. Modularity increases system dependability and flexibility via redundancy.
Power Factor Correction and Efficiency
Efficiency ratings affect system performance and energy costs when choosing an AHF. Choose filters with efficiency scores over 97%. Many AHFs also rectify power factor, increasing system power quality.
Environmental and Safety Standards
Take into account operational temperature, humidity tolerance, and ingress protection. These characteristics guarantee AHF reliability in its intended placement. Operational safety and regulatory compliance need UL, CE, and IEEE certifications.
Monitoring and Communication Interfaces
AHFs with advanced monitoring and communication capabilities. Real-time harmonic analysis, remote monitoring, and building management system integration are desirable. These interfaces reveal system performance and enable preventive maintenance.
Understanding these key specifications enables informed decision-making when selecting an Active Harmonic Filter for your specific application, ensuring optimal performance and long-term reliability of your electrical system.
Common Use Cases Across Industrial and Commercial Sectors
Active Harmonic Filters are used in many business and industrial settings to fix problems with power quality and make the whole system work better. In this section, we will look at some of the most common ways that AHFs are useful.
Factories and other places that make things
In factories, AHFs are very important for keeping the power quality for sensitive equipment high. A lot of the time, variable frequency drives, welding tools, and other non-linear loads used in large industrial plants cause a lot of harmonic distortion. Putting Active Harmonic Filter options to use in these places helps:
- Keep sensitive process control tools from breaking down because of harmonics
- Make transformers and wires less energy-wasting and heat-making.
- Stop circuit breakers and other safety devices from tripping for no reason
- Raise the general power factor, which could lower energy fees
IT and data center buildings
Because they have so many nonlinear loads, data centers are more likely to have power quality problems than other places. When it comes to these places, AHFs:
- Make sure that computers and networking gear have a clean power supply
- Fix harmonic problems that can cause systems to crash or data to become lost
- Lower harmonic-related losses to make energy use more efficient
- Help meet strict standards for uptime and dependability in power quality
Using renewable energy sources
As more green energy sources are used, AHFs are becoming more and more important for integrating them into the grid:
- Reduce the vibrations that solar inverters and wind power engines make.
- Improve the strength of the power where it connects to the electric grid.
- Make the grid more stable and make sure it meets the standards for connecting utilities
Advice from experts on how to choose filters and connect systems
It takes careful thought and experience to choose the right Active Harmonic Filter and make it work well with your electrical system. Here are some tips from professionals to help you:
Full Harmonic Analysis Should Be Done
Do a full harmonic study of your electrical system before choosing an AHF. This needs to have:
- Checking the amounts of harmonic distortion at different parts of the system
- Figuring out where harmonics come from
- Looking at harmonic spectrum and load profiles
This information will help you figure out the right size and setup for your AHF solution so it can effectively solve your harmonic problems.
Think About Future Growth
Think about what you will need in the future when choosing an Active Harmonic Filter. Choose flexible systems that are easy to add to as your power needs change. This method gives you more options and might save you money in the long run.
Connect to existing equipment for power quality
If your system already has passive filters or power factor correction capacitors, you should think about how the AHF will work with these parts. To avoid resonance problems and make sure the whole power quality system works at its best, teamwork is very important.
Put monitoring and diagnostic tools at the top of your list
Pick an AHF that has improved tools for tracking and diagnosing. Predictive maintenance and real-time performance data can make a system much more reliable and make fixing much easier. By using these expert tips, you can make sure that the Active Harmonic Filter system you choose and install works well. This will improve the power quality and make the system more efficient.
Validation of performance with real-world data
It is important to test an Active Harmonic Filter system's performance to make sure it does what you want it to do and adds value to your business. Information from the real world shows that the AHF works and helps to support the expense. To do performance validation, follow these steps:
Set up baseline measurements
Do a full set of standard tests of your electrical system before adding the AHF. This needs to have:
- Levels of harmonic distortion (both voltage and current THD)
- Power level
- The amount of energy used
- Waveforms of voltage and current
We can use these standard data to figure out how the AHF has affected things.
Set up monitoring that never stops
Set up a constant tracking system to keep an eye on key performance indicators over time after adding the Active Harmonic Filter. Power quality testers from outside sources can be used for independent proof, but many modern AHFs already have tracking features built in.
Look at data from "before" and "after"
To find out how much better things are, compare the data from after the download with the data from before:
- Less THD in the blood
- The power factor got better
- Less energy use
- Voltage and current waves that are smoother
To successfully show the AHF's effect, put this information in a clear visual form like a graph or chart.
Write down the real-world benefits
In addition to the scientific measures, write down the real benefits you see in your activities, such as
- Less machinery breakdowns or downtime
- Made processes more stable in production settings
- Lessened fines for bad power factor from utilities
- Longer life for power equipment
These results in the real world are strong proof of the AHF's worth.
Keep track of long-term performance
Keep an eye on the AHF's success over a long period of time to make sure that results stay the same and to spot any long-term problems or trends. This information can help with planning upkeep and making the system better in the future. By carefully checking performance with real-world data, you can show that your Active Harmonic Filter investment is paying off and make smart choices about how to improve power quality in the future.
Conclusion
Power quality management relies on Active Harmonic Filters, which benefit industrial and commercial applications. From industrial plants to data centers, and from renewable energy integration to healthcare facilities, AHFs serve a critical role in minimizing harmonic distortions, boosting power factor, and enhancing overall system efficiency. Organizations may maximize Active Harmonic Filter capabilities by comprehending important requirements, considering expert selection and integration advice, evaluating performance with real-world data, and applying effective maintenance and optimization tactics. This complete strategy not only assures compliance with power quality requirements but also leads to decreased energy costs, greater equipment dependability, and enhanced operational efficiency. As power systems continue to change with the integration of additional non-linear loads and renewable energy sources, the role of Active Harmonic Filters is anticipated to expand. Staying educated on improvements in AHF technology and best practices for implementation will be critical for electrical engineers, facility managers, and decision-makers in sustaining high-quality power systems in the future.
FAQ
1. What is the main purpose of an Active Harmonic Filter?
An Active Harmonic Filter's primary purpose is to mitigate harmonic distortions in electrical systems. It dynamically injects compensating currents to cancel out harmonic frequencies, thereby improving power quality, reducing energy losses, and protecting sensitive equipment from harmonic-related issues.
2. How does an Active Harmonic Filter differ from a passive harmonic filter?
Unlike passive filters that use fixed components tuned to specific frequencies, Active Harmonic Filters use power electronics to dynamically adapt to changing harmonic conditions. This allows AHFs to address a wider range of harmonics more effectively and respond quickly to variations in load conditions.
3. Can Active Harmonic Filters improve energy efficiency?
Yes, Active Harmonic Filters can contribute to improved energy efficiency. By reducing harmonic distortions, they minimize energy losses in transformers, conductors, and other system components. Additionally, many AHFs offer power factor correction capabilities, which can further enhance overall system efficiency and potentially reduce utility penalties associated with poor power factor.
Unlock Superior Power Quality with Xi'an Xidian's Active Harmonic Filters
Experience the pinnacle of harmonic mitigation technology with Xi'an Xidian's cutting-edge Active Harmonic Filters. Our solutions leverage advanced modular designs and dynamic harmonic suppression capabilities to deliver unparalleled performance across diverse industrial applications. From rugged reliability tested in extreme conditions to seamless integration with existing power systems, Xi'an Xidian's AHFs are engineered to exceed your power quality expectations. Ready to transform your electrical infrastructure? Contact our expert team at xaxd_electric@163.com for a personalized consultation and discover how our Active Harmonic Filter solutions can optimize your power system's efficiency and reliability. As a leading Active Harmonic Filter manufacturer, Xi'an Xidian is committed to delivering innovative, high-quality solutions tailored to your specific needs.
