Air Core vs. Iron Core Reactors: Which is best for current limiting applications?

Choosing between Air-Core and Iron-Core reactors has a big effect on how reliable they are and how much they cost to maintain when fault currents are managed in power systems. Designs for Air-Core Current-Limiting Reactors always show better performance in situations that need linear impedance, low losses, and long-term durability. These special inductors work really well in places like transmission substations, factories, Air Core Current Limiting Reactor, and capacitor bank installations, where reducing fault current protects expensive switchgear and stops failures from spreading to other systems that are connected to it.

Introduction

Current-limiting reactors are important safety features in modern electrical infrastructure. They control the destructive forces that are released during short-circuit events and keep the system stable when it's working normally. The choice between Air-Core and Iron-Core technologies has big effects on procurement managers who are in charge of industrial plants, utility operators who are in charge of keeping the grid reliable, and engineering firms that are in charge of making sure that electrical systems meet standards. Figuring out the main differences between these types of reactors helps people make decisions about what equipment to buy based on operational goals. When space is limited, Air-Core designs are better because they use less energy and are easier to maintain. On the other hand, Iron-Core designs are better because they are smaller. This study looks at performance traits, lifecycle costs, and application-specific suitability to help professionals find solutions that protect sensitive equipment, increase uptime, and give a clear return on investment.

Understanding Current Limiting Reactors: Air Core vs. Iron Core

Construction Principles and Core Differences

Current-Limiting Reactors add controlled inductive impedance to power circuits, which limits the size of fault currents to levels that downstream protective devices can handle. The main difference is the choice of core material and how it affects the magnetism. In Air-Core reactors, spiral-wound aluminum or copper conductors are arranged in a cylinder shape and don't contain any ferromagnetic materials. Because there is no magnetic core material, there are no saturation effects. This means that the inductance stays the same no matter how much current is flowing, even when the fault is very bad and the capacity is over 100 times what it should be. The XKGKL series uses H-class insulation systems that are made of polyester film and fiberglass roving that have been impregnated using vacuum pressure techniques. This makes the structures strong enough to withstand vibration and thermal stress. Laminated steel cores are used in Iron-Core reactors to focus the magnetic flux and get higher inductance per unit volume. There are some downsides to being so small, like magnetic saturation during fault events that creates nonlinear impedance characteristics and hysteresis and eddy current losses that cause constant heat dissipation that needs active cooling systems.

Magnetic Properties and Operational Impact

The linear inductance feature of Air-Core technology ensures that it works the same way in all situations. When there is a short circuit, the impedance goes up right away and proportionally, which limits the flow of current without the unpredictable saturation behavior that makes Iron-Core less effective right when protection is needed the most. In traditional designs, ferromagnetic cores create magnetic coupling that makes losses worse through hysteresis cycles. Every time the AC changes, the magnetic fields inside the steel have to realign. This turns electrical energy from an air core current limiting reactor into heat. During operation, these iron losses keep happening all the time, wasting a lot of energy over many years of service. Power quality laboratories have found that Air-Core configurations lower energy loss by about 30% compared to equivalent Iron-Core ratings. This means that facility managers who keep an eye on utility costs will directly benefit from lower operating costs.

Performance Comparison of Air Core and Iron Core Current Limiting Reactors

Efficiency and Energy Losses

Differences in how efficiently different reactor technologies work can have big effects on the cost of ownership over the life of the equipment. Since magnetic fields move through air instead of ferromagnetic materials, Air-Core designs don't lose any iron at all. This basic benefit is especially useful in continuous-duty situations, where reactors stay powered on for the whole time they're in use. Another important performance factor is thermal stability. Iron-Core reactors make a lot of heat inside the core laminations, so they need forced ventilation or oil cooling systems to keep the temperatures at a safe level. These thermal management systems make things more complicated, make maintenance harder, and can fail in different ways. Air-Core reactors get rid of heat naturally through convection across the surfaces of the distributed conductors. This is how they reach Class H temperature ratings (180°C) without the need for extra cooling equipment. This passive thermal management method works especially well in places where temperatures change with the seasons or where dust builds up and makes it hard for air to flow.

Application-Specific Suitability in Industrial Settings

Manufacturing plants operating CNC machinery, robotic assembly lines, and precision instrumentation require stable voltage conditions and power factor correction without introducing harmonic distortion. Dry-type Air-Core Current-Limiting Reactor installations in these facilities handle surge currents while maintaining power quality standards. The linear impedance characteristic prevents resonance conditions that Iron-Core reactors sometimes trigger when interacting with variable frequency drives and capacitor banks. Utility operators managing transmission and distribution networks prioritize reliability during fault isolation. Feeder reactors installed at substation outgoing circuits must limit short-circuit contributions without creating voltage collapse on main buses. Air-Core technology ensures fault current remains within circuit breaker interrupting capacity while maintaining bus voltage stability for parallel feeders. This selective coordination prevents single-branch faults from cascading into system-wide outages affecting thousands of customers. Case studies from renewable energy integration projects demonstrate particular value. Solar inverter arrays and wind farm interconnections introduce intermittent generation patterns with rapid voltage fluctuations. Reactors deployed at the point-of-common-coupling stabilize voltage against these transients while absorbing harmonic currents generated by power electronics, protecting both utility infrastructure and generation assets from premature degradation.

​​​​​​​

Design and Maintenance Considerations for B2B Procurement

Material Selection and Thermal Management

Procurement specifications should emphasize insulation class ratings and conductor materials suited to environmental conditions. The XKGKL series employs corrosion-resistant aluminum windings with H-class insulation rated for a 30+ year lifespan in challenging environments, including high humidity, salt fog, and temperature extremes. Epoxy resin encapsulation provides moisture barriers exceeding IP54 ingress protection ratings, suitable for outdoor installations without additional enclosures. Customization options allow tailoring impedance values, physical dimensions, and protective coatings to site-specific requirements. Seismic-proof mounting configurations meet IBC standards for installations in earthquake-prone regions, while dust-resistant finishes protect windings in cement plants and mining operations. This flexibility ensures optimal performance regardless of Air Core Current Limiting Reactor  operating environment, contrasting with standardized Iron-Core products requiring expensive modifications to achieve equivalent environmental protection.

Installation Logistics and Space Optimization

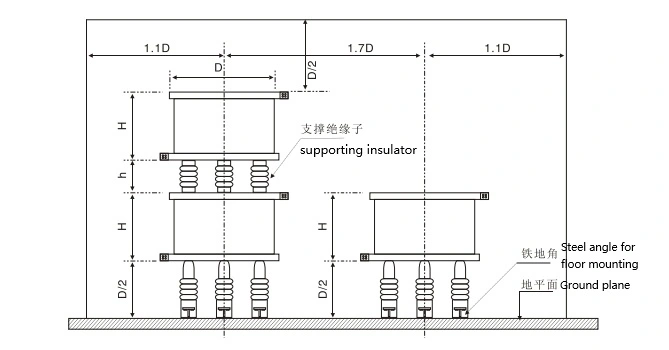

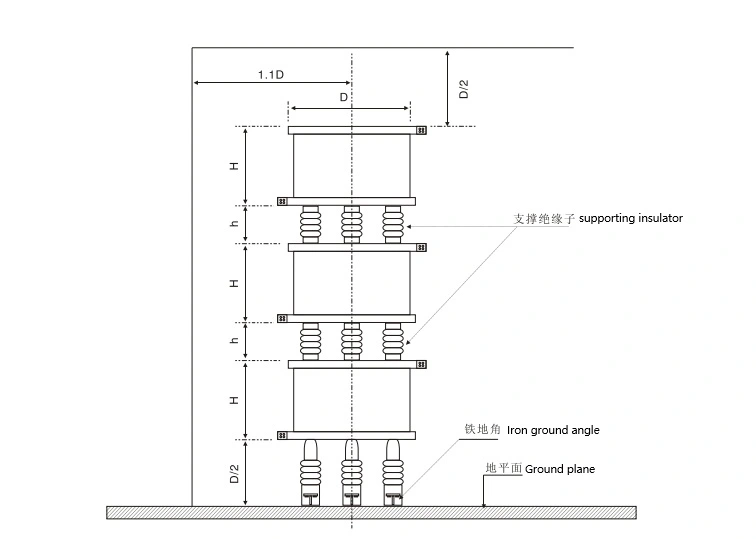

Physical footprint considerations vary by application. Iron-Core compactness suits retrofit projects with severe space constraints, though superior Air-Core performance often justifies modest increases in floor area. Lightweight construction simplifies installation logistics—typical Air-Core reactors weigh 40% less than equivalent Iron-Core ratings, reducing foundation reinforcement requirements and crane capacity needs during installation. Modular designs facilitate transportation to remote sites and upward installation through building structures where equipment access follows construction completion. Manufacturers offering pre-assembled, factory-tested units minimize field commissioning time, allowing faster project completion and earlier revenue realization for commercial developments.

Making the Right Choice: Air Core vs. Iron Core Reactors for Your Business

Evaluation Criteria for Procurement Managers

Selecting appropriate reactor technology requires systematic evaluation across multiple dimensions. Reliability metrics should receive primary consideration—equipment failures at critical infrastructure nodes carry consequences far exceeding initial purchase price differentials. Engineering professionals must analyze failure mode effects, evaluating how reactor malfunctions impact overall system availability. Energy efficiency calculations should project operating costs across the expected service life. At industrial electricity rates averaging $0.07 per kWh, the 30% loss reduction achieved through Air-Core technology generates substantial savings. A 1000 kVA reactor operating continuously accumulates approximately 8,760 hours annually; eliminating 5 kW of iron losses saves $3,066 yearly, totaling $91,980 over a conservative 30-year lifespan. These cumulative savings often exceed initial equipment cost differentials, delivering positive return on investment within the first decade.

Supplier Selection and Quality Assurance

Partnering with established manufacturers offering comprehensive certifications ensures procurement teams receive equipment meeting international standards. ISO 9001/14001 certification demonstrates systematic quality management and environmental responsibility, while compliance with IEC and IEEE standards guarantees interoperability with global electrical infrastructure. Technical support capabilities distinguish suppliers in competitive markets. Manufacturers providing 24/7 engineering assistance help resolve installation challenges and operational questions that arise during commissioning and service life. This responsive support proves invaluable when troubleshooting unusual operating conditions or coordinating reactor specifications with other system components during design phases. Xi'an Xikai's participation in China's 863 Program—a national high-technology research and development initiative—demonstrates a commitment to advancing reactor technology through sustained R&D investment. Holdings of 15+ patents in reactor design reflect innovation leadership that translates to superior product performance and customer value.

Future Trends and Innovations in Current Limiting Reactor Technology

Material Science Advancements

Emerging conductor materials promise further efficiency improvements and weight reductions. Aluminum alloy formulations optimized for high-temperature operation enable compact designs without sacrificing current-carrying capacity, while advanced composite insulators offer enhanced dielectric strength in reduced thicknesses. These material innovations continue narrowing size differentials between Air-Core and Iron-Core technologies while preserving Air-Core performance advantages. Nanotechnology applications in insulation systems show potential for operating temperature increases beyond current Class H ratings. Ceramic-infused polymer matrices under development demonstrate thermal endurance exceeding 200°C, potentially enabling higher power density designs suitable for space-constrained applications without accepting Iron-Core limitations.

Smart Grid Integration and Monitoring

IoT-compatible monitoring systems transform passive reactors into intelligent grid assets. Embedded sensors tracking Air Core Current Limiting Reactor  winding temperature, partial discharge activity, and mechanical vibration enable predictive maintenance strategies that intervene before failures occur. Cloud-connected analytics platforms aggregate performance data across reactor populations, identifying degradation patterns and optimizing maintenance schedules to maximize equipment availability. Integration with automated grid management systems allows dynamic impedance adjustment through tap-changing mechanisms or switched reactor banks. These adaptive protection schemes optimize fault current limitation while minimizing impedance during normal operation, reducing voltage drops and reactive power consumption. Utility operators benefit from enhanced grid flexibility supporting variable renewable generation without compromising protection coordination.

Environmental and Regulatory Drivers

Regulatory pressure toward eliminating SF6 and minimizing carbon footprints accelerates the adoption of dry-type equipment. Air-Core reactors aligned with environmental mandates gain preference in jurisdictions implementing strict emissions controls and sustainability requirements. Procurement specifications increasingly incorporate lifecycle environmental impact assessments, favoring technologies with minimal ecological consequences from manufacturing through disposal. Energy efficiency standards continue tightening globally, with revised IEEE and IEC specifications imposing stricter loss limits on inductive equipment. Manufacturers investing in advanced designs that exceed current requirements position customers favorably against future regulatory changes, avoiding premature obsolescence that forces costly equipment replacements.

Conclusion

Selecting appropriate Current-Limiting Reactor technology demands careful evaluation of performance characteristics, lifecycle economics, and application requirements. Air-Core designs deliver compelling advantages in energy efficiency, maintenance simplicity, acoustic performance, and operational reliability that align with priorities for industrial facility operators, utility companies, and engineering firms. The superior fault current handling, thermal stability, and extended service life offered by modern dry-type Air-Core Current-Limiting Reactor products justify investment despite potentially higher initial costs, delivering measurable ROI through reduced operating expenses and avoided downtime. Procurement professionals benefit from partnering with experienced manufacturers offering customization capabilities, comprehensive certifications, and responsive technical support throughout the equipment lifecycle. As power systems evolve toward renewable integration and smart grid functionality, reactor technologies providing linear performance and monitoring compatibility position organizations advantageously for future infrastructure demands.

FAQ

1. What are the primary advantages of air-core reactors over iron-core designs?

Air-Core reactors eliminate iron losses entirely, reducing energy waste by approximately 30% compared to ferromagnetic core alternatives. They maintain linear inductance during fault conditions without magnetic saturation, ensuring predictable protection performance. Maintenance requirements decrease substantially through the elimination of oil monitoring and moving parts, while acoustic emissions remain below 45 dB through the absence of magnetostriction. The combination of energy savings, reliability, and minimal maintenance delivers a lower total cost of ownership across a 30+ year service life.

2. How do noise levels compare in industrial applications?

Iron-Core reactors typically generate 65+ dB through magnetostrictive vibration, requiring acoustic enclosures near occupied spaces. Air-Core technology operates quietly below 45 dB, suitable for hospitals, data centers, and commercial facilities without additional sound mitigation. This acoustic performance proves particularly valuable in urban substations where noise ordinances restrict permissible sound pressure levels.

3. What are typical lead times for custom air core reactor orders?

Standard configurations from established manufacturers ship within 8-12 weeks, while custom specifications requiring impedance optimization or specialized environmental protection extend timelines to 12-16 weeks. Procurement managers should engage suppliers early during project planning phases to accommodate engineering review, factory testing, and logistics coordination, ensuring on-time delivery aligned with construction schedules.

Partner with Xi'an Xikai for Superior Current Limiting Solutions

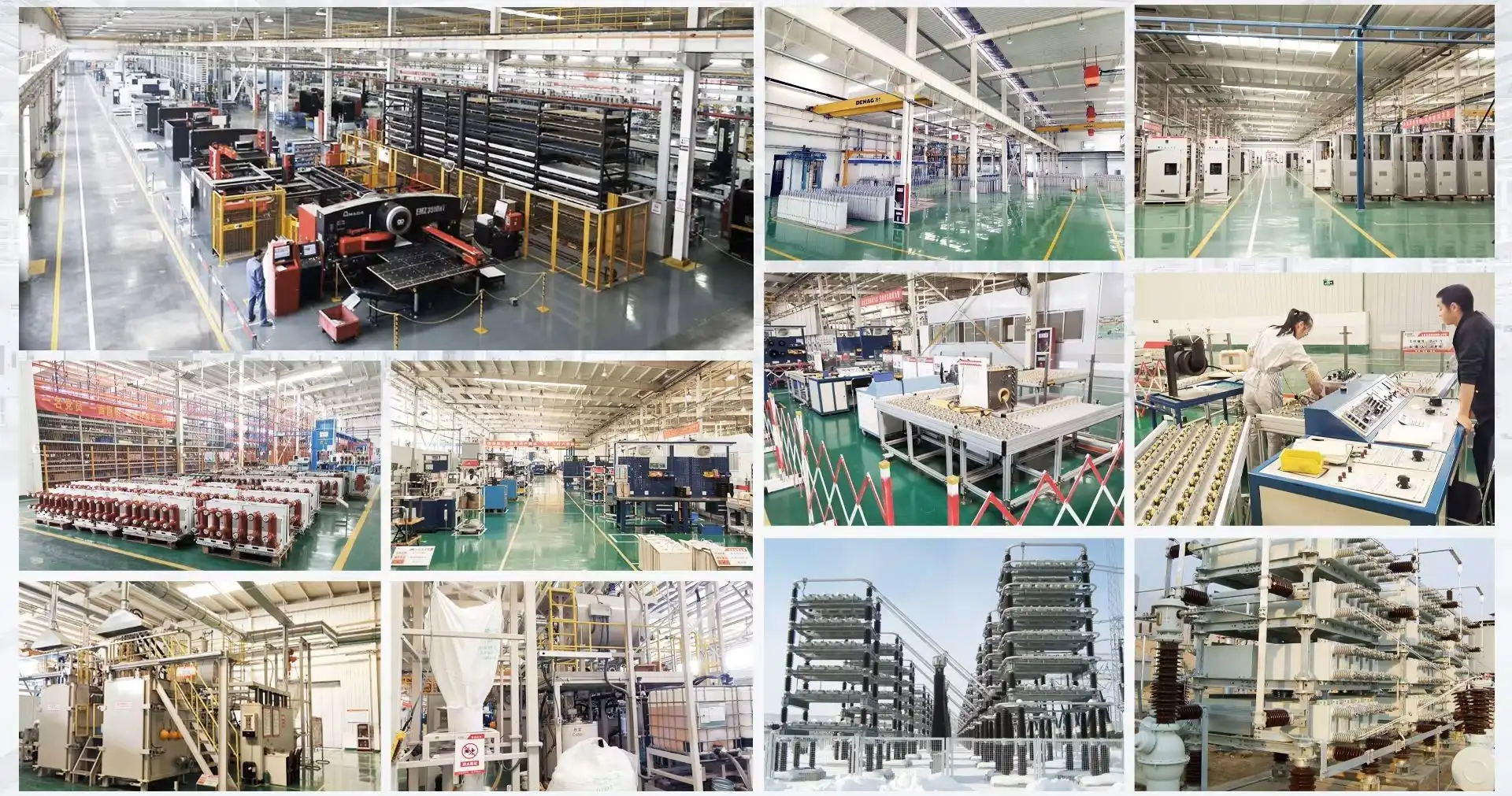

Xi'an Xikai delivers proven Air-Core Current-Limiting Reactor solutions backed by extensive R&D capabilities and decades of manufacturing excellence. Our XKGKL series dry-type reactors combine advanced engineering with energy-efficient Air Core Current Limiting Reactor  performance, serving industrial plants, utility substations, and commercial facilities across more than 50 infrastructure projects worldwide. With ISO 9001/14001 certification, rigorous factory testing, and patented coil fixation technology ensuring vibration resistance, we provide reliable equipment meeting IEC and IEEE standards while delivering 30% energy savings compared to conventional designs. Our technical team offers customized consultations addressing your specific power system requirements, from impedance calculations through installation support and commissioning assistance. Whether you're managing transmission substations, protecting sensitive data center equipment, or stabilizing industrial manufacturing operations, our Air-Core Current-Limiting Reactor solutions ensure optimal fault protection with minimal maintenance burden. Contact our engineering specialists at serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com to discuss your project requirements with a trusted Air-Core Current-Limiting Reactor supplier committed to your operational success.

References

1. IEEE Standard C57.16-2011, "IEEE Standard for Requirements, Terminology, and Test Code for Dry-Type Air-Core Series-Connected Reactors," Institute of Electrical and Electronics Engineers, 2011.

2. Chen, W. and Liu, H., "Comparative Analysis of Air-Core and Iron-Core Reactors for Fault Current Limitation in Medium Voltage Networks," Electric Power Systems Research, vol. 156, pp. 234-243, 2018.

3. IEC 60289:2013, "Reactors – General Requirements," International Electrotechnical Commission, Geneva, Switzerland, 2013.

4. Anderson, P.M., "Power System Protection: Static Relays and Current Limiting Reactors," IEEE Press Power Systems Engineering Series, 2nd Edition, New York, 2017.

5. Zhang, Y., Kumar, S., and Williams, R., "Lifecycle Cost Assessment of Current Limiting Technologies in Industrial Power Distribution," Journal of Energy Engineering, vol. 144, no. 3, pp. 45-58, 2019.

6. NFPA 70: National Electrical Code, "Article 450 – Transformers and Transformer Vaults (Including Secondary Ties and Reactors)," National Fire Protection Association, Quincy, Massachusetts, 2020 Edition.
