Benefits of Using Indoor Vacuum Circuit Breakers

Indoor vacuum circuit breakers are among the most dependable protection devices in medium-voltage power systems today. Whether you manage a switchgear manufacturing line or oversee procurement for a large industrial facility, these devices offer measurable advantages in safety, longevity, and environmental compliance. The ZN63(VS1) series, for example, supports rated currents from 630A to 3150A and operates across a wide temperature range of -15℃ to +40℃, making it a practical choice for diverse applications. This article walks through why vacuum-based switching technology continues to gain traction across industries.

Understanding Indoor Vacuum Circuit Breakers

What They Are and How They Work

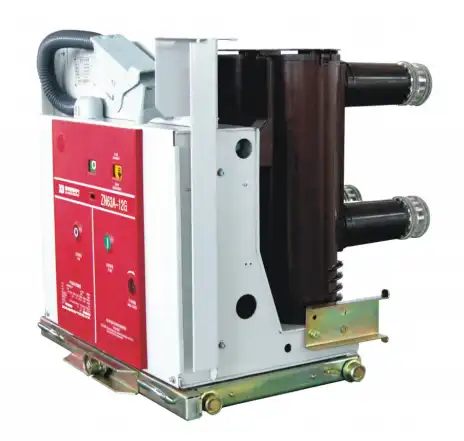

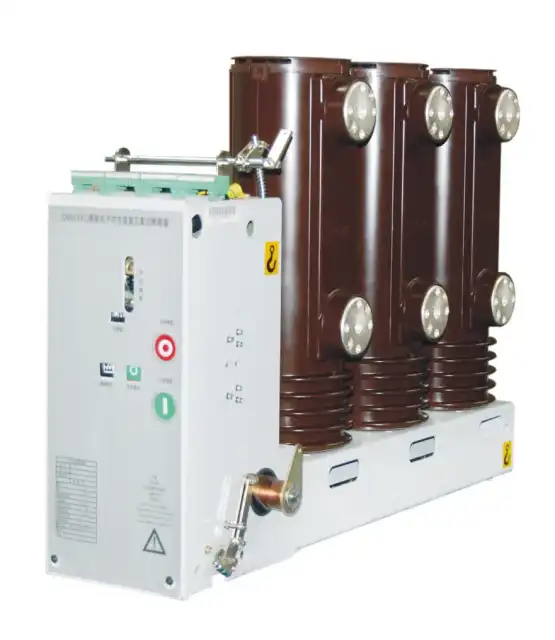

An indoor vacuum circuit breaker stops fault currents by separating contacts inside a room that is shut off from the outside world. Arcing goes out almost instantly because there is no ionizable medium like oil or SF6 gas. This open/close action in the ZN63-VS1 is controlled by either a spring or a permanent magnetic mechanism. When there is a fault, the contacts separate in milliseconds, and the vacuum chamber stops the arc before it can hurt linked KYN28 panels or equipment further down the line.

Key Technical Ratings

The ZN63-VS1 indoor vacuum circuit breaker can handle 630A, 1250A, 1600A, 2000A, 2500A, and 3150A of current at 50Hz. It has been tested at heights of up to 1,000 meters and can handle earthquakes with a strength of up to MSK-8. The unit can handle daily humidity levels of up to 95% RH and works well in places without toxic gasses, salt spray, or heavy dust. These specs exactly match the fitting needs of standard 12kV switchgear settings.

Classification and Comparison With Other Types

Indoor vacuum circuit breakers are different from outdoor types mainly in how their housing is made and how the insulation is arranged. They don't have problems with carbon gas control like SF6 breakers do. They don't have the risks of fire or leaks that oil-filled breaks do. Their mechanical endurance ratings usually say that they can handle 10,000 or more cycles of operation, which is a lot more than oil breakers can handle. The VS1 form factor has standard sizes that make it easier for switchgear OEM makers that want to use KYN28 and similar cabinet setups to integrate their products across production lines.

Core Benefits of Indoor Vacuum Circuit Breakers

In the last twenty years, engineers and buying teams have had a lot of faith in vacuum interrupter technology because of how well it has worked in medium-voltage uses. Here are the main benefits of this gadget that are most important to business buyers:

• Extended service life: The vacuum interrupter in a well-maintained unit typically lasts 20 to 30 years under standard operating conditions. With no arc-quenching medium to replace, the primary wear factor is contact erosion, which is gradual and predictable.
• Low maintenance demand: Unlike oil circuit breakers that require periodic fluid checks and disposal, the ZN63-VS1 only requires periodic contact wear measurement and mechanism lubrication. This reduces technician time and site intervention frequency.
• Zero SF6 emissions: As global regulations tighten on SF6 usage (the EU's F-Gas Regulation, for example, targets phasing down SF6 in new equipment), vacuum technology positions buyers ahead of compliance requirements.
• Compact footprint: The ZN63-VS1 fits standard 1000mm-width switchgear bays, making it directly interchangeable with other VS1-type units in existing KYN28 or KYN61 cabinets without structural modifications.
• "No SF6 emissions": As rules around the world make it harder to use SF6 (for example, the EU's F-Gas Regulation aims to reduce the amount of SF6 in new equipment), vacuum technology puts buyers ahead of the rules.

Comparative Advantages Over Other Circuit Breaker Technologies

It comes down to three things for procurement teams to decide between vacuum technology, SF6, air-insulated, and oil circuit breakers: total ownership cost, environmental liability, and operational reliability.

SF6 breakers work well at higher voltages, but at 12kV, their environmental and regulation load is greater than their insulation benefit. End-of-life handling of SF6 needs trained professionals and special recovery tools. Oil circuit breakers, which used to be common in industrial substations, can catch fire and need to be serviced more often. Air circuit breakers are good for low voltage but not for medium voltage grid uses because they can't stop enough.

The indoor vacuum circuit breaker, on the other hand, can handle short-circuit breaking capacities of 25kA and 31.5kA, which are the two most popular standards in the 12kV switchgear market. It does this without producing any dangerous waste or needing any gas handling infrastructure. MarketsandMarkets predicted that the global vacuum circuit breaker market would grow from USD 3.8 billion in 2022 to USD 5.4 billion by 2027. This was due to the need for cleaner, less-maintenance options in distribution networks.

Procurement Considerations for Indoor Vacuum Circuit Breakers

Evaluating Supplier Reliability

When companies that make KYN28-series switchgear buy in bulk every month, supplier stability is just as important as unit price. Timelines for delivery, decline rates, and customer service responses all affect when output will happen. Anyone who wants to sell indoor vacuum circuit breakers should be IEC 62271-100 certified and on the right qualified vendor lists, like the State Grid approved supplier registry for Chinese domestic projects.

Standardization and Interchangeability

To most people in China and Southeast Asia, the VS1 model is now the standard for 12kV indoor switchgear. When buying in bulk, it's important to make sure that the chassis dimensions, secondary plug pinouts, and mechanism compatibility with existing cabinet tooling are all correct. The Xi'an Xikai ZN63-VS1 meets these requirements for interchangeability and is made using ISO 9001-certified methods. Each unit goes through dielectric testing at 65kV and a full set of mechanical endurance checks.

Customization and Lead Times

A prototyping period of two to three months is common for new specs. Xi'an Xikai can be customized to work with non-standard rated currents, secondary devices that are compatible with the Internet of Things (IoT), and plateau placements at heights above the standard 1,000m limit. For normal orders that are placed on a regular basis, production wait times are set up so that there are never any stock shortages during the monthly order cycle.

Maximizing Operational Efficiency with Indoor Vacuum Circuit Breakers

Routine Maintenance Practices

A vacuum circuit breaker doesn't need a lot of work to stay in good shape. The main checks are checking the mechanism spring tension, measuring the contact over-travel (usually 3 mm wear error on the dynamic contact rod), and running a power frequency withstand voltage test on open contacts to make sure the vacuum is solid. If the crack breaks at the specified test voltage, the interrupter needs to be replaced.

Installation Best Practices

When an indoor vacuum circuit breaker is installed by a professional, they should follow the rules in IEC 62271-1. The secondary wiring connections need to match the aviation plug pinout configuration on the cabinet. When installing upgrades on old KYN28 panels, technicians need to make sure that the voltage in the closing coil stays above 85% of its rated value while it's working. Voltage drops below 65% are a common reason why closing fails in the field.

Smart Grid Integration

Some versions of the ZN63-VS1 that work with the Internet of Things can keep track of contact wear, insulation resistance, and the number of working cycles in real time. By putting this information into a building's energy management system, maintenance teams can plan their actions before things go wrong, so condition-based servicing takes the place of reactive repairs. This method works especially well in substations for collecting green energy where the change frequency is high.

Conclusion

Indoor vacuum circuit breakers are a wise and inexpensive choice for switchgear makers and building managers who need reliable fault protection but don't want the extra costs of gas or oil-based systems. The ZN63-VS1 has a rated current range that is most useful for making 12kV switchgear. It also meets international environmental standards and can be easily installed in existing cabinet designs. Standardized dimensions, proven interrupting capacity at 25kA/31.5kA, and predictable maintenance needs make vacuum technology the practical default at medium voltage for procurement teams that need to buy a lot of something. Because it can make things and get them certified, Xi'an Xikai is a seller that should be looked at for supply lines in both China and Southeast Asia.

FAQ

Q1: How long does a vacuum interrupter last?

Under standard operating conditions, a quality vacuum interrupter lasts 20 to 30 years. The primary wear indicator is contact erosion. Most manufacturers mark a 3mm wear limit on the dynamic contact rod, and vacuum integrity can be verified through a power frequency withstand voltage test on open contacts.

Q2: Can a VS1-type breaker retrofit into an existing KYN28 cabinet?

Yes. The ZN63-VS1 is designed with standard chassis dimensions compatible with KYN28 and similar 12kV cabinet families. Before insertion, always verify the secondary wiring diagram and aviation plug pinout to avoid control circuit mismatches.

Q3: What causes a vacuum circuit breaker to refuse closing?

The three most common causes are: closing coil voltage below 65% of rated value, a failed spring latch, or an active anti-reclose relay. Checking secondary circuit voltage and the mechanical latch position resolves most cases.

Q4: Does altitude affect performance?

Standard ZN63-VS1 units are rated for altitudes up to 1,000m. Above this, external air insulation weakens. For higher-altitude sites, a plateau-type variant with adjusted insulation dimensions is required to prevent external flashover.

Q5: Is periodic gas refilling needed?

No. The vacuum interrupter is a hermetically sealed unit. It requires no medium replacement or gas handling throughout its service life.

Get Indoor Vacuum Circuit Breakers From Xi'an Xikai

The ZN63-VS1 line is made by Xi'an Xikai Medium & Low Voltage Electric Co., Ltd., which is ISO 9001-certified and fully IEC and 3C-compliant. As a reliable company that makes indoor vacuum circuit breakers, we can handle large OEM orders, standard VS1 interchangeability, and customizations for the plateau type. You can get in touch with our tech team at serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com. You can get datasheets or start a sample order right now at xaxd-electric.com.

References

1. MarketsandMarkets. Vacuum Circuit Breaker Market — Global Forecast to 2027. 2022.

2. International Electrotechnical Commission. IEC 62271-100: High-Voltage Switchgear and Controlgear — Alternating-Current Circuit Breakers. 2021.

3. International Electrotechnical Commission. IEC 62271-1: Common Specifications for High-Voltage Switchgear and Controlgear Standards. 2017.

4. European Parliament. Regulation (EU) No 517/2014 on Fluorinated Greenhouse Gases (F-Gas Regulation). 2014.

5. IEEE Power & Energy Society. IEEE C37.04: Standard Rating Structure for AC High-Voltage Circuit Breakers. 2018.

6. Electric Power Research Institute (EPRI). Maintenance and Testing of Vacuum Circuit Breakers in Distribution Systems. 2019.
