How to Choose an Indoor Vacuum Circuit Breaker

Choosing the right indoor vacuum circuit breaker matters more than most procurement teams initially expect. These devices protect medium-voltage electrical systems by interrupting fault currents within milliseconds, using a sealed vacuum interrupter chamber to extinguish the arc. Whether you manage switchgear production or oversee substation upgrades, selecting the correct indoor vacuum circuit breaker requires evaluating rated current, breaking capacity, mechanical endurance, interchangeability, and supplier credibility. This guide walks you through every stage of that decision.

Understanding Indoor Vacuum Circuit Breakers: Basics and Key Features

Before comparing models, it's helpful to know what makes an indoor vacuum circuit breaker different from older technologies and what features are most important in real life.

How Vacuum Interruption Works

An indoor vacuum circuit breaker opens its contacts inside a clay or glass interrupter that is completely shut off from the outside world. The arc goes out at the first current zero crossing, which usually happens within 50 milliseconds, because there isn't much gas to ionize. Because of this, the technology is faster and cleaner than alternatives that use oil or air breaks.

Primary Configurations Available

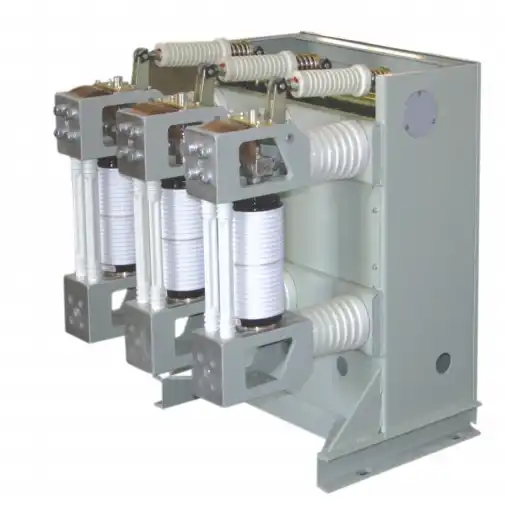

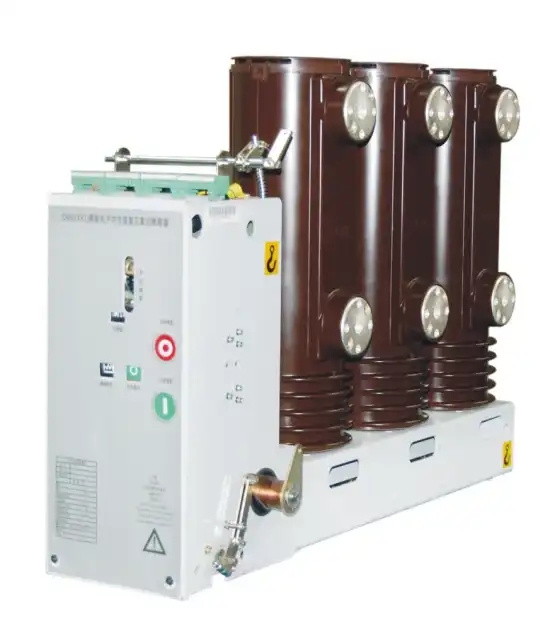

There are three main types of indoor vacuum circuit breakers: fixed-mounted, withdrawable (truck-mounted), and plug-in. Withdrawable models, like the ZN63-VS1, are the standard for KYN28 metalclad switchgear because the truck frame lets them be taken off without turning off the power to the nearby sections. This makes planned repair windows much shorter.

Key Ratings to Verify

The ZN63-VS1 indoor vacuum circuit breaker can handle temperatures from -15 °C to +40 °C and rated currents from 630 A to 3150 A. It works at 50 Hz. It has a ceiling of 95% RH for humidity and a ceiling of 1,000 m for altitude. Before a buy order is made, these numbers are used as a starting point to make sure the site is suitable.

Key Factors to Consider When Choosing an Indoor Vacuum Circuit Breaker

Datasheet specs don't always tell the whole story. Other parts of the picture are operational context and lifecycle economics. There are two common short-circuit breaking rates for 12 kV distribution lines: 25 kA and 31.5 kA. Before giving either number, make sure you know the possible fault current at the installation site. Oversizing adds unnecessary cost; undersizing creates a safety liability that the warranty won't cover.

Matching Breaking Capacity to Fault Levels

Confirm the prospective fault current at the point of installation before specifying either breaking capacity value. Matching the rated breaking capacity to actual fault levels is crucial for both safety and cost efficiency.

Comparing Vacuum, SF6, and Air-Break Technologies

It is 23,500 times more likely that SF6 circuit breakers will cause global warming than CO₂. Many rules about buying things now make SF6 equipment illegal, and since 2014, the EU F-Gas Regulation has made restrictions a lot stricter. An indoor vacuum circuit breaker doesn't make any process gas, which makes environmental compliance and long-term asset management easier. When it comes to high-density switchgear rooms, air-break designs aren't as good because they need bigger clearances and more frequent contact servicing.

Lifecycle Cost and Maintenance Intervals

A good vacuum interrupter is supposed to last 10,000 processes mechanically and 50 full short-circuit interrupts electrically. Three to five years are enough time between routine inspections for a well-kept retractable breaker. Total lifecycle cost for a vacuum design is usually 15–25% less than similar SF6 equipment over a 20-year period because it requires less upkeep work and no gas refilling costs.

How to Assess Brands and Suppliers of Indoor Vacuum Circuit Breakers

The market for indoor vacuum circuit breakers is made up of both international and domestic companies. A structured method is needed to compare them technically.

Established Global and Domestic Manufacturers

Siemens, ABB, and Schneider Electric each publish IEC 62271-100 type test reports and carry decades of field data. Among Chinese manufacturers, Xi'an Xikai has supplied breakers to State Grid systems, rail projects, and petrochemical plants for over 30 years. Its ZN63-VS1 indoor vacuum circuit breaker meets IEC standards and holds 3C certification, ISO 9001, ISO 14001, and ISO 45001 accreditation.

Supplier Selection Criteria That Matter

Before you commit to a supplier, here are the main things you should check:

• Type test certificates: Make sure they meet the requirements of IEC 62271-100 by checking the dielectric withstand (65 kV power frequency) and short-circuit making/breaking tests.
• Source of vacuum interrupter: Whether the interrupter is made domestically or imported has a direct effect on the contact erosion life and the chance of re-ignition. Find out the brand and check the test results from a third party.
• Truck interchangeability: For KYN28 uses, the chassis must match the rail spacing, secondary plug pinout, and mechanical travel dimensions exactly. Request a dimensional drawing before sampling.
• Lead time and MOQ: OEM switchgear production often involves monthly batch orders. Confirm whether the supplier can sustain volume delivery without substituting interrupter brands mid-run.

Choosing the wrong supplier at scale means every cabinet in a batch carries the same hidden weakness. That is a risk worth spending extra qualification time to avoid.

Total Cost of Ownership Considerations

Unit price transparency is high in the VS1 segment because of market competition. The differentiator therefore shifts to consistency of quality across batches, spare parts availability, and warranty response speed. A supplier offering a two-year product warranty backed by a local technical team reduces the financial exposure of a production-line fault far more than a slight per-unit price advantage.

Installation, Testing, and Maintenance: Ensuring Optimal Performance

Even an indoor vacuum circuit breaker that is correctly specified will underperform if installed or commissioned carelessly.

Installation Best Practices

Mount the breaker on a level, vibration-isolated surface within the cabinet's specified rail dimensions. Verify secondary plug polarity against the wiring diagram before insertion — a mismatched aviation plug can activate the anti-reclose relay and prevent closing. Ground the chassis through the designated low-resistance bonding point, not through a general cabinet ground.

Commissioning and Testing Protocols

Before energization, run a power-frequency withstand voltage test across the open contacts. If the vacuum has been compromised during shipping, the gap will break down at well below the rated test voltage of 42 kV (for 12 kV class). Also measure contact travel, over-travel, and contact pressure. Over-travel should fall within the manufacturer's specified range — typically 3–4 mm — because insufficient contact compression raises contact resistance and risks thermal damage under load.

Routine Maintenance and Fault Indicators

Inspect mechanical operation, lubrication of the spring mechanism, and secondary terminal tightness every 1–2 years or after any fault interruption above 50% of rated breaking current. Monitor contact wear via the indicator rod on the dynamic contact. Most manufacturers set a maximum erosion limit of 3 mm; reaching this threshold requires interrupter replacement regardless of remaining rated operations.

Making the Final Decision: Matching Your Needs with the Right Solution

At this stage, most procurement managers have a shortlist of two or three indoor vacuum circuit breakers models. The final filter combines technical fit, commercial terms, and after-sales infrastructure.

Balancing Performance and Budget

The ZN63-VS1 indoor vacuum circuit breaker offers rated currents up to 3150 A and withstands seismic activity up to MSK-8 intensity — specifications that cover the majority of domestic 12 kV and Southeast Asian distribution applications without over-engineering. If your project calls for a plateau installation above 1,000 m, request a derating calculation or a customized pole assembly rather than accepting a standard unit.

Customization and Spare Parts Planning

Standard switchgear production benefits from stock interchangeability, but edge cases arise. Xi'an Xikai's engineering team can configure secondary wiring layouts and chassis dimensions to match legacy cabinet rails, which shortens retrofit schedules when replacing aged breakers in existing panels.

Post-Purchase Support

Confirm warranty terms in writing, including the process for field replacement of vacuum interrupters. A supplier that stocks interrupters locally — rather than back-ordering from a central warehouse — can resolve a production halt in days rather than weeks.

Conclusion

Selecting an indoor vacuum circuit breaker is ultimately a risk management exercise. Match the rated current and breaking capacity to your actual fault levels, verify truck interchangeability before sampling, scrutinize the vacuum interrupter source, and evaluate total lifecycle cost rather than unit price alone. The ZN63-VS1 offers a technically sound baseline for 12 kV switchgear applications, and pairing it with a supplier that maintains consistent batch quality and responsive after-sales service is where long-term value is built.

FAQ

Q1: How do I confirm that a vacuum interrupter has not leaked?

Perform a power-frequency withstand voltage test across the open contacts. A healthy interrupter will hold the full test voltage without breakdown. Visual inspection alone is insufficient because the ceramic envelope shows no external sign of vacuum loss.

Q2: Can the ZN63-VS1 be used in high-humidity tropical environments?

Yes, provided daily average humidity does not exceed 95% RH (vapor pressure ≤ 2.2 kPa) and monthly average stays below 90% RH. For Southeast Asian coastal sites near that ceiling, verify that the cabinet enclosure provides adequate IP protection.

Q3: What causes a breaker to refuse closing after energy storage?

Common causes include closing coil voltage below 65% of rated, a failed mechanical latch, or an active anti-reclose relay triggered by a previous fault. Check secondary circuit voltage and latch engagement before assuming a hardware fault.

Q4: Is the ZN63-VS1 chassis interchangeable with other 12 kV VS1-type breakers in KYN28 cabinets?

Dimensional compatibility is generally high within the VS1 family, but always verify rail spacing, secondary plug pinout, and mechanical travel against your specific cabinet drawings before committing to a batch order.

Q5: What maintenance interval does Xi'an Xikai recommend?

Inspect every one to two years under normal load cycling, and immediately after any fault interruption exceeding 50% of rated breaking current. Contact wear beyond 3 mm requires interrupter replacement.
