Why Use an Indoor Vacuum Circuit Breaker in Substations?

If you manage substation procurement or engineer medium-voltage power systems, you already know that choosing the right switching device shapes long-term operating costs, safety records, and grid reliability. The indoor vacuum circuit breaker answers that challenge directly. By interrupting fault currents inside a sealed vacuum interrupter — where ionization cannot occur — it stops arcs in milliseconds, protects connected equipment, and requires far less maintenance than older technologies. Across 12 kV distribution networks, industrial switchgear rooms, and renewable energy collection substations, the indoor vacuum circuit breaker has become the go-to protection device for engineers who need dependable performance without excessive lifecycle costs.

Understanding Indoor Vacuum Circuit Breakers

How Vacuum Interruption Works

When a fault happens, the breaker's contacts split inside a ceramic or metal envelope that is tightly sealed and all the gas has been sucked out. Since there are no gas molecules to keep the ionization going, the arc ends at the first current zero, which usually happens in 50 ms. At middle voltage levels, this mechanism clears faults quickly and consistently, which is something that oil- or gas-filled options can't always do.

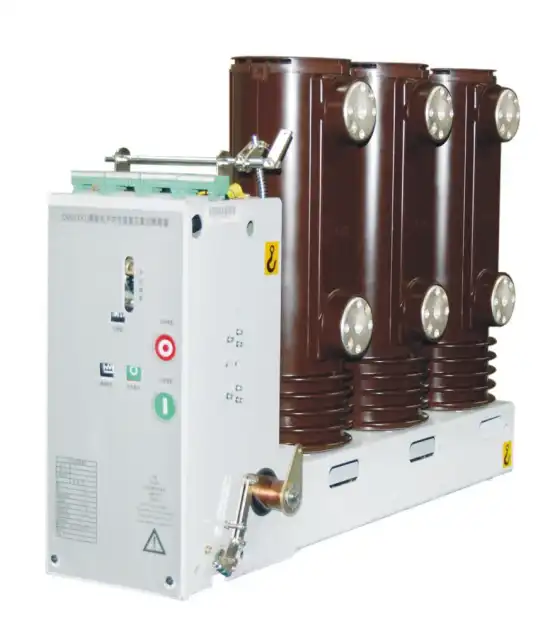

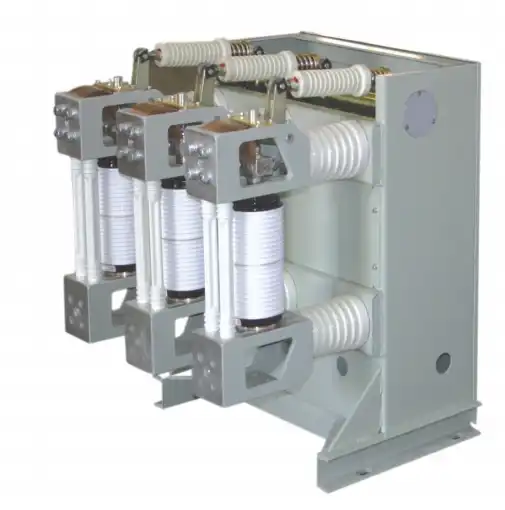

Key Technical Specifications: ZN63-VS1

One of the most common types of indoor vacuum circuit breakers used in 12 kV switchgear today is the ZN63-VS1. It can handle rated currents between 630 A and 3150 A, a frequency of 50 Hz, and temperatures between -15 °C and +40 °C. The daily humidity limit is -95% RH, and the monthly average is 90% RH. The unit works at elevations up to 1000 m and can handle earthquakes with a strength of up to MSK-8, so it can be used in a wide range of places.

Why Compact Design Matters in Indoor Environments

Building a transformer takes up a lot of space. The ZN63-VS1 works with standard KYN28-type switchgear that can be pulled out, and its truck width lets it be directly swapped out between different cabinet generations. Standardizing the dimensions means less time spent putting things together and fewer stock keeping units (SKUs) for switchgear manufacturers with KYN28 production lines that make a lot of gear.

Indoor Vacuum Circuit Breaker vs. Other Circuit Breakers

Comparison with Air Circuit Breakers

Air circuit breakers (ACBs) are good at handling low-voltage tasks, but at 12 kV, they need arc chutes, magnetic blowout coils, and deionizing plates to stop arcs. This adds up to a lot of mechanical complexity that needs regular upkeep. An indoor vacuum circuit breaker, on the other hand, keeps all the arc energy inside the sealed interrupter and mostly doesn't touch the outside parts after each use.

Comparison with SF₆ Circuit Breakers

While SF₆ breakers are very good at handling electricity, sulfur hexafluoride has 23,500 times the global warming capacity of CO₂ over 100 years (IPCC, Sixth Assessment Report). SF₆ handling rules are being tightened by regulatory bodies in the European Union and a number of Asian markets. If you switch to a vacuum interrupter-based design, that gas is no longer present. This lowers your environmental liability and the cost of certified gas-handling equipment during maintenance.

Lifecycle Cost and Insulation Quality

Under normal switching service, a vacuum interrupter that is well taken care of will last 20 to 30 years. It is possible to measure contact erosion in micrometers after a measured short-circuit breakdown. This is different from the carbon deposits that form inside oil breakers. The dielectric properties stay the same over the life of a product because the insulation medium, vacuum, can't break down when it gets dirty. That stability cuts down on unplanned outages and the risk that asset owners have for their insurance.

Procurement Considerations for Indoor Vacuum Circuit Breakers

It's not enough to just match the voltage and current ratings when choosing the right indoor vacuum circuit breaker for a big OEM program. For years to come, the choices made during the buying stage will affect how quickly products are made, how much guarantee coverage there is, and how happy the end customer is.

Here are the most important things that procurement teams look at:

• Breaking capacity alignment: KYN28-type cabinets are commonly rated at 25 kA or 31.5 kA. Confirm that the breaker's rated short-circuit breaking current matches the cabinet's withstand rating without oversizing, which inflates unit cost unnecessarily.
• Interrupter origin and traceability: Vacuum interrupter quality directly affects contact erosion rate and dielectric recovery. Procurement teams should request interrupter brand disclosure and lot traceability documentation from the breaker supplier to support quality audits.
• Truck interchangeability: For manufacturers supplying multiple end-customers, a breaker truck that interchanges with legacy VS1 installations reduces field replacement complexity and supports after-sales spare parts programs.
• Certification and audit readiness: State Grid procurement channels require products on the qualified supplier list. Certificates including 3C, IEC 62271-100 type test reports, ISO 9001, ISO 14001, and ISO 45001 should be available on request.

All of these things affect whether or not a supplier relationship can grow from a test batch to a long-term monthly order program with no supply problems.

Maintenance and Troubleshooting of Indoor Vacuum Circuit Breakers

Vacuum Integrity Verification

A vacuum interrupter can't be looked at directly. A power-frequency withstand voltage test across the open contacts is the standard way to do things in the field. If the gap breaks below the minimum test voltage, the vacuum integrity is broken, and the interrupter needs to be changed. Plan to do this test at the times specified in your repair plan, which is usually every three to five years or after a proven short-circuit interruption.

Contact Wear Monitoring

Every time the short circuit is broken, the touch surfaces get a little rougher. The dynamic contact rod usually has a mechanical wear monitor, and the most wear that is allowed is usually around 3 mm. If the contact over-travel value drops below what the manufacturer says it should be, the contact resistance goes up. This can lead to damaging heating during the next fault event. After every big fault is fixed, write this number down in your maintenance log.

Closing Failure Diagnosis

In the field, one of the most usual issues is that the door won't close. The three most common reasons are not enough control voltage (below 65% of rated), a spring that didn't latch after the last opening, or an anti-reclosing relay that is still on from a previous protection signal. Most problems can be ruled out without taking the mechanism apart by first checking the voltage in the secondary circuit.

Why Indoor Vacuum Circuit Breakers Are Becoming the Preferred Choice in Substations

It's not a coincidence that the market is moving toward vacuum-based medium-voltage switching. There are a number of factors working together to explain why the indoor vacuum circuit breaker keeps becoming more popular in both utility and industrial settings.

The most direct driver is environmental laws that aim to get rid of SF₆. Both the IEC TC17 plan and the changes to the EU F-Gas Regulation make it very clear that gas-insulated switching at distribution voltage levels needs to be avoided. That regulatory direction works well with vacuum technology, which doesn't need any new cabinet designs.

The addition of a smart grid makes things even better. Standard flight plugs can be used to connect secondary wire to protection switches, metering IEDs, and bay controllers on modern indoor vacuum circuit breakers. IoT-ready versions let you check the position of contacts, the number of operations, and the health of the secondary circuit in real time. This information is used by predictive maintenance systems to shorten planned outages.

Lastly, connecting renewable energy sources creates high switching frequency needs that are hard for older types of breakers to handle. As the amount of power generated by wind and sun changes, substations that collect it switch feeders many times. The ZN63-VS1's mechanical endurance class and vacuum arc-quenching durability make it able to handle that duty cycle reliably for the whole life of the equipment.

Conclusion

The indoor vacuum circuit breaker earns its dominant position in modern substations through a combination of fast arc extinction, low maintenance burden, environmental safety, and compatibility with smart protection systems. For OEM switchgear manufacturers building KYN28-type cabinets at volume, the ZN63-VS1 delivers the dimensional standardization and performance consistency that monthly purchase programs demand. When procurement teams weigh interrupter quality, breaking capacity, and certification traceability alongside unit economics, the vacuum circuit breaker consistently offers the most balanced answer across the full product lifecycle.

FAQ

Q1: What is the difference between an indoor and an outdoor vacuum circuit breaker?

Indoor units are kept in metal-enclosed switches made for buildings with temperature control. Outdoor types have weatherproof covers and more insulation on the outside to handle rain, UV light, and bigger changes in temperature. Because the building itself protects the environment, smaller insulation arrangements can be used inside.

Q2: How often should a vacuum circuit breaker be serviced?

As part of regular distribution job, there should be a full inspection every three to five years. If there is a proven short-circuit interruption close to the stated breaking capacity, check the wear on the contacts and run a vacuum integrity test on the unit before putting it back into service.

Q3: Can the ZN63-VS1 be installed in cabinets originally built for other VS1-series breakers?

Yes. The ZN63-VS1 truck's size and secondary plug layout are made so that they can be used with normal VS1 installs in KYN28-type cabinets. Before inserting, always make sure that the secondary wire diagram and plug pinout match the paperwork that came with the cabinet.

Q4: Does altitude affect performance?

The standard ZN63-VS1 units can work at heights of up to 1000 m. If you need to use it above that level, you need to fix the insulation on the outside or use a plateau-type setup with different pole sizes to stop exterior flashover in thinner air.

Q5: Is no gas refilling needed?

That's right. The vacuum interrupter is a tool that can't be opened or closed again. During its working life, it won't need any medium replenishment or gas handling tools.

Partner with Xi'an Xikai for Your Next Indoor Vacuum Circuit Breaker Order

Xi'an Xikai Medium & Low Voltage Electric Co., Ltd. sells the ZN63-VS1 indoor vacuum circuit breaker to switchgear manufacturers in China and Southeast Asia. The product comes with IEC type test reports, 3C certification, ISO 9001/14001/45001 compliance, and a technical support team that is there to help customers. We can quickly get back to you if you need a standard monthly volume or a custom specification for a new cabinet program.

Talk to our sales team right away:

Visit xaxd-electric.com to get in touch with serina@xaxd-electric.com | amber@xaxd-electric.com | luna@xaxd-electric.com

References

1. International Electrotechnical Commission. IEC 62271-100: High-Voltage Switchgear and Controlgear — Part 100: Alternating-Current Circuit Breakers. IEC, 2021.

2. IPCC. Sixth Assessment Report: The Physical Science Basis. Cambridge University Press, 2021.

3. Wang, Z., & Liu, J. "Vacuum Interrupter Technology and Its Application in Medium-Voltage Switchgear." High Voltage Engineering, 2020.

4. IEEE. IEEE C37.09: IEEE Standard Test Procedure for AC High-Voltage Circuit Breakers. IEEE, 2018.

5. European Commission. Regulation (EU) No 517/2014 on Fluorinated Greenhouse Gases (F-Gas Regulation). Official Journal of the European Union, 2014.

6. Li, H., & Chen, X. "Lifecycle Cost Analysis of Vacuum versus SF₆ Circuit Breakers in Distribution Networks." Electric Power Systems Research, 2022.
