Best Outdoor Vacuum Circuit Breaker for Utility Substations

When engineers and procurement managers ask which outdoor vacuum circuit breaker best fits a utility substation, the answer depends on several non-negotiable factors: breaking capacity, enclosure protection, mechanism reliability, and long-term serviceability in harsh environments. An outdoor vacuum circuit breaker interrupts fault currents by extinguishing arcs inside a sealed vacuum interrupter, eliminating the need for oil or SF6 gas. For 40.5 kV substations in mining, railway, or remote grid applications, the ZW32-40.5 from Xi'an Xikai stands out as a technically sound, field-proven option worth serious evaluation.

Understanding Outdoor Vacuum Circuit Breakers: Principles and Advantages

Before you look at different models, it's helpful to know what makes vacuum interrupter technology unique and why that's important for protecting outdoor substations.

How Vacuum Arc Extinction Works

The interrupter cylinder in a vacuum circuit breaker keeps the pressure inside below 1.33 × 10⁻³ Pa. The arc is made of metal vapor when the contacts separate under fault current. The arc goes out on its own at the first current zero because there is no gas to keep the ionization going. This device makes much less contact degradation than oil or gas-type breakers. This means that the electrical life is longer—usually 10,000 operations or more before the contacts need to be inspected.

Why Outdoor Ratings Change Everything

A breaker that is made for indoor equipment can't just be put outside. Medium-voltage outdoor switchgear has to deal with condensation cycles, UV light, airborne pollutants, and temperature changes that can be more than 80°C from midnight lows to afternoon highs. At least an IP65 rating is required for enclosures, and an IP67 rating is better for locations near water or that will be pressure washed during upkeep.

Environmental Advantages Over SF6 Technology

The IEC and the IPCC both say that SF6 gas has about 23,500 times the global warming potential of CO₂. In the European Union, stricter rules and more careful examination of export markets are pushing procurement teams to look for vacuum-based alternatives. An outdoor vacuum circuit breaker doesn't release any greenhouse gasses when it's used or when it's thrown away, which makes following environmental rules much easier.

Comparing Outdoor Vacuum Circuit Breakers: Making an Informed Choice

Not every medium-voltage switch is the same. When procurement teams know how leading designs are different, they can avoid expensive mistakes where equipment doesn't work with the conditions on the site.

Column-Type vs. Solid-Dielectric Pole Design

Breakers in the ZW7-40.5 series are column-type and use porcelain insulators that give you a lot of space for CT integration and work well in substations with dedicated support frames. Solid-dielectric pole designs, like the ZW32-40.5, cover the interrupter in cast plastic or silicone rubber, which better protects against surface contamination and condensation. For places that are far away and don't get repair done very often, the sealed solid-dielectric design lowers the chance that moisture will cause the insulation to fail.

Spring Mechanism vs. Permanent Magnet Actuator

Spring-operated mechanisms physically store energy and release it when told to. This keeps the opening and shutting speeds constant, even if the control voltage changes. Permanent magnet motors can move at the same speed with fewer parts that need to move. This can help them last longer and wear less. Both designs are widely used for 40.5 kV outdoor applications. Usually, the choice comes down to how reliable the site's backup power is and how familiar the operator is with the mechanism.

Key Technical Benchmarks to Compare

When buying an outdoor vacuum circuit breaker for a 35–40.5 kV substation, purchase teams should make sure that it meets these project requirements:

• Rated breaking capacity: 31.5 kA is the minimum for most utility-grade EPC projects; types rated at ≥25 kA can be used for many feeder protection tasks.
• Mechanical endurance class: IEC 62271-100 outlines two mechanical durability classes, M1 (2,000 operations) and M2 (10,000 operations). M2 is suggested for switching-heavy tasks like railroad traction feeders or mine distribution.
• Operating temperature range: Places in Central Asia, Sub-Saharan Africa, or China's highlands can have winter temperatures of -40 °C and summer temperatures of +60 °C; equipment must be rated for those temperatures.

Before they ask for formal quotes, procurement managers can use these standards as a clear checklist.

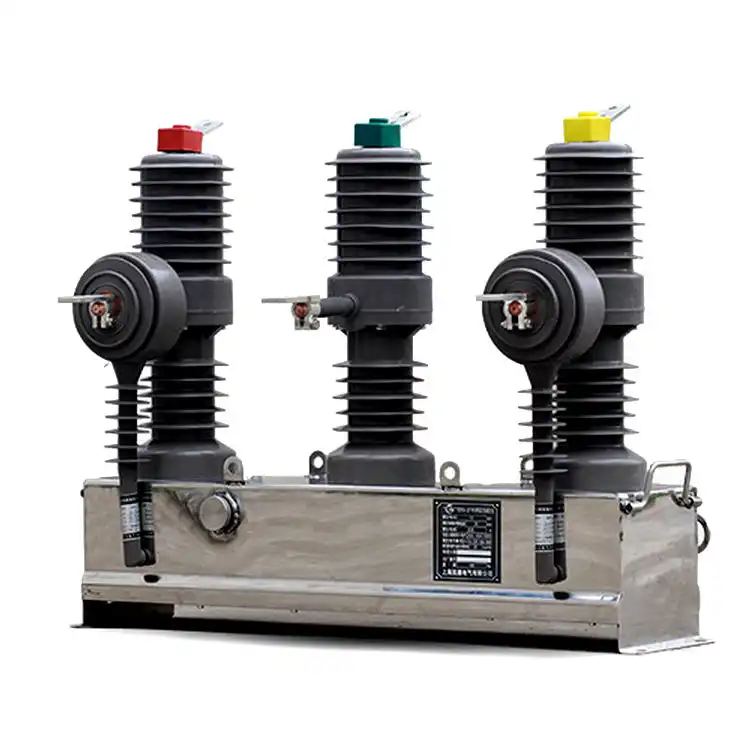

Spotlight: ZW32-40.5 Outdoor Vacuum Circuit Breaker by Xi'an Xikai

Xi'an Xikai made the ZW32-40.5 as an outdoor vacuum circuit breaker for medium-voltage distribution networks. It solves the three problems that EPC project managers usually have: mechanisms that work reliably in cold climates, insulation that stays in place when it gets wet, and small installation footprints.

Core Technical Specifications

Parameter	Value
Rated Voltage	12 kV (40.5 kV max)
Rated Current	630 A
Frequency	50 Hz
Breaking Capacity	≥ 25 kA
Mechanical Life	10,000+ operations
Operating Temperature	-40 °C to +60 °C
Enclosure Protection	IP67-rated steel housing

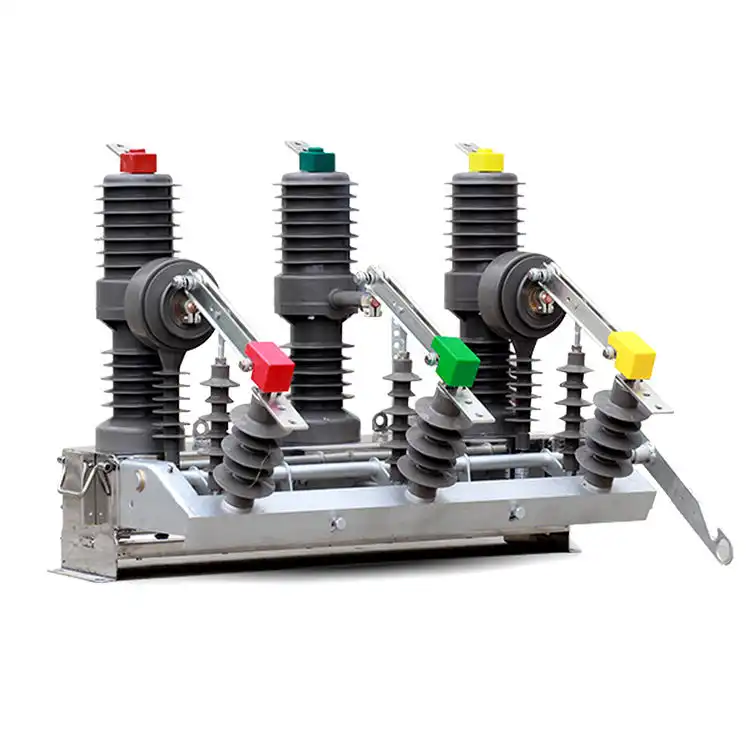

An isolation switch can be added to the unit, which makes the planning of the substation easier by mixing the switching and isolation functions into a single small unit.

Design Features That Address Harsh-Environment Concerns

These are the main design benefits of this breaker that make it suitable for tough field conditions:

• IP67 corrosion-resistant steel enclosure: The sealed steel housing keeps water out even when it's being pressure washed or flooded, directly fixing the condensation and icing issues that weaken insulation in open-frame designs. To protect against salt fog and industrial pollution, the enclosure is hot-dip galvanized and finished with a powder coat.
• Modular spring-operated mechanism with thermostat heater: The mechanism box has a thermostat-controlled heating element that keeps lubricants thick and stops condensation from forming at temperatures as low as -40 °C. This gets rid of the risk of lubrication failure that comes with using regular mechanisms outside in cold climates.
• IEC 62271-100 and 3C certified construction: Factory testing includes an 80 kV/min dielectric withstand test, 10,000 simulated mechanical operations, and validation in an environmental chamber from -40 °C to +85 °C. Before it is shipped, each unit that leaves the ISO 9001-certified facility goes through 23 separate quality checks.

These design choices directly fix the three most common problems that happen with outdoor medium-voltage switchgear: mechanism stiffness in cold weather, tracking on insulator surfaces caused by condensation, and rust in coastal or industrial environments.

Quality Assurance You Can Audit

Xi'an Xikai has a factory that is certified by both ISO 9001 and ISO 14001 and makes vacuum interrupter contacts and spring components in-house. With in-house vertical integration, the engineering team is in charge of all tolerances, from the makeup of the contact material to the tuning of the spring pre-load. The usual EPC batch size is 3 to 20 units per project. Buyers can ask for factory acceptance test results and access for a third party to check the goods before they are shipped.

Maintenance, Troubleshooting, and Lifespan Optimization

A well-designed outdoor vacuum circuit breaker needs less upkeep than oil or SF6 alternatives, but it still needs to be checked on a regular basis to make sure it works well over its 20-year lifespan.

Routine Inspection Schedule

Visual checks should be done once a year to check the enclosure seals, terminal torque, and position of mechanism indicators. A more thorough service should be done every three to five years. This service should include measuring the loop resistance (usually less than 40 µΩ for 40.5 kV-class equipment), making sure the contacts have moved over 3 to 4 mm, and using a magnetron discharge method to make sure the internal pressure stays below 1.33 × 10⁻³ Pa.

Diagnosing Common Field Problems

The most common reason why arc extinction fails in old vacuum interrupters is contact wear that goes beyond the manufacturer's over-travel limit. When the over-travel drop is less than 2 mm, it means that the interrupter needs to be replaced. Most problems with mechanisms that move slowly are caused by grease that is dry or dirty. The ZW32-40.5's heated mechanism box is intended to stop this from happening.

Remote-Site Service Strategy

For projects in Africa or Southeast Asia where getting a technician to the site can take days, Xi'an Xikai offers spare parts kits that are already put together by unit type. This cuts down on the average time it takes to fix something when a mechanism or interrupter needs to be replaced. The company's technical support line is open 24 hours a day, seven days a week, and helps local electricians fix problems step by step over the phone or video chat. This cuts down on the need for factory-delivered service visits.

Procurement Guide: How to Buy the Best Outdoor Vacuum Circuit Breaker

It takes more than picking a model that meets technical requirements to do the buying right for an EPC substation job. Project schedules and long-term running costs are all affected by lead times, paperwork, and promises made after the sale.

Define Requirements Before Requesting Quotations

Before calling any outdoor vacuum circuit breaker seller, procurement managers should write down the following:

• System voltage (12 kV or 40.5 kV), maximum current, and breakdown strength needed
• Classification of the environment based on pollution level, height, earthquake zone, and lowest temperature
• Set the voltage for coils to close and trip (DC 110 V, DC 220 V, or AC choices)
• Whether an isolation switch built in or a CT mounting is needed

A full definition sheet cuts down on back-and-forth emails and cuts the time it takes to get a quote from weeks to days.

Certifications and Compliance Documentation

Buyers should ask for IEC 62271-100 type test reports, 3C certificates for Chinese projects, and factory test records for projects put in by State Grid systems or international EPC contracts. The goods made by Xi'an Xikai have ISO 9001, ISO 14001, 3C, and IECEx/ATEX certifications, which helps them meet the requirements of both domestic and international project bids.

Evaluating Total Cost of Ownership

The cost of buying a breaker is only a small part of the total cost of the job. The review must take into account the availability of spare parts, how often the system needs to be replaced, and the cost of maintaining the enclosure over a 20-year period. Vacuum technology is cheaper than SF6 options because it doesn't need to be refilled with gas and has a low contact erosion rate. This is especially true for remote areas where it's hard to handle gas.

Future Trends in Outdoor Vacuum Circuit Breaker Technology

Smart grid operators are putting IoT sensors on medium-voltage switchgear more and more to keep an eye on temperature, contact travel, and operation counts in real time. The ZW32-40.5 can have optional sensor integration, which allows for remote condition tracking that cuts down on regular maintenance that isn't needed and finds developing problems before they cause unplanned outages.

IoT Integration and Predictive Maintenance

The IEC's SF6-free switchgear roadmap and the European Union's changes to the F-Gas Regulation are speeding up the move away from gas-insulated breakers in new installations around the world. When EPC contractors choose equipment for projects that will be used for a long time, they should think about the chance that SF6 service infrastructure and replacement gas supplies may become limited or expensive in target markets over the next ten years.

Regulatory Pressure on SF6 Equipment

When solar and wind power are used, the switching task patterns are very different from when thermal power is used. Changes in voltage, harmonic content, and a lot of reopening processes put more stress on the electrical and mechanical parts of feeder safety equipment. Because vacuum interrupters have low arc energy and high durability values, they can handle these load patterns without wearing out faster.

Adaptation to Renewable Energy Grid Profiles

The outdoor vacuum circuit breaker, with its inherently low arc energy and high endurance ratings, is well positioned to handle the load profiles of modern renewable grids without accelerated wear.

Conclusion

To choose the correct outdoor vacuum circuit breaker for a 40.5 kV utility substation, you need to make sure that the technical specs fit the site conditions, check that the equipment meets all the requirements for certification, and pick a supplier that can support the equipment for its entire life. The Xi'an Xikai ZW32-40.5 solves the practical problems that EPC project managers face: its sealed IP67 design keeps out moisture and dirt; its heated spring mechanism works reliably at -40 °C; and its factory-level quality control gives paperwork that meets the needs of both domestic and international bidders. This equipment is a technically sound and auditable way for teams working on projects in Africa, Southeast Asia, or China to connect to grids that are far away to buy the right equipment.

FAQ

1.How often should an outdoor vacuum circuit breaker be inspected in a utility substation?

Visual checks of the enclosure's integrity, terminal connections, and mechanism indicators should be done once a year. Every three to five years, or after a high-magnitude fault interruption event, a more thorough check should be done. This should include measuring the loop resistance and the vacuum degree.

2.What is the key difference between an outdoor vacuum circuit breaker and an SF6 breaker?

Arcs inside a sealed vacuum interrupter that doesn't have any gas medium are put out by vacuum breakers. SF6 breakers use sulfur hexafluoride gas, which is about 23,500 times more likely to warm the Earth than carbon dioxide. Besides the change in environment, vacuum technology doesn't need to check or refill gas pressure, which makes upkeep easier in remote areas.

3.Can the ZW32-40.5 be ordered with custom isolation switch or CT configurations?

Yes. For measurement and safety purposes, the ZW32-40.5 can come with an integrated isolation switch and can be mounted with a current generator. The engineering team at Xi'an Xikai works directly with buyers to make sure they understand the setup needs before production starts.

4.How do I verify the vacuum interrupter condition without disassembly?

Maintenance crews check the amount of contact over-travel (a range of 3–4 mm is fine). You can also use a magnetron discharge test to make sure that the pressure inside stays below 1.33 × 10⁻³ Pa without having to open the interrupter chamber. Both ways don't damage the material and can be done during regular site trips.

Contact Xi'an Xikai for Your Outdoor Vacuum Circuit Breaker Requirements

Xi'an Xikai Medium & Low Voltage Electric Co., Ltd. sells outdoor vacuum circuit breakers that are IEC-certified for EPC substation projects in both China and other countries. The ZW32-40.5 can be bought in groups of 3 to 20 units, and comes with full test results from the maker. As a straight producer with more than 40 patents and vertical production integration, we can help with everything from design to commissioning. You can email our team at serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com, or go to xaxd-electric.com to get a quote for your project right away.
