ZW32-40.5 Outdoor Vacuum Circuit Breaker: An In-Depth Look

The ZW32-40.5 outdoor vacuum circuit breaker is a medium-voltage switching device purpose-built for demanding outdoor power distribution environments. Operating across a voltage range of 12 kV to 40.5 kV, it uses vacuum arc extinction to interrupt fault currents quickly and safely. For project managers and electrical engineers procuring equipment for substations, railway power systems, or mining supply networks, this model addresses the core challenge that matters most: dependable performance in harsh field conditions, from extreme cold to heavy condensation, without frequent on-site intervention.

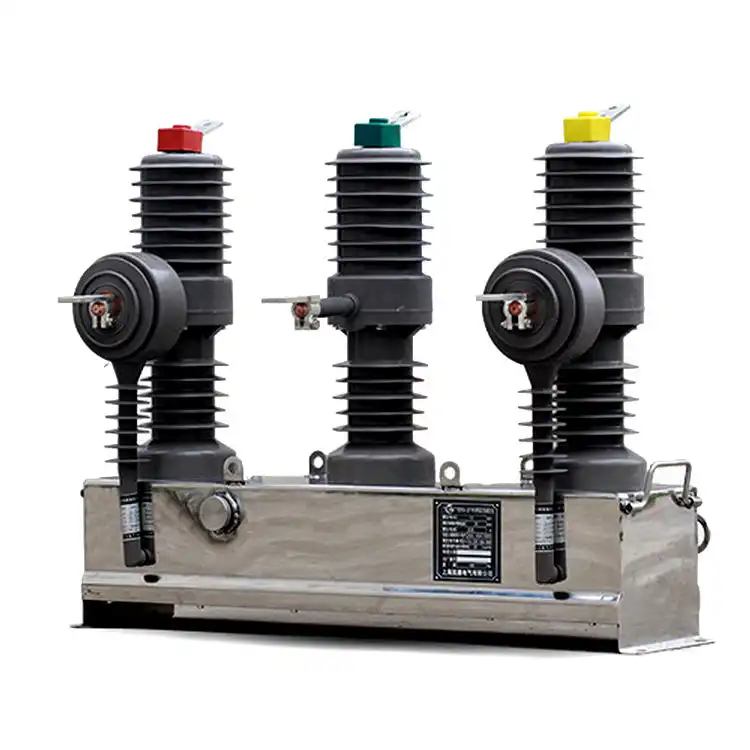

Understanding the ZW32-40.5 Outdoor Vacuum Circuit Breaker

What Is a Vacuum Circuit Breaker and How Does It Work?

By separating contacts inside a sealed vacuum chamber, an outdoor vacuum circuit breaker stops the flow of electricity. As soon as the connections break, a short arc forms in the almost perfect vacuum. The arc goes out within milliseconds of the first current zero crossing because there aren't many gas molecules left to keep the ionization going. This method causes much less contact erosion than interruptions based on oil or SF₆, which directly leads to longer service intervals and lower lifecycle costs.

Key Technical Specifications of the ZW32-40.5

The ZW32-40.5 is rated at 12 kV and can handle up to 40.5 kV. Its rated current at 50 Hz is 630 A. It can handle up to 25 kA of current, which is enough to cover most 35 kV substation feeder and tie-switch points. The mechanical life is said to be 10,000 actions. The case has an IP67 grade for security, and the device has been tested in temperatures ranging from −40 °C to +60 °C. An alternative isolation switch can be built in at the factory, which makes single-pole cabinet plans easier.

Typical Field Applications

This outdoor vacuum circuit breaker is used by project teams in a number of high-demand situations. It keeps feeder circuits safe in 35 kV rural and urban distribution substations where reopening operations happen a lot and repair workers may not be available for days. It is impossible for conductive dust to reach live contacts in mine and metallurgy facilities because the vacuum room is completely sealed. This is a failure mode that rules out open-type designs. At wind and solar collection points, the fast speed of the breaker protects inverters and step-up transformers from harmonic-induced overcurrents, which is a problem that comes up a lot in projects that use renewable energy.

Advantages and Maintenance of Outdoor Vacuum Circuit Breakers

Environmental and Safety Advantages Over SF₆ Designs

The Kyoto Protocol says that SF₆ gas is one of the most powerful greenhouse gases. It has about 23,500 times the warming power of CO₂. The ZW32-40.5 gets rid of SF₆ completely. It is approved by IEC 62271-100, and when a fault is interrupted, its vacuum interrupter technology doesn't make any harmful by-products. This is a way for EPC companies to stand out when bidding on grid projects in Africa or Southeast Asia that have environmental requirements. It lowers the legal risk on delivery.

Reliability Features That Reduce Downtime

These are the main performance features that directly deal with the stability of the outdoor vacuum circuit breaker in service:

• IP67-rated compact steel enclosure: The shell doesn't rust, so water, dust, and bugs can't get into the mechanism section. This is important in places where changes in temperature from day to night can cause cabinets that aren't covered to get condensation deep inside them.
• Modular spring-operated mechanism: No matter what the temperature is outside, the spring-charged actuator always closes and opens at the same speed. Inside the mechanism box, a heater managed by a timer keeps the oil viscous at −40 °C. This keeps the grease from stiffening, which can go wrong in cold places.
• Optional IoT monitoring sensors: Real-time data of contact travel, coil current waveforms, and enclosure temperature makes it possible to do repairs from a distance, which is very helpful when the nearest trained expert is several hours away.

When these features work together, the average time between failures is longer, which is what project owners in faraway places value more than the list price.

Maintenance Schedule and Inspection Points

Over-travel measurement is the main maintenance check that needs to be done after installation. Because contact wear in a vacuum interrupter can't be seen, technicians check the remaining over-travel (usually 3–4 mm nominal) every time they do a checkup. No matter how many operations have been done, the interrupter should be changed when the number gets close to the lower limit. Loop resistance measurement — aim for less than 40–60 μΩ depending on rating — confirms the condition of the contact surface. During plant acceptance tests, mechanical endurance tests are done that are like 10,000 operations. However, every three and six years, there are field inspections that find any abnormal wear early.

Comparing Outdoor Vacuum Circuit Breakers: Making an Informed Decision

ZW32-40.5 vs. SF₆ Outdoor Breakers

SF₆ breakers can stop power for longer periods of time and can handle higher voltages at transmission levels. But at 40.5 kV distribution voltage, vacuum technology works just as well as SF₆ interruption while getting rid of the need to monitor gas pressure, plan for gas refilling, and get rid of old equipment. Outdoor vacuum circuit breakers make ownership costs and compliance much lower for EPC contractors who work on projects in places that don't have specialized SF₆ recovery equipment.

ZW32-40.5 vs. Indoor Vacuum Breakers

Indoor breakers aren't made to handle direct UV light, rain, or a lot of changes in temperature. It is more difficult and costs more to move an indoor-rated device to an outdoor electrical box. The ZW32-40.5 can be mounted directly on a pole or frame outside, without any extra enclosures, thanks to its IP67 housing and temperature range of −40 °C to +60 °C. This lowers the cost of building a greenfield substation.

Positioning Against International Brands

ABB, Siemens, and Schneider Electric all make 40.5 kV outdoor vacuum breakers with similar electrical ratings. Their goods come with well-known approvals and service networks that span the world. The ZW32-40.5 is made using ISO 9001 and ISO 14001 quality systems and has more than 40 patents in vacuum interruption technology. It also fully integrates critical components like contacts and springs, and has factory customization lead times that work with tight EPC schedules. Robotic welding and AI-assisted inspection help make sure that each batch is the same.

Procurement Guide for ZW32-40.5 Outdoor Vacuum Circuit Breakers

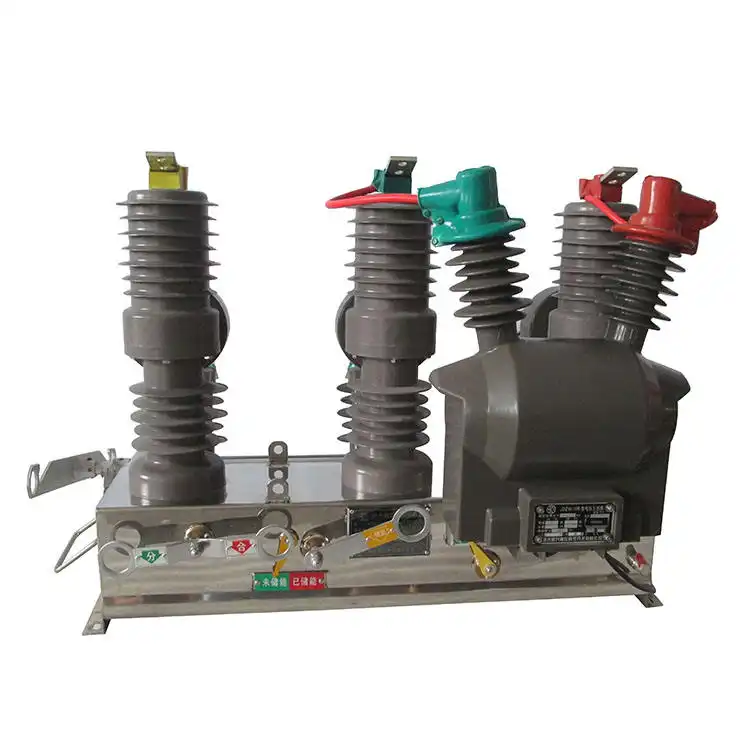

Sourcing and Customization Options

When looking for an outdoor vacuum circuit breaker for a project with multiple sites, procurement teams should make sure that the supplier can provide IEC 62271-100 type test reports, factory acceptance test protocols that are in line with the project requirements, and documentation packages that meet the needs of the local grid operator. It's possible to integrate an isolated switch into the ZW32-40.5, and you can choose between spring or permanent-magnet actuators. The support structure also has a CT housing for safety relay inputs. You can choose these configurations when you place your order.

Bulk Procurement and After-Sales Framework

Out of every 20 40.5 kV outdoor vacuum circuit breakers ordered for a single project, three to twenty are ordered. Making sure that extra parts are available, especially vacuum interrupters, closing springs, and secondary wiring leads, before signing the contract keeps commissioning from being held up. A seller that makes its own parts can meet calls for spare parts faster than one that relies on lower-level providers. Check that the after-sales agreement includes both on-site commissioning help and remote problem analysis. This is especially important for projects in places where electrical workers may not have much experience with this type of equipment.

ROI Considerations

Over the projected 20–25-year service life, the difference in running costs between vacuum and SF₆ designs adds up. At the project level, getting rid of gas tracking equipment, regular SF₆ density checks, and specialized removal at the end of its useful life saves money that can be seen. With vacuum technology allowing for fewer inspections, the ZW32-40.5 has a good total cost of ownership for infrastructure projects with a lot of assets.

Ensuring Optimal Performance & Future-Proofing Your Investment

Performance Monitoring Strategies

Three-phase synchronization checks (the difference between phases opening and closing times should stay below 2 ms), dielectric withstand checks on a regular basis, and partial discharge tests of solid insulation parts should all be part of routine performance evaluation for the outdoor vacuum circuit breaker. Before degradation leads to a safety failure in service, these checks find it.

Smart Grid Compatibility

The ZW32-40.5 has an optional IoT sensor package that sends operational data to SCADA or asset management systems. This helps programs that plan for preventative repair. As grid managers in China, Africa, and Southeast Asia move toward automated distribution management systems, breakers that can report their own health state become the best ones to buy for new substations and programs to update the grid.

Regulatory and Environmental Trends

In the European Union, stricter rules are being made for SF₆ tools, and these rules are also being looked at in a number of Asian countries. Getting vacuum-type switchgear now puts EPC contractors ahead of possible equipment replacement rules that would have put them at risk for cost increases in the middle of a project.

Conclusion

For 40.5 kV outdoor installations in substations, railroad power systems, and mining supply networks, the outdoor vacuum circuit breaker meets the specific needs for reliability. Its IP67-rated steel case, cold-weather lubrication management, vacuum arc extinction technology, and optional IoT tracking all work together to lower the practical risks that project engineers in rural or environmentally difficult areas worry about the most. For procurement teams looking at medium-voltage switching equipment for EPC projects, this model combines performance that has been tested in the field with the adaptability that project-specific requirements need.

FAQ

1.What distinguishes the ZW32-40.5 from indoor vacuum circuit breakers?

From the ground up, the ZW32-40.5 is made to be used outside. Standard indoor models don't have its IP67-rated steel case, verified temperature range of −40 °C to +60 °C, or built-in heater for lubricating the machinery. Putting an indoor-rated breaker outside needs extra protection, which costs more and is harder to install.

2.How often should the ZW32-40.5 be inspected in the field?

Under normal conditions, a full electrical and motor check should be done every three and six years. Contact over-travel is the most important measurement. When the residue number gets close to the lower limit, the vacuum interrupter should be replaced, no matter how many times it has been used.

3.Can current transformers for protection relays be added to the ZW32-40.5?

Yes. The design allows for the integration of CTs into the support structure. Two to four CTs can usually fit in a phase, with the exact numbers being set during the order stage. In small substation plans, this design cuts down on exterior wiring and panel room.

4.Is the ZW32-40.5 suitable for frequent reclosing duty?

Because it has low spark energy and little contact loss, the vacuum interrupter works well for re-closing tasks in distribution networks. It is best to specify the C2 mechanical endurance class at the order stage for uses with a lot of operations.

5.What documentation is available for grid operator approval submissions?

Xi'an Xikai offers test reports of the IEC 62271-100 type, records of plant acceptance tests, and paperwork packages that are unique to each project. Get in touch with the sales team to find out what paperwork your local grid operator needs in order to approve the project.

Get a Tailored Quote from Xi'an Xikai — Outdoor Vacuum Circuit Breaker Supplier

The ZW32-40.5 and other medium-voltage outdoor vacuum circuit breaker products are made by Xi'an Xikai Medium & Low Voltage Electric Co., Ltd. for use in EPC, substations, railroads, and mines. Our team helps with project-specific configuration, paperwork for factory tests, and the details of after-sales service. You can email our sales engineers at serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com, or you can go to xaxd-electric.com to see our full catalog of products and ask for a project quote.

References

1. International Electrotechnical Commission. IEC 62271-100: High-Voltage Switchgear and Controlgear — Alternating-Current Circuit Breakers. IEC, 2021.

2. IEEE Power and Energy Society. IEEE C37.04: Standard Rating Structure for AC High-Voltage Circuit Breakers. IEEE, 2018.

3. CIGRE Working Group A3.27. Vacuum Switchgear Application Guide. CIGRE Technical Brochure 589, 2014.

4. Greenwood, Allan. Vacuum Switchgear. Institution of Engineering and Technology, 1994.

5. Intergovernmental Panel on Climate Change. Climate Change 2021: The Physical Science Basis. Cambridge University Press, 2021.

6. China Electricity Council. Technical Specification for Outdoor High-Voltage Vacuum Circuit Breakers in Distribution Networks. CEC Standard Series, 2020.
