Capacitive Voltage Transformer Accuracy: What Engineers Need to Know

When engineers specify equipment for a 110kV substation, accuracy is not a preference — it is a hard requirement. A capacitive voltage transformer (CVT) must deliver stable, repeatable voltage measurements under real grid conditions, from fault events to temperature swings. This article walks through how CVT accuracy is defined, how it compares to other measurement devices, what specifications matter most during procurement, and how proper installation keeps performance consistent over decades of service.

Understanding Capacitive Voltage Transformer Accuracy

What "Accuracy" Means for a CVT

In a capacitive voltage transformer, accuracy is how closely the secondary output voltage matches the real primary voltage. This can be shown by ratio error and phase displacement. For safety reasons, IEC 61869-5 lists 0.1, 0.2, 0.5, 1, and 3P/6P as the accuracy levels for CVTs. In the North American market, IEEE C57.13 sets parallel standards. The 0.2 class is usually needed for 110kV metering, while the 3P class is usually used for security cores.

How the Internal Structure Shapes Precision

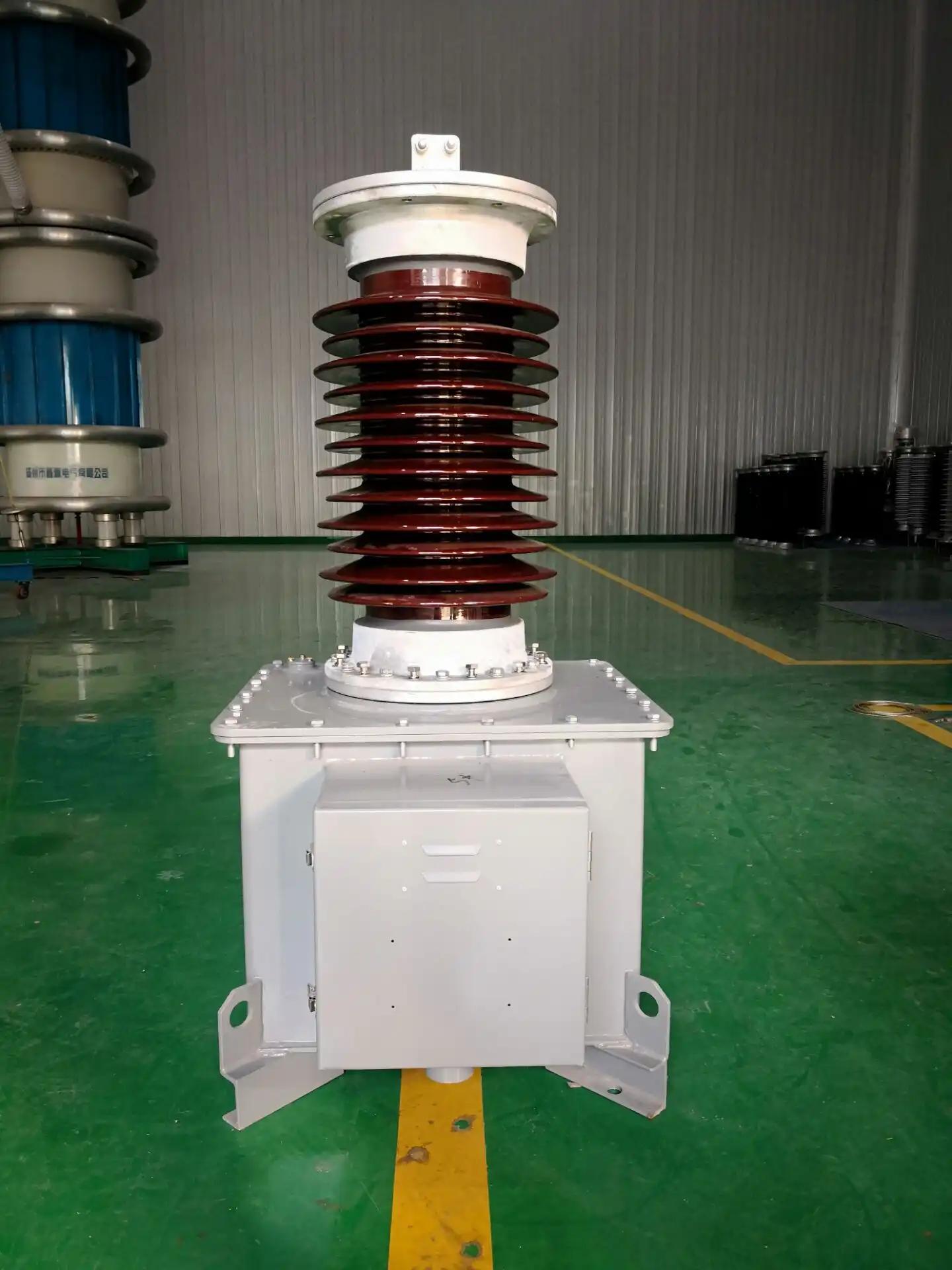

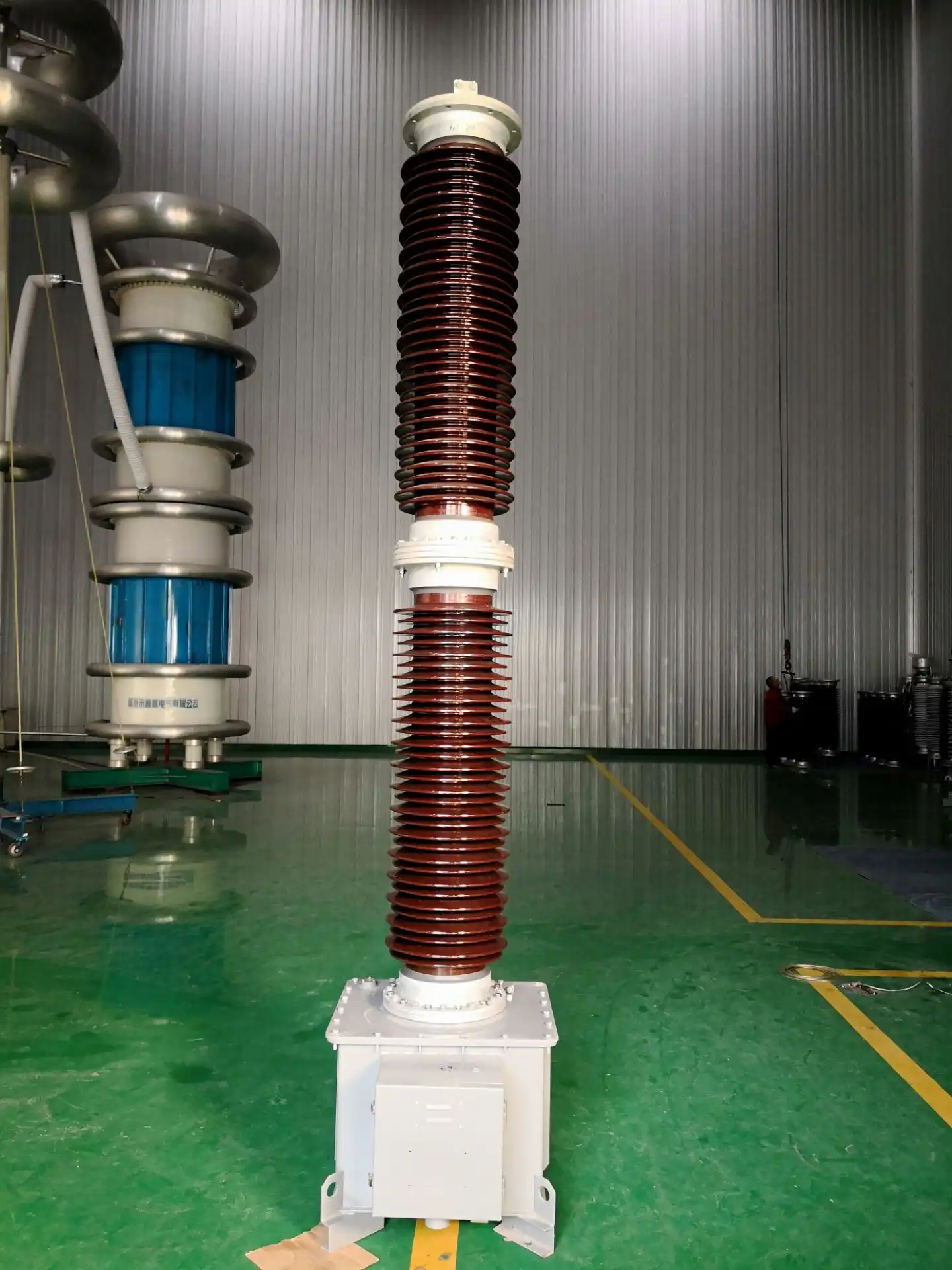

A CVT is made up of an electromagnetic unit (EMU) and a high-voltage capacitor divider stack. The capacitor divider lowers the primary voltage to a middle level. The EMU then steps it down even more to make the secondary output usable. The correction reactor inside the EMU fixes any phase angle problems caused by the capacitive reactance. It is important for manufacturing tolerances to be consistent because any difference in capacitor values or inductance tuning has a direct effect on measurement accuracy.

Key Variables That Shift Accuracy

In the field, the accuracy of CVT measurements is often affected by three working conditions:

• Temperature fluctuations: Capacitance values drift with temperature. At -40°C, dielectric permittivity changes enough to shift ratio error outside class tolerance if compensation design is inadequate.
• Burden loading: Connecting excessive secondary burden raises the phase angle error beyond class limits. Engineers must match the connected burden to the rated VA of the device.
• Frequency deviation: Grid frequency deviations, common near large motor loads, alter the resonance balance of the compensation reactor, introducing additional phase error.

You can deal with these factors if you carefully plan the system, but you need to be aware of them during the planning stage.

Comparing Capacitive Voltage Transformer Accuracy with Other Voltage Transformers

CVT vs. Electromagnetic Voltage Transformer (VT)

There is a small difference in rapid reaction between electromagnetic VTs and capacitive divider stages. This difference can be seen in protection relays that need to find faults within a cycle. At 110kV and above, however, electromagnetic VTs become expensive and heavy. For most protection schemes, this gap is pretty much closed by CVT designs with better damping, like the 3PT1-level transient response where residual voltage stays below 2%.

CVT vs. Resistive Voltage Divider

Most of the time, resistive voltage dividers are used in testing and lab settings. They don't have the ability to separate and deliver power that is needed for grid metering or relay operation. If you need a capacitive voltage transformer in a substation, these are not a good option because they can't handle the VA load that linked instruments need.

Where CVTs Hold a Consistent Advantage

CVTs are clearly better than other measuring tools for high-voltage transmission lines at 66kV and above, both in terms of technology and cost. The capacitor stack also works as a coupling capacitor for power line carrier (PLC) communication, which is an extra benefit for the system. Long-term, engineers are most worried about capacitors getting old, which is a real issue that can be fixed by using the right materials and designing them well.

How to Select High-Accuracy Capacitive Voltage Transformers for Your Power System

Define the Application First

The accuracy class you choose must be right for the job. To meet utility billing standards, metering revenue cores need to be 0.1 or 0.2 class. Most protection cores use either 3P or 6P class. It costs more and doesn't help to specify a 0.2 class for every winding, and it causes compliance problems to specify 3P for revenue metering. Getting this right during the planning phase will save a lot of work later on.

Technical Specifications to Examine

To help engineers choose the right CVT for a 110kV placement, they should look at these main factors:

• Accuracy class and rated burden: Confirm the accuracy class holds at the actual connected burden, not just rated burden. A 0.2 class rating at 50VA may degrade to 0.5 class if only 10VA is connected.
• Transient response class: For fast distance protection or differential protection, specify 3PT1 response class with residual voltage below 2%.
• Creepage distance: For industrial or coastal sites, IEC 60815 defines specific creepage requirements. A minimum of 25mm/kV of rated voltage is generally adequate for medium pollution levels.
• Dielectric loss (tanδ): Values below 0.08% indicate a well-manufactured capacitor stack with low internal heating and long service life.
• Partial discharge level: IEC 61869 requires PD levels below 10pC; well-manufactured units routinely achieve below 5pC.

Together, these factors show if a CVT will keep its accuracy class for the full time it is supposed to work.

Evaluating Suppliers

Not only factory test certificates, but also type test reports from accredited third-party laboratories should be given by a reliable CVT supplier. IEC 61869, GB/T standards for State Grid projects, and ISO 9001 manufacturing quality systems are some of the certifications that need to be checked. Ask for long-term capacitance stability data. This will show you how the capacitor divider ratio changes over time, which has a direct impact on how accurate your measurements are.

Optimizing Accuracy in CVT Installation and Operation

Installation Practices That Protect Accuracy

When installation is done right, a big source of field error is taken away. The CVT has to be fixed vertically; tilting it puts stress on the capacitor stack and can damage the purity of the oil or gas filling. Care must be taken when connecting secondary ends because loose connections add resistance that changes the effective load. By grounding the secondary circuit at one point, circulating currents that mess up measurements are stopped.

Maintenance and Monitoring Over Time

The biggest long-term risk to accuracy in a capacitive voltage generator is that the capacitors will wear out. Teams can catch drift before it affects the operation of the protection system by taking scheduled tan² and capacitance measurements at regular times, as directed by IEC 60044-5 or IEC 61869-5. Infrared thermal scanning can find early signs of insulation breakdown while the system is running. Keeping track of the test results over time shows patterns before any one number goes over a certain level.

Technology Improvements Worth Noting

In the past few years, manufacturers have made improvements to capacitive voltage transformer capacitor foil materials and impregnation methods, which has markedly slowed down the rate of dielectric age. Hermetic sealing designs stop the moisture from getting in, which used to speed up the breakdown of capacitors. Some designs now have digital secondary outputs that can be directly connected to IEC 61850 safety systems. This gets rid of the need for analog wires and makes measurements even more accurate.

Procurement Guide: What to Expect When Buying High-Accuracy CVTs

Cost Structure and Ordering Logistics

The price of a CVT changes based on its accuracy class, rated voltage, and pollution withstand level. Higher accuracy class windings, longer creepage distances, and earthquake approval (IEEE 693) all raise the cost per unit, but they are often needed for the job. Volume sales make it possible to specify uniform lot parameters, which makes site installation and managing spares easier for EPC projects that need 3 to 15 units per substation.

What to Verify Before Purchase

Not just routine test reports, but full type test documentation as well. Make sure that the accuracy class testing was done at the actual rated load and at different temperatures. Make sure that the transient reaction class meets the needs of the protection relay maker. For projects that go to other countries, make sure that the approval covers the grid code of the final target country.

After-Sales Support as a Selection Factor

A CVT works for at least 30 years. Having technical support available during that time is very helpful. This includes help with calibration, replacement parts, and testing in the field. Suppliers who offer technical support 24 hours a day, seven days a week and keep spare capacitor stacks in stock greatly lower project risk.

Conclusion

A capacitive voltage transformer's accuracy depends on how it was designed, how well it was made, how well it was installed, and how well it was spec'd. When engineers only look at the accuracy class, they often run into issues that can be tracked back to transient reaction, capacitor aging, or load mismatch. A 110kV CVT installation has the best chance of working reliably for its whole life if the right class is chosen for each winding function, creepage and dielectric loss parameters are checked, and regular field tests are scheduled.

FAQ

1.What accuracy class should I specify for a 110kV revenue metering CVT?

According to IEC 61869-5, for income metering, you should choose a 0.1 or 0.2 accuracy class. At full load, these classes keep ratio error to ±0.2% and phase shift to ±10 minutes, which meets most utility pricing standards.

2.Does a CVT perform as well as an electromagnetic VT for fast protection?

A well-designed CVT meets the needs of most distance and differential protection relays because it has a 3PT1 transient response class and a residual voltage below 2%. The difference in performance between electromagnetic VTs and modern CVTs that use better damping circuits is not very big.

3.How often should I test a CVT in service?

Every 4 to 6 years, IEC 61869-5 and most national grid maintenance standards say that tan´ and capacitance ratio tests should be done. If a number is more than 5% off from the factory average, it should be looked into further.

4.What causes long-term capacitor accuracy drift?

Over time, thermal cycling, moisture getting in, and partial discharge break down the dielectric film. This changes the capacitance values and the voltage division ratio. Designs that are hermetically sealed and have low PD levels (below 5pC) drift much more slowly.

5.Can a CVT function as a coupling capacitor for PLC systems?

Yes. A CVT's high-voltage capacitor stack can also work as a coupling capacitor for power line carrier communication. This is one of the ways it is structurally better than pure electromagnetic VTs at transmission voltages.

Get Your 110kV CVT Quote from Xi'an Xikai

Xi'an Xikai makes capacitive voltage transformers that meet IEC 61869 and GB/T standards. They have more than 40 patents for designs that improve insulation and dampers. Our CVT supply team works on EPC projects with anywhere from 3 to 15 or more units and includes full type test paperwork. Get in touch with our technical team to talk about your substation needs and ask for a datasheet:

Email addresses: serina@xaxd-electric.com, amber@xaxd-electric.com, luna@xaxd-electric.com; xaxd-electric.com;

References

1. International Electrotechnical Commission. IEC 61869-5: Instrument Transformers – Additional Requirements for Capacitor Voltage Transformers. IEC, 2011.

2. IEEE Power and Energy Society. IEEE C57.13: Requirements for Instrument Transformers. IEEE, 2016.

3. International Electrotechnical Commission. IEC 60815-1: Selection and Dimensioning of High-Voltage Insulators for Polluted Conditions. IEC, 2008.

4. Mombello, E., & Rattá, G. "Capacitor Voltage Transformer Modeling for Accurate Transient Response Analysis." IEEE Transactions on Power Delivery, 2003.

5. Kojovic, L. "Impact of CVT Characteristics on Protective Relay Performance." IEEE Transactions on Power Delivery, 2000.

6. International Electrotechnical Commission. IEC 60044-5: Instrument Transformers – Capacitor Voltage Transformers. IEC, 2004.
