110KV Capacitive Voltage Transformer

1.High electric strength. Wide insulation marginHigh-quality medium and new structure design application and advanced technology, the electric strength of CVT is improved obviously, guarantee the product operation reliability effectively.
2.Long creepage distance. Strong pollution resistance
3.High mechanical strength capacitor insulator and optimized structure design, it improves product mechanicalstrength.
4.Good transient response Damping optimu design, the CVT transient response to 3pTl level, the residual voltage is less than 2%. Can betteradapt to requirements of fast relay.
5.Small dielectric loss products.

Send Inquiry

Download

Fast Delievery
Quality Assurance
24/7 Customer Service

Product Introduction

1.110kV Capacitive Voltage Transformer (CVT)

The 110kV Capacitive Voltage Transformer (CVT) is engineered to deliver unmatched accuracy and reliability in high-voltage power transmission systems. Designed for utilities and grid operators, our CVT ensures precise voltage measurement, grid stability, and compliance with global standards like IEC 61869. With advanced insulation, pollution resistance, and rapid transient response, it minimizes energy loss and operational risks—perfect for modern smart grids and harsh environments.

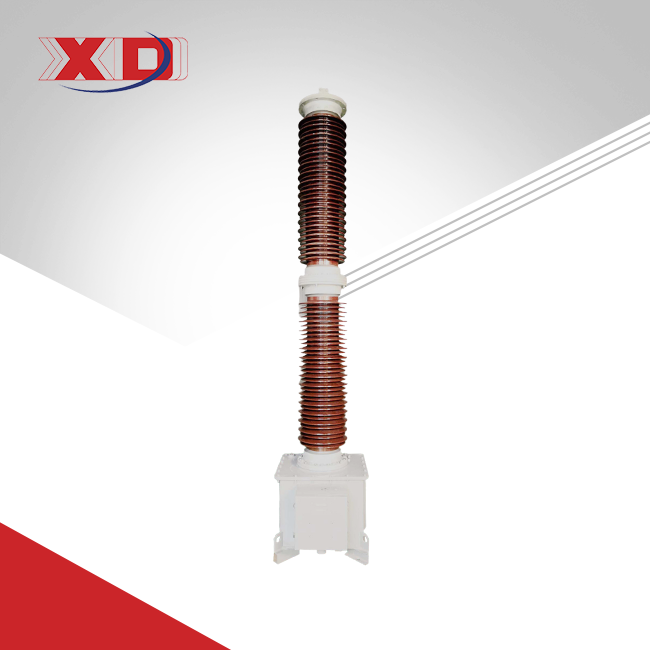

110KV Capacitive Voltage Transformer

2.Technical Specifications

Rated Voltage: 110kV
Accuracy Class: 0.1–0.2 for metering/protection
Insulation Strength: >110kV, creepage distance >25mm/kV
Environmental Tolerance: -40°C to +55°C, seismic-proof (IEEE 693)
Dielectric Loss: <0.08% tanδ | Partial Discharge: <5pC
Certifications: IEC 61869, CE, UL, GB/T, RoHS

Data sheet 1
No.	Type	Highest Voltage(kV)	Rated Primary Voltage(kV)	Rated Secondary Voltage(kV)
No.	Type	Highest Voltage(kV)	Rated Primary Voltage(kV)	1a~1n	2a~2n	3a~3n	da~dn
1	TYD35/√3-0.01FH	40.5	35/√3	0.1/√3	0.1/√3	—	0.1/3 or 0.1
2	TYD35/ √3-0.02FH	40.5	35/ √3	0.1/√3	0.1/√3	—	0.1/3 or 0.1
3	TYD66/ √3-0.01FH	72.5	66/ √3	0.1/√3	0.1/√3	—	0.1/3 or 0.1
4	TYD66/ √3-0.02FH	72.5	66/ √3	0.1/√3	0.1/√3	—	0.1/3 or 0.1
5	TYD70/ √3-0.01H	80.5	70/ √3	0.1/√3	0.1/√3	—	0.1
6	TYD90/ √3-0.01H	123	90/ √3	0.1/√3	0.1/√3	—	0.1
7	TYD110/√3-0.01H	126	110/√3	0.1/√3	—	—	0.1
8	TYD110/ √3-0.01H	126	110/√3	0.1/√3	—	—	0.1
9	TYD110/√3-0.01H	126	110/√3	0.1/√3	0.1/√3	—	0.1
10	TYD110/ √3-0.01H	126	110/√3	0.1/√3	0.1/√3	0.1/√3	0.1
11	TYD110/√3-0.01H	126	110/√3	0.1/√3	0.1/√3	0.1/√3	0.1
12	TYD110/√3-0.015H	126	110/√3	0.1/√3	0.1/√3	0.1/√3	0.1
13	TYD110/√3-0.015H	126	110/√3	0.1/√3	0.1/√3	0.1/√3	0.1
14	TYD110/ √3-0.02H	126	110/√3	0.1/√3	0.1/√3	0.1/√3	0.1
15	TYD110/ √3-0.02H	126	110/√3	0.1/√3	0.1/√3	0.1/√3	0.1
16	TYD110/ √3-0.02H	126	110/√3	0.1/√3	0.1/√3	0.1/√3	0.1
17	TYD115/√3-0.01H	123	115/√3	0.1/√3	—	—	0.1
18	TYD115/√3-0.02H	123	115/√3	0.11/√3	0.11/√3	0.11/√3	0.11
19	TYD132/√3-0.01H	145	132/√3	0.1/√3	0.1/√3	0.1/√3	0.1
20	TYD132/√3-0.015H	145	132/√3	0.11/√3	0.11/√3	0.11/√3	0.11
21	TYD132/√3-0.02H	145	132/√3	0.11/√3	0.11/√3	—	0.11
22	TYD150/√3-0.005H	170	150/√3	0.1/√3	0.1/√3	0.1/√3	0.1
23	TYD150/√3-0.01H	170	150/√3	0.1/√3	0.1/√3	0.1/√3	0.1
24	TYD161/√3-0.01H	170	161/√3	0.1/√3	0.1/√3	0.1/√3	0.1
25	TYD220/√3-0.005H	252	220/√3	0.1/√3	—	—	0.1

Data sheet 2
No.	Type	Rated Capacitance(pF)	Rated output/Accuracy class (VA/Class)				Rated Insulation Level (AC/SIL/BIL kV)	Creepage Distance (mm/kV)
No.	Type	Rated Capacitance(pF)	1a~1n	2a~2n	3a~3n	da~dn
1	TYD35/√3-0.01FH	10000	25/0.2	25/0.5/3P	—	100/3P	95/200/—	56
2	TYD35/ √3-0.02FH	20000	50/0.2	50/0.5/3P	—	100/3P	95/200/—	56
3	TYD66/ √3-0.01FH	10000	50/0.2	50/0.5/3P	—	100/3P	160/350/—	31
4	TYD66/ √3-0.02FH	20000	100/0.2	100/0.5/3P	—	100/3P	160/350/—	31
5	TYD70/ √3-0.01H	10000	50/0.2	50/0.5/3P	—	50/3P	160/350/—	28
6	TYD90/ √3-0.01H	10000	50/0.2	100/0.5/3P	—	100/3P	210/550/—	28
7	TYD110/√3-0.01H	10000	150/0.5	—	—	100/3P	230/550/—	28
8	TYD110/ √3-0.01H	10000	150/0.5	—	—	100/3P	256/611/—	34
9	TYD110/√3-0.01H	10000	75/0.2	50/0.5/3P	50/0.5/3P	100/3P	230/550/—	28
10	TYD110/ √3-0.01H	10000	75/0.2	50/0.5/3P	50/0.5/3P	100/3P	256/611/—	34
11	TYD110/√3-0.01H	10000	50/0.2	50/0.5/3P	—	100/3P	230/550/—	25
12	TYD110/√3-0.015H	15000	50/0.2	50/0.5/3P	50/0.5/3P	100/3P	230/550/—	28
13	TYD110/√3-0.015H	15000	50/0.2	50/0.5/3P	50/0.5/3P	100/3P	256/611/—	34
14	TYD110/ √3-0.02H	20000	100/0.2	100/0.5/3P	100/0.5/3P	100/3P	230/550/—	28
15	TYD110/ √3-0.02H	20000	100/0.2	100/0.5/3P	100/0.5/3P	100/3P	256/611/—	34
16	TYD110/ √3-0.02H	20000	100/0.2	100/0.5/3P	100/0.5/3P	150/3P	230/550/—	25
17	TYD115/√3-0.01H	10000	150/0.5	—	—	100/3P	275/650/—	36
18	TYD115/√3-0.02H	20000	50/0.2	50/0.5/3P	50/0.5/3P	100/3P	230/550/—	31
19	TYD132/√3-0.01H	10000	50/0.2	50/0.5/3P	50/0.5/3P	100/3P	275/650/—	31
20	TYD132/√3-0.015H	15000	100/0.2	50/0.5/3P	50/0.5/3P	100/3P	275/650/—	31
21	TYD132/√3-0.02H	20000	100/0.2	100/0.5/3P	100/0.5/3P	100/3P	275/650/—	31
22	TYD150/√3-0.005H	5000	50/0.2	50/0.5/3P	50/0.5/3P	100/3P	395/950/—	46
23	TYD150/√3-0.01H	10000	50/0.2	50/0.5/3P	50/0.5/3P	100/3P	395/950/—	46
24	TYD161/√3-0.01H	10000	50/0.2	75/3P	75/3P	75/6P	395/950/—	41.5
25	TYD220/√3-0.005H	5000	150/0.5	—	—	100/3P	460/1050/—	28

Dimensions
No.	Type	Dimensions (LWH mm)	Installation Dimensions (mm)	Weight (kg)
1	TYD35/√3-0.01FH	808×660×1650	530×530	570
2	TYD35/ √3-0.02FH	808×660×1650	530×530	570
3	TYD66/ √3-0.01FH	808×660×1750	530×530	570
4	TYD66/ √3-0.02FH	808×660×1750	530×530	570
5	TYD70/ √3-0.01H	805×660×1750	530×530	570
6	TYD90/ √3-0.01H	805×660×2000	530×530	640
7	TYD110/√3-0.01H	715×590×1900	420×420	500
8	TYD110/ √3-0.01H	715×590×2230	420×420	530
9	TYD110/√3-0.01H	808×660×2000	530×530	640
10	TYD110/ √3-0.01H	808×660×2330	530×530	670
11	TYD110/√3-0.01H	730×508×2150	440×340	416
12	TYD110/√3-0.015H	808×660×2000	530×530	640
13	TYD110/√3-0.015H	808×660×2330	530×530	655
14	TYD110/ √3-0.02H	808×660×2000	530×530	614
15	TYD110/ √3-0.02H	808×660×2330	530×530	645
16	TYD110/ √3-0.02H	730×508×2150	440×340	415
17	TYD115/√3-0.01H	715×590×2330	420×420	500
18	TYD115/√3-0.02H	805×660×2170	530×530	630
19	TYD132/√3-0.01H	855×740×2330	530×530	840
20	TYD132/√3-0.015H	805×660×2170	530×530	670
21	TYD132/√3-0.02H	855×740×2330	530×530	870
22	TYD150/√3-0.005H	805×660×3610	530×530	895
23	TYD150/√3-0.01H	805×660×3610	530×530	895
24	TYD161/√3-0.01H	805×660×3270	530×530	840
25	TYD220/√3-0.005H	715×590×3170	420×420	725

3.Key Features & Advantages

1. Unmatched Electrical Stability

Our 110kV CVT uses high-quality dielectric materials and an optimized capacitor stack design, achieving a 3PT1-level transient response (residual voltage <2%). This ensures compatibility with fast-acting relays during grid faults.

2. Built for Harsh Environments

With dry arc distances exceeding industry norms and anti-pollution coatings (IEC 60815), the CVT operates reliably in coastal or industrial zones prone to salt, dust, or chemical contamination.

3. Precision You Can Trust

Patented damping technology and 0.1-class accuracy terminals allow on-site recalibration, maintaining measurement precision over a 30+ year lifespan.

4. Safety First

Hermetic sealing and SMC vacuum-cast terminals eliminate oil leaks, while ferroresonance suppression guarantees stable operation under varying loads.

4.Real-World Applications

Be used in a wide range of industries.

Industrial Plants

Eliminate power factor penalties in CNC machines and assembly lines while handling surge currents up to 100x rated capacity.

Substation

Stabilizes substation voltage against harmonics and intermittent generation from renewable inverters.

Commercial Buildings

Retrofit aging systems in hospitals or malls with silent (<45dB), flame-retardant capacitors that meet NFPA 70 fire codes.

5.How It Works?

The 110kV Capacitive Voltage Transformer converts high transmission-line voltages to safer, measurable levels using a capacitor divider and electromagnetic circuit. Its modular design includes:

1. High-Voltage Capacitor: Insulated with ultra-low-loss dielectric material.

2. Intermediate Transformer: Ensures precise signal scaling.

3. Damping System: Suppresses ferroresonance and voltage spikes.

6.Manufacturing & Quality Assurance

Every 110kV CVT undergoes 12+ quality checks, including:

Material Testing: X-ray inspection of capacitor elements.
Partial Discharge Tests: Validated by KEMA Labs.
Environmental Simulation: Thermal cycling, vibration, and pollution tests.
Certifications: ISO 9001, ISO 14001, and ISO 45001 compliant.

7.Why Choose Us?

40+ Patents: Innovations in CVT damping and insulation.
Global Compliance: Products meet IEC, IEEE, and regional standards.
24/7 Support: Installation guidance, emergency maintenance, and spare parts.
Proven Track Record: Trusted by national grids across Asia, Europe, and Africa.

Certificate

8.FAQs

Q1: How does the CVT handle voltage transients?

A: The damping system limits residual voltage to <2%, meeting 3PT1 requirements for relay compatibility.

Q2: Is recalibration possible without de-energizing?

A: Yes! Our external accuracy terminals allow safe adjustments during live-grid operation.

Q3: What’s the maintenance interval?

A: Hermetic sealing ensures maintenance-free operation for 10+ years. Annual visual inspections are recommended.
