Capacitive Voltage Transformer: How It Works and Why It Matters

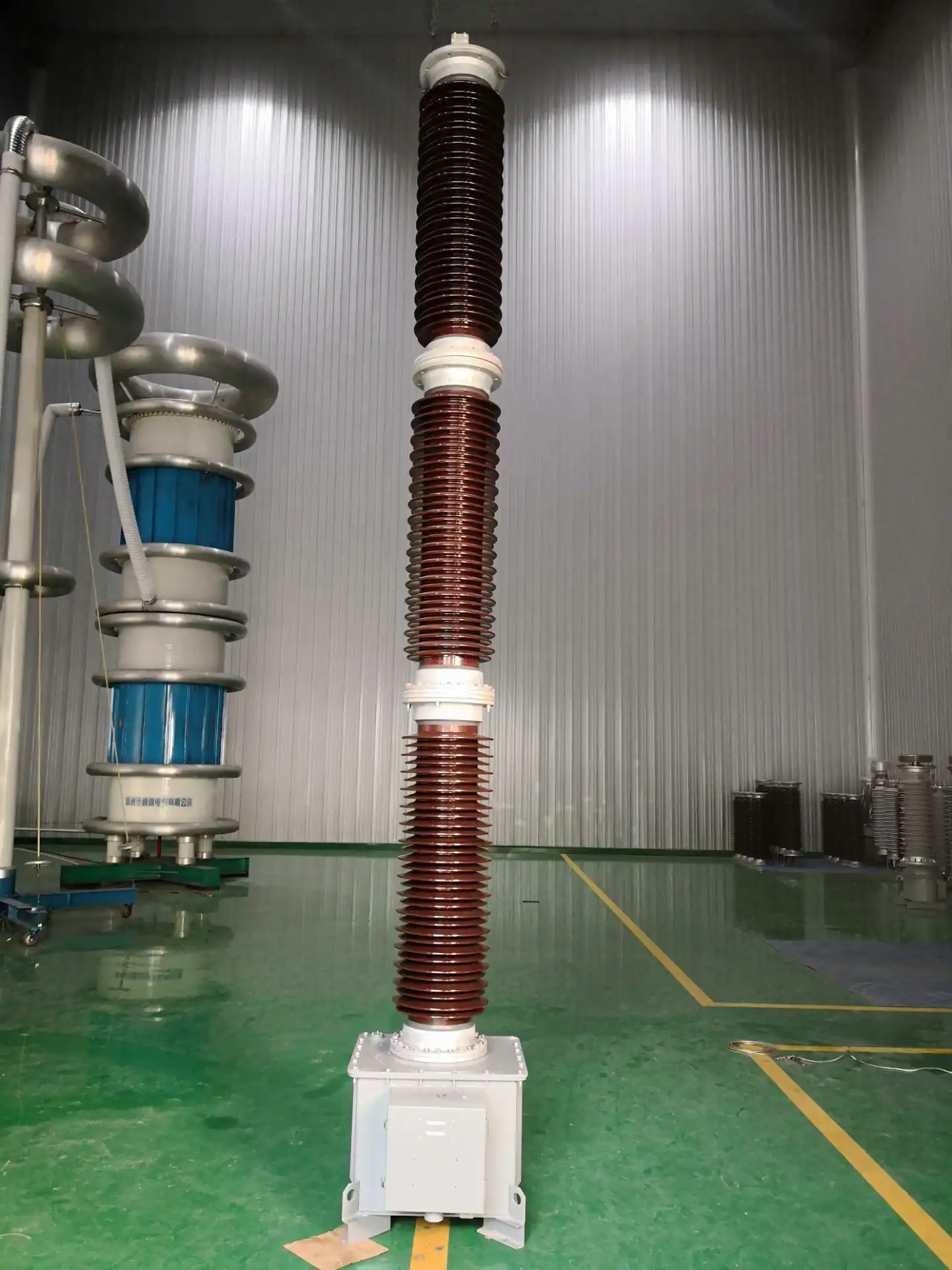

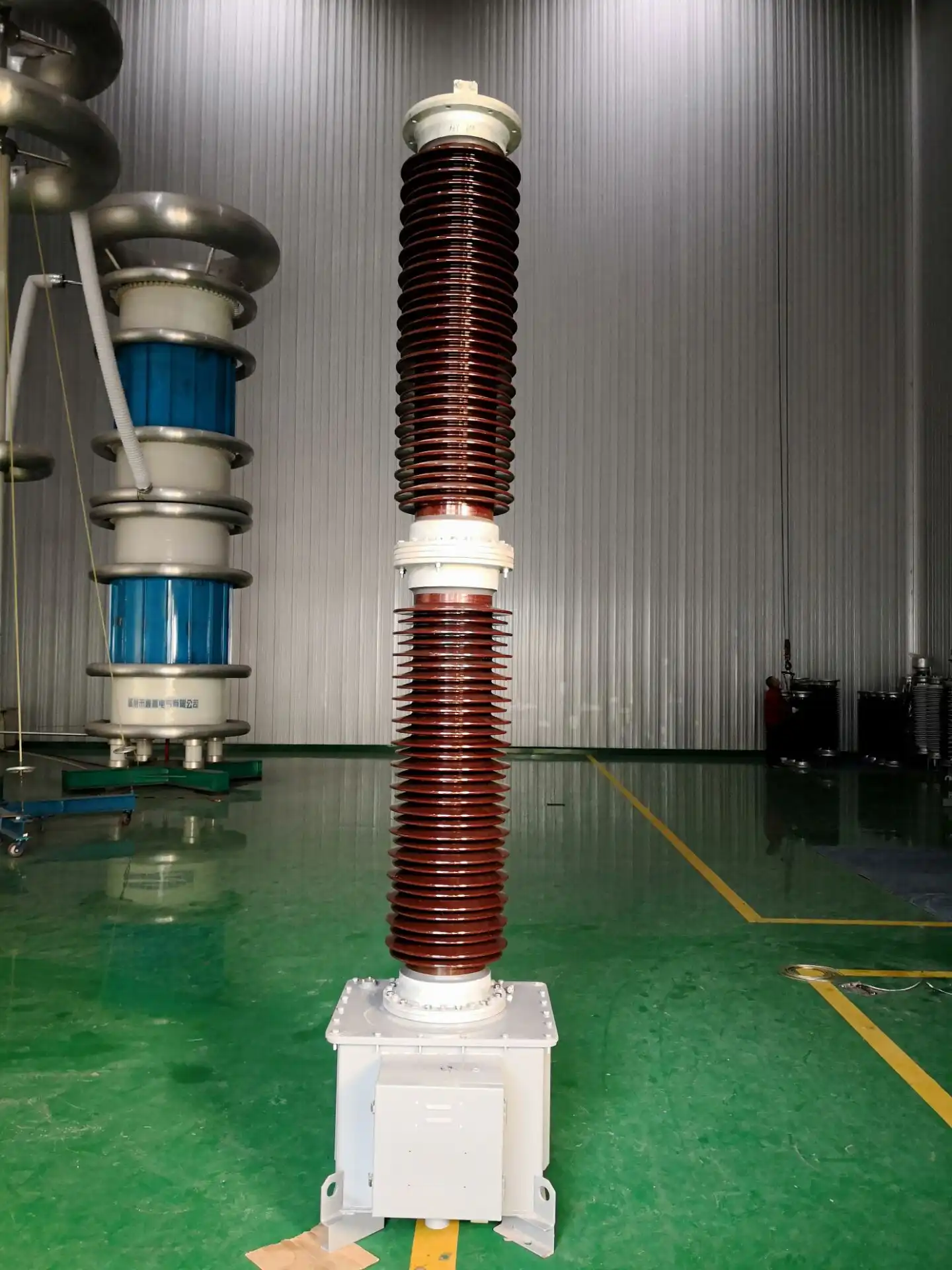

A capacitive voltage transformer (CVT) is a specialized instrument transformer designed to step down high transmission voltages to safe, measurable levels for metering and protection purposes. Unlike conventional electromagnetic voltage transformers, a CVT uses a capacitor divider stack combined with an electromagnetic unit to achieve accurate voltage scaling at 110kV and above. For EPC contractors and power system engineers specifying equipment for substation projects, understanding how a capacitive voltage transformer functions—and what separates a well-engineered unit from a mediocre one—directly affects grid reliability and protection performance.

Understanding Capacitive Voltage Transformers

What a CVT Actually Does

A capacitive voltage transformer finds the potential of a high-voltage transmission line by splitting the voltage across a stack of series capacitors and then sending the lower signal to a small electromagnetic transformer. At the same time, the output powers both revenue-grade metering terminals and protective relay inputs. When the voltage is 110kV, this design is much more useful than making a full electromagnetic potential transformer, which would need a huge, heavy core to handle the full system voltage.

Core Components and Working Principle

This type of voltage transformer has three parts that work together: the high-voltage capacitor divider, the intermediate electromagnetic transformer, and the ferroresonance damping circuit. The capacitor divider breaks the line voltage into a smaller intermediate voltage, which is usually between 5 and 15 kV. After that, the electromagnetic unit changes this even more to a normal 100V or 110V secondary output. During switching events, the damping circuit soaks up energy. This stops long-lasting vibrations that could mess up safety signals.

Accuracy Classes and Voltage Range

IEC 61869-5 lists the accuracy classes that are most useful for substation work. These are 0.1 and 0.2 for revenue metering, 0.5 for general measurement, and 3P/6P for protection purposes. The 110kV CVT from Xi'an Xikai has metering windings that are accurate within 0.1–0.2 class, and the output has a 3P protection class with a transient response rating of 3PT1 and a residual voltage below 2%. Schemes for fast-acting distance and differential relay need this level of efficiency.

Comparing Capacitive Voltage Transformers with Alternatives

CVT vs. Electromagnetic Voltage Transformer

Electromagnetic potential transformers (PT) have faster transient reaction at lower voltages, but they can't be used above 72.5kV because the cost of the covering and core size increase quickly with voltage. When a dry-type construction is used, a capacitive voltage transformer can handle voltages above 110kV with less material cost, a smaller footprint, and no worries about oil volume. The trade-off is a slightly slower transient response. This is fixed in modern CVTs by designing better damping, which raises the response to the 3PT1 level needed by IEC 61869-5.

CVT vs. Optical Voltage Transformer

Optical voltage monitors have great bandwidth and galvanic separation, but they are much more expensive per unit and need special electronics that might not work with older protection panels. A capacitive voltage transformer is still the most practical and cost-effective choice for projects on State Grid, SGCC, or Belt and Road transmission lines where proven interchange with standard relay platforms is important. Optical devices are still mostly used in test projects or in situations with very high power (>500kV).

Why CVTs Dominate 110kV Substations

Capacitive voltage transformers in the 110kV voltage class have good transient performance, a long service life (30 years or more if properly kept), and easy-to-understand upkeep steps. Every major national grid standard, like GB/T 20840.5 in China and IEC 61869-5 around the world, has clear type test standards for CVTs. This helps buying engineers understand how to accept them. When compared to younger technologies with shorter field records, this standardization lowers the risk of buying something.

Benefits and Applications of Capacitive Voltage Transformers

Key Technical Advantages

It's not enough to just look at the datasheet voltage rating to pick the right CVT for a 110kV bay. In real life, these are the most important performance traits:

• High electric strength and wide insulation margin: The 110kV CVT at Xi'an Xikai uses advanced dielectric materials and a new structural layout that make it measurably stronger than the minimum IEC requirements. This makes it much less likely that the insulation will fail during overvoltage events.
• Long creepage distance and pollution resistance: The creepage distance of the unit is more than 25 mm/kV, which means it meets the IEC 60815 high pollution class. Porcelain and polymer surfaces are protected by anti-pollution coating in coastal, desert, and industrial settings where contamination flashover is known to happen.
• High mechanical strength: The capacitor insulator column is made and tested to meet the requirements of IEEE 693 for seismic loads. This is a necessary qualification for projects that will be built in areas that are prone to earthquakes along Belt and Road routes.
• Good transient response: The circuit for damping is tuned to get a 3PT1 transient response class with a residual voltage below 2%. This means that the CVT can work with high-speed distance protection and busbar differential schemes where relay operating times are less than 20ms.
• Low dielectric loss: A dielectric loss angle (tanδ) of less than 0.08% and a partial discharge of less than 5pC prevent self-heating and capacitor aging, which are the main causes of long-term accuracy drift.

These features take care of the two main concerns that most EPC project managers have when choosing CVTs: making sure the rapid response is good enough for quick defense and making sure the capacitor doesn't get old over time.

Typical Application Scenarios

A 110kV capacitive voltage transformer is needed for a number of different kinds of projects. For standard transmission substations, it sends the voltage reference signal to the synchronization panels and distance safety switches. It keeps the voltage measurement point stable against harmonic distortion from inverter outputs in renewable energy collection substations, which are becoming more common on Belt and Road solar and wind projects. It can handle a lot of switching transients without losing accuracy in industrial substations that serve steel, petroleum, or rail power loads.

How to Choose and Procure the Right Capacitive Voltage Transformer

Selection Criteria for EPC Projects

When choosing a capacitive voltage transformer for a 110kV bay, you need to think about four things: the accuracy class (make sure the metering winding class matches the revenue billing requirements, which should be at least 0.2), the transient response class (3PT1 at the very least for fast protection schemes), the pollution severity class (make sure the IEC 60815 site classification matches the creepage distance), and the thermal burden rating (make sure the secondary load of connected meters and relays doesn't exceed the rated VA of each winding).

Evaluating Suppliers

A trustworthy company that sells capacitive voltage transformers should have up-to-date IEC 61869-5 type test certificates from a recognized lab like KEMA or CESI, as well as ISO 9001 production approval and field references in similar voltage classes and climate conditions. Xi'an Xikai has more than 40 patents on CVT damping and insulation technology, and all of its manufacturing processes are certified by ISO 9001, ISO 14001, and ISO 45001 standards. All units go through 12 quality checks, such as an X-ray of the capacitor elements, a partial discharge measurement that has been checked by outside labs, and a thermal cycling simulation.

Procurement Process and Lead Time

From detailed specs to factory delivery, the buying process for a standard 110kV substation project that needs 3–15 CVT units usually takes 8–16 weeks, but this depends on the number of units needed, any special winding configurations, and the need for seismic qualification. Working with the technical team at Xi'an Xikai early on, during the design review stage instead of after the bidding process is over, lets you check the accuracy class, burden, and secondary terminal setup before the drawings are made, which saves you the money of having to make changes at the last minute.

Ensuring Long-Term Success with Capacitive Voltage Transformers

Routine Testing and Performance Validation

Both IEC 61869-5 and GB/T 20840.5 list the tests that need to be done before and after installation. These include measuring the ratio error and phase shift at rated voltage and 80% of rated voltage, as well as the power frequency withstand test on secondary circuits and the insulation resistance check. A baseline tanδ measurement is taken during commissioning and is used to compare future readings to. This lets us find capacitor aging before it affects accuracy class compliance.

Maintenance Scheduling

A capacitive voltage transformer needs less upkeep than an oil-filled electromagnetic unit, but it still needs to be checked on a regular basis. It takes about 30 minutes per unit to do an annual visual inspection for corona marks, tracking, and hardware corrosion. tanδ trending once every three to five years, along with planning for substation outages, finds capacitor sections that are getting close to the end of their useful life before accuracy drift affects billing or protection. Every time you do maintenance, you should check the ferroresonance suppression resistors in the damping circuit to see if they are open.

Troubleshooting Common Issues

A rising tanδ trend shows that an error in accuracy that builds up slowly over years is almost always caused by a capacitor that is wearing out. A sudden change in the ratio means that a capacitor element has failed partially, which means the whole unit needs to be replaced. A damping circuit fault is shown by a secondary voltage oscillation that doesn't stop after a switching event. Xi'an Xikai offers technical support 24 hours a day, seven days a week, spare damping resistor assemblies, and on-site commissioning help to cut down on the time needed to figure out what's wrong as quickly as possible.

Conclusion

A capacitive voltage transformer is not a common item; it is a precise tool that controls how accurately income is measured and how quickly faults are fixed in a 110kV substation. Lifecycle risk is directly lowered by choosing a unit with a proven transient response, documented capacitor stability data, and pollution-class insulation that is right for the site environment. The 110kV CVT from Xi'an Xikai meets the requirements of IEC 61869-5 and has a 0.1/0.2 metering accuracy, 3PT1 transient response, and tanδ below 0.08%. It also comes with independent type test certificates and a manufacturing quality system that covers the whole production process.

FAQ

1.How long does a capacitive voltage transformer typically last?

A CVT that is well taken care of and works within its recommended conditions can last for 30 years or more. The main way that capacitors age is by slowly increasing tanδ, which can be tracked by measuring them on a regular basis. If the tanδ value is less than 0.08% when the unit is first turned on and stays that low for the first ten years, it probably won't need to be replaced before the end of its design life.

2.Can a CVT be used in renewable energy substation applications?

Yes. For substations that collect energy from the sun or wind, a capacitive voltage transformer at 110kV is usually required. The most important thing is that the CVT's secondary accuracy stays within class limits when inverter-based generation creates voltage waves that are full of harmonics. The units from Xi'an Xikai are tried with waveforms that aren't straight, and they have been put to use in green energy substations all over Asia and Africa.

3.How do I verify the accuracy class before purchasing?

Get the IEC 61869-5 type test result from a third-party laboratory that has been approved by the government. The report will show the ratio error and phase displacement that were measured at different voltage and load levels. For the 0.2 class, the ratio mistake must stay within ±0.2% and the phase shift must stay within ±10 minutes over the given load range. The final proof is a factory acceptance test certificate for each of the serial numbers in your order.

4.What is the difference between 3P and 6P protection class?

For safety windings, the 3P class allows ±3% mistake in the ratio and ±120 minutes of phase displacement. The 6P class doubles those limits. A 3P minimum is required by most distance protection and differential relay schemes. The 110kV CVT from Xi'an Xikai is 3P class and has a transient reaction class of 3PT1 as usual.

Get Your 110kV CVT Quote from Xi'an Xikai

Xi'an Xikai sells 110kV capacitive voltage transformer units that are IEC 61869-5 certified to EPC contractors and power utilities all over the world. These units have been used successfully in State Grid projects, Belt and Road substations, and industrial power systems. Get in touch with our technical sales team right away to go over specifications, get prices on big orders, and find out when your order will arrive. To get a formal quote, email us at serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com, or go to xaxd-electric.com.

References

1. International Electrotechnical Commission. IEC 61869-5: Instrument Transformers – Additional Requirements for Capacitor Voltage Transformers. IEC, 2011.

2. IEEE Power and Energy Society. IEEE C57.13: Standard Requirements for Instrument Transformers. IEEE, 2016.

3. Kuffel, E., Zaengl, W. S., & Kuffel, J. High Voltage Engineering: Fundamentals. Newnes/Butterworth-Heinemann, 2000.

4. Mombello, E. E., & Terzic, M. "Capacitor Voltage Transformer Transient Response and Its Influence on Distance Protection." IEEE Transactions on Power Delivery, 2004.

5. International Electrotechnical Commission. IEC 60815-1: Selection and Dimensioning of High-Voltage Insulators for Polluted Conditions. IEC, 2008.

6. Ghassemi, F., & Gale, P. F. "Capacitor Voltage Transformer Ferroresonance." IEE Proceedings – Generation, Transmission and Distribution, 2003.
