Hybrid Dynamic Compensation Device for Power Quality

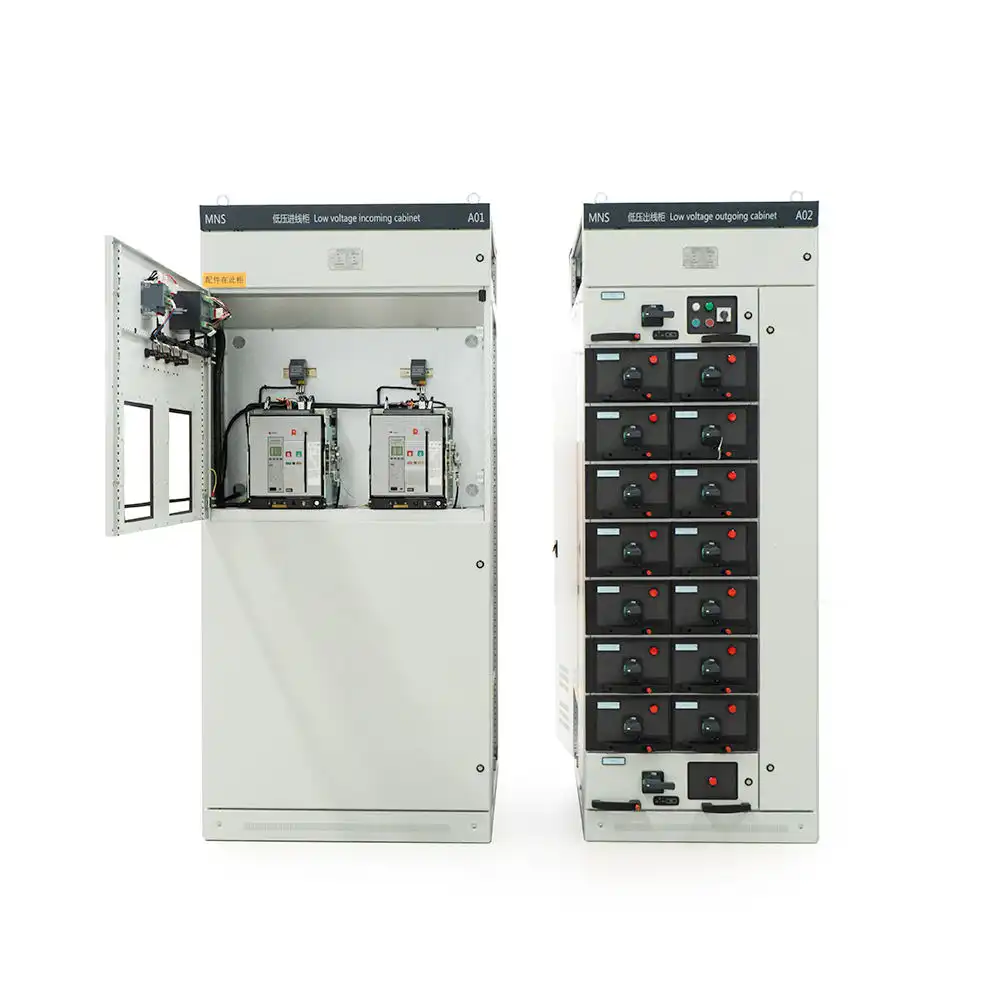

A Hybrid Dynamic Compensation Device for Power Quality combines active power electronics with passive reactive components to deliver precise, real-time power factor correction and harmonic mitigation. Unlike traditional capacitor banks that struggle with rapid load changes, these intelligent systems adapt instantaneously, ensuring stable voltage profiles and minimizing energy waste. This dual-architecture approach addresses both steady-state and transient power quality challenges, making it indispensable for modern industrial facilities, commercial buildings, and renewable energy installations seeking operational reliability and cost efficiency.

Understanding Hybrid Dynamic Compensation Devices

The Core Architecture of Intelligent Compensation

Knowing how different technologies work with each other is the basis of good power quality control. A well-thought-out compensation system has many parts that work together to deal with both reactive power needs and harmonic distortion at the same time. Active modules that use Static Var Generators (SVG) can respond to sudden changes in the load within milliseconds. Passive capacitor banks that are managed by thyristor switching can efficiently handle the bulk reactive power needs.

This plan doesn't have to choose between reaction speed and being able to make money, which is what usually happens. The active part usually controls 30 to 50 percent of the whole capacity and focuses on dynamic correction and harmonic filters. The passive section, on the other hand, takes care of basic reactive power needs for a lot less money than pure active solutions. With this balance in architecture, performance is about the same as with full SVG systems, but investment costs are 30–50% lower.

Real-Time Load Response Capabilities

In industrial settings, pay systems must be able to instantly track changes in load. Manufacturing plants that use automatic welding, for example, feel changes in load effects that happen in microseconds. The active part of these systems finds these changes by constantly checking the voltage and current, figuring out what kind of correction is needed, and then changing the output to match.

Response times under 10 milliseconds prevent power flicker and equipment failure, protecting costly machinery. These quick changes are especially useful in car factories, where spot welding creates violent, changing loads that traditional contactors can't handle. The system maintains voltage stability during significant voltage shifts, ensuring manufacturing and product quality.

Integration with Building Automation Systems

Tech executives and procurement managers worry about how new systems will operate with existing ones. Modern intelligent compensation devices may easily interface to supervisory control networks and building automation (BA) systems via RS485 and Modbus. Facility managers may monitor power quality measurements remotely, get maintenance warnings, and optimise energy consumption across numerous locations using this link.

System efficiency, power factor, harmonic levels, and capacitor bank condition are sent in real time via the communication connection. Decision-makers may immediately identify inefficiencies and rectify them before tiny issues become costly failures due to this transparency. Connecting to SCADA systems eliminates the requirement for monitoring infrastructure. This reduces system cost and complexity.

Comparing Hybrid Dynamic Compensation Devices with Traditional Technologies

Passive Compensation Limitations

While classic capacitor banks with contactor-based switching are initially the cheapest, they have several operational issues. There are unavoidable pauses between compensation procedures since these systems function in phases. A facility that requires 240 kVAR of compensation may employ six 40 kVAR steps, which might over- or under-compensate it by 40 kVAR.

The mechanical wear and tear of stepped switching requires more frequent contactor maintenance and finally breaks them. When you turn things on and off, transitory voltages and currents stress capacitors and connected electronics. Harmonics are frequent in variable frequency drives, and passive capacitors may resonate with grid impedances, strengthening particular harmonic frequencies and perhaps triggering catastrophic failures.

Active Compensation Trade-offs

When you use Static Var Generators or Active Power Filters for pure active correction, you get better performance with stepless, continuous reactive power control. These systems can handle both inductive and capacitive loads and react in microseconds. This makes them perfect for data centers where UPS systems create leading power factor conditions.

The big investment needed is still the main thing stopping a lot of people from using active systems, even for a Hybrid Dynamic Compensation Device. It's possible that a 500 kVAR pure SVG system will cost three to four times as much as a passive option of the same size. In important situations, the performance is worth the extra cost, but many sites can't put that much money into just improving the power quality. The cost of maintenance is also higher because power systems are more complicated and IGBT units need to be cooled.

The Balanced Hybrid Approach

Hybrid systems combine both technologies in a smart way to balance efficiency and cost. The passive capacitor banks take care of steady-state reactive power needs, which make up about 70–80% of all power needs in most industrial facilities. The active module then does the fine-tuning by handling dynamic changes and filling in the gaps between capacitor steps.

Take a look at a business building that needs 300 kVAR of reactive power. A 50 kVAR active module might be added to 250 kVAR of thyristor-switched capacitors that are set up in the best way possible. The capacitors fix the baseline, and the active part makes sure that the power factor stays exactly at the target value even if the load changes. The performance of this configuration is similar to SVG at about 60% of the cost.

By lowering the switching frequency, the combination method also makes capacitors last longer. Small changes in the load are absorbed by the active module, which lets the capacitor banks stay in their current state for longer. Less flipping means less mechanical stress and thermal cycle, which could double the service life of a capacitor from the normal 5 to 7 years to over 10 years.

Procurement Guide for Hybrid Dynamic Compensation Devices

Evaluating Supplier Technical Capabilities

Supplier selection is more than just choosing the right product. It also includes the depth of research and development, the quality systems for manufacturing, and the application engineering support. Companies that have their own power electronics research teams are always coming up with new ideas by using the newest semiconductor technologies and control algorithms in their products.

Portfolios of certifications are concrete proof of quality control systems and product compliance. ISO 9001 certification shows that production processes are consistent, and ISO 14001 certification shows that production operations are environmentally responsible. Product-specific certificates, like CCC (China Compulsory Certification), and compliance with IEEE 519-2014 harmonic standards make sure that products meet strict requirements for safety and performance.

Having more confidence comes from manufacturing facilities that use automatic testing methods. Each unit should go through a full load modeling test that lasts at least 72 hours to make sure it works well when it's being used continuously. Harmonic stress testing shows that the system can handle power changes without breaking down. When thermal management systems are fully loaded, temperature rise testing makes sure that IGBT joint temperatures stay within safe working limits.

Installation Planning and Site Preparation

A full site inspection and planning is the first step to a successful implementation. Installation teams have to look at how much space they have, the temperature ranges in the area, the need for ventilation, and how to connect to the existing electrical infrastructure. Installing modular cabinets is easier in places with limited space, and IP65 ratings for enclosures let them be used in harsh industrial settings with dust, moisture, or corrosive atmospheres.

For electrical integration to work, it needs to be coordinated with existing metering and protection systems for the Hybrid Dynamic Compensation Device. To work best, the compensation device should be connected after the main service door but before the main load centers. Grounding and surge protection that work right protect the compensating system and the equipment that is attached to it from short-term overvoltages.

The GGJ Low Voltage Reactive Power Intelligent Compensation Device from Xi'an Xikai is a great example of well-thought-out design that can be used in real life. These units work with system voltages below 450V AC and are compatible with all global cabinet systems, such as MNS, GCK, and GGD setups. This compatibility makes retrofitting and standardizing across multiple sites easier, which saves engineers time and makes installation easier.

Customization for Specific Applications

Each building has its own power quality problems that need custom answers. When data centers have a lot of servers, they make capacitive reactive power that can't be fixed with standard inductive correction. Chemical plants with big pump drives produce a lot of harmonic distortion, which means that they need better filtering tools. Facilities that make cars need to have equipment that can handle surge currents of up to 100 times its stated power while spot welding.

Leading manufacturers offer a range of configuration options to meet these different needs. Capacitor bank arrangements can be made to work best with certain voltage levels, environmental conditions, and load profiles. The size of the active module changes depending on how much dynamic compensation is needed and how much harmonic filtering is needed. With more advanced controllers, you can change parameters to finetune the reaction qualities for a specific use.

The GGJ device has AI-driven algorithms that keep an eye on compensation and make changes in real time, making sure that the best power factor fix is made for the specific working conditions. As a result of continuously optimizing rather than static fixed settings, this smart adaptation reduces utility penalties and can cut energy bills by up to 30%.

Technical Insights: Design Principles and Maintenance

Active and Passive Component Synergy

Hybrid systems are brilliant because active and passive portions operate well together. Thyristor-switched capacitors produce reactive power cheaply and consistently. Thyristors activate below zero voltage. This eliminates mechanical contactor inrush currents and contact arcing. Solid-state switching outlasts electromechanical approaches and speeds capacitor response.

The active SVG module uses IGBTs. Transistors typically switch at 5–20 kHz. These power semiconductors generate precise current waves from any angle ahead or behind voltage. This makes rectification stepless. The active portion acts as an active harmonic filter, injecting currents into the system to cancel out harmonic content from non-linear loads.

Systems with integrated reactors accomplish several things. To avoid grid harmonic resonance, capacitor banks are detuned below the 5th harmonic (250 Hz at 50 Hz fundamental). These reactors also prevent abrupt currents when the capacitor is switched on and offer resistance to smooth active-passive interaction.

Installation Best Practices

The performance and longevity of a system are directly affected by how well it is installed. As part of taking care of the environment, temperatures must be kept within certain ranges, which are usually -10°C to +45°C for standard units. Power systems and capacitors release heat when they don't have enough air. This keeps thermal stress from wearing down parts too quickly.

For electrical connections, the right size of conductor is needed based on the continuous current rating plus the amount of harmonic content that is allowed. It is important to follow the torque requirements for bus bar links to avoid high-resistance parts that cause heat and voltage drops. Protection coordination makes sure that circuit breakers and fuses upstream clear faults correctly without tripping during standard capacitor switching operations.

The GGJ device is built to IP65 standards and has a rugged design that lets it be used in harsh industrial settings without the need for special enclosures. Modular parts make upgrades or replacements easy and quick, which cuts down on downtime when maintenance is needed. This realistic approach to design takes into account the fact that factories can't afford to be without power for long periods of time for equipment repair.

Preventive Maintenance Protocols

Regular repair makes systems more reliable and improves the life of their parts. Visual inspections every three months look for physical damage, make sure the cooling system works, and see if dust has built up on the heat sinks. Thermal imaging finds strange patterns of temperature that point to broken links or worn-out parts before they break.

As part of the yearly electrical testing, capacitance measurements are used to find capacitors that aren't working properly, insulation resistance tests are done to make sure the dielectric is still intact, and protective relays are checked. Capacitors naturally lose their effectiveness over time. Usually, the capacitance drops by 5 to 10 percent before the capacitor needs to be replaced. By keeping an eye on these trends, predictive maintenance can be used to replace parts during planned breaks instead of having to fix problems as they happen.

Because they are solid-state, the Hybrid Dynamic Compensation Device working electronics don't need much upkeep. Software updates may be made from time to time to improve performance or meet the needs of a specific application. Testing the communication link makes sure that building control systems can keep working with each other. IoT-enabled sensors in advanced units like the GGJ device constantly check voltage and current readings, figuring out what kind of compensation is needed and swapping capacitor banks on the fly while keeping an eye on system health factors.

Future Trends and Innovations in Power Quality Compensation

Smart Grid Integration

The compensation devices of the next generation work as active grid participants instead of passive load accessories. Participation in demand response is possible through two-way contact with utility smart meters and grid management systems. In this case, compensation equipment changes the output of reactive power based on grid conditions and pricing signs. With this feature, power quality devices become assets that bring in money instead of just being cost centers.

Advanced forecasting systems look at past data, weather forecasts, and production plans to guess how loads will change. Predictive compensation changes the reactive power output before the load changes. This keeps the power factor at its best even when production changes quickly. Machine learning models keep improving these predictions, making them more accurate over time without any help from a person.

Enhanced Harmonic Mitigation

More electrical loads, LED lighting, and green energy inverters are worsening harmonic difficulties in contemporary structures. In future compensation systems, improved filtering will respond to shifting harmonic bands in real time. Adaptive filters constantly monitor the frequency range and adjust their response depending on what they detect.

Active compensating modules using wide bandgap semiconductors like GaN and SiC will have greater switching frequencies and efficiency. These novel materials reduce switching losses, allowing smaller designs and heat sinks. Higher switching frequencies also help harmonic filtering function better, particularly for higher-order harmonics that are hurting more and more sensitive equipment.

Sustainability and Regulatory Compliance

Power quality standards are getting stricter because of the global focus on saving energy. For buildings to get LEED certification, ISO 50001 energy management systems certification, or similar frameworks, they need to show that they have improved power quality and saved energy. For these certificates, tracking data and proofs of performance are provided by intelligent compensation devices.

This trend is shown by the GGJ device, which cuts CO2 emissions and supports green building certifications while also being in line with sustainability efforts. Cutting down on reactive power flow lowers losses in the distribution system, which lowers the facility's carbon footprint immediately. Full data recording gives sustainability auditors the proof they need to confirm claims about environmental performance.

Conclusion

Intelligent power quality solutions, such as the Hybrid Dynamic Compensation Device, are an important part of modern business and industry buildings. When you mix active and inactive technologies, you get compensation systems that work better without being too expensive like pure active options. Technical directors and procurement managers who are looking at these systems need to think about more than just the original cost. They also need to think about how much they will save in the long run, how much upkeep they will need, and how well they will work with current infrastructure. Choosing advanced compensation equipment in a smart way lowers energy costs, protects sensitive equipment, makes sure facilities follow the rules, and sets them up for future grid requirements and sustainability standards.

FAQ

1. How does a hybrid system differ from traditional capacitor banks?

Traditional capacitor banks connect set capacitor steps with mechanical contactors or basic thyristor switches. This makes separate compensation levels and potential over- or under-correction possible. In hybrid systems, an active element is added that makes adjustments continuously and steplessly between these steps. This gets rid of the need for compensation gaps while keeping the cost benefits of capacitors for bulk reactive power.

2. Can these devices handle both inductive and capacitive loads?

It is true that the active part in hybrid systems can either give or take in reactive power. Passive capacitors only fix inductive (lagging) power factor. The active part, on the other hand, fixes capacitive (leading) loads caused by UPS systems, servers, or over-compensated capacitor banks. This makes hybrid systems good for data centers and other places with a mix of load types.

3. What maintenance do hybrid systems require?

The working electronics are mostly solid-state parts that don't need to be maintained. Capacitors need to be checked for capacitance once a year and, depending on how they are used, usually need to be replaced every 5 to 7 years. During planned repair times, the cooling system should be cleaned, the link torque should be checked, and the protection relay should be tested. Advanced units that can connect to the internet of things (IoT) send repair alerts before a part fails.

Partner with Xi'an Xikai for Advanced Power Quality Solutions

To solve complicated power quality problems, you need more than just off-the-shelf tools. You need a seller with a lot of technical know-how and a dedication to custom solutions. The Xi'an Xikai Medium & Low Voltage Electric Co., Ltd. offers complete power quality systems that are backed by strict quality control and a worldwide support network. Our GGJ Low Voltage Reactive Power Intelligent Compensation Device works with current electrical systems and automatically adjusts the reactive power to improve the power factor while lowering investment costs and distribution losses.

Our manufacturing methods for the Hybrid Dynamic Compensation Device are certified to ISO 9001, ISO 14001, and ISO 45001 standards, which means that the quality of every unit is the same. Before being sent out, each device goes through a lot of load simulation and harmonic stress testing. Our engineering team works with clients to create solutions that meet the specific needs of each application. This could be for making cars with heavy welding loads, data centers with server environments full of harmonics, or commercial buildings that need to be quiet and follow fire codes.

Get in touch with our technical experts at serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com to talk about the needs of your project. You can look at all of our power distribution solutions at xaxd-electric.com. As a well-known company that makes Hybrid Dynamic Compensation Devices, we offer the technical know-how, customization options, and after-sales help that are needed for a smooth application and long-term performance.
