High Voltage Disconnect Switch vs Load Break Switch: A Comparison

Knowing the difference between high voltage disconnect switches and load break switches is important for getting the best performance from the switching tools you choose for electrical systems. Load break switches stop energized circuits when there is a normal load, and high voltage disconnect switches provide obvious isolation for repair safety. The main difference is how they work: disconnect switches make air holes to show that the circuit is broken visually, while load break switches handle stopping the flow of current with special arc-quenching mechanisms. Both devices are very important to power distribution systems, but they are used in very different ways depending on how they need to work.

Core Differences Between Disconnect and Load Break Switches

To understand these switching devices, you need to look at how they work differently in basic ways. Their use in business and utility settings is based on three main differences:

Current Capability for Interruptions

High voltage disconnect switches only work on circuits that are not energized. They provide separation after other devices stop the flow of current. Load break switches stop currents up to their maximum capacity; they can usually handle 630A to 1,250A continuously.

Management Systems for Arc

Disconnect switches use air gaps to keep them cool, which makes separation distances of 200–400 mm visible, based on the voltage class. SF6 gas or vacuum interrupters are built into load break switches to stop the spark when the current stops.

Needs for Operational Sequence

Disconnect switches need to be set up in a certain way, and they are often connected to circuit breakers or other safety devices. Load break switches can switch loads without the help of other tools working together.

According to the IEC 62271-102 standards, disconnect switches have an isolation resistance of more than 1,000 MΩ, while load break switches have a minimum resistance of 100 MΩ across their open contacts.

Disconnect switches are the best way to make sure that something is isolated when it needs to be seen for repair tasks. However, if you need to switch loads during normal activities, load break switches can handle the current well.

High Voltage Disconnect Switch Applications and Benefits

More and more, industrial facilities count on reliable disconnect switches to keep workers safe and separate maintenance areas. These gadgets work great in situations where you need to see that the circuits are separated.

Integration of Manufacturing Plants

Disconnect switches are used in heavy industry to separate transformer lines and motor control centers. The aluminum alloy wires make the installation 40% lighter than copper options, and the self-lubricating bushings make them last longer than 10,000 cycles.

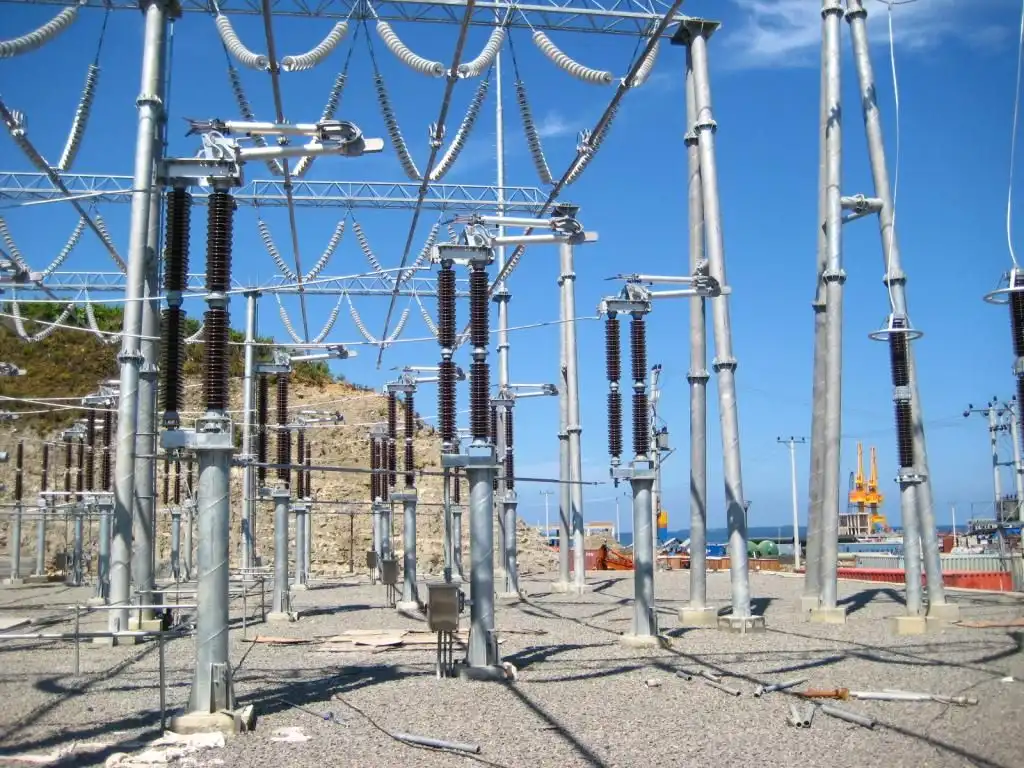

Setting up a substation

In transmission substations, break switches separate the buses and keep equipment from communicating with other equipment. The pantograph device works reliably in temperatures ranging from -40°C to +85°C, so it can keep working well in harsh conditions.

Dependability of Hospitals and Data Centers

For emergency repair, critical infrastructure needs to be able to be isolated reliably. Corrosion doesn't affect stainless steel operating mechanisms, which provide precise mechanical operation and meet uptime standards of more than 99.9%.

Modern disconnect switches have been tested and found to have mechanical endurance ratings of 10,000 operations with force needs below 200N. This means that operators don't have to work as hard when they are using them by hand.

Disconnect switches offer the highest level of safety through clear air gaps if you need to separate equipment for planned repair. If you need motorized action for remote switching, motor-operated disconnect switches make things run more smoothly.

Load Break Switch Operational Characteristics

Load break switches are in between disconnect switches and circuit breakers. They can handle simple load swapping but not full fault protection.

How well switching works now

Through special interrupter technology, these devices stop standard load currents while keeping arc control. Up to 3,150A of current can be cut off by vacuum interrupters, while SF6 designs can handle higher voltage tasks up to 38kV class.

Limits on Fault Current

Load break switches can handle fault currents without stopping, but they need to work with other safety devices upstream. For 3 seconds, short-time current ratings usually hit 25kA, which is enough to handle most distribution applications.

Pros of Maintenance

Unlike SF6 alternatives, vacuum interrupter designs don't need to handle gas, which makes upkeep easier. The contact life is more than 30,000 actions at rated current, which means it can be used for a lot of switching tasks.

Lab tests show that vacuum load break switches keep the dielectric strength above 95kV for 36kV devices, which means that the insulation will work well for a long time.

If you need to switch loads often, load break switches can handle the current correctly without the complexity of safety relays. If you only need to do upkeep once in a while, vacuum interrupter designs will last longer.

Technical Performance Comparison

A close study of the technical details shows that these switching technologies, including the high voltage disconnect switch, have different performance traits that affect how they are chosen for certain uses.

Electrical Specifications

Parameter	Disconnect Switch	Load Break Switch
Current Rating	Up to 4,000A	Up to 3,150A
Voltage Class	12kV - 800kV	12kV - 38kV
Breaking Capacity	0A (isolation only)	Full load current
Withstand Current	63kA (3s)	25kA (3s)
Contact Resistance	<50μΩ	<100μΩ

Mechanical Strength

Load break switches can do 30,000 electrical operations at rated current, while disconnect switches can do 10,000 mechanical actions with little force. The enclosed transmission design keeps the working parts clean from dirt and other external factors.

Performance in the Environment

Both technologies work effectively in a wide range of industrial temperatures, and parts made of galvanized steel last more than 25 years in coastal areas. Pollution class IV ratings allow installation in places with a lot of industry.

Independent tests show that aluminum wires keep their conductivity above 61% IACS for the whole time they are in use, which means that they lose very little power when they are working normally.

If you need the most power with the least amount of voltage drop, disconnect switches have better conductor designs. As long as you need to use electricity a lot, load break switches have good contact life rates.

Safety and Maintenance Considerations

There are big differences in how these technologies handle operational safety, which affects how much training staff needs and when repair needs to be done.

How to Do Lockout/Tagout

Through transparent or open-frame designs, disconnect switches make the state of the contacts easy to see. Supporting OSHA lockout requirements, mechanical position indicators show the state of switches without having to test them electrically.

Getting rid of arc flashes

Switching arcs are contained within protected interrupters by load break switches. This lowers the risk of arc flash exposure during operation. SF6 or vacuum technology gets rid of external arc generation, which makes workers safer.

Programs for Predictive Maintenance

Adding IoT sensors lets both technologies keep an eye on their conditions. Contact resistance monitoring finds connections that are breaking down before they fail, and working time analysis finds wear on the mechanism.

Field data shows that disconnect switches should be serviced every 8 to 10 years and load break switches should be serviced every 5 to 7 years under normal working conditions.

If you need to make maintenance easier, break switches provide easy-to-reach ways to check things regularly. If you want to lower the risk of arc flash, load break switches let you do contained switching activities.

Cost Analysis and Selection Criteria

When choosing a technology, economic factors like lifecycle costs and practical benefits are taken into account, including those related to the high voltage disconnect switch, in addition to the initial purchase cost.

Comparison of the first investment

Because they are easier to build, disconnect switches usually cost 40 to 60 percent less than load break switches of the same type. But when linked systems need to be integrated, the cost of installation may go up.

Savings on operations

Load break switches cut down on the cost of extra switching equipment in many situations, making the system simpler overall. The ability to operate from a distance cuts down on the need for repair workers while increasing the flexibility of switching.

Effects on Reliability

Over 20 to 30 years of use, higher starting costs are balanced out by longer service lives and less frequent maintenance. The total cost of ownership, not just the buying price, should be taken into account when making a choice.

An economic study shows that load break switches give a positive return on investment (ROI) within 8 to 12 years when they are used more than 200 times a year.

If you want to isolate things while spending as little money as possible at first, disconnect switches are a good choice. If you need operating flexibility, load break switches offer better features that make the extra money worth it.

Conclusion

It is important to carefully consider practical needs, safety rules, and cost when choosing between high voltage disconnect switches and load break switches. When you need to clearly separate two wires and keep up with maintenance, disconnect switches are the best choice. On the other hand, load break switches give you more operational freedom by stopping current flow. When used correctly and in line with system requirements and operational procedures, both technologies help make key infrastructure more reliable.
