How a Voltage Transformer Improves Measurement Accuracy

A voltage transformer plays a foundational role in power system measurement by stepping down dangerously high voltages to safe, standardized levels that metering and protection equipment can reliably process. Without a properly calibrated voltage transformer, measurement errors can cascade through protection relays, energy meters, and control systems — compromising both safety and operational efficiency. For switchgear manufacturers, utilities, and OEM procurement teams, selecting a voltage transformer with the right accuracy class, burden rating, and dimensional compatibility is not a technical checkbox — it directly determines whether the entire switchgear panel performs as designed.

Understanding the Role of Voltage Transformers in Measurement Accuracy

What a Voltage Transformer Actually Does in a Power Circuit

A voltage transformer, which is also known as a potential transformer, is an electromagnetic device that creates a safe secondary level voltage that is proportional and phase-accurate to the primary voltage. This usually means changing a 10kV main voltage to a standard 100V or 400V secondary output that can be used by meters, relays, and safety circuits. For measures to be reliable, the transformation ratio must stay the same even when the load changes.

Modern switchgear panels integrate voltage transformers into both measurement and protection circuits. The amount of ratio and phase error that can happen in measurement circuits is controlled by accuracy classes like 0.2S and 0.5. Classes like 5P and 10P describe how well protection circuits work when there is a fault. When a single panel has to do both billing-grade metering and high-speed fault detection at the same time, these differences are very important.

Common Types and Their Practical Applications

Voltage transformers are divided into several groups based on the type of insulation used and the way they were built. Electromagnetic types that use epoxy resin casting, like Xi'an Xikai's 10kV indoor/outdoor model, have sealed, water-resistant housings that can be used in both inner switchgear bays and outdoor installs that are left open to the elements. Oil-filled types can handle higher voltages, but they need more maintenance, which isn't good for small switchgear designs. Dry-type cast plastic units are a good compromise for most OEM panel builders because they don't need to be refilled often, don't need any liquids, and have consistent dimensions that make cabinet planning easier.

Core Principles Behind Voltage Transformer Accuracy Improvement

How Core Material Shapes Measurement Reliability

When it comes to measuring accuracy, the magnetic core is the most important part of a voltage transformer. Grain-oriented silicon steel cores have stable permeability and low hysteresis loss, which is why they are the standard choice for measurement units. Cores that are amorphous or nanocrystalline have even lower core losses and are being used more and more in situations where 0.2S accuracy must be maintained over a wide range of loads. How close the secondary voltage stays with the primary voltage over the maximum load range depends on the turn ratio, conductor cross-section, and winding geometry.

Other things outside of accuracy also play a role for the voltage transformer. Errors in ratio and phase are caused by things like load impedance, temperature changes, harmonic content in the main voltage, and burden resistance. It is allowed for units certified to IEC 61869-3 to have certain ratio errors at certain accuracy classes and burden points. This means that procurement teams need to make sure that the rated burden matches the actual secondary circuit impedance in their switchgear design.

Accuracy Classes Explained for Procurement Decisions

A common and expensive mistake in switchgear panel design is picking the wrong accuracy class. This is how the primary classes relate to what people need in the real world:

• Class 0.2S / 0.2: This is for billing-grade revenue metering uses, where even small ratio mistakes can cause big money problems over millions of kilowatt-hours. Class 0.2S is also accurate at low current loads, which makes it the best choice for smart metering installations.
• Class 0.5: Industrial metering, power factor tracking, and energy reporting that don't need to be very accurate but do need to be cost-effective.
• Class 5P / 10P: Protection relays and fault-detection circuits where the voltage transformer must stay constant during fault-level voltage transients without becoming saturated. This keeps the relays working properly.

By choosing voltage transformers with two secondary windings—one for measurement and one for protection—a single unit can do both jobs inside a panel, cutting down on the number of parts and the size of the panel at the same time.

Enhancing Accuracy Through Modern Voltage Transformer Solutions

Xi'an Xikai 10kV Voltage Transformer: Technical Profile

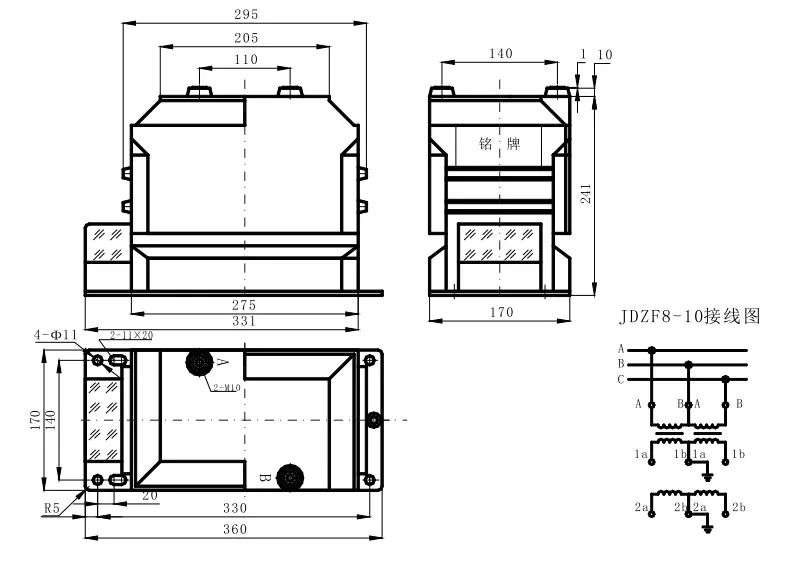

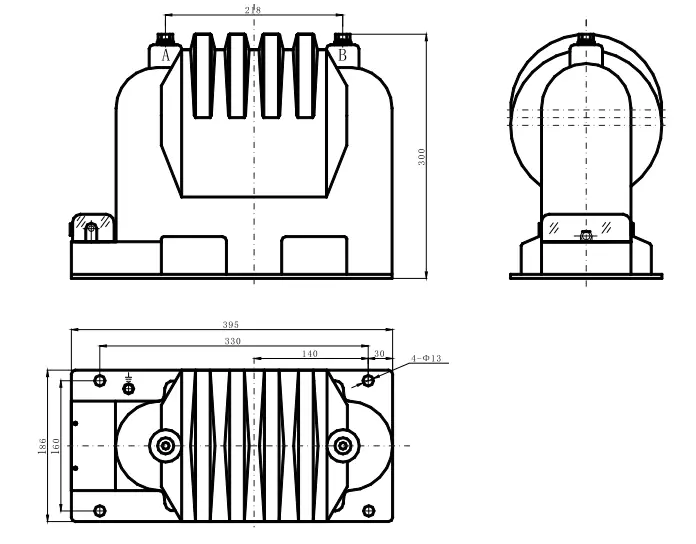

The 10kV Outdoor/Indoor voltage transformer from Xi'an Xikai is made with an electromagnetic design that is fully sealed and cast in epoxy resin. It meets the requirements of GB 20840.2-2014 and IEC 61869-1 and 61869-3. Key technical parameters include:

• Input Voltage: 10kV | Output Voltage: 400V
• Frequency: 50/60Hz
• Rated Insulation Level: 12/42/75kV
• Continuous Load: 1000VA (3000VA short-term)
• Operating Temperature: -40°C to +55°C
• Measurement Error: ≤±1.0%

These benefits address the specific problems that switchgear OEM teams face when they need to find instrument transformers for production runs: making sure that the dimensions are always the same, the accuracy is always the same, and the transformers can withstand harsh environments for the whole order volume.

Here are the core performance advantages that distinguish this unit in OEM switchgear applications:

• Sealed epoxy enclosure: The fully enclosed casting stops moisture from getting in and internal contamination. This gets rid of one of the main reasons why instrument transformers used in humid coastal or high-altitude areas lose accuracy over time.
• Stable thermal performance: UL-listed epoxy resins and high-grade silicon steel cores keep the magnetic permeability constant across the entire working temperature range. This stops the loss of accuracy that happens when core properties change during thermal cycles.
• Modular terminal design:Standardized secondary terminal arrangements for the voltage transformer make it easier to integrate into existing switchgear wiring schemes. This cuts down on the time it takes to put together panels and the number of wiring mistakes that happen during production.
• Dual-purpose capability: Support for both measurement and protection secondary windings in one housing cuts down on the number of separate units needed per panel, which directly lowers the cost of parts and makes the panel simpler.

Manufacturing and Quality Assurance Standards

From receiving the raw materials to the final testing in the plant, Xi'an Xikai uses a 12-step quality inspection method. Before being sent out, each voltage transformer is put through inductive withstand testing at 28kV/150Hz and impulse testing at 75kV. The factory has ISO 9001 and ISO 14001 certifications, as well as 3C certification for products sold in China and IEC compliance for exports to South Asia, Southeast Asia, and the Middle East, which are the main places where switchgear panels from Chinese OEM manufacturers are used.

Making the Right Procurement Decisions for Accurate Voltage Transformers

Matching Specifications to Switchgear Panel Requirements

To buy a voltage transformer for integrating into an OEM panel, you need to make sure that four things are in sync: the voltage ratio, the accuracy class, the rated load, and the physical measurements. Any one of these can go wrong and force a costly rethink cycle. If you want your 10kV switchgear panels to be able to measure and protect at the same time, you should choose a voltage transformer with separate secondary windings that are rated to IEC 61869-3 Class 0.5 for metering and Class 5P for protection. This way, the combined burden will match the relay and meter impedances that are connected in the wiring diagram for the panel.

Annual framework procurement agreements with monthly purchase orders benefit from working with a voltage transformer supplier that can keep the same electrical and size tolerances across production batches. For standard specifications, prototype qualification lead times of four to eight weeks are reasonable. For customized multi-winding configurations, lead times of six to ten weeks may be needed, depending on how complicated the windings are.

Conclusion

In every medium voltage switchgear panel, there is a voltage transformer that protects the system and makes sure that measurements are correct. If you choose the correct unit for the accuracy class, load, insulation level, and cabinet size, the panel will definitely meet its performance requirements for the duration of its service life. The 10kV epoxy resin cast voltage transformer from Xi'an Xikai is a technically tested and standards-compliant option for switchgear OEM makers that is made to work in a variety of environments and with consistent quality.

FAQ

1. What is the difference between a voltage transformer and a current transformer?

A voltage transformer changes the high primary voltage to a safe, appropriate secondary voltage that meters and switches can use. For current, a current transformer does the same thing. Both are instrument transformers, but they work on very different circuit principles: a voltage transformer connects to the primary circuit in parallel, while a current transformer connects to it in series. When designing a panel, mixing them up creates serious risks.

2. How often should a voltage transformer be calibrated?

According to IEC 61869 guidelines, ratio accuracy checks should be done on instrument transformers used for revenue metering both when they are first set up and at regular times, usually every two to five years, based on the rules in the area. Protection-class units benefit from having their insulation resistance and secondary wiring inspected on a regular basis, which fits in with the maintenance schedules for the substation.

3. Can a voltage transformer be customized for multi-winding configurations?

Yes. For switchgear panels that need to provide both metering and safety outputs from a single main connection, multi-winding voltage transformers are usually used. Usually, secondary voltage ratios, precision class per winding, and burden grades are all part of customization. Minimum order quantities (MOQs) and lead times depend on how complicated the design is. Simple dual-winding variants on standard cores can be made faster than fully custom designs.

Partner with Xi'an Xikai for Your Next Voltage Transformer Procurement

The 10kV voltage transformers that Xi'an Xikai supplies come in both standard and custom configurations for switchgear OEM manufacturers that work in both domestic and international markets. Our tools are up to the standards set by IEC 61869 and GB 20840.2-2014, and we can produce them to meet both yearly framework orders and monthly purchase orders. You can ask our team directly for detailed datasheets, dimensional models, or quotes on prototypes:

Website: xaxd-electric.com

Email: serina@xaxd-electric.com | amber@xaxd-electric.com | luna@xaxd-electric.com

References

1. IEC 61869-3: Instrument Transformers — Additional Requirements for Inductive Voltage Transformers. International Electrotechnical Commission, 2011.

2. GB 20840.2-2014: Instrument Transformers — Part 2: Additional Requirements for Current Transformers. Standardization Administration of China, 2014.

3. IEEE C57.13: IEEE Standard Requirements for Instrument Transformers. Institute of Electrical and Electronics Engineers, 2016.

4. Ghosh, A. & Ledwich, G. Power Quality Enhancement Using Custom Power Devices. Springer, 2002.

5. Kojovic, L. "Impact of Current Transformer Saturation on Overcurrent Protection Operation." IEEE Transactions on Power Delivery, 2002.

6. Winders, J.J. Power Transformers: Principles and Applications. Marcel Dekker, 2002.
