SF6 Circuit Breaker: How It Works in High-Voltage Systems

An SF6 circuit breaker is a high-voltage switching device that uses sulfur hexafluoride gas as both the insulating medium and arc-quenching agent. When a fault occurs in the power system, the breaker separates its contacts inside a sealed chamber filled with SF6 gas. The gas—roughly 2.5 to 3 times more dielectric than air at atmospheric pressure—rapidly captures free electrons during arcing, cooling and extinguishing the arc within milliseconds. This mechanism makes the SF6 circuit breaker a preferred choice for 110kV to 500kV transmission and distribution substations worldwide, where reliability and speed are non-negotiable.

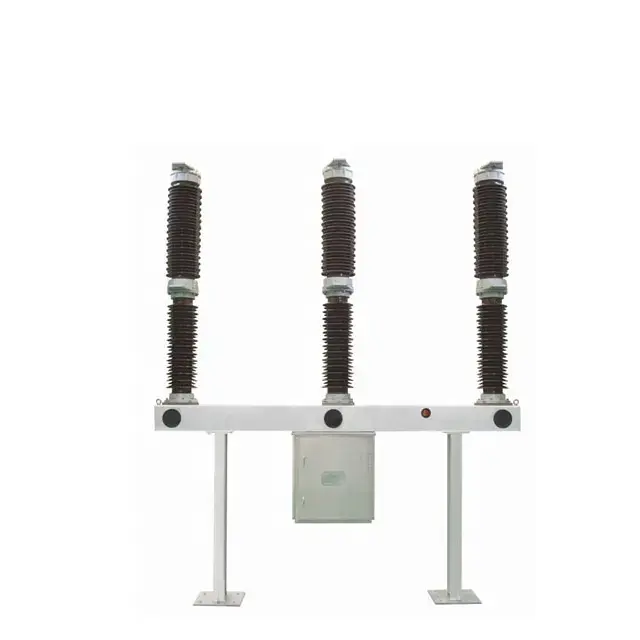

Understanding SF6 Circuit Breakers: Principles & Operation

To make smart choices about what to buy, it helps to know exactly what goes on inside one of these devices when it's working properly and when something goes wrong.

How the Arc-Interruption Process Works

The SF6 circuit breaker gets a trip signal when there is a fault current surge in the power system. Its spring-driven mechanism then separates the moving contact from the fixed arc contact. At that point, the arc energy warms the SF6 gas around it, creating an area of high pressure inside the puffer cylinder. This blast of pressurized gas is sent across the arc column. It removes the ionized particles and restores the dielectric strength at the next zero crossing of the current. The interruption process usually ends in less than 60 milliseconds, which is quick enough to keep transformers, busbars, and equipment that is attached from getting too hot.

Core Components You Should Know

A normal SF6 circuit breaker has an interrupter chamber, moving and fixed arc contacts, a nozzle assembly, a puffer cylinder, insulating support columns or a grounded steel tank, and a mechanism for turning it on and off. All the live parts of a dead-tank design like the LW24 are contained within a grounded steel container. This adds an extra layer of safety for people and makes the unit perfect for outdoor substations in tough climates.

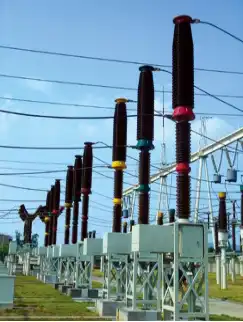

Advantages, Lifespan, and Maintenance of SF6 Circuit Breakers

Before making a purchase decision for a multi-year project, it's important to know how this technology will help with operations.

Why This Technology Remains Dominant at High Voltage

For decades, SF6 circuit breakers have been the best way to protect high power, and the scientific reasons are easy to see. These are the main reasons why they are the best choice for 110kV–330kV substation projects:

• Compact physical footprint: Because SF6 gas has a higher dielectric strength, interrupter chambers can be much smaller than similar air-insulated equipment. This lowers the cost of civil engineering for designing substation layouts.
• Long mechanical service life: High-quality units have M2 class mechanical endurance, which means they can handle more than 10,000 actions without breaking down. This directly leads to lower repair costs over the course of the project's 25-year lifecycle.
• Low maintenance burden: SF6 circuit breaker gas is chemically neutral and doesn't oxidize, so internal contacts and insulated surfaces don't corrode in between maintenance periods. Many current sealed designs only need to have the device oiled and the gas pressure checked from time to time.
• Reliable arc interruption across load ranges: The SF6 circuit breaker can do a lot of different electrical jobs without contact burning or restriking overvoltages. It can do everything from switching capacitor banks to clearing short-circuit faults at 40kA and above.

These benefits directly address the main problems that EPC project managers and design engineers have: a lower risk of downtime, known lifetime costs, and trust in the fault-clearing performance during grid disruption.

Best practices for maintenance include checking the gas density once a year with calibrated pressure gages, visually inspecting porcelain or composite insulators after bad weather, and exercising the mechanism at regular intervals set by IEC 62271-100. In order to follow environmental rules, approved recovery tools must be used whenever SF6 gas needs to be handled, whether it's for topping off or shutting down.

Comparative Analysis: SF6 Circuit Breaker vs. Other Technologies

Voltage Limits, Maintenance Burden, and Regulatory Shifts

Engineers usually look at three options when choosing tools for a 110–330kV substation: vacuum, oil, and air-blast technologies.

Vacuum circuit breakers work really well when the energy is between 6kV and 36kV. They have long contact lives and work well in distribution lines where they have to switch loads often. However, their ability to act as a dielectric weakens at voltages above 40.5kV if they are not configured in series. This means that they can't be used for bulk transfer without a lot of design work.

Before SF6 circuit breaker technology got better, oil circuit breakers were the norm. There is a natural risk of fire with bulk oil designs, and they need to be filtered and replaced regularly, which adds to the cost of doing business. Even though minimum oil breaks are better at this, they still need more upkeep than SF6 designs. These days, oil-insulated interrupting technologies are not required for most new transmission substation projects.

Air-blast circuit breakers quickly cut power, and they were widely used at very high voltage levels in the 1960s and 1970s. They need complicated equipment for compressed air, make noise when they're running, and cost more to run because they need more upkeep on the compressors. Their share of the market for new installations has dropped sharply.

At the moment, the SF6 circuit breaker is the best choice for 110kV and higher voltages because it is small, has a history of stopping performance, and is easy to maintain. The new problem is the EU F-gas regulation, which has sped up the creation of new gasses like g³ (green gas for grid) mixtures. Although not in the EU, SF6 technology is still the best choice for projects in those areas and for the Belt and Road Initiative, as long as the right gas control rules are followed.

Procurement Guide: How to Select the Right SF6 Circuit Breaker

A structured evaluation process lowers technical risk and helps with procurement that follows the rules set by State Grid or the project owner.

Key Technical Parameters to Define First

The design team should make sure of the rated voltage class (40.5kV, 72.5kV, 126kV, 145kV, or 252kV), the rated normal current (usually 3150A or 4000A for transmission applications), the short-circuit breaking capacity (40kA or 63kA depending on the system fault level), and the type of operating mechanism (spring hydraulic or pure spring). The annual SF6 circuit breaker leakage rate is a key environmental compliance factor. Setting a limit of 0.5% per year is in line with IEC 62271-1 requirements and most project owner environmental standards.

Introducing the LW24 Dead Tank SF6 Circuit Breaker from Xi'an Xikai

The LW24 Dead Tank SF6 circuit breaker from Xi'an Xikai is designed for 110–330kV substation use and can handle rated voltages of 40.5kV, 72.5kV, 126kV, 145kV, and 252kV. The rated current goes up to 4000A, and the breaking capacity goes up to 63kA. This is enough to meet the fault-clearing needs of most regional transmission networks.

The LW24 has a gas blast mechanism that works best on its own. The arc energy creates pressure inside the interrupter, which makes the CT20 spring drive system work less hard and increases the service life of the mechanism. Maintenance teams can work on a single pole without turning off power to adjacent phases because the three-chamber design is modular and each pole can work on its own. This is useful during times when power is only partially restored.

Quality management systems like ISO 9001, ISO 14001, and ISO 45001 are used by Xi'an Xikai. IEC 62271 and IEEE C37.04 certifications show that the company's products are compliant. Because the company owns all of its own key parts, like interrupters, mechanisms, and gas handling systems, it can offer stable product quality and low prices for large orders on EPC projects with 2 to 20 units.

Conclusion

For high-voltage substation protection at 110kV and above, the SF6 circuit breaker is still the best choice based on science. Its unique mix of dielectric performance, arc-interruption stability, and manageable maintenance profile makes it the clear choice for power companies and EPC contractors looking to buy equipment for transmission-class projects. As environmental laws change, making sure that low-leakage designs are used and that proper gas management protocols are followed will ensure long-term compliance. The LW24 from Xi'an Xikai is a certified, well-designed option for buying teams that need proven performance, clear quality management, and quick technical help throughout the project lifecycle.

FAQ

1. What breaking capacity does a transmission-class SF6 circuit breaker need?

Based on fault-level research, short-circuit current needs for 110–330kV uses are usually between 31.5kA and 63kA. The LW24 Dead Tank SF6 circuit breaker can handle up to 63kA, which is enough for most regional transmission network requirements without the need for series setups.

2. How does SF6 gas leakage affect circuit breaker performance?

A drop in pressure lowers both the ability to insulate and the ability to stop an arc. Quality designs have two levels of monitoring: at Stage 1, a pressure loss alarm goes off, and at Stage 2, an operating lockout alarm goes off to stop the fault-clearing failure. With today's sealing methods, annual loss rates can be less than 0.5%.

3. Is a dead-tank or live-tank design better for outdoor substations?

Dead-tank designs put live parts inside a steel tank that is grounded. This makes the structure more stable during earthquakes and keeps people safe. The columns in live-tank designs are made of porcelain and are lighter per pole. Both configurations are possible; the choice depends on the seismic zone, the limitations of the site layout, and the owner's personal preference.

Partner with Xi'an Xikai for Your SF6 Circuit Breaker Requirements

Certified SF6 circuit breaker solutions made for 110–330kV substation projects are available from Xi'an Xikai. The LW24 Dead Tank SF6 circuit breaker has a breaking capacity of 63kA, a rated current of 4000A, and the CT20 spring mechanism. It comes in a package that is easy to maintain and meets all safety standards. Get in touch with our expert team directly for help with project-specific setup and a quote:

• Website: xaxd-electric.com
• Email: serina@xaxd-electric.com | amber@xaxd-electric.com | luna@xaxd-electric.com​​​​​​​
