Voltage Transformer Maintenance Tips for Long-Term Reliability

Voltage transformer maintenance is one of the most overlooked yet consequential disciplines in electrical asset management. A well-maintained voltage transformer — whether deployed in a 10kV switchgear panel or a utility substation — delivers accurate measurement signals, protects downstream relay circuits, and extends the service life of the entire electrical system. Neglecting routine upkeep, by contrast, accelerates insulation degradation, introduces measurement drift, and creates safety liabilities. This guide covers practical maintenance strategies, technology-driven diagnostics, and procurement considerations to help engineering and procurement teams make informed decisions.

Understanding Voltage Transformer Maintenance

What a Voltage Transformer Does and Why Maintenance Matters

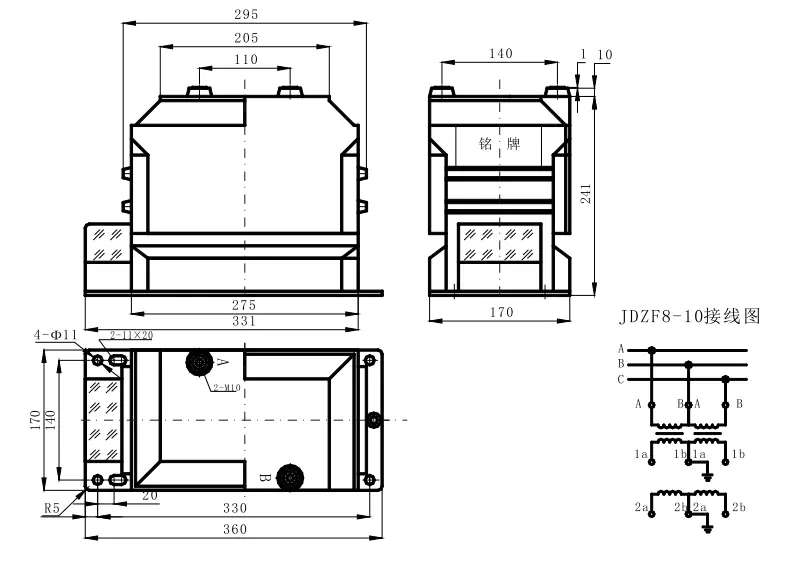

A voltage transformer, which is also known as a potential transformer (PT), lowers the high voltage in the system to a normal secondary level, usually 100V or 400V, so that safety switches and meters can work properly. For instance, the Xi'an Xikai 10kV Outdoor/Indoor voltage transformer steps down 10kV input to 400V output, which is in line with GB 20840.2-2014 and IEC 61869-1 & 61869-2. It has a fully sealed electromagnetic structure made of epoxy resin that gives it high accuracy, a large capacity, and stable performance over a recommended insulation level of 12/42/75kV.

Even a precision instrument transformer can get insulation breakdown, core saturation problems, or terminal corrosion if it isn't maintained regularly. IEC 62271-1 says that instrument transformer failures cause a measured number of unplanned substation outages. Many of these are caused by neglected upkeep rather than problems with the way the equipment was made. Knowing what kind of voltage transformer you have (dry-type resin-cast vs. oil-filled, single-phase vs. three-phase) will help you figure out the best way to maintain it.

Key Maintenance Practices to Ensure Long-Term Reliability

Routine Inspection and Electrical Testing

Visual inspection is still the easiest and least expensive way to do maintenance. During walk inspections, cracks on the concrete housing's surface, oxidation of the terminals, loose secondary wiring, and strange coloring should all be looked for. For resin-cast units like Xi'an Xikai's 10kV model, which can work in temperatures ranging from -40°C to +55°C, it's important to pay close attention to the stress that thermal cycling puts on the encapsulant.

Electrical testing proves things that the naked eye can't see. Important tests are:

• Insulation resistance measurement using a 2500V megger, and the results were compared to the standard values that were recorded during commissioning. A drop of more than 50% from the starting point should be looked into.
• Ratio accuracy verification makes sure that the voltage transformation ratio meets the stated accuracy class (for example, 0.2, 0.5, or 3P), which is very important for protecting people and keeping track of money.
• Dielectric resist testing should be done on a regular basis, in line with the estimated insulation level of the unit. The Xi'an Xikai 10kV voltage transformer is checked at the factory for 75kV shock and 28kV inductive withstand, which makes it a good standard for comparison in the field.

At the very least, these checks should be done once a year. They give concrete proof of the health of the transformer and meet most utility audit standards.

Cleaning, Environmental Controls, and Seasonal Protocols

The risk of creepage goes up when dust builds up on terminal surfaces, especially in industrial settings where dust is in the air. Resin-cast surfaces can be cleaned with dry compressed air or soft brushes that won't damage the resin. Oil-filled voltage transformers need to have their oil sampled twice a year. According to ASTM D877, moisture levels above 35 ppm and dielectric breakdown below 30 kV are signs that the oil needs to be reconditioned.

In places where temperatures change a lot, seasonal maintenance is important. Before winter commissioning, make sure that the thermal expansion seals are still in good shape. Before summer peak loads, make sure that there are no obstructions in the airflow around the transformer.

Comparison of Maintenance Requirements Among Transformer Types

Dry-Type Resin-Cast vs. Oil-Filled Voltage Transformers

The amount of maintenance needed for these two groups is very different, and procurement teams should include the costs of maintenance over the course of the product's life in their total cost of ownership calculations.

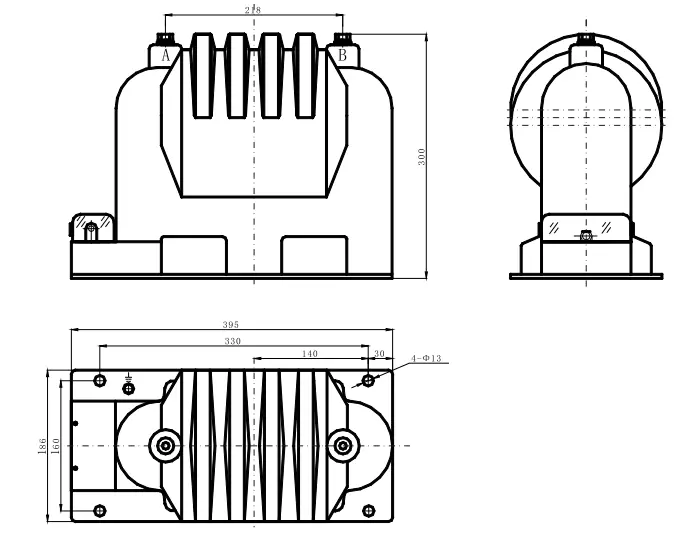

Dry-type resin-cast voltage transformers, like the Xi'an Xikai 10kV unit with its fully enclosed epoxy structure, don't let water in and don't need to be managed with oil. Because they are sealed, they don't have the fire risk that comes with dielectric oil and don't need to be inspected as often. Mechanical stability of the housing and terminal link torque values are the main things that need to be thought about.

Oil-filled voltage transformers, which are popular in older substations, need to be dissolved gas analyzed (DGA) on a frequent basis to find internal arcing or thermal faults before they show any obvious symptoms. They also need stricter rules for fire safety and plans for environmental control.

When you have three-phase voltage transformer banks, they are more complicated. During each planned downtime, you have to test for phase mismatch and check each winding ratio. Single-phase units, on the other hand, have simple two-terminal diagnostics and are easier to certify.

Advanced Maintenance Techniques and Technologies

Predictive Maintenance Through IoT and AI Integration

Maintenance schedules that are based on time have slowly been replaced by frameworks that are based on conditions and can predict what will happen. IoT-enabled voltage transformers now have sensors built in that send information about temperature changes, partial discharge activity, and the security of the secondary voltage to central tracking platforms all the time. This stream of data lets repair workers guess how things will break weeks ahead of time, instead of just reacting when protections trip.

Artificial intelligence algorithms look at sensor data from the past to make scores for each voltage transformer's chance of failing. A Southeast Asian utility said that unplanned transformer breakdowns dropped by 34% after putting AI-driven repair scheduling on all of its instrument transformers (IEEE Transactions on Power Delivery, 2022).

When you connect a field diagnostics system to a maintenance management system (MMS), the planning for purchases is completed. When sensor data shows that the insulation on a certain voltage transformer is breaking down faster than expected, the MMS can instantly place an order for a replacement under an annual framework contract. This is exactly how switchgear OEM customers usually buy things.

Best Practices for Voltage Transformer Selection and Procurement

Matching Specifications to Maintenance Commitments

When you choose the right voltage transformer from the start, you'll have less work to do on it over its lifetime. How easy it is to service a unit in the field depends on its insulation class, enclosure grade, secondary load capacity, and how easy it is to get to the terminal links.

Here are the main selection criteria that procurement teams that care about maintenance should look at:

• Accuracy class and secondary capacity: A 0.2S or 0.5 class unit can be used for both security and income metering. The Xi'an Xikai 10kV voltage transformer can handle a continuous load rate of 1000VA (3000VA short-term), so it can be used in a variety of secondary circuit setups without losing its accuracy.
• Enclosure and environmental rating: For outdoor switchgear uses, epoxy resin cast construction with a rated insulation level of 12/42/75kV protects against pollution and moisture without the need for regular maintenance.
• Documentation for compliance: Units certified to IEC 61869-1 & 61869-2 and GB 20840.2-2014 come with test records that can be tracked, which makes acceptance testing and regulatory audits easier.

When these factors are looked at together, they help the procurement and engineering teams choose a voltage transformer that meets both performance needs and sensible repair plans. OEM switchgear manufacturers can work with Xi'an Xikai because they offer flexible specification configurations, prototype sampling within one to two months, and annual framework agreements that schedule delivery with cabinet production rhythms.

Conclusion

Voltage transformer reliability is not a result of chance; it comes from planned maintenance, smart product choices, and having access to supplier support that is grounded in technology. From regular checks on insulation resistance to AI-assisted forecast tests, all the different types of maintenance work add up to make an asset last longer. Because they are sealed, epoxy resin-cast voltage transformers like the Xi'an Xikai 10kV outdoor/indoor unit make routine maintenance easier while still being able to meet all electrical testing standards. When switchgear OEM makers are under a lot of time to integrate cabinets, it's not a luxury to choose a voltage transformer that has been shown to be accurate, have good insulation performance, and offer quick customer service after the sale.

FAQ

1. How often should a voltage transformer be inspected?

Voltage transformers in medium-voltage switchgear are usually checked once a year. At every planned panel outage, there should be a visual and electrical check that looks at insulation resistance, ratio accuracy, and connection integrity. In places with a lot of pollution or humidity, it's best to do a visual check every six months. By using ongoing status data, facilities with IoT-enabled units can extend the time between calendar-based checks.

2. What is the main maintenance difference between dry-type and oil-filled voltage transformers?

Dry-type resin-cast voltage transformers don't need to be managed with oil. The main things that maintenance checks for are housing soundness, terminal torque, and insulation resistance trends. Oil-filled units need to have their dissolved gasses analyzed, their dielectric oil's moisture tested, and their seals and gaskets checked for leaks. For indoor switchgear uses, dry-type design is usually better because it requires less upkeep and doesn't pose a fire risk.

3. Does predictive maintenance genuinely reduce costs for voltage transformer fleets?

There is evidence that predictive maintenance can cut down on unexpected power outages by finding insulation decay and partial discharge trends before they happen. When you plan ahead, you can avoid sudden replacement costs that are three to five times higher than planned replacement costs. OEM makers of switchgear that have a lot of equipment placed can better plan their spare parts inventory and lower their risk of guarantee claims with predictive maintenance.

Partner With Xi'an Xikai for Dependable Voltage Transformer Supply

Xi'an Xikai Medium & Low Voltage Electric Co., Ltd. makes voltage transformers that meet IEC 61869 and GB standards. They come in a range of configurations, from 0.2S to 10P accuracy classes, and can be made to order with multiple windings. As a voltage transformer seller, we can offer OEM sampling that is flexible, framework contracts that are renewed every year, and technical support that fits your cabinet integration plan. Email serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com to get in touch with our tech team. You can see all of our products at xaxd-electric.com.

References

1. IEC 61869-1: Instrument Transformers — General Requirements, International Electrotechnical Commission, 2007.

2. IEC 62271-1: High-Voltage Switchgear and Controlgear — Common Specifications, International Electrotechnical Commission, 2017.

3. IEEE Transactions on Power Delivery: Condition Monitoring and Predictive Maintenance of Instrument Transformers in Distribution Networks, IEEE, 2022.

4. GB 20840.2-2014: Instrument Transformers — Inductive Voltage Transformers, Standardization Administration of China, 2014.

5. CIGRÉ Technical Brochure 443: Guidelines for the Maintenance of Instrument Transformers, CIGRÉ, 2011.

6. ASTM D877: Standard Test Method for Dielectric Breakdown Voltage of Insulating Liquids, ASTM International, 2019.
