How Does Metal-Clad Withdrawable Switchgear Adapt to Complex Operating Conditions?

Metal-Clad Withdrawable Switchgear adapts to complex operating conditions through its compartmentalized design, robust mechanical interlocking systems, and modular construction. The withdrawable mechanism enables safe component isolation during maintenance without system-wide shutdowns, while arc-resistant enclosures protect personnel in fault scenarios. Advanced insulation materials withstand extreme temperatures, humidity, and altitude variations, making this equipment reliable across industrial plants, mining operations, and remote infrastructure projects where environmental stresses and operational demands constantly challenge power distribution integrity.

​​​​​​​

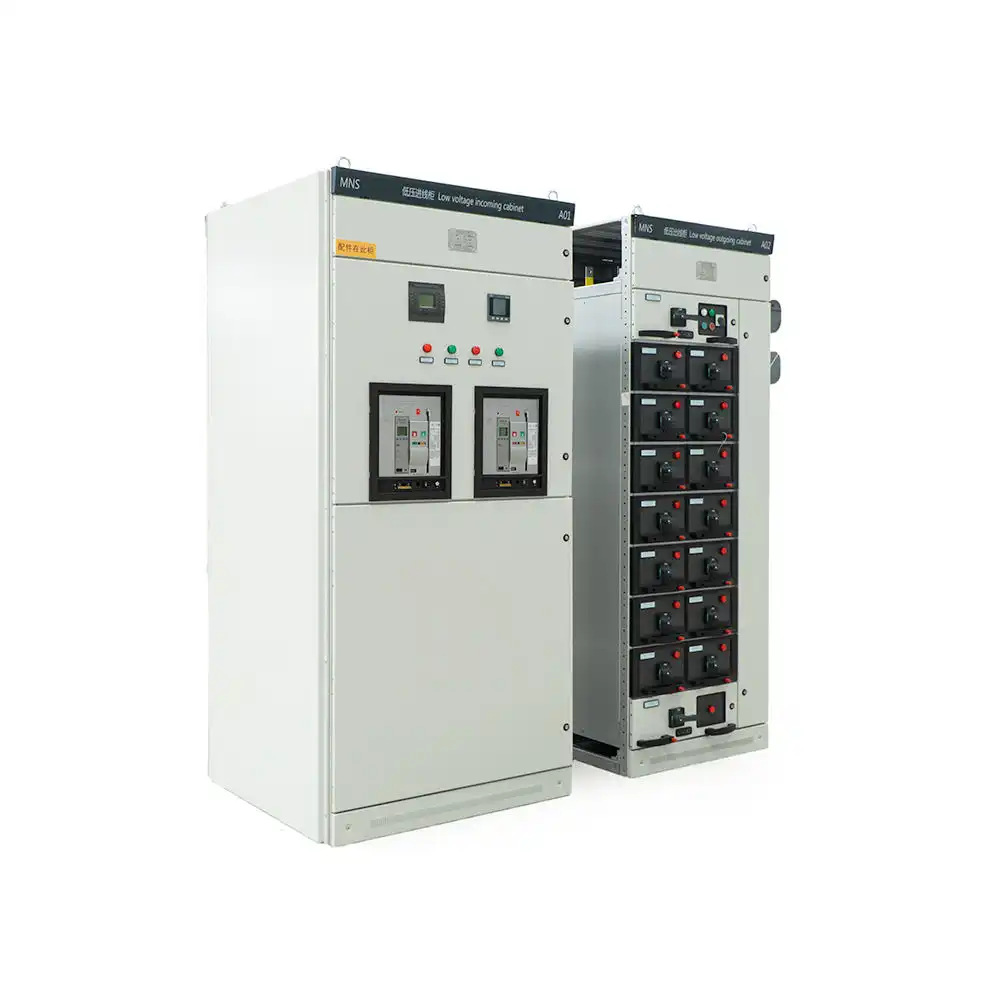

Understanding Metal-Clad Withdrawable Switchgear and Its Operating Principles

Core Structural Design and Functionality

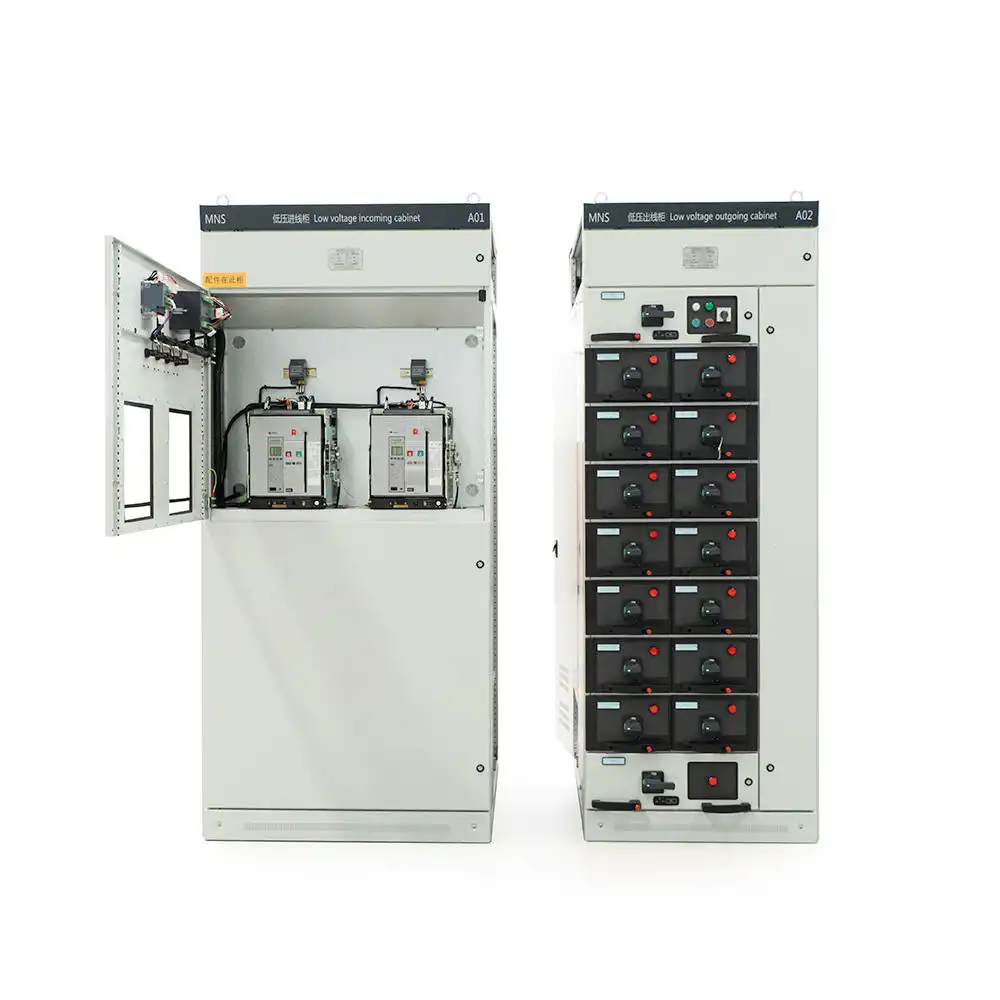

The compartmentalised construction of this switchgear makes it distinctive. Control areas, cable termination zones, circuit breaker chambers, and busbar compartments are entirely segregated in metal-clad designs, making them more complicated. Sections are divided by grounded metal fences. This division prevents errors and creates many safety zones in one assembly.

On precision-guided rails, the pull-out mechanism moves circuit breakers between connected, test, and detached states. Both main and secondary contacts are completely engaged during typical operation, allowing current flow and circuit protection. The switch cuts main power but keeps control circuits functioning while in test mode. This allows you test the switch without turning on the mains. All connections are terminated as you completely withdraw, making maintenance or part replacement safer.

Technical Specifications That Enable Reliable Performance

Our KYN28-24 Removable Metal-Clad Switchgear is a real example of these ideas in action. This equipment can handle large power loads that are common in industry and utility settings. It can work at 24kV and can handle currents from 630A to 4000A. Meeting the requirements of GB3906, IEC 298 and IEC 62271-200 standards guaranties safety and acceptance around the world.

A five-interlock safety system prevents critical operational errors in the KYN28-24. These mechanical interlocks ensure that circuit breakers can't be removed when loaded, compartment doors remain secured, grounding switches only operate when the equipment is off, and safe procedures are followed for each operation. This multiple-layer defence addresses procurement managers' key worries regarding personnel safety during repair and changeover.

When used with vacuum circuit breaker technology, especially the VS1-24 line, it can reliably cut off short-circuit currents up to 31.5kA. Vacuum interruption gets rid of the need for SF6 gas, which is better for the environment and makes maintenance schedules easier. This is especially helpful in remote project sites where getting specialized service is hard to do.

Contrasting With Alternative Switchgear Technologies

For inspection and repair, metal-clad retractable versions are easier to get to than gas-insulated switchgear. GIS equipment has small footprints because it is insulated under pressure, but servicing it needs special tools and knowledge of how to handle gas. Because air-insulated, metal-clad designs are mechanically simple, they require less training and allow for faster component swaps.

Though cheaper, fixed-mount switchgear lacks operational flexibility compared to removable versions. When calibrating, testing, or replacing circuit breakers, fixed systems need longer power outages and more difficult maintenance. The withdrawable technique reduces repair time by allowing offline replacement unit preparation. This prevents production from pausing, which is costly in continuous-process businesses.

Core Advantages of Metal-Clad Withdrawable Switchgear in Complex Environments

Enhanced Safety Through Intelligent Design

Arc flashes during power maintenance are harmful. Metal-clad switchgear has chambers to contain arc issues. Energy is vented away from operators via pressure release. Arc-resistant ratings, verified by IEEE C37.20.7 testing, indicate that equipment can manage internal defects and safeguard operator interface workers.

The KYN28-24's five-interlock technology eliminates human mistake that causes electrical mishaps. Interlocks prevent unauthorised entry into charged compartments, ensure grounding before repair, and ensure proper procedure. No matter how knowledgeable or trained the user is, these mechanical safety measures keep everyone safe across occupations and experience levels.

How effectively system protection functions depends on fault current interruption. Withdrawable vacuum circuit breakers can clear faults in three cycles, protecting downstream equipment and reducing arc flash energy. This prompt response saves lives and costly process equipment and keeps production operating smoothly after a breakdown.

Streamlined Maintenance Reducing Operational Downtime

Power companies and industrial facilities are under a lot of pressure to make sure their equipment is always available. System-wide outages that come with traditional repair methods cause schedule problems and lost output. The withdrawable design changes the economics of maintenance in a big way by letting preparations be made offline and parts be swapped out quickly.

Maintenance teams can make new circuit breakers for Metal-Clad Withdrawable Switchgear in a controlled workshop setting, where they can do full tests, measures, and checks without being rushed. When repair windows open, techs take out the unit that is currently in use and quickly install the ready replacement. The unit that was taken out is then fully serviced offline so that it is ready for the next rotation.

This hot-swap feature is especially useful in industries that use ongoing processes, like steel mills, chemical plants, and mines, where unplanned downtime can cause huge production loses. We've seen maintenance times cut by more than 70% compared to fixed-mount options. This directly leads to higher plant uptime and lower costs for maintenance staff.

Operational Flexibility Supporting System Evolution

Power transfer methods don't stay the same for long. As production grows, processes are changed, and loads change, the electricity infrastructure needs to be able to adjust. Standardized section sizes and busbar setups in modular metal-clad switchgear allow systems to grow as needed.

Adding feeder circuits or replacing old parts doesn't affect how the installation works. The mechanism that can be withdrawn standardizes link ports so that new equipment works with existing systems. This compatibility makes retrofitting easier, protects investments in current infrastructure, and allows for small increases in capability.

Standardized testing places make it easier to check the whole protection system without stopping regular activities. In the test position, where control circuits are still on and primary connections are off, protection engineers can check relay settings, timing features, and coordination methods. This feature helps make commissioning more efficient and keeps the system running at its best as network conditions change.

How Metal-Clad Withdrawable Switchgear Solves Challenges in Complex Operating Conditions

Withstanding Environmental Stresses

Industrial and construction projects typically occur when the environment limits tool use. The KYN28-24 may be delivered and kept at -25°C and used 24/7 at +40°C. Solar installations in the desert or substation renovations in northern mines benefit from this temperature tolerance.

Coastal and tropical constructions need humidity resistance. Conformal coatings on control parts and sealed busbar tanks prevent condensation-related tracking issues. Daily and monthly averages of less than 95% and 90% relative humidity represent safe operating limits for correctly specified equipment.

The application works at high elevations, making it useful in hilly and plateau environments. Standard setups operate at 2,000 meters without issue. Our experience on State Grid projects in China's numerous regions has demonstrated that they can perform successfully in high altitudes, harsh temperatures, and earthquakes.

The tools can handle earthquakes up to magnitude 8, which is what IEEE 693 says it must do. Strong frame building and safe mounting of components keep the system's integrity during ground motion, which is when infrastructure robustness is most important.

Managing Fluctuating Loads and System Dynamics

Using renewable energy and modern manufacturing methods create changing loads that are hard for older distribution equipment. Harmonics, voltage changes, and current transients are caused by motor starting spikes, variable-frequency drives, and irregular generation sources.

The KYN28-24 can handle a wide range of currents, from 630A to 4000A. This means it can handle loads from single motor feeds to main distribution busses. Thermal design makes sure that the current capacity stays the same without dropping, and short-circuit ratings of up to 31.5kA give enough room for faults in networks with strong supply.

Condition-based maintenance methods can be used when current safety relays and tracking systems are integrated. Temperature sensors, partial discharge detection, and contact wear indicators can spot problems early on, before they become functionally unusable. This ability to predict the future cuts down on unexpected outages and makes the best use of repair resources.

Ensuring Regulatory Compliance and Safety Standards

EPC professionals must adapt to national norms and utility demands while operating abroad. Equipment that fulfils many international standards streamlines commissioning and helps regulators accept projects. The KYN28-24 is GB3906, IEC 298 and IEC 62271-200 compliant, making it straightforward to approve in several regulatory contexts.

Type-test certification supports manufacturer claims and aids technical submissions by demonstrating equipment performance under standard settings. A separate lab checks short-circuit ratings, temperature rise limitations, and mechanical lifespan, giving buy managers confidence in the equipment.

Grid coupling guidelines generally indicate how to test, protect, and communicate. Modules with adjustable protection packages, communication gateways, and monitoring interfaces may fulfil any utility's demands without bespoke engineering.

Selecting and Procuring Metal-Clad Withdrawable Switchgear for Complex Conditions

Essential Technical Evaluation Criteria

When choosing tools, voltage and current levels are very important, but good standards go far beyond nameplate values. To allow for system growth and stronger power supplies, short-circuit interrupting capacity must be higher than the highest possible fault current by a sufficient margin, which is usually 25% more than the estimated values.

Insulation coordination makes sure that equipment can handle short-term overvoltages caused by switching operations and lightning strikes. Basic insulation level ratings and impulse withstand specifications tell us how resistant equipment is to voltage stresses. This is especially important for systems that are exposed to the elements and have connections to overhead lines.

Ratings for mechanical endurance show how long something is expected to work. The mechanical life of a circuit breaker—usually 10,000 operations for vacuum interrupters—determines how often it needs to be serviced and how much it costs over its entire life. For high-cycle uses to stay reliable, mechanisms need to be upgraded or replacement plans need to be sped up.

The environmental requirements must match the real installation conditions, not just scores from a catalog. Extreme climates, high altitudes, or corrosive atmospheres may require equipment upgrades like better coatings, sealed sections, and temperature-compensating systems that may not be available in standard designs.

Evaluating Manufacturer Capabilities and Support

The quality of the equipment shows how well the manufacturing process, quality systems, and engineering are done. Certification in ISO 9001 means that quality management is done in a planned way. Certification in ISO 14001 and ISO 45001 shows that a company cares about the environment and safety. As the ability to monitor and control digital devices grows, IEC 62443 cybersecurity certification becomes more important.

Advanced testing equipment in manufacturing sites gives customers more confidence in the stability of their Metal-Clad Withdrawable Switchgear products. During production, high-current injection testing, partial discharge measurement, and mechanical endurance validation find problems before they are shipped. This cuts down on problems in the field and warranty claims.

It's important to have technical help, especially for foreign projects where problems are harder to solve because of things like language barriers, different time zones, and logistics. When problems happen, manufacturers can respond faster when they have regional service centers, spare parts inventories, and technical staff who speak more than one language.

Navigating Procurement Logistics and Customization

Depending on how complicated the order is and how much customizing is needed, standard wait times for metal-clad switchgear are usually between 12 and 20 weeks. For projects with tight schedules, getting equipment early and being clear about what is needed can help keep the detailed engineering phases from being held up.

Customization choices let you meet the needs of a particular project without having to do full custom engineering. Standard product platforms often let you change things like the configuration of the busbars, the choice of protection relays, communication protocols, and the external finish requirements. This lets you balance the benefits of customization with the costs and time impacts.

Value-added services like factory testing witness points, installation supervision, commissioning support, and user training make projects more likely to succeed, especially when local expert resources don't have experience with medium-voltage systems. Having the manufacturer involved in key stages of a project lowers risks and speeds up the completion schedule.

Xi'an Xikai Medium & Low Voltage Electric Co., Ltd. can acquire complex equipment and has project experience. Our manufacturing base manufactures single circuit breakers to whole switchgear systems for medium voltage. Working with State Grid and on many industrial projects has given us the technical expertise to address a variety of project demands. Skills include conventional settings and customised solutions.

Maximizing Performance: Maintenance and Operational Best Practices

Routine Maintenance and Inspection Protocols

Visual checks done as part of normal processes find problems before they become functionally unusable. If operators hear strange noises, feel tremors, or see differences in the indicators, it could mean that the machine is worn out or not aligned properly. Every month, checks are done to make sure the switch works, the position sign is accurate, and the control circuit stays connected.

As part of yearly maintenance, contact resistance measurements on primary circuits are used to find signs of oxidation or mechanical wear. Values of resistance that are 50% higher than the baseline show that upkeep is needed. Micro-ohm testing equipment gives accurate readings, which creates trends that help with making decisions about preventative maintenance.

Maintenance for vacuum circuit breakers is very different from maintenance for oil or air-blast systems. Regular upkeep for sealed vacuum interrupters only includes checking the mechanics and checking for contact wear. X-ray inspection or measuring the contact journey makes sure that there is still contact material left. This way, replacement plans are based on real wear instead of making them up on the spot.

Mechanical systems, like racking mechanisms, interlock assemblies, and position indicators, need to be oiled and adjusted from time to time. Manufacturers suggest certain types of lubricants and how often they should be used, usually every two to three years or 500 activities. When racking, too much force means that the racks are not aligned correctly or are wearing out, which needs to be fixed.

Troubleshooting Common Issues and Fault Indicators

When temperatures rise above standard levels during load times, it could mean that connections are loose, there isn't enough air flow, or the conductors are breaking down. Thermographic scans find hot spots in insulation before they cause damage. This lets maintenance be focused at specific problem areas.

Partially discharged electricity means that the insulation is breaking down or getting dirty. Ultrasonic monitoring equipment finds the sources of discharge, which helps with choices about whether to clean or replace a part. Taking care of partial discharge early on stops it from getting worse and leads to complete insulation failure and unplanned power outages.

Control circuit problems are often caused by loose connections, oxidized contacts, or worn-out switch coils. Systematic fixing steps, like checking the supply voltage, making sure the contacts are still connected, and reading the voltages at the relay pickups, quickly find the source of the problem. Keeping circuit diagrams and test methods up to date speeds up fixing and cuts down on the time that systems are down.

Future-Proofing Through Technology Integration

As the smart grid grows, digital monitoring and control of switchgear can be used to make it work better. By adding communication gateways after the fact, you can connect them to supervisory control systems, which lets you see the state in real time and handle things from afar.

Temperature, humidity, partial discharge, and busbar current are some of the sensor technologies that create data streams that help with predictive analytics and condition-based maintenance. Machine learning systems find trends that show problems are getting worse, which helps schedule maintenance better and make better use of resources.

As connection grows, cybersecurity issues become more important. Unauthorized people can't get into operating technology systems because of network segmentation, authentication procedures, and encryption. The IEC 62443 standards set the rules for building and managing secure systems throughout their entire lifecycle.

Conclusion

Metal-Clad Withdrawable Switchgear works in tricky situations thanks to its strong construction, separate safety features, and ability to be used in a variety of ways. The mechanism that can be taken out lets repair and part replacement happen quickly, which cuts down on downtime in important uses. Environmental resilience, such as the ability to withstand high temperatures, high humidity, and earthquakes, ensures reliable performance in a wide range of installation conditions. To choose the right equipment, you need to compare its technical specs to its real working needs. Proactive maintenance plans, on the other hand, improve long-term performance and asset value.

FAQ

1. Why does withdrawable switchgear provide enhanced safety compared to fixed designs?

The mechanism that can be pulled out lets you completely turn off circuit breakers for maintenance without having to work on equipment that is still powered on. Unsafe operations are stopped by mechanical interlocks, and arc faults are contained in separate chambers by compartmentalized construction. By making and testing new parts away from the system, operators can quickly swap them out during planned downtime, limiting their exposure to live equipment.

2. How does this equipment handle fault currents in demanding industrial applications?

Within three cycles, which is usually 50 to 60 milliseconds, vacuum circuit breakers built into withdrawable assemblies cut off fault currents. Industrial distribution systems with strong power sources can use short-circuit rates up to 31.5kA. Compartmentalized building stops faults from spreading, and pressure release systems keep arc energy away from where operators are standing.

3. Can switchgear configurations be customized for specific project requirements?

Manufacturers let you make a lot of changes to standard platforms. You can choose the right busbar arrangements, circuit breaker ratings, safety relay packages, and communication methods for your project. Custom options include making the environment better for harsh conditions, installing specialized monitoring systems, and making sure the interface works with existing installations. The pros and cons of customization are weighed against the costs and delivery times.

Partner With Xi'an Xikai for Your Metal-Clad Withdrawable Switchgear Needs

The Xi'an Xikai Medium & Low Voltage Electric Co., Ltd. is ready to help you with your difficult power distribution projects by providing you with tried-and-true switchgear options. Safety, dependability, and operational flexibility are all built into our KYN28-24 Removable Metal-Clad Switchgear, which is backed by international standards and decades of manufacturing experience. Our team can help you with expert advice, custom configurations, and full support during sourcing and completion for EPC projects in Belt and Road regions, as well as for upgrading industrial facilities and building utility infrastructure. Get in touch with our skilled engineers at serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com to talk about your needs. Visit xaxd-electric.com to see our full list of products and services. This is where you can find high-quality Metal-Clad Withdrawable Switchgear and quick service.
