How SVG compensation for leading reactive power?

When a power system carries more capacitive load than inductive load, it produces leading reactive power — a condition that raises voltage beyond safe operating limits and increases stress on grid equipment. An SVG compensator addresses this directly by injecting or absorbing reactive current in real time, correcting the power factor and stabilizing bus voltage within milliseconds. Unlike fixed capacitor banks, the SVG compensator responds continuously to grid fluctuations, making it the preferred solution for renewable energy integration, industrial substations, and any site where leading reactive power creates compliance or operational risk.

Understanding SVG Compensators and Leading Reactive Power

What Is Leading Reactive Power?

There are two ways that reactive power can flow. Inductive loads, such as motors and generators, cause reactive power to lag behind. Leading reactive power comes from capacitive loads, like AC filters in big renewable energy plants that use inverters and long transmission lines with little load. When there is too much leading reactive power, the voltage at the terminals rises, equipment gets too hot, and grid rules are broken. IEEE Std 1459-2010 says that one of the main reasons why power quality is getting worse in modern grids is reactive power that is not controlled.

How an SVG Compensator Works

The SVG compensator has a voltage source converter (VSC) that is made up of high-quality IGBT modules. It either makes reactive power to support voltage or absorbs reactive power to stop overvoltage by changing the phase and amplitude of its output voltage in relation to the grid. Because it can work in both directions, it can handle both leading and lagging reactive power in the same installation.

Key Electrical Advantages

A good SVG compensator usually has a reaction time of less than 5 ms, which is quick enough to counteract the big changes in voltage that happen when wind turbines cut in or when the sun's energy changes. According to field data collected for the IEC 61000-3-7 application guides, this speed and continuous output change cut energy loss by up to 30% compared to standard stepped capacitor switching.

SVG Compensator vs Traditional and Alternative Solutions

SVC: Older but Limited

Thyristor-switched capacitors and reactors are what Static Var Compensators (SVC) depend on. Their reaction time is usually between 20 and 40 ms, and they make 5th and 7th harmonics that need extra filtering. SVC response is too slow to stop voltage drops in places where leading reactive power changes quickly, like offshore wind collection grids.

STATCOM: A Close Relative

Both a STATCOM and an SVG compensator use VSC design, which means they work in the same way. The difference is in how the designs work together and how they can be used. More than just basic STATCOM functions, the XD-dSVG from Xi'an Xikai combines fundamental reactive power adjustment, low-order harmonic suppression up to the 13th order, and three-phase imbalance correction in a single box. This ability to do more than one thing cuts down on the number of different devices that a project worker has to choose from.

Active Power Filters: Complementary, Not Equivalent

Active power filters (APF) try to get rid of harmonic distortion but can only handle a certain amount of reactive power. An SVG compensator takes care of harmonics and large amounts of reactive power (up to 50 Mvar in the XD-dSVG setup). When EPC companies are in charge of wind or solar projects bigger than 10 MW, choosing an SVG compensator over separate APF and reactive compensation devices lowers the cost of capital and makes commissioning easier.

Practical Applications of SVG Compensation

Renewable Energy Grid Integration

Grid codes say that electric power plants in northern China, Chile, and the Middle East must have dynamic voltage support during low-voltage ride-through (LVRT) events. The XD-dSVG can handle rated voltages from 6 kV to 35 kV and can compensate for voltages from 0.3 Mvar to 50 Mvar. During a grid fault, it keeps the reactive current flow going. This keeps the plant from going offline and the project in line with national standards for grid connections.

Industrial and Metallurgical Plants

Electric arc furnaces produce harsh flickering and quick changes in the power. In constant reactive current mode, an SVG compensator reacts within milliseconds to each electrode cycle, stopping voltage flicker below the Pst limits set by IEC 61000-3-3. A number of steel mills that use 35 kV bus voltage have seen their utility penalty charges go down since they put in place SVG-based reactive power management systems.

Commercial and Infrastructure Applications

During the day, hospitals, data centers, and transit substations have mixed loads that switch between capacitive and inductive behavior. The XD-dSVG has four operating modes that can be chosen: constant reactive current, constant reactive power, constant bus voltage, and constant power factor. This lets facility engineers match the compensation strategy to the real load profiles without having to change the hardware.

Choosing the Right SVG Compensator for Your Needs

Technical Selection Criteria

Before engineers choose an SVG compensator, they need to make sure of three things: the rated bus voltage (6 kV, 10 kV, or 35 kV), the worst-case harmonic spectrum, and the needed Mvar capacity at the point of common coupling. With modular growth, the XD-dSVG can handle 0.3–50 Mvar. This means that a project can begin with a smaller section and add more space as the plant grows.

These are the main technical aspects that purchase experts usually look at:

• Response speed: The XD-dSVG achieves sub-5 ms response, meeting the LVRT requirements set by State Grid and most European transmission operators.
• Harmonic suppression: Built-in capability to address low-order harmonics up to the 13th reduces the need for separate filter banks.
• IGBT module quality: Xi'an Xikai selects high-grade IGBT modules and performs 72-hour load simulation tests before shipment, targeting 99.9% uptime.
• Smart grid readiness: IEC 61850 protocol support and SCADA integration allow remote monitoring and predictive maintenance without additional gateways.
• Modular design: Plug-and-play capacity expansion fits both greenfield projects and brownfield upgrades to aging substation infrastructure.

These features fix the three most common problems with purchasing in EPC projects: following grid codes, making commissioning difficult on-site, and making sure parts will be available for a long time.

Supplier Evaluation Factors

Procurement managers should ask for type test reports that have been certified by a third-party lab, check IGBT module sourcing agreements to make sure the supply chain stays stable, and make sure that the vendor offers site commissioning engineers who know the grid code of the target country. Xi'an Xikai is certified by ISO 9001 and ISO 14001, and its low-voltage parts are certified by 3C. The company has been managing reactive power for more than 15 years and has multiple filed patents in compensation technology. It helps with projects from figuring out if they are possible to providing technical support after they are up and running.

Procurement and Implementation Guide

Sourcing and Custom Orders

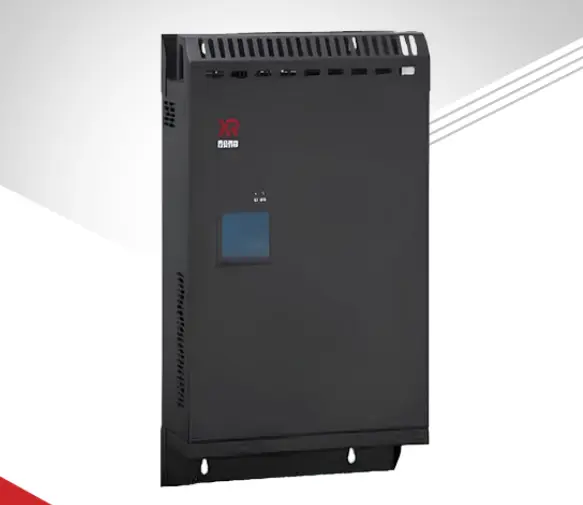

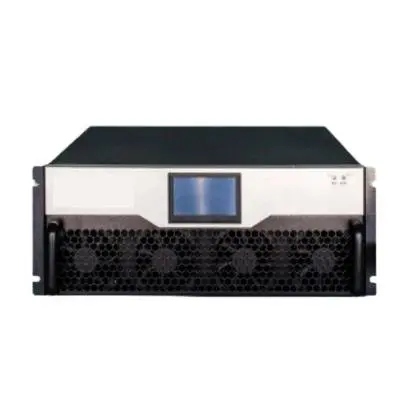

Cost isn't the only thing that matters for EPC contractors who buy 10 to 100 Mvar units per project. Lead time and the ability to change the configuration are also very important. Xi'an Xikai has wall-mounted, cabinet-integrated, and hybrid enclosure options for the SVG compensator, so it can be used in places with limited space and environmental conditions. Before manufacturing starts, the engineering review phase takes care of things like custom voltage taps, coordination of protection relays, and mapping of communication protocols.

Installation and Commissioning

The SVG dedicated link reactor comes with the whole set of tools. It can be an air-core or an iron-core dry-type design. When you choose the right reactor, you can keep the SVG control loop stable and avoid inductor overload during fault events. During on-site commissioning, the operating mode parameters are set, the phase-locked loop calibration is checked, and a stepped reactive power injection test is run to confirm grid response. During this time, engineers from Xi'an Xikai help both remotely and on-site.

Maintenance and Long-Term Support

Dry-type reactors need to have their air ducts cleaned and their end torque checked on a regular basis. Every year, you should check IGBT units for thermal interface damage. Xi'an Xikai offers technical support 24 hours a day, seven days a week and keeps an inventory of spare parts to cut down on replacement lead times. This directly addresses the supply-chain concerns that EPC procurement teams bring up most often.

Conclusion

Industrial and renewable energy centers that are linked to the grid must now manage leading reactive power. Because it has fast reaction, bidirectional reactive power control, and harmonic management all in one device, the SVG compensator has become the standard. The XD-dSVG from Xi'an Xikai can handle voltages between 6 and 35 kV and ranges from 0.3 to 50 Mvar. It has four working modes that can be used with any type of load.

FAQ

1.What is the difference between an SVG compensator and an SVC?

An SVG compensator uses a voltage source converter with IGBT switches, giving it sub-5 ms response and continuous output adjustment. An SVC uses thyristor-switched capacitors and reactors, with slower response (20–40 ms) and inherent harmonic generation. For fast-changing loads like wind farms, the SVG compensator performs better.

2.Can one SVG compensator handle both leading and lagging reactive power?

Yes. The bidirectional VSC topology allows the SVG compensator to absorb leading reactive power (overvoltage suppression) or generate lagging reactive power (voltage support) within the same unit, without switching external components.

3.What certifications should I require from an SVG compensator supplier?

Request ISO 9001 quality management certification, type test reports from an accredited lab per IEC or GB standards, and proof of IGBT module sourcing. For export projects, confirm IEC 61850 compliance if SCADA integration is required.

4.How long does commissioning typically take?

For a single 10 Mvar unit at a wind farm 35 kV bus, on-site commissioning normally takes 3–5 days, including protection coordination checks, operating mode configuration, and reactive power injection verification tests.

5.What happens if grid requirements change after installation?

The XD-dSVG supports firmware-based parameter updates and modular capacity expansion. Xi'an Xikai provides upgrade consultation as part of its post-installation technical support program.

Get a Quote from Xi'an Xikai — Trusted SVG Compensator Manufacturer

An SVG compensator has a voltage source converter with IGBT switches, which lets it respond in less than 5 ms and change its output all the time. An SVC has a slower response time (20–40 ms) and naturally creates harmonics because it uses thyristor-switched capacitors and reactors. The SVG compensator works better for loads that change quickly, like those in wind farms.email us at serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com, or go to xaxd-electric.com.

References

1. IEEE Std 1459-2010 — IEEE Standard Definitions for the Measurement of Electric Power Quantities Under Sinusoidal, Nonsinusoidal, Balanced, or Unbalanced Conditions, IEEE, 2010.

2. IEC 61000-3-7 — Electromagnetic Compatibility (EMC) – Limits – Assessment of Emission Limits for Fluctuating Loads in MV and HV Power Systems, IEC, 2008.

3. IEC 61000-3-3 — Electromagnetic Compatibility (EMC) – Limits – Limitation of Voltage Changes, Voltage Fluctuations and Flicker, IEC, 2013.

4. Hingorani, N. G., & Gyugyi, L. — Understanding FACTS: Concepts and Technology of Flexible AC Transmission Systems, IEEE Press / Wiley-Interscience, 2000.

5. Mohan, N., Undeland, T. M., & Robbins, W. P. — Power Electronics: Converters, Applications, and Design, 3rd ed., Wiley, 2003.

6. IEC 61850 — Communication Networks and Systems for Power Utility Automation, IEC, 2013.
