Why Should Industrial Power Systems Use Active Harmonic Filters

Industrial power systems face a persistent challenge: harmonic distortion generated by non-linear loads quietly damages equipment, wastes energy, and triggers costly failures. An active harmonic filter addresses this problem by injecting counteracting currents into the power network in real time, reducing total harmonic distortion (THD) to levels that meet IEEE 519 and IEC 61000-3-2 standards. For system integrators and data center contractors who must deliver guaranteed power quality results, understanding why an active harmonic filter outperforms conventional solutions is the first step toward specifying the right equipment.



Understanding Active Harmonic Filters and How They Work

What an Active Harmonic Filter Actually Does

An active harmonic filter checks the load current all the time, uses a digital signal processor to find harmonic components, and then uses a shunt connection to add equal and opposite compensation currents. It is a closed-loop system that works every microsecond and can block up to 97% of harmonics from the second to the fiftyth orders. This makes a clean sinusoidal waveform that keeps equipment further down the line safe.

Filter Types Used in Industry

The three configurations that are most common in business and industry are shown below. A "shunt active harmonic filter" links to the load in parallel and can handle most industry tasks. To stop unstable charges, a series active filter is put into the power line. A "hybrid filter" combines a passive LC stage with an active stage. It works well in high-power substations where cost per kilovolt-ampere is important. The modular configurations of Xi'an Xikai's products can be mounted on the wall or in a rack, which gives engineers more options when designing a system.

How Active Technology Differs from Passive Approaches

Passive LC filters tune to a fixed frequency. When the load profile changes, a passive filter can make the upstream transformer resonate in parallel, which can boost the harmonics it was supposed to block. There is no set setting point for an active harmonic filter. Its control method changes within 10 ms whenever the load changes, which stops vibration completely. Because it is so fast, the active harmonic filter is the best choice for places with changing loads, like data centers and precision manufacturing floors.

Why Industrial Power Systems Require Active Harmonic Filters

The Hidden Cost of Harmonic Distortion

The Electric Power Research Institute says that harmonic-related losses cost the U.S. economy between $15 and 24 billion a year in hot equipment, insulation damage, and unplanned downtime. Harmonic currents are made by variable frequency drives, UPS systems, and switch-mode power supplies. Without protection, a building's transformers can get 10–15°C hotter than their rated temperature, which cuts the insulation's life by about half.

Comparing Active Filters to Traditional Solutions

Passive filters are cheap to buy, but they need to be re-tuned often when the load changes, and they do have a real risk of resonance. An active harmonic filter costs more up front, but it doesn't need to be re-tuned, doesn't have resonance fees, and works the same way across the whole load range. Active technology has a much lower long-term total cost of ownership for a data center contractor that works on projects with 5 to 50 units.

Active mitigation is better than inactive mitigation in the following ways:

• Dynamic harmonic suppression: The active harmonic filter tracks load changes continuously, maintaining THD below 5% even when the facility adds new non-linear equipment to the circuit.
• Resistance to grid fluctuations: The control board compensates for voltage sags and swells simultaneously, keeping the power factor above 0.99 during grid disturbances that would cause passive filters to mis-operate.
• Energy cost reduction: By correcting displacement power factor and eliminating harmonic reactive power, facilities typically report a 3–8% reduction in monthly electricity billing demand charges after installation.
• Rugged reliability: Xi'an Xikai units undergo 72-hour accelerated aging tests and 100% load validation before shipment, backed by ISO 9001, ISO 14001, CE, UL, and CCC certifications.

These benefits directly address the concerns that electrical chief engineers have the most: will this device work as expected on the job site, and will it still work with the current pay cabinet?

Practical Applications and Case Studies

Industrial Plants

Surge currents are very high in CNC machining centers and automatic production lines. They can be 100 times the maximum capacity for milliseconds when the motor starts. An active harmonic filter takes in these short-lived harmonic events and gets rid of the power factor fees that the utility charges at the same time. One steel factory in eastern China put in 12 active harmonic filter units across its rolling mill bus. This cut its monthly demand penalty charges by about 6% within the first billing cycle.

Substations and Renewable Energy Integration

Inverters can send harmonics into utility substations that combine solar and wind power. Adding an active harmonic filter to the collection bus keeps the voltage stable and helps the grid follow the rules. Even when the voltage is low, Xi'an Xikai's active technology stops resonance amplification. This is very important when the center feeds a mixed grid with both linear and inverter-based power.

Commercial Buildings: Hospitals and Data Centers

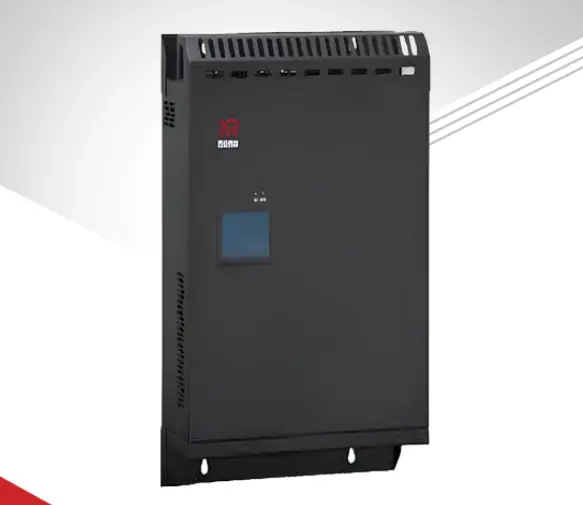

Two things that hospitals and data centers have in common are that they can't have power outages and they have to follow the rules very carefully. The wall-mounted active harmonic filter units from Xi'an Xikai work below 45 dB, so they can be used in clinical settings with people. The flame-retardant design meets NFPA 70 standards, and the modular rack design lets incremental capacity additions happen without shutting down current infrastructure. This is useful for hospitals that need to add imaging equipment in the middle of a project.

How to Choose and Procure the Right Active Harmonic Filter

Key Technical Parameters to Evaluate

Before choosing an active harmonic filter, compare the following numbers to the data from your site survey: the operating voltage range, the rated compensation current (A), the response time (target ≤10 ms), and the THD reduction guaranty (target ≥97%). Make sure the unit works with the frequency of your local grid (50 Hz or 60 Hz) and that the communication protocol works with your building management system.

Evaluating Vendors and After-Sales Support

A brand's reputation is important, but the success of a project is often determined by its after-sales infrastructure. Ask each active harmonic filter provider for information on their service network, how long it takes to get replacement parts, and how they can do online repairs. Xi'an Xikai offers technical support on international markets and has a project engineering team that does commissioning and verification testing after installation on-site.

Procurement Workflow for System Integrators

From the first site visit to the final acceptance, the typical procurement cycle for a 5–50 unit active harmonic filter project is 60–120 days. The steps are measuring the harmonics on-site, proposing a solution and simulating it, getting technical approval from the end user, negotiating the price, trying the solution in the workshop, and starting up the system on-site. You can make sure that certifications are valid and trial tests can be done if you start the vendor approval process early, before the end user freezes the design.

Future Trends in Active Harmonic Filter Technology

IoT Integration and Remote Monitoring

IoT modules built into newer active harmonic filter platforms send THD readings, compensation current levels, and thermal status to cloud dashboards in real time. This lets facility managers find changes in power quality before they hurt equipment. This changes maintenance from being reactive to being condition-based.

Smart Grid and Industry 4.0 Compatibility

Standardized protocols like Modbus TCP and IEC 61850 must be used for power quality devices to talk to each other as factories move toward Industry 4.0 architectures. Manufacturers of active harmonic filters are offering open-protocol interfaces more and more so that harmonic data can be fed directly into energy management systems that run the whole plant.

Renewable Energy and Grid Stability

Solar and wind power will continue to grow at the distribution level. Active harmonic filter technology will be more important at grid-edge nodes, where inverter-generated harmonics and voltage changes need to be controlled locally before they travel upstream.

Conclusion

Harmonic distortion isn't just a small annoyance; it's a real threat to the life of technology, the efficiency of energy use, and compliance with regulations. This issue can be fixed by an active harmonic filter, which can compensate in real time, stop reverberation, and have a flexible design that can expand as your project does. The best technical and business choice for system integrators who need to get approval from end users in tough places like hospitals and data centers is to choose a certified active harmonic filter with clear documentation of after-sales support. The products that Xi'an Xikai sells meet that level.

FAQ

1.Does an active harmonic filter work with my existing power factor correction cabinet?

Yes. An active harmonic filter operates as a shunt device in parallel with your existing capacitor bank or reactive compensation cabinet. It does not replace fixed-capacitor PFC systems; it supplements them by handling harmonic currents that the capacitors cannot address and, in fact, could amplify through resonance.

2.What maintenance does an active harmonic filter require?

Routine maintenance is minimal. Inspect and clean air filters every six months, verify control board firmware is current annually, and check terminal torque values during scheduled shutdowns. Unlike passive filter capacitors, the active harmonic filter has no capacitors exposed to sustained harmonic stress, so component replacement intervals are longer.

3.How quickly does an active harmonic filter respond to load changes?

The control loop response time is 10 milliseconds or less, which covers the fastest transient events produced by VFD starts and UPS switching. Passive filters have no dynamic response capability at all.

4.What certifications should I require from an active harmonic filter supplier?

Require at minimum: CE (for European projects), UL (for North American projects), CCC (for Chinese grid connection), ISO 9001 for quality management, and test reports confirming IEEE 519 or IEC 61000-3-2 compliance.

5.Can an active harmonic filter handle multiple harmonic orders simultaneously?

Yes. The digital signal processor in an active harmonic filter identifies and compensates for multiple harmonic orders—typically the 2nd through 50th—concurrently. This is a fundamental advantage over tuned passive filters, which target only a single frequency.

Get a Verified Active Harmonic Filter Solution from Xi'an Xikai

Active harmonic filter units made by Xi'an Xikai Medium & Low Voltage Electric Co., Ltd. are approved to meet ISO 9001, ISO 14001, CE, UL, and CCC standards. Each unit is tested for 72 hours to make sure it is safe to ship. Our engineering team will do a site harmonic study and come up with a solution that is perfect for your project, whether it's for a data center, hospital, or industrial plant. To get a technical proposal, email us at serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com right now, or go to xaxd-electric.com.
