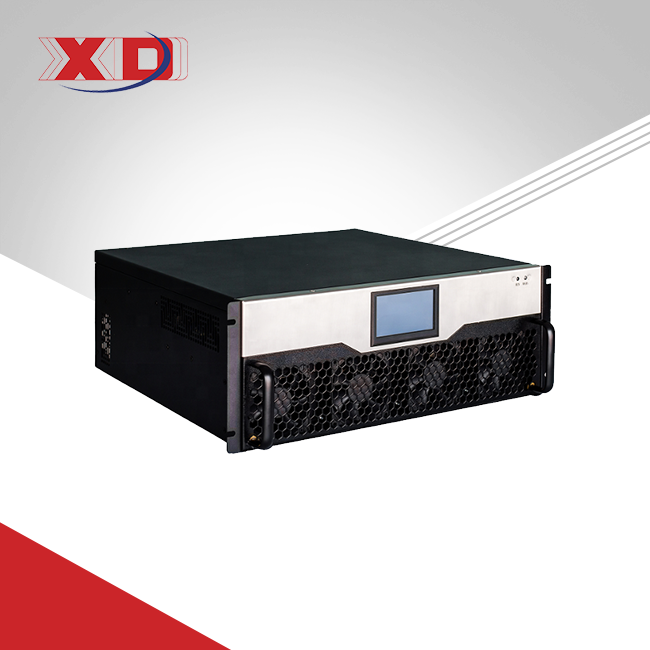

SVG- Static Var Generator
2.Power Grid Frequency:50Hz/60Hz
3.Bi-Dynamic Compensation: Maintains PF 0.99, prevents over/under-compensation.
4.Capacity Efficient: 20-30% less capacity required than SVC
5.Rapid Response: <15ms full response, <50μs dynamic.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
1.SVG-Static Var Generator: Your Ultimate Solution for Stable & Efficient Power Quality
In today’s energy-driven industries, maintaining flawless power quality is non-negotiable. The SVG-Static Var Generator stands at the forefront of reactive power compensation, offering unmatched precision in voltage stabilization and harmonic filtering. Designed for industries like metallurgy, renewable energy, and semiconductor manufacturing, this advanced system ensures your operations stay efficient, compliant, and future-ready. Let’s explore how the product transforms power management challenges into opportunities.
2.Technical Specifications
- Rated Input: 400V (±20%)
- Grid Frequency: 50Hz/60Hz
- Bi-Dynamic Compensation: Maintains PF 0.99, eliminating over/under-compensation risks.
- Capacity Efficiency: 20–30% smaller footprint vs. traditional SVC systems.
- Response Speed: Full compensation in <15ms; dynamic adjustments in <50μs.
|
Module Model |
||||
|
Models |
Compensation Capacity (kvar) |
System Voltage(V) |
Dimensions Width*Depth*Height (mm) |
Cooling System |
|
SVG-0.22-5k/2L-R(W) |
5 |
220 |
220*330*160 |
Forced Air Cooling |
|
SVG-0.4-10k/4L-R(W) |
10 |
400 |
520*460*89 |
Forced Air Cooling |
|
SVG-0.4-15k/4L-R(W) |
15 |
400 |
520*460*89 |
Forced Air Cooling |
|
SVG-0.4-30k/4L-R(W) |
30 |
400 |
520*460*89 |
Forced Air Cooling |
|
SVG-0.4-50k/4L-R(W) |
50 |
400 |
540*500*190 |
Forced Air Cooling |
|
SVG-0.4-75k/4L-R(W) |
75 |
400 |
580*500*240 |
Forced Air Cooling |
|
SVG-0.4-100k/4L-R(W) |
100 |
400 |
580*500*240 |
Forced Air Cooling |
|
SVG-0.5-90k/4L-R(W) |
90 |
500 |
495*675*275 |
Forced Air Cooling |
|
SVG-0.69-120k/4L-R(W) |
120 |
690 |
495*675*275 |
Forced Air Cooling |
|
Cabinet Model |
||||
|
Models |
Compensation Capacity (kvar) |
System Voltage(V) |
Dimensions Width*Depth*Height (mm) |
Cooling System |
|
SVG-0.4-200k/4L-C |
200 |
400 |
1000*1000*2200 |
Forced Air Cooling |
|
SVG-0.4-250k/4L-C |
250 |
400 |
1000*1000*2200 |
Forced Air Cooling |
|
SVG-0.4-300k/4L-C |
300 |
400 |
1000*1000*2200 |
Forced Air Cooling |
|
SVG-0.4-400k/4L-C |
400 |
400 |
1000*1000*2200 |
Forced Air Cooling |
|
SVG-0.5-180k/4L-C |
180 |
500 |
1000*1000*2200 |
Forced Air Cooling |
|
AMS SVG-0.5-270k/4L-C |
270 |
500 |
1000*1000*2200 |
Forced Air Cooling |
|
SVG-0.5-360k/4L-C |
360 |
500 |
1000*1000*2200 |
Forced Air Cooling |
|
SVG-0.69-240k/4L-C |
240 |
690 |
1000*1000*2200 |
Forced Air Cooling |
|
SVG-0.69-360k/4L-C |
360 |
690 |
1000*1000*2200 |
Forced Air Cooling |
|
SVG-0.69-480k/4L-C |
480 |
690 |
1000*1000*2200 |
Forced Air Cooling |
|
|
220V Series |
380V Series |
500V Series |
690V Series |
|
Altitude |
＜2000m, Usage should be de-rated according to the international standard IEC 3859-2 for altitudes above 2000 meters. |
|||
|
Ambient Temperature |
-10～+50℃ (Derated above 40℃) |
|||
|
Relative Humidity |
≤ 90%, monthly minimum temperature 25℃, no condensation on the surface |
|||
|
Pollution level |
Below Level III |
|||
|
Operating Voltage |
AC220V (-20%~+20%) |
AC380V (-20%~+20%) |
AC500V (-20%~+20%) |
AC690V (-20%~+15%) |
|
Operating Frequency |
50Hz/60Hz (45Hz~63Hz) |
|||
|
Rated Compensation Capacity |
5kvar |
10kvar, 15kvar, 35kvar, 50kvar, 75kvar, 100kvar |
90kvar |
120kvar |
|
Power Grid Structure |
L/N |
Three-Phase Three-Wire, Three-Phase Four-Wire |
||
|
Numbers in Parallel |
Not supported |
Unlimited |
||
|
System Efficiency |
≥97% |
|||
|
Switching Frequency |
32kHz |
16kHz |
12.8kHz |
|
|
Function Selection |
Reactive Power |
Reactive Power, Reactive Power + Unbalanced |
||
|
Full Response Time |
<10ms |
|||
|
Noise |
≤60dB |
≤65dB |
||
|
Communication |
2 * RS485 Communication Ports (Supports GPRS/WIFI) |
|||
|
Protection |
Overload, Software/Hardware Overcurrent, Grid Over/Under Voltage, Power Supply Fault, Overtemperature, Frequency Abnormality, Short Circuit Protection |
Overload, Software/Hardware Overcurrent, Grid Over/Under Voltage, Voltage Imbalance, Power Supply Fault, Overtemperature, Frequency Abnormality, Short Circuit Protection |
||
|
Installation |
Rack-Mounted, Wall-Mounted |
Rack-Mounted |
||
|
Entry Line Method |
Rear Inlet (Rack-Mounted), Top Inlet (Wall-Mounted) |
Rear Inlet |
||
|
Protection level |
IP20 |
|||
3.Why Our SVG-Static Var Generator Stands Out？
1. Precision Engineering for Industrial Demands
Our product uses modular, intelligent designs to adapt to harsh environments—from dusty factories to high-temperature grids. Its bi-directional compensation ensures stable voltage even during sudden load changes, protecting sensitive equipment from downtime.
2. Energy Efficiency That Cuts Costs
By reducing reactive power losses by up to 40%, this system slashes energy bills while meeting strict ESG standards. Its compact design also minimizes space requirements, ideal for retrofitting older facilities.
3. Seamless Integration with Smart Grids
Compatible with energy storage)systems and microgrids, our generator supports IoT-enabled monitoring for real-time analytics. Pair it with XR-APF filters or XR-TBB compensators for end-to-end power quality management.
4.Real-World Applications
Be used in a wide range of industries.
Industrial Plants
Eliminate power factor penalties in CNC machines and assembly lines while handling surge currents up to 100x rated capacity.
Substation
Stabilizes substation voltage against harmonics and intermittent generation from renewable inverters.
Commercial Buildings
Retrofit aging systems in hospitals or malls with silent (<45dB), flame-retardant capacitors that meet NFPA 70 fire codes.
5.How It Works: Simplified
The product uses IGBT-based inverters to inject precise reactive currents into the grid. By continuously monitoring voltage phases, it cancels out lagging/leading power factors, achieving near-unity PF (0.99) within milliseconds.
6.Built to Last: Quality You Can Trust
- ISO-Certified Manufacturing: Every unit undergoes 12+ rigorous tests, from component stress tests to full-load simulations.
- Durability: Rated for 100,000+ hours of operation in temperatures up to 50°C.
- Certifications: Complies with IEC 61000, IEEE 1547, and regional standards (GB/T, ).
7.Why Choose Us?
- National 863 Program Contributor: Our R&D team holds 15+ patents in power electronics.
- End-to-End Support: From grid analysis to 24/7 maintenance, we’re with you at every step.
- Certified Excellence: ISO 9001, ISO 14001, and 3C-certified low pressure products.
8.FAQs
1. How does the product handle grid fluctuations?
Its <15ms response time and adaptive algorithms instantly counteract voltage swings, ensuring stability.
2. Can it integrate with existing energy storage systems?
Yes! Our hybrid SVG+Energy Storage solutions are tailored for microgrid and renewable applications.
3. What’s the typical ROI period?
Most clients recover costs within 2–3 years via energy savings and reduced downtime.
4. Do you offer customized voltage ranges?
We provide 0.4kV–0.69KV models, scalable for utilities, SMEs, or specialized industries.
5. How often is maintenance required?
Annual checkups suffice, thanks to self-diagnostic features and rugged components.
9.Contact Us
Upgrade your power quality with SVG-Static Var Generator a system trusted by global utilities and industries.
Contact Us: xaxd_electric@163.com
Custom Quotes & Technical Support Available
