Why Use an SVG Compensator in Industrial Piping Systems?
2026-09-28 17:31:29
If you manage electrical infrastructure for industrial piping operations, you've likely faced voltage instability, power factor penalties, or harmonic distortion that disrupts equipment performance. An SVG compensator — short for Static Var Generator compensator — addresses these challenges directly. By injecting or absorbing reactive power in real time, an SVG compensator stabilizes grid voltage, corrects power factor, and suppresses harmonics. For facilities in chemical processing, water treatment, or refining, this means fewer outages, lower energy costs, and longer equipment service life.
Understanding the Basics of SVG Compensators
In order to properly compare options and read through specifications, it is helpful to know what an SVG compensator is and why it is important in industrial settings.
What Is an SVG Compensator?
A power electronics device called an SVG compensator uses a voltage source converter (VSC) to either make reactive power or take it in. It reacts much faster than mechanical switches or passive capacitor banks. For instance, Xi'an Xikai's XD-dSVG series can work with rated voltages from 6 kV to 35 kV and a compensation range of 0.3 to 50 Mvar, which is a range that works with most medium-voltage industrial piping grids.
How Does It Work?
The device changes how the output power is phased and how strong it is in relation to the grid. The SVG compensator adds dynamic support to the grid when it needs it. It takes the extra reaction power when it finds it. As long as this closed-loop process keeps going, the bus voltage stays stable without any help from an operator.
Four Operating Modes That Matter
You can choose from four modes on the XD-dSVG: constant reactive current, constant reactive power, constant bus voltage, and constant power factor. Each mode focuses on a different operational priority, and engineers can set up the system to meet the needs of the local grid code. This adaptability is especially helpful in places with multiple loads where conditions change between shifts of production.
SVG Compensator vs. Traditional Reactive Power Solutions
A lot of places still use capacitor banks or older SVC devices. Figuring out the performance gap helps buying teams show that they need to spend money on an SVG compensator.
Response Speed
Capacitor banks switch in discrete steps and need relay logic, which adds delay, usually a few hundred ms. It takes less than 5 milliseconds for an SVG compensator to react. This difference in speed stops voltage drops that can trip motor safety switches in pipe systems with variable-speed pumps or high-inertia compressors.
Harmonic Management
In networks with a lot of motor loads, traditional SVCs may sometimes make harmonic resonance worse. Low-order harmonics up to the 13th order are actively stifled by the XD-dSVG. This is a known problem in electrical networks at chemical plants and refineries that use variable frequency drives (IEEE Std 519-2022).
System Footprint and Scalability

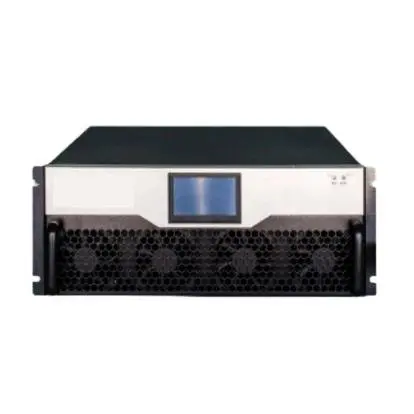

Capacitor banks need a lot of space in the switchroom, and the contactors and capacitor cells need to be serviced on a regular basis. The XD-dSVG's modular design lets you add more storage space with plug-and-play modules. This cuts down on downtime during upgrades and keeps you from having to replace the whole system when load profiles change.
When buying things for long-term industry projects, where the total cost of ownership, not just the purchase price, is what matters most, these differences are very important.
Real-World Applications of SVG Compensators in Industrial Piping Systems
While theory is helpful, success in the field boosts confidence. Here are three areas of use where reactive power correction has made a real difference.
Chemical Processing Plants
Large pumps and agitators in chemical plants cause sudden changes in the load that lower the power factor below what utilities allow, which leads to fines. Putting in an SVG compensator at the point of common connection keeps the power factor above 0.95 and lowers the charges of reactive energy. The XD-dSVG can handle surge currents up to 100 times its rated capacity. This protects instruments further down the line when the motor starts.
Water Treatment and Pumping Stations
A lot of the time, water treatment plants use various voltage busses and have big loads that come and go. Unbalanced voltage lowers the life of winding insulation and lowers the efficiency of pump motors. An SVG compensator at the main substation bus can fix both reactive imbalance and phase asymmetry at the same time. The XD-dSVG can do this because it has an imbalance compensation function built in.
Refinery and Heavy Industrial Sites
Transmission lines that connect refineries have strict rules about the quality of the power they send. In many places, having low voltage ride-through (LVRT) technology is now a legal necessity. The XD-dSVG works with SCADA systems through the IEC 61850 protocol. This lets engineers in the control room see reactive power flows in real time and switch modes from afar without having to go to the field.
Procurement Considerations for SVG Compensators
It takes more than just comparing datasheets to find the right SVG compensator provider. These are the things that procurement managers with a lot of experience put first.
Technical Verification Requirements
Before giving a contract, engineering teams should ask for type test results that include noise level, full-load temperature rise, impulse voltage withstand, inductance predictability under fault current, and impulse voltage withstand. Every unit at Xi'an Xikai goes through 72-hour load simulation tests, and the company is certified by ISO 9001, ISO 14001, and 3C for low-voltage parts.
IGBT Module Supply Risk
One thing that worries EPC contractors is the availability of IGBT modules when there are problems with geopolitical supply. Xi'an Xikai uses high-quality IGBT modules that come from confirmed supply chains. Its modular design lets individual power cells be changed without taking out the whole cabinet, which greatly reduces the amount of time needed for repairs.
Customization and Site Integration

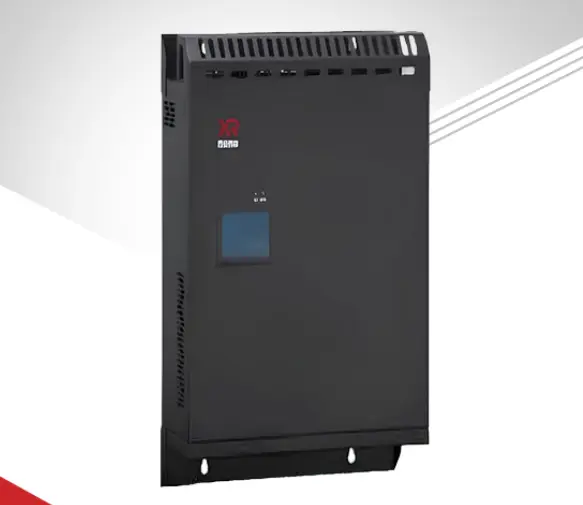

Not every system is limited by the same things. The XD-dSVG can be hung on the wall, built into a cabinet, or used in a mixed mode. The engineering team at Xi'an Xikai does feasibility studies before delivery and helps with commissioning on-site, which cuts down on the complexity that often causes project handover to be delayed.
Here are the main selection criteria that procurement teams should confirm before making their final shortlist of vendors:
- Rated voltage compatibility: 6 kV to 35 kV range
- Compensation capacity per unit: up to 50 Mvar
- Response time certification: ≤5 ms under type test conditions
- Harmonic suppression range: up to 13th-order low harmonics
- Grid code compliance documentation for the target market
- IEC 61850 SCADA integration capability
Compatible with voltages between 6 kV and 35 kV
Why SVG Compensators Are the Preferred Choice for Modern Industrial Systems
In the last ten years, reactive power adjustment technology has come a long way. SVG compensators are now included in most serious EPC tender specifications because they work consistently and can be changed to fit different situations.
Energy Savings and Grid Compliance
It has been shown in studies published in IEEE Transactions on Power Delivery that correct reactive power correction can cut transmission losses in industrial networks by 15–30%. Real-time adjustment on the XD-dSVG stops reactive energy from flowing through cables and transformers when it's not needed to. This directly lowers operating costs.
Smart Grid and Industry 4.0 Alignment
The XD-dSVG works with SCADA systems using IEC 61850 standards and can do predictive maintenance based on the Internet of Things. This means that data from condition monitoring, like temperature performance, reactive output history, and alarm logs, goes straight into facility management systems without going through any extra gateways.
Long-Term Reliability
The company Xi'an Xikai has been working on power quality issues for over 15 years and has patents in the area of reactive compensation technology. Automated welding during construction and thermal management systems built into every cabinet increase the time between service calls and lower the number of unscheduled repair events.
Conclusion
Industrial piping facilities need to have an SVG compensator once the load complexity and grid code requirements reach a certain level. It is not a nice-to-have extra. The XD-dSVG line can handle voltages from 6 kV to 35 kV, offers compensation up to 50 Mvar, and has four working modes that can be set up to work with different grid situations. The SVG compensator is the most technically sound choice for procurement and engineering teams looking at reactive power solutions right now. It has a fast reaction time, blocks harmonics, can be expanded in modules, and works with smart grids.
FAQ
1.Can an SVG compensator replace an existing capacitor bank?
Most of the time, yes. It is impossible for a set capacitor bank to match the dynamic correction that an SVG compensator offers. The SVG compensator's constant adjustment keeps sites with changing loads from over-compensating, which is what capacitor banks do when the load is low. Before upgrading, it is suggested that a viability study be done.
2.What response time should I specify in a tender document?
≦5 ms is usually what the industry says for grid-connected industrial and green uses. This level is met by the XD-dSVG, which is in line with technical standards set by State Grid and Southern Grid as well as IEC speed benchmarks.
3.How often does an SVG compensator require maintenance?
For dry-type reactors in SVG systems, the air tubes need to be cleaned out every so often to keep dust from building up, and the end connections need to be checked for torque. When the temperature and air flow in the room are right, the power electronics section doesn't need much care. Xi'an Xikai offers technical help 24 hours a day, seven days a week for ongoing problems.
4.Does the XD-dSVG support low voltage ride-through (LVRT)?
Yes, LVRT functionality is built into the XD-dSVG control architecture. This is needed for green energy stations that are linked to the grid and have to meet fault ride-through performance requirements set by the utilities.
5.What certifications should I request from an SVG compensator supplier?
Ask for ISO 9001, ISO 14001, type test reports that meet IEC standards, and any other certifications that the project owner or local grid operator may need that are specific to the market.
Partner with Xi'an Xikai for Your SVG Compensator Project
With the XD-dSVG line from Xi'an Xikai, EPC contractors and industrial facilities can get a technically sound and field-tested SVG compensator that can be used throughout the whole project lifecycle, from the feasibility study to after the system is fully operational. We are a well-known company that makes SVG compensators and sell them in Asia, Europe, and the Americas. The configurations we offer range from 0.3 to 50 Mvar at 6 to 35 kV. Get in touch with our team right away to talk about the needs of your project.
