How to Choose an Indoor Vacuum Circuit Breaker for Your Facility

Choosing the right indoor vacuum circuit breaker starts with understanding your facility's voltage requirements, fault current levels, and installation environment. An indoor vacuum circuit breaker uses sealed vacuum interrupter technology to extinguish electrical arcs quickly and safely, making it a preferred choice for medium-voltage switchgear applications from 12kV to 40.5kV. Key selection factors include breaking capacity (typically 31.5kA or 40kA), mechanical endurance rating, handcart interchangeability with your existing cabinet design, and compliance with IEC 62271-100. Matching these parameters to your operational demands ensures long-term reliability and reduces unplanned downtime across industrial, commercial, and utility settings.

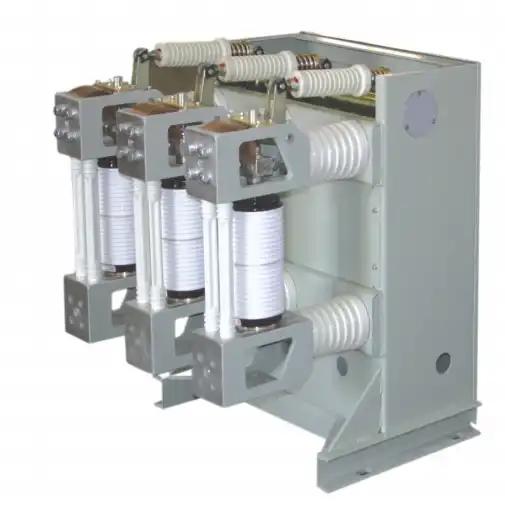

Understanding Indoor Vacuum Circuit Breakers: Principles and Advantages

How Vacuum Interruption Technology Works

An indoor vacuum circuit breaker stops fault current by pulling the electrical arc into a sealed vacuum interrupter chamber. There is no ionizable gas in the chamber, so the arc goes out quickly at the first current zero. This mechanism is very different from ones that use SF6 or oil. Since there is no arc-sustaining medium, there is very little contact erosion, and the stopping performance stays the same over thousands of rounds. The test procedures that make sure of this performance under rated short-circuit circumstances are set out in IEC 62271-100.

Why Vacuum Technology Outperforms Legacy Alternatives

Moving toward vacuum-based medium-voltage protection is happening because it works better and is better for the environment than older technologies. Switchgear makers and procurement experts are drawn to this technology because of its main benefits, which are:

• Zero greenhouse gas emissions: Unlike SF6 breakers, vacuum interrupters don't contain any controlled gasses, so they don't have to follow the rules set by the EPA and the EU for F-Gas. This directly lowers the pollution risk of your building.
• Compact pole design: The sealed interrupter column is much shorter than oil or air designs, which makes the cabinet footprint smaller. This is very helpful when putting it into KYN28 or KYN61 switchgear assemblies where space is limited.
• Extended mechanical life: Depending on the model class, vacuum interrupters can usually handle 10,000 to 30,000 processes. This means that they don't need to be replaced as often and cost less overall over a 20-year service period.

The indoor vacuum circuit breaker is the most popular choice in modern medium-voltage distribution infrastructure around the world. Its benefits directly lead to lower operating costs and easier compliance with regulations.

Key Criteria for Selecting the Right Indoor Vacuum Circuit Breaker

Matching Electrical Parameters to Your Application

Your expert team needs to check three electrical factors before you place an order: the rated voltage, the rated short-circuit breaking current, and the rated normal current. IEC standards say that a breaker rated at 40.5kV gives enough insulation for facilities that use 35kV bus voltage, which is common in industrial substations in South Asia and the Middle East. The standard ratings for short-circuit breaking are 31.5kA and 40kA, which cover most industry and utility grid fault levels. Most of the time, severe breaker failure during fault events is caused by not providing enough breaking capacity.

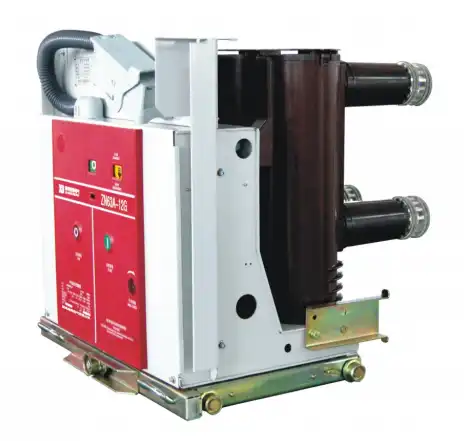

Mechanical Endurance and Handcart Interchangeability

In addition to electrical grades, two technical factors are very important to the people who make switchgear cabinets. How long the spring-driven mechanism works before it needs to be fixed is based on its mechanical durability class, which is given as the number of no-load working cycles. The M1 class can handle 10,000 operations, and the M2 class can handle 20,000 operations or more, which is necessary for motor feeder and capacitor bank switching uses that need to do this every day.

It's just as important for OEM equipment makers that handcarts can be switched out. If the new indoor vacuum circuit breaker's chassis dimensions, secondary plug pinout, and rail spacing fit your current KYN cabinet design, you won't have to make any expensive tooling changes, and it will be easier to do maintenance at the customer site. During the assessment step, you should always ask for dimensional models and secondary circuit diagrams.

Environmental Installation Conditions

The installation environment has a direct effect on how well the insulation works and how long the contacts last. The Xi'an Xikai ZN85 indoor vacuum circuit breaker can work in temperatures ranging from -15°C to +40°C, withstanding daily average relative humidity of up to 95%. It can also withstand heights of up to 1,000 meters. Most industrial and business sites in Southeast Asia, South Asia, and the Middle East fall under these boundaries. For places higher than 1,000 meters, derating or plateau-type designs are needed to keep the air insulation clearance at the outside of the building at a good level.

Comparing Indoor Vacuum Circuit Breakers with Other Technologies

Performance, Environmental Impact, and Maintenance Trade-offs

Most of the time, procurement teams compare vacuum, SF6, and air circuit breakers when they are looking at medium-voltage safety choices. SF6 breakers are very good at stopping power, but they make regulations more difficult. Sulfur hexafluoride is 23,500 times more likely to cause climate change than carbon dioxide, and more and more places are limiting its use in new installations. Maintenance teams also need to be taught how to handle gas and find leaks, which adds to the ongoing costs of running the business.

Older oil-filled and air circuit breakers are mostly being moved out of new switchgear designs because their arc extinguishing chambers need to be serviced more often and take up a lot more room. The indoor vacuum circuit breaker is a clear winner in terms of both performance and cost. It has arc interruption speeds that are similar to SF6 without the management problems that come with gas, and it needs a lot less upkeep than options that use air or oil. For companies that make switchgear for State Grid, South Grid, or private industry users, this balance of technologies helps them place their products more competitively.

Maintenance, Troubleshooting, and Total Cost of Ownership

Routine Inspection and Common Fault Diagnosis

If you keep your indoor vacuum circuit breaker in good shape, it doesn't need as much regular maintenance as gas or oil models. Contact trip and over-travel measurements, spring mechanism latch verification, and power-frequency withstand testing of the open interrupter to prove vacuum integrity are some of the things that are usually checked once a year. If the vacuum has lost its effectiveness, the interrupter will flash over during the dielectric test. This is a clear sign that the vacuum needs to be replaced.

Most of the time, people describe problems with the field that involve the indoor vacuum circuit breaker interrupter losing its vacuum degree and the handcart racking device being slow or stuck. To fix vacuum decay, you need to replace the interrupter assembly. Racking mechanism binding is usually caused by the guide rails not being oiled enough or the secondary plug not being lined up correctly. Both problems can be fixed with modular spare parts, so the whole breaker doesn't have to be replaced.

Total Cost of Ownership Considerations

The price of acquisition is only a small part of the total cost over 20 years. Installation labor, keeping spare parts on hand, regular maintenance intervals, and the costs that might come up during fault events all play a big role. When you add up the costs of gas tracking tools, leak discovery, and following the rules, vacuum interrupter technology usually has a lower total ownership cost than SF6 alternatives. When suppliers offer structured yearly framework contracts with monthly call-off orders and a sample lead time of two to three months for new specifications, they give procurement teams budget predictability that one-time purchases can't match.

Procurement Process and Best Practices

Supplier Qualification, Prototype Validation, and Framework Agreements

It takes more than looking at a product datasheet to find a good indoor vacuum circuit breaker supplier. Suppliers you can trust have up-to-date IEC 62271-100 type test certificates, are listed on utility approved-vendor lists like the State Grid qualified supplier directory, and can give you quality records that can be tracked for every batch of production. Ask for examples from similar switchgear OEM users and be very clear about what you want to know about how quick the company is after the sale and whether spare parts are available.

Plan for a two- to three-month prototyping and approval period when you add a new standard. You can use this window to check if the dimensions of a real cabinet example can be swapped, to make sure that the secondary wiring works, and to do any internal type approval testing that needs to be done. Setting up an annual framework deal with monthly release orders lets your supply chain see how much traffic there is, which helps them get priority production slots and stable prices.

Conclusion

To choose the best indoor vacuum circuit breaker, you need to carefully consider its electrical ratings, mechanical durability, suitability for the environment, and supplier dependability. Vacuum interrupter technology has been shown to have a long life, require little upkeep, and not release any harmful gasses. These are all qualities that are in line with both goals for operating efficiency and stricter environmental standards. The ZN85 indoor vacuum circuit breaker has all of these qualities: it can handle up to 40.5kV, has a mechanical life of 20,000 cycles, and has been tested and found to comply with IEC standards. A strong medium-voltage safety plan for any switchgear OEM or industrial site starts with matching the right product specs with a reliable and fast provider.

FAQ

1. How often should I inspect a vacuum circuit breaker?

Regular maintenance includes checking the dielectric and mechanical systems once a year. In high-cycle situations like switching a motor feeder or a capacitor bank, inspections should happen every six months instead of every twelve months. The most important things to check at every repair visit are the contact travel measurements and the spring system.

2. How is a vacuum circuit breaker different from an SF6 breaker?

Both indoor vacuum circuit breakers and sulfur hexafluoride gas under pressure are successful at stopping fault current, but an indoor vacuum circuit breaker uses a sealed, evacuated room instead. Vacuum designs don't need any special tools to track gasses, don't have to follow any rules about emissions, and usually don't need as much specialized upkeep training. When transmitting very high voltages above 72.5kV, SF6 breakers may be better, but the vacuum design is usually better for medium-voltage switchgear.

3. Can the ZN85 handle 40kA fault currents?

The ZN85 can handle 40.5kV. You should check with Xi'an Xikai's technical staff during the specification stage to make sure you choose the right model for your fault level. The breaking current levels depend on the specific model version.

Partner with Xi'an Xikai for Your Indoor Vacuum Circuit Breaker Needs

The ZN85 line is one of the medium-voltage vacuum circuit breakers made by Xi'an Xikai Medium & Low Voltage Electric Co., Ltd. The company has ISO 9001, ISO 14001, and ISO 45001 certifications and more than 15 patents in vacuum interruption technology. We are a reliable indoor vacuum circuit breaker supplier that helps OEM switchgear manufacturers with framework contracts, responsive sample prototyping, and a global network of spare parts. You can email our expert team at serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com, or you can go to xaxd-electric.com to get a product list and start reviewing the specifications right away.
