A hybrid dynamic compensation device is a power quality management system that merges passive capacitor banks with active power electronics—typically a Static Var Generator (SVG) or Active Power Filter (APF)—into a single, coordinated architecture. Unlike traditional fixed-capacitor solutions, this device responds to fluctuating reactive power demands in real time, maintaining target power factors close to unity while simultaneously suppressing harmonic distortion. For engineers designing smart distribution cabinets and building electrical systems, understanding how a hybrid dynamic compensation device works is the foundation for selecting a solution that genuinely upgrades grid performance.

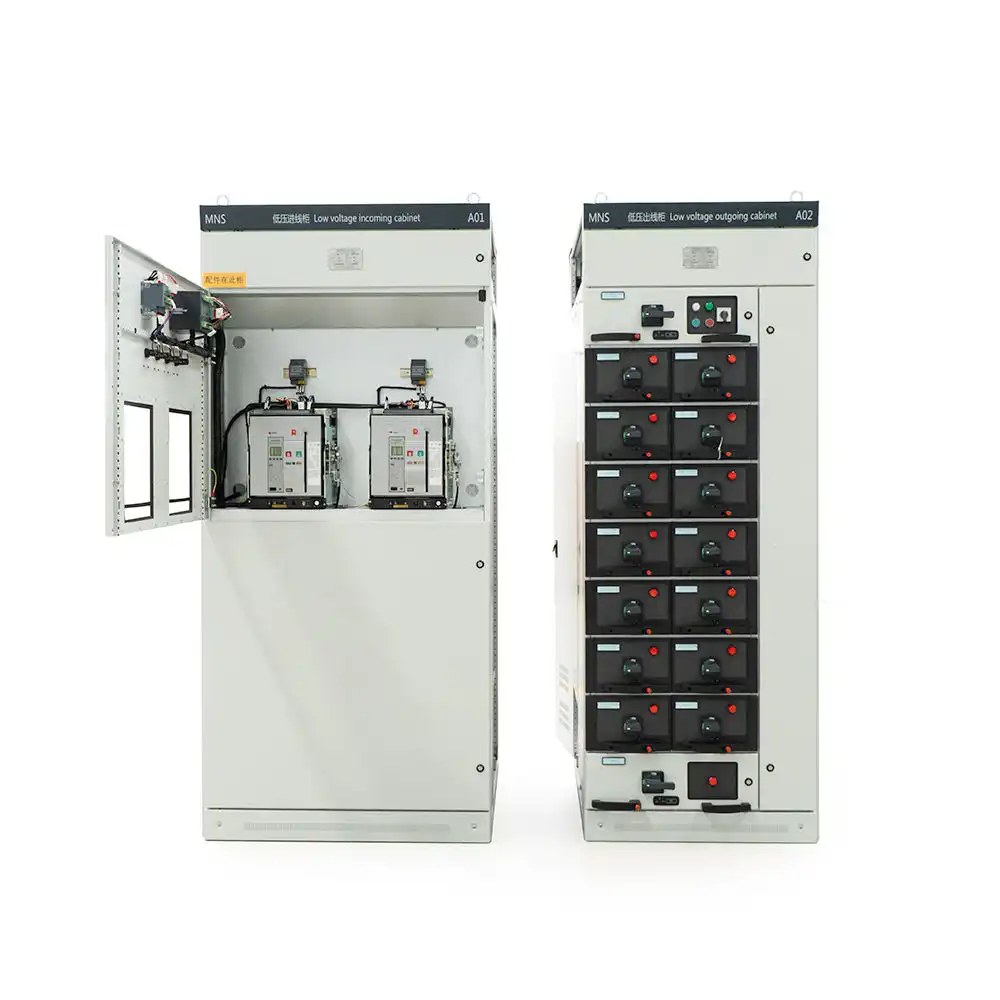

What Is a Hybrid Dynamic Compensation Device?
How do you describe a hybrid dynamic compensation device?
At its core, a hybrid dynamic compensation device fixes a problem that regular reactive power compensation hardware doesn't do a good job of: changing loads. Loads in businesses and factories change all the time, like HVAC fans, lifts, CNC machines, and LED lighting systems. If you have a set capacitor bank, it only fixes an average situation, not the situation at any given time.
The hybrid dynamic compensation device solves this problem by dividing the compensation job into two modules that work well together. Passive Thyristor Switched Capacitors (TSC) take care of most of the reactive power needs in an efficient way. A smaller active SVG module handles the fine-tuning, harmonic filtering, and quick transient reaction that capacitors can't do on their own.
Core Components You Should Know
The TSC banks, the SVG/APF active module, and the clever driver make up the three main parts of a hybrid dynamic compensation device. The TSC banks carry about 60–70% of the rated kVAR load, which keeps the cost of the system low. The active module, which is valued at about 30–40% of the total capacity, is in charge of stepless correction, stopping resonance, and attenuating harmonics up to the 50th order. The smart controller connects the two units by checking grid signals every few milliseconds and sending switching orders based on what it finds.
Where This Technology Fits
In business buildings with changing HVAC loads, industrial plants with arc furnaces or spot-welding robots, data centers that get capacitive reactive power from UPS systems, and substations that handle intermittent renewable energy input, a hybrid dynamic compensation device works well. This device is better than single-technology solutions anywhere load profiles aren't linear and are hard to predict.
Working Principles of a Hybrid Dynamic Compensation Device
Real-Time Sensing and Adaptive Compensation Algorithms
The way a hybrid dynamic compensation device works begins with continuous signal acquisition. Current transformers and voltage transducers that are connected to the internet of things (IoT) sample grid conditions very often. Within less than 10 milliseconds, the onboard controller uses adaptive formulas to figure out the immediate reactive power shortage or excess and the best way to make up for it.
The Two-Stage Compensation Cycle
The passive TSC banks of the hybrid dynamic compensation device turn on using zero-crossing switching logic. This means that the capacitors only connect to the grid when the voltage waveform goes below zero. Inrush current jumps, which have been known to shorten the life of capacitors, are no longer present. At the same time, the active SVG module either creates or absorbs reactive current in real time to fill in the gaps between capacitor steps and get rid of harmonic components that come from loads that aren't linear. The two stages work together to keep the power factor in a certain range, between 0.99 leading and 0.99 lagging.
Harmonic Suppression Mechanism
Harmonic distortion is a problem that keeps coming up in modern buildings. 5th, 7th, and 11th harmonic currents are made by variable frequency drives, switching power supplies, and rectifiers. These currents damage equipment insulation and cause nuisance trips. The active module in a hybrid dynamic compensation device constantly adds counter-harmonics. This lowers the Total Harmonic Distortion of current (THDi) from more than 20% to less than 5%, which is in line with IEEE 519-2014 standards. In this circuit, passive reactors lower the signal even more at the resonance frequencies that are most likely to damage the capacitor.
Advantages Over Traditional Compensation Devices
Speed, Precision, Cost Efficiency, and Long-Term Reliability
Engineers who have worked with traditional contactor-switched or fixed-bank capacitor systems know that they have some problems, such as switching times that are measured in hundreds of milliseconds, the chance of resonance, and binary compensation steps that always leave the power factor either too high or too low.
Each of these problems can be solved immediately by a hybrid dynamic compensation device. In a building or factory setting, these are the main differences in performance that matter:
- Response speed: The active module responds in less than 10ms, while electrical contactors take 200–500ms. This means it can be used in places where loads change quickly, like lifts and welding lines.
- Stepless compensation precision: No dead band and no over-compensation with stepless compensation. The SVG part keeps fine-tuning the output, which keeps the power factor stable no matter how much the load changes.
- Cost versus pure SVG: Because the passive banks carry most of the reactive load cheaply, a full SVG solution with the same kVAR capacity costs 30–50% more than a hybrid topology.
- Extended capacitor lifespan: Zero-crossing switching and active damping get rid of the inrush and resonance events that cause capacitors to fail too soon, which is a big problem for facilities teams that have to keep an eye on long-term running costs.
These advantages translate directly into reduced utility penalties, lower transformer and cable losses, and improved voltage stability across the distribution network. This performance profile is a strong selling point for system developers who are making smart distribution panels for hospitals, office buildings, or industrial sites.
Maintenance, Troubleshooting, and Longevity
Annual Checks and Firmware Updates for Reliable Operation
Under normal circumstances, the solid-state active section of a hybrid dynamic compensation device doesn't need much attention. Regular maintenance for the active component includes checking the firmware version, checking the operation of the cooling fan, and doing thermal checks on the IGBT heat sinks once a year.
Capacitor Bank Maintenance Schedule
The dielectric in passive capacitors of the hybrid dynamic compensation device wears out over time. Units that have moved more than 5% from their rated value are found every year during capacitance measurement checks. Replacing them every 5–7 years, or earlier if thermal imaging shows hot spots, stops detuning that lowers the accuracy of correction. Keeping track of the number of switching cycles helps maintenance teams plan replacements before they break.
Common Fault Indicators
When the controller log shows repeated over-temperature warnings, the first thing that needs to be done to figure out what's wrong is to make sure there is enough airflow around the enclosure. Most problems with communication on the RS485/Modbus interface are caused by wrong baud rate settings or wiring polarity. Power factor deviation that doesn't go away even after active compensation is used is usually a sign of a capacitor bank that has lost a lot of capacitance and needs to be replaced.
Procurement Considerations
Technical Compliance, Integration Readiness, and Quality Assurance
When choosing a hybrid dynamic compensation device provider, you need to look at both the technical details and the pricing. Check that the gadget meets the requirements of IEC 61000-4 for electromagnetic compatibility and IEC 61921 for power capacitors. For integration with building automation systems, make sure that the communication interfaces support RS485/Modbus RTU natively.

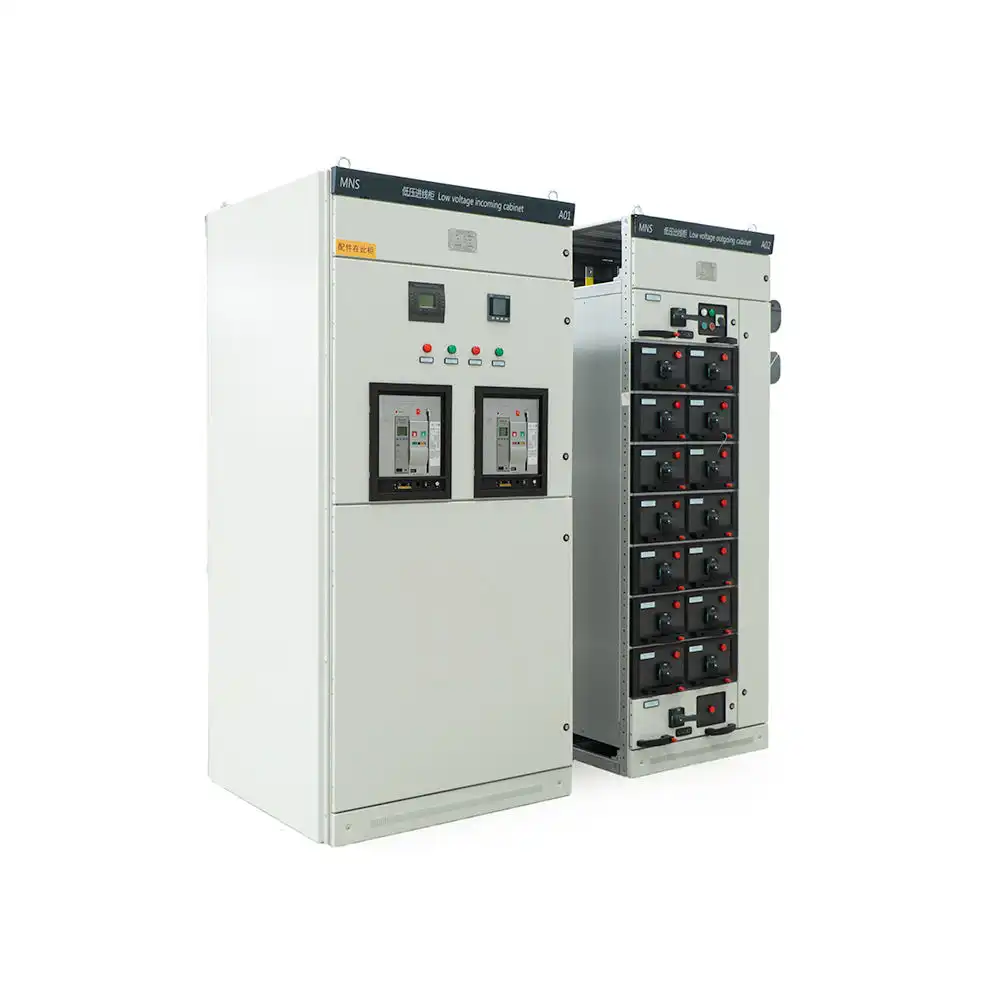

Another useful factor is how well the cabinets work together. There are world cabinet standards for Xi'an Xikai's GGJ Low Voltage Reactive Power Intelligent Compensation Device. It works on system voltages below AC450V and comes with ISO 9001, ISO 14001, ISO 45001, and CCC approval. Before being sent out, each unit goes through a 72-hour load simulation and harmonic stress test. High-quality capacitors and corrosion-resistant housings ensure a service life of more than 20 years.
Conclusion
A hybrid dynamic compensation device is a stable and cost-effective way to move from old-style reactive power control to smart, grid-responsive compensation. It deals with the real-world complexity of modern building and industrial electrical systems by combining the low cost of passive capacitor banks with the accuracy and speed of active power electronics. When it comes to buying something, a well-specified hybrid dynamic compensation device delivers in all three areas: communication compatibility, harmonic protection, and long capacitor service life. The GGJ platform from Xi'an Xikai gives engineers and system designers a field-tested place to start looking into this technology.
FAQ
1. How does a hybrid dynamic compensation device differ from a standard SVG?
An SVG uses 100% power electronics to handle all reactive power needs. This gives it great speed but costs more per kVAR. About 60 to 70% of the reactive load is put on passive capacitor banks, which are cheaper, in a hybrid dynamic compensation device. The active SVG module is then used for fine-tuning and harmonic filtering. As a result, the method is much cheaper while still being as precise as SVG.
2. Can the device still operate if the active module fails?
A fallback mode is built into most well-made hybrid dynamic compensation devices. The thyristor-switched capacitor banks keep working in TSC mode, correcting the base-level power factor even when the active module is not online. This way, the system is never left completely unbalanced.
3. Does the device handle capacitive loads such as those from servers or LED systems?
Yes. Passive capacitors can only add inductive reactive current, but the active SVG module in a hybrid dynamic compensation device can also take in leading reactive power. This makes the system perfect for data centers and business buildings where the load profile is mostly capacitive.
