Indoor Vacuum Circuit Breaker Maintenance: A Practical Guide

Maintaining an indoor vacuum circuit breaker correctly is one of the most consequential decisions a switchgear manufacturer or procurement engineer can make. These medium-voltage devices protect entire distribution networks from fault currents, and when their vacuum interrupters or operating mechanisms degrade undetected, the consequences range from unplanned downtime to catastrophic equipment failure. This guide walks through what matters most — from routine inspection schedules to troubleshooting vacuum degradation — with practical insight drawn from real OEM integration challenges and IEC 62271-100 compliance requirements.

Understanding Indoor Vacuum Circuit Breakers and Their Maintenance Needs

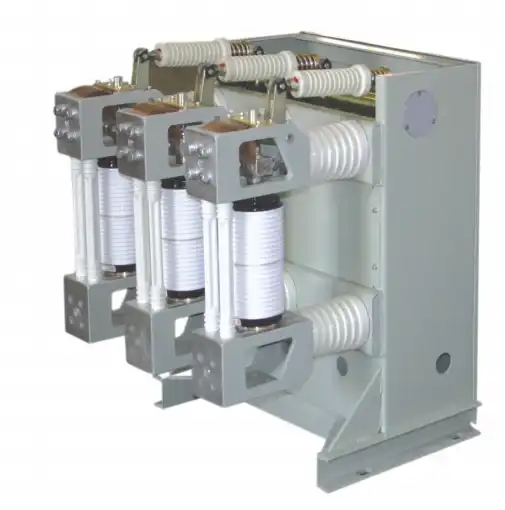

How Vacuum Interruption Works

An indoor vacuum circuit breaker puts out fault sparks inside a sealed vacuum interrupter. Since there are no gas molecules there, the arc cannot start up again. Because of how it works, it has clear advantages over alternatives like SF6, oil, and air-blast: it doesn't require handling dangerous gasses, it leaves behind very little carbon, and it works the same way after tens of thousands of operations. The 40.5kV ZN85, which has IEC 62271-100 approval, is a good example of this technology. Its spring-driven mechanism works without external power, and its vacuum interrupter is built to last for more than 20,000 mechanical actions.

Why Maintenance Cannot Be Deferred

When vacuum integrity fails, it cannot be seen. A failing vacuum interrupter doesn't give a clear sign until it goes bad, unlike oil breakers that leak or SF6 breakers that set off pressure alarms. With each break, contact erosion builds up in silence. If these breakers aren't found when they're put into KYN61 or KYN28 cabinets by OEM switchgear assemblers, they can make a guarantee claim for the whole cabinet. Because visual inspection alone is insufficient, IEC 62271-100 requires regular dielectric withstand tests.

Common Maintenance Practices for Indoor Vacuum Circuit Breakers

Mechanical and Electrical Inspection Routines

There are two parallel tracks in structured maintenance: the mechanical track and the electrical track. Both must follow a set schedule and not act on the spot.

Here are the core mechanical and electrical tasks that form any credible maintenance program:

• Visual and physical inspection: Check the handcart chassis, insulating poles, and bushings for cracks, dirt, or water getting in. The ZN85's working mechanism cover should be taken off once a year so that the spring-latch assembly and cam surfaces can be checked for rust or wear that doesn't seem normal. Dry compressed air that is safe for electrical equipment should be used to clean all surfaces that can be reached.
• Contact wear measurement: Every vacuum interrupter has a set limit for contact loss, which is usually 3 mm on the dynamic contact rod. Going over this limit increases the resistance of the contact and increases the chance of contact welding during a short-circuit. At regular times, check the stroke and over-travel. Over-travel directly controls the contact pressure (about 2,000 to 4,000 N), and not enough pressure leads to resistance heating.
• Lubrication of the operating mechanism: To grease the working part of the indoor vacuum circuit breaker, put grease on the pivot points, latches, and the closing cam that comes with the product. When there isn't enough grease, the handcart insertion mechanism gets stuck. This is a common problem in humid tropical places where grease breaks down quickly.
• Insulation resistance and contact resistance testing: To check for insulation resistance and contact resistance, use a 2500V megohmmeter. For contact resistance, use a micro-ohmmeter. For most 40.5kV-class breakers, a contact resistance number above 50µΩ means that the device is breaking down and needs to be looked into.
• Vacuum integrity verification: Check the vacuum stability by putting a power-frequency withstand voltage across open contacts. A healthy vacuum interrupter does not discharge; flashover means vacuum loss and requires replacing the interrupter right away.

If these jobs are organized and written down in a way that makes sense, they give the engineering and procurement teams the information they need to make yearly framework orders and accurate plans for spare parts inventory for each indoor vacuum circuit breaker.

Troubleshooting & Problem-Solving for Indoor Vacuum Circuit Breakers

Failure to Close: Causes and Diagnosis

The most common problem with medium-voltage breakers is that they won't close. The main reason for an indoor vacuum circuit breaker is usually one of three things: a voltage drop in the closing coil below 65% of its rated level, a failed spring-latch contact, or an anti-reclose switch that is turned on. Checking the secondary circuit voltage at the coil terminals is the first thing that should be done before taking apart the ZN85 or a similar spring-operated design.

Vacuum Degradation: The Silent Risk

Vacuum decay happens slowly and doesn't happen on a set schedule. Some things that speed up the process are too many short-circuit interruptions (which wear away the contact surface and leave a film of metallic vapor on the shield), mechanical shock during transport, and age that is higher than the manufacturer's recommended electrical endurance. The ZN85 can handle more than 100 short-circuit breaks (IEC E2 class), but places where faults happen often should raise the frequency of their resist tests. Write down every interruption that happens; breaker logs are the proof you need to find out how much life is left in an interrupter.

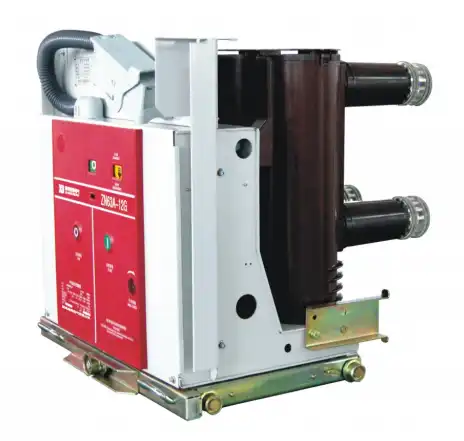

Handcart Mechanism Binding

Switchgear assemblers often complain about handcart entry resistance in setups that use KYN61. Most of the time, binding is caused by guide rails that aren't lined up right, roller surfaces that are rusted, or the spigot not being oiled enough. Most alignment problems can be fixed by comparing the chassis's dimensions to the cabinet's trolley track specifications. The frame of the ZN85 is already designed to work with the KYN61. This means that rail inspections are needed less often, but they are still needed.

Selecting and Procuring the Right Indoor Vacuum Circuit Breaker for Maintenance Support

Supplier Evaluation for Lifecycle Reliability and Support

How easy it is to do maintenance over the product's 20-year life depends on the choices made during the OEM buying stage. When you choose a supplier for an indoor vacuum circuit breaker based on price alone, you usually end up with more costs than you saved in the beginning.

The following criteria deserve priority evaluation during supplier qualification:

• Mechanical life rating: Switchgear OEMs that are making cabinets for utility or industrial customers should check to see if the breaker can handle 10,000 or 20,000 mechanical operations. As a qualified supplier for State Grid and China Southern Grid, the ZN85 can handle more than 20,000 operations.
• Spare parts availability and delivery: Xi'an Xikai promises to deliver spare parts for the indoor vacuum circuit breaker to major ports within 72 hours. This lowers the chance of long outages caused by interrupter or mechanism component shortages.
• Interchangeability: The measurements and pinouts of the handcart chassis' secondary wire plugs must match the design of the target cabinet. Check the designs of aircraft plugs before starting a production run.
• Certification scope: Certifications like IEC 62271-100, GB/T 1984, ISO 9001, and pre-certifications for export markets (SONCAP, TISI, INMETRO) lower the costs for the customer to get qualified.

All of these factors together decide whether a breaker provider turns into a long-term, reliable OEM partner or a source of constant technical problems.

Best Practices for Optimizing IVCB Maintenance Efficiency

Data-Driven Condition Monitoring and Proactive Spare Parts Management

It is always more expensive to do reactive maintenance than planned maintenance. In 2019, IEEE Transactions on Power Delivery released a study that found condition-based maintenance plans cut unexpected breakdowns in medium-voltage switchgear by about 34% compared to time-based schedules alone.

Set KPIs that can be measured, like keeping an eye on changes in contact resistance over time, keeping track of the number of short-circuit interruptions for each interrupter, and comparing closing and opening times to the manufacturer's tolerance band. Differences from the standard are signs that can be used to take action, not proof that something has failed in the indoor vacuum circuit breaker.

The ZN85-P type has an IoT-ready sensor interface that can be connected to SCADA or building management systems. This lets you see the number of mechanical operations and the patterns of coil current in real time. This feature is especially useful for switchgear OEMs whose customers run substations in different parts of the world.

The procurement, engineering, and field service teams work together across departments to make sure that the spare parts ordered under annual framework contracts are based on actual consumption data rather than estimates. Maintenance records that are kept up to date are best used to drive monthly order rounds.

Conclusion

A properly maintained indoor vacuum circuit breaker protects not only the equipment it serves, but also the whole distribution system it is part of. Each practice in this guide, from vacuum integrity verification to handcart alignment checks, is based on a real failure mode with known effects. It's just as important for switchgear OEMs and procurement engineers to choose a breaker that has been tested for mechanical endurance, genuine interchangeability, and reliable spare parts support as it is to have a maintenance program. This is what the ZN85 from Xi'an Xikai is made to do in tough working conditions.

FAQ

1. How often should I schedule maintenance for a medium-voltage vacuum circuit breaker?

IEC 62271-100 says that upkeep should be done every so often, but not just on the basis of the date. An annual checkup that checks for contact resistance, insulation resistance, and lubrication of the gear is a good starting point for most commercial uses. Sites that have a lot of faults should check every 50 short-circuit delays.

2. What is the most reliable early warning sign of vacuum interrupter degradation?

The best way to be sure is to do a power-frequency withstand voltage test across open contacts. An interrupter that is healthy holds without discharging. If you measure rising contact resistance between checks, it can also mean that erosion is getting close to the wear limit.

3. Can the ZN85 be retrofitted into existing KYN28 switchgear cabinets?

The ZN85 is already designed to work with the KYN61 cabinet. KYN28 compatibility depends on the chassis size and how well the secondary plug pinout matches. Before a production retrofit, you should always check the dimensional plans and wiring diagrams to make sure there are no insertion or control circuit problems.

Partner with Xi'an Xikai for Reliable Indoor Vacuum Circuit Breaker Solutions

Xi'an Xikai offers a complete range of indoor vacuum circuit breaker products, including the ZN85, backed by ISO 9001, ISO 14001, and ISO 45001 certifications and 15+ patents in vacuum interruption technology. Whether you need a qualified manufacturer for annual OEM framework orders or support with a new specification sample, our team responds with technical depth and delivery accountability. Contact us at serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com, or visit xaxd-electric.com to request a quotation.
