400V Self-healing Capacitor-cylindrical BKMJ0.46-30-3

1.Rated Voltage(Ue)：250v~525v, up to 2000v
2.Frequency：50/60Hz
3.Compact design，equipped with grounding bolt
4.Potting material: PU resin (soft resin)
5.Easy installation and wiring
6.Small size, Light weight
7.Self-healing, Maintenance-free
View details
50KVAR Self-healing Capacitor for PFC(Power factor correction)-square BKMJ

1.Rated Voltage(Ue)：100v~1000v
2.Installation Indoor
3.Case material Galvanized steel sheet
4.Output Range 10~100kvar
5.Frequency 50/60Hz
6.Connection configuration D, Y, YN, III
7.Terminal Block ：M6, M8, M10 (According to capacitor power)
8.Lose tanδ<0.001 (20°C 50Hz)
9.Temprature -25°C~50°C
10.Highest Altitude 2000m
11.Capacitor (to wall) pitch ≥50mm
12.Capacitance Deviation -5%~+10%
View details
BKMJ0.4KV Submerged Arc Furnace Capacitor

1.Frequency 60Hz
2.Capacitance Deviation -5%~+10%
3.Max Current 2.5×In
Equipped with discharge resistors
4.Integrated with independent over-voltage protection devices
5.Superior self-healing performance and extended service life
6.Low-loss factor, dry-type design with leakage-free construction
7.Equipped with discharge resistors
View details
10KV High voltage Shunt High-Voltage Capacitors

1.Rated Voltage:6kV,10kV,35kV
2.Rated Capacity:1-100Mvar(per bank)
3.The capacitor is mainly consisted of container and device body.
4.The core is consisted of severalelements and insulation parts. The element is rolled, pressed andmade of two aluminum foilsand somepiece of thin dielectric polypropylene films sandwiched betweenthe two aluminum foils. In order to reach the differentdemand of voltage and capacity, the elements in core is connected by someseriesand parallelmethod. The technology of aluminum foiledge folding and protruding weldingare used to reduce the loss and increase the performance of partial discharging.
View details

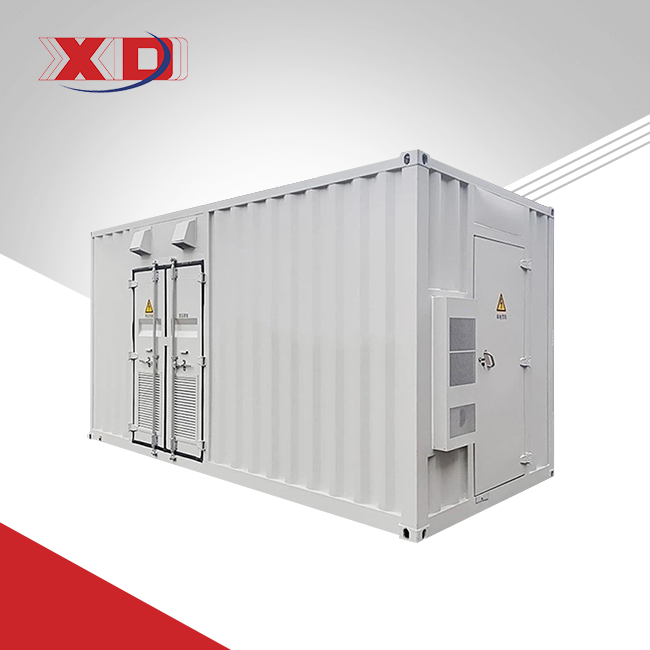

SVG Dynamic Reactive Power Compensator Complete Equipments

1.Rated Voltage:6~35kV
2.Compensation Capacity:0.3~50Mvar
3.XD-dSvG has a variety of operating modes: constant reactive current, constant reactive power, constant bus voltage, constant power factor, and each mode can be set accordingto user's requirements.
4.XD-dSVG not only compensates for fundamental reactive power,but also suppresses low-order harmonics and compensates for imbalance.

Send Inquiry

Download

Fast Delievery
Quality Assurance
24/7 Customer Service

Product Introduction

1.SVG Dynamic Reactive Power Compensator Complete Equipments: Optimize Grid Performance with Precision

In today’s energy-intensive industries, maintaining grid stability and efficiency is non-negotiable. Our SVG Dynamic Reactive Power Compensator Complete Equipments deliver real-time reactive power compensation, voltage regulation, and harmonic suppression for power grids, renewable energy systems, and heavy industries. Designed for voltages from 6kV to 35kV and capacities up to 50Mvar, this system adapts seamlessly to fluctuating demands while reducing energy losses by up to 30%.

SVG Dynamic Reactive Power Compensator Complete Equipments

2.Technical Specifications

Rated Voltage: 6–35kV
Compensation Capacity: 0.3–50Mvar
Response Time: <5ms
THD: <3%
Operating Modes: Constant reactive current, reactive power, bus voltage, or power factor (user-configurable).
Certifications: ISO 9001, IEC 61850, GB/T.

Technical Indicators	Technical Parameters
Rated Voltage	6~35kV
Compensation Capacity	0.3~50Mvar
Adjustment Range	Rated inductive reactive to rated capacitive reactive continuous stepless adjustment
Rated Frequency	50Hz
Response Time	<4ms
Overload Capability	1.05 times long-term overload
Hamonic Characteristics	Output harmonic current total distortion rate is less than 2%
Cooling Method	Air-cooled/Wate-cooled/Air water-cooled
Operating Mode	Constant power factor/Constant reactive/Constant voltage/Constant current/Voltage reactive power/Load compensation
Installation Method	indoor cabinet type,outdor container type
Ambient Temperature	-40℃-45℃
Altitude	<3500m

3.Key Features & Benefits

1. Dynamic Reactive Power Compensation

Instantly adjusts reactive power output to stabilize voltage fluctuations caused by renewable energy integration or heavy machinery.

2. Multi-Functional Operation

Switch between four operating modes to match grid conditions, ensuring compliance with regional grid codes.

3. Harmonic Suppression

Reduces low-order harmonics (up to 13th order) for cleaner power quality in metallurgy, mining, and rail systems.

4. Modular Design

Expand capacity effortlessly with plug-and-play modules—ideal for aging infrastructure upgrades.

5. Smart Grid Compatibility

IoT-enabled units support predictive maintenance and integrate with SCADA systems via IEC 61850 protocols.

4.Real-World Applications

Be used in a wide range of industries.

Industrial Plants

Eliminate power factor penalties in CNC machines and assembly lines while handling surge currents up to 100x rated capacity.

Substation

Stabilizes substation voltage against harmonics and intermittent generation from renewable inverters.

Commercial Buildings

Retrofit aging systems in hospitals or malls with silent (<45dB), flame-retardant capacitors that meet NFPA 70 fire codes.

5.How It Works?

The SVG Dynamic Reactive Power Compensator Complete Equipments uses a voltage source converter to inject precise reactive currents into the grid. By adjusting the phase and amplitude of its output voltage, it either absorbs or generates reactive power within milliseconds. This dynamic response outperforms traditional SVCs and capacitor banks, eliminating flicker and voltage sags.

6.Manufacturing & Quality Assurance

Every component undergoes rigorous testing in our ISO-certified facilities:

Material Selection: High-grade IGBT modules and laminated busbars ensure 99.9% uptime.
Precision Assembly: Automated welding and thermal management systems extend lifespan.
Performance Validation: 72-hour load simulation tests replicate extreme grid conditions.

7.Why Choose Us?

1. Expertise: Over 15 years in power quality solutions, with patents in reactive compensation tech.

2. Certifications: ISO 9001, ISO 14001, and 3C-certified low-voltage components.

3. Customization: Tailor configurations (wall-mounted, cabinet-integrated, hybrid) for your site.

4. End-to-End Support: From feasibility studies to 24/7 technical assistance.

Certificate

8.FAQ

Q: Can this system retrofit older substations?

A: Yes! The modular design requires minimal infrastructure changes.

Q: How does it handle rapid load changes?

A: With a <5ms response time, it stabilizes grids faster than conventional compensators.

Q: Is harmonic filtering automatic?

A: Absolutely—built-in algorithms detect and suppress harmonics without manual intervention.

9.Contact Us

Upgrade your grid’s efficiency with SVG Dynamic Reactive Power Compensator Complete Equipments. Contact our engineers at xaxd_electric@163.com for a free consultation.

10.Factory Show

11.Equipment Display

Equipment

12.Application Cases

State Grid systems, power engineering, steel and metallurgy, petrochemicals, rail transportation, energy and water conservancy, construction, environmental protection, and renewable energy sectors
