Indoor Disconnect Switch Installation: Steps for Safer Maintenance

Installing an indoor disconnect switch correctly is fundamental to ensuring electrical safety during maintenance operations in substations and switchgear applications. These isolation devices create a physical break in electrical circuits, allowing engineers and maintenance teams to work safely on energized systems. Proper installation not only protects personnel but also extends equipment lifespan and maintains compliance with international electrical codes. This guide walks through essential preparation, installation procedures, and maintenance protocols tailored for EPC contractors and electrical engineers managing medium-voltage projects.

Understanding Indoor Disconnect Switches: Definition and Benefits

Indoor disconnect switches are very important for keeping people safe in electrical distribution systems. Instead of stopping fault currents like circuit breakers do, these switches provide clear separation points while equipment is being serviced or planned maintenance is being done. The fundamental purpose centers on creating a safe working environment by physically separating equipment from live electrical sources.

Core Functions in Modern Electrical Systems

In addition to disconnecting, indoor disconnect switches have other useful functions. They enable network reconfiguration during maintenance windows, facilitate equipment testing without de-energizing entire substations, and provide visual confirmation of circuit status through blade positioning. The GN19 indoor disconnect switch is a good example of this because it has a rotating blade mechanism that makes a clear 15mm isolation gap. This lets maintenance workers check that the power is off before they start working.

Types and Voltage Classifications

There are different types of medium-voltage indoor disconnect switches based on how they work and how they can change to different environments. Because they are easy to use and reliable, manual lever-operated models are most common indoors. With current ratings from 400A to 1250A, the GN19 series can handle a wide range of load needs in industrial substations and switchgear cabinets. It operates at 12kV. Specialized versions include pollution-resistant types for industrial areas with a lot of airborne pollutants, high-altitude models made for placements up to 4000 meters above sea level, and versions with built-in voltage signs to make operations safer.

Benefits for Industrial and Commercial Applications

Indoor disconnect switches that are properly defined have strategic benefits in terms of operations, safety, and money. The main benefit is that it makes workers safer—visible separation gaps and mechanical interlocking stop the power from being turned back on by accident during repair. Protection for equipment comes next. Controlled switching operations lower the risk of arc damage and make contacts last longer. Following IEC 62271-102 and state standards makes sure that all global markets are accepted by regulators. Operational flexibility lets systems go down in parts instead of all at once, which keeps production running as smoothly as possible. All of these things lower the total cost of ownership by extending the time between repair visits and lowering the cost of downtime.

Preparing for Installation: Essential Safety and Compliance Considerations

Installations that go well and ones that don't depend on careful planning. During the pre-installation phase, safety rules are set up, regulations are checked, and the spot is made sure to be ready for equipment installation.

Regulatory Standards and Certification Requirements

To make sure that everyone is safe, installations of indoor disconnect switches must follow international standards. IEC 62271-102 lists the performance requirements for alternating current indoor disconnect switches. These include a mechanical endurance test that needs to be run 10,000 times and a dielectric strength test that needs to be run at 42kV for one minute. The National Electrical Code (NEC) Article 408 talks about the needs for switchboards and panelboards, making sure they have the right grounding and clearance distances. UL 98 approval makes sure that sealed switches are safe for use in North America. Xi'an Xikai equipment is used in projects that gain from ISO 9001 and ISO 14001 certifications, which confirm quality management systems for industry and environmental management.

Critical Safety Features to Verify

Before starting the work, make sure that the tools you've chosen has all the necessary safety features. The lockout/tagout feature lets you physically lock the door in the open position with padlocks or hasps, which stops anyone else from using it while it's being serviced. Arc flash rates need to match the conditions at the site; choosing the right enclosure lowers the risk of thermal dangers during swapping operations. The environmental suitability is based on the enclosure protection grades (IP or NEMA codes). For example, IP2X protection against solid object entry is usually needed for indoor uses. In transfer setups, mechanical interlocks keep source and load switches from closing at the same time. This stops backfeed risks.

Site Assessment and Environmental Evaluation

Before the equipment is delivered, thorough site surveys find any problems that might arise during installation. Long-term dependability is affected by environmental factors in a big way. Extreme temperatures can change the way shielding works and how machines work. Usually, indoor disconnect switches work well between -5°C and +40°C. If the humidity is above 95% non-condensing, insulation can wear down over time if it is not sealed properly. The dielectric strength changes with altitude. For setups above 1000 meters, you need derating or high-altitude versions of the products in the GN19 line. Vibration from close machines means that the mounting must be safe and use anti-vibration hardware. Pollution-resistant coats may be needed in industrial settings to keep surfaces from tracking on insulators when there is a lot of pollution.

The right size of equipment is made possible by load analysis. Find the highest fault currents at installation points to make sure that the rated short-time withstand current (usually 20kA to 31.5kA for four seconds) and peak withstand current (50kA to 80kA) are higher than the system fault levels. Check that the rated normal current meets or exceeds the continuous load requirements by degrading the current as needed for harmonic content.

Step-by-Step Indoor Disconnect Switch Installation Guide

Systematic installation steps reduce risks and guaranty long-term, reliable use. This part goes over the whole process, from the first steps of getting ready to the final steps of launching.

Pre-Installation Checklist and Tool Requirements

Before installation, prepare required PPE, including arc-rated clothing, voltage-rated gloves, safety glasses, and insulated footwear. Essential tools include calibrated torque wrenches, insulation and contact resistance testers, phase rotation meters, and insulated hand tools. Verify components for shipping damage, correct hardware, smooth operation, and complete accessories before installation.

Mounting and Positioning Procedures

Installing mechanical parts correctly is the first step toward effective function. First, make sure that the mounting surfaces are level and plumb within the manufacturer's limits. Mounting that isn't even can cause mechanical stress that can throw off the balance of the blades. Place the switch where it's supposed to go, either in a switchgear box or on a distribution panel, making sure there is enough space for operation and repair. The GN19 form allows for small setups while still meeting the IEC standards for phase-to-phase and phase-to-ground spacing.

Use all of the mounting points that come with the switch base to secure it, making sure that the mechanical loads are spread out evenly across the structure. Apply the correct torque values to the mounting bolts. If you don't tighten them enough, vibrations can loosen them, but if you tighten them too much, the insulators can crack. For installations in seismic zones, local building codes say that seismic bracing must be used to keep equipment from moving when the ground moves.

Electrical Connection and Wiring Protocols

Proper electrical connections require clean contact surfaces, suitable conductive grease, correctly sized compression lugs, and calibrated torque tightening. For medium-voltage systems, proper installation minimizes resistance, heat, and power loss. In three-phase systems, phase rotation must also be verified before energizing to prevent incorrect motor operation and equipment damage.

Grounding and Bonding Requirements

People and things that are grounded properly are protected from fault conditions. Use compression lugs that are the right size for the fault current magnitude to connect the equipment's grounding conductors to the designated ground terminals. The size of the ground conductors must be in line with NEC Article 250 or local rules that are similar. Usually, the conductors need to be able to carry the highest fault current for the length of the clearing time.

Bonding links between switch frames and casings get rid of possible differences that could make metal surfaces spark when there is a ground fault. To get thru paint and coatings and make low-impedance metal contact, use star-washer lock washcloths or serrated flanges. Use low-resistance ohmmeters to check the integrity of the bonding. The bonding path resistance should stay below 0.1 ohms.

Testing and Commissioning Procedures

Before putting tools into service, thorough testing makes sure that the work was done right. Systematically run these verification tests to find any possible problems while the systems are not powered on.

Insulation resistance testing checks how well the insulation works between the phases and between the phases and ground. To find the resistance between each phase conductor and ground and between each pair of phase conductors, set a megohmmeter to the right test voltage (usually 1000V DC for 12kV equipment). Minimum acceptable values for new equipment usually go over 1000 megohms. Lower readings mean that moisture is getting in or there is damage to the insulation that needs to be looked into.

Measuring contact resistance makes sure that the blades are in the right place and that the contact pressure is correct. Test the resistance between the closed contacts on each step with a micro-ohmmeter that can read less than 100 micro-ohms. For GN19 switches, values should stay below 50 micro-ohms. A higher resistance means that the contacts aren't properly pressed or aligned, or there is contamination on the surface that needs to be cleaned up.

Testing the mechanical working of devices makes sure they work smoothly. Open and close the switch several times by hand, and watch the blade move to see if it sticks, hesitates, or makes strange sounds. Make sure that the mechanical position markers show the correct position of the blades. Check the mechanical interlock function to make sure that the linked switches work in the right order.

Lockout device compatibility testing makes sure that safety locks work right. Put in lockout devices and make sure they physically stop the switch from working. Try to use locked switches to make sure they work—if they're installed correctly, you shouldn't be able to use them without taking off the locking hardware.

Maintenance Best Practices for Indoor Disconnect Switches

Regular maintenance makes equipment last longer and stops it from breaking down when you least expect it. Setting up regular inspection schedules helps find problems early on, before they become operational issues.

Routine Inspection Schedules and Procedures

Many common problems can be found without shutting down the equipment during regular visual inspections. During monthly walk-through inspections, infrared thermography should be used to look for unusual temperature rises. Hot spots on the screen indicate high-resistance connections that need to be fixed. During operation, listen for strange sounds that could mean that parts are binding or coming loose. Check insulators for damage like tracking marks, cracks, or contamination that weakens the dielectric strength.

Annual inspections during shutdowns give people a chance to look more closely. Once the equipment is off and properly locked out, check the contact surfaces for pitting, erosion, or discoloration that could mean arcing damage. Check mechanical links for damage like wear, corrosion, or looseness. Make sure that compression springs stay in the right tension. As springs wear out, they lose their ability to apply force and become more resistant. Clean the surfaces of insulators with the right solvents to get rid of dust and other contaminants that can cause tracking paths.

Troubleshooting Common Operational Issues

The most common problem with indoor disconnect switches is that the contacts get too hot. Causes include surface oxidation reducing conductivity, spring fatigue decreasing contact pressure, or blade misalignment creating uneven current distribution. Remediation requires cleaning contact surfaces with industrial solvents, applying fresh conductive grease, and adjusting blade alignment or replacing weakened springs. Temperature rise testing after corrective action confirms restoration of normal thermal performance—contact temperature should not exceed 65°C above ambient at rated current.

Mechanical binding during operation often results from inadequate lubrication, misalignment from mounting structure movement, or corrosion on pivot points. Address binding by applying appropriate lubricants to bearing surfaces, verifying mounting alignment, and removing corrosion through mechanical or chemical cleaning. Replace severely worn mechanical components rather than attempting marginal repairs.

Component Replacement and Lifecycle Management

Strategic component replacement prevents unexpected failures while maximizing asset value. Contact replacement intervals depend on operation frequency and switching duty—devices operating under frequent switching cycles require more frequent renewal than those serving primarily isolation functions. Contact life typically ranges from 100 to 500 switching operations depending on load magnitude and operating conditions. Xi'an Xikai provides replacement contact assemblies engineered to original specifications, ensuring compatibility and performance restoration.

Operating mechanism overhaul becomes necessary after reaching manufacturer-specified operation counts or when mechanical performance degrades. Mechanism rebuild typically includes spring replacement, bearing renewal, and linkage adjustment to restore original operating characteristics. Sourcing replacement components from equipment manufacturers or authorized distributors ensures proper fit and material specifications. Generic aftermarket parts often introduce compatibility issues or substandard materials that compromise reliability. Partnering with suppliers offering technical support and logistics capabilities minimizes procurement delays and simplifies lifecycle management across multi-site installations.

Choosing the Right Indoor Disconnect Switch for Your Business Needs

Equipment selection significantly impacts project success, operational reliability, and total ownership costs. Systematic evaluation of requirements ensures optimal specification decisions.

Indoor Versus Outdoor Disconnect Switch Applications

Understanding application context guides appropriate equipment selection. Indoor disconnect switches operate within controlled environments protected from weather exposure, allowing lighter enclosure construction and reduced environmental protection requirements. These devices integrate into metal-enclosed switchgear, providing compact installations with space efficiency. Outdoor units require weatherproof enclosures rated for temperature extremes, moisture, UV exposure, and potential contamination, resulting in larger footprints and higher costs.

Project requirements determine appropriate choices. Substation applications within buildings naturally favor indoor designs, while pole-mounted distribution applications necessitate outdoor configurations. The GN19 series addresses indoor requirements specifically, offering pollution-resistant and high-altitude variants that extend application range within controlled environments.

Key Selection Criteria and Technical Parameters

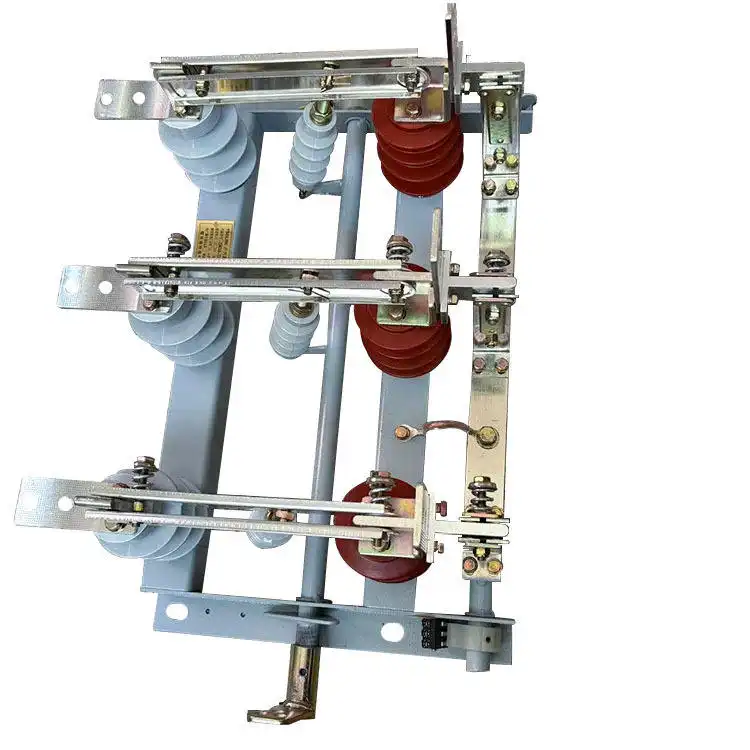

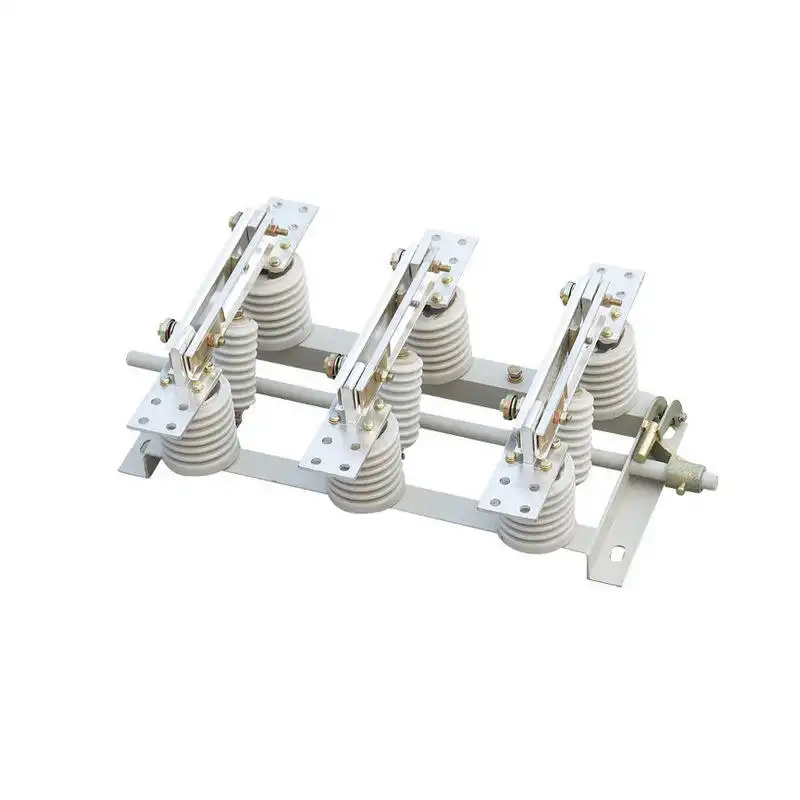

Voltage rating establishes the fundamental compatibility parameter. Match rated voltage to system nominal voltage—12kV switches like the GN19 serve systems with phase-to-phase voltages up to 12,000 volts. Current rating must equal or exceed maximum continuous load current with appropriate derating for ambient temperature and altitude. The GN19 offers current ratings from 400A to 1250A, accommodating diverse feeder and transformer applications.

Short-circuit withstand ratings define fault protection capability. Rated short-time withstand current (typically expressed as kiloamperes for a specified duration, such as 20kA for four seconds) must exceed maximum available fault current at the installation point. Dynamic stability ratings (peak withstand current) address mechanical forces during fault current asymmetry—50kA to 80kA ratings are common for distribution applications.

Operating mechanism type influences operational requirements and reliability. Manual mechanisms provide simplicity and eliminate dependence on control power, making them suitable for locations with limited infrastructure. Motor operators enable remote operation and automation integration where operational flexibility justifies additional complexity and cost.

Environmental adaptations address site-specific challenges. High-altitude installations above 1000 meters require specialized designs that compensate for reduced dielectric strength in thinner atmosphere. Pollution-resistant coatings prevent surface tracking on insulators in environments with industrial contaminants. Temperature extremes may necessitate special lubricants or heater elements to ensure reliable mechanical operation.

Procurement Strategies for Project Success

Effective procurement should balance technical suitability, delivery reliability, and lifecycle support. Established manufacturers such as Xi’an Xikai offer tested products, certifications, and patented technologies. Supplier evaluation should consider quality systems, technical support, spare-parts availability, and lead times. Planning custom orders and bundling installation services helps reduce delays and execution risks.

Conclusion

Proper installation and maintenance of indoor disconnect switches creates the foundation for safe, reliable electrical system operation. Attention to preparation details, systematic installation procedures, and proactive maintenance prevents the majority of operational problems while extending equipment service life. Selection decisions balancing technical requirements with supplier capabilities position projects for long-term success. As medium-voltage systems continue evolving with increasing renewable integration and automation, robust isolation equipment remains essential infrastructure. Investing in quality components from proven manufacturers and following established installation protocols delivers operational reliability that justifies specification decisions across decades of service life.

FAQ

1.Can disconnect switches interrupt load current safely?

Indoor disconnect switches are off-load devices designed exclusively for isolation when circuits are de-energized. Operating these switches under load generates dangerous arcing that damages equipment and creates severe personnel hazards. Circuit breakers or load break switches must open circuits before operating indoor disconnect switches. Mechanical interlocks in properly designed switchgear prevent improper operating sequences.

2.What maintenance intervals do manufacturers recommend?

Maintenance frequency depends on operating cycles and environmental conditions. Annual comprehensive inspections typically suffice for devices experiencing fewer than 100 operations yearly in clean environments. Higher operation frequencies or harsh conditions warrant semi-annual or quarterly inspections. Contact resistance testing and mechanical operation verification form core maintenance activities, supplemented by insulator cleaning and connection torque verification.

3.How does altitude affect disconnect switch performance?

Reduced atmospheric density at high elevations decreases dielectric strength, increasing flashover risk. Standard equipment rated to 1000 meters altitude requires derating or replacement with high-altitude variants for installations above this threshold. The GN19 offers specialized high-altitude configurations engineered for reliable operation up to 4000 meters, incorporating modified insulator spacing and enhanced clearances.

Partner With Xi'an Xikai for Reliable Indoor Disconnect Switch Solutions

Selecting the right indoor disconnect switch supplier impacts project timelines, equipment reliability, and long-term operational costs. Xi'an Xikai Medium & Low Voltage Electric Co., Ltd. brings decades of manufacturing expertise to medium-voltage applications, producing over 100 product variants serving industries from power distribution to rail transportation. Our GN19 indoor disconnect switch series exemplifies engineering excellence, offering 12kV isolation capability with current ratings to 1250A and specialized variants for challenging environments including high-altitude and pollution-prone installations.

Technical support distinguishes capable suppliers from simple product vendors. Our engineering team assists with application questions, specifications verification, and troubleshooting throughout equipment lifecycles. Quality systems certified to ISO 9001 standards ensure consistent manufacturing excellence, while extensive testing protocols verify that each unit meets IEC 62271-102 performance requirements. For procurement inquiries or technical consultations regarding your substation or switchgear projects, contact our team at serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com. Additional product information and technical resources are available at xaxd-electric.com. Partner with an established indoor disconnect switch manufacturer committed to delivering customized solutions backed by comprehensive support.

References

1. Institute of Electrical and Electronics Engineers. (2017). IEEE Guide for Maintenance Methods on Energized Power Lines. IEEE Standards Association.

2. Johnson, P., & Martinez, R. (2019). Medium Voltage Switchgear: Design, Installation, and Maintenance Practices. Technical Press International.

3. International Electrotechnical Commission. (2020). IEC 62271-102: High-voltage switchgear and controlgear – Part 102: Alternating current disconnectors and earthing switches. IEC Publications.

4. National Fire Protection Association. (2020). NFPA 70E: Standard for Electrical Safety in the Workplace. NFPA Press.

5. Chen, W., & Thompson, D. (2021). Electrical Distribution System Maintenance: A Comprehensive Guide for Industrial Facilities. Engineering Knowledge Press.

6. Zhang, L., Wang, H., & Kumar, S. (2022). Contact Resistance Analysis in High-Voltage Disconnect Switches: Performance Optimization Methods. Journal of Electrical Equipment Technology, 48(3), 112-129.
