Polymeric Lightning Arrester vs Porcelain: Key Differences

When evaluating surge protection for high-voltage AC systems, the choice between a polymeric lightning arrester and a porcelain lightning arrester carries real consequences for project reliability, lifecycle cost, and installation complexity. A polymeric lightning arrester uses silicone rubber or EPDM housing over zinc oxide varistor blocks, while its porcelain counterpart encloses the same core in a glazed ceramic shell. These material differences drive divergent performance outcomes across weight, pollution tolerance, sealing integrity, and long-term maintenance demand — factors that matter deeply to traders supplying substation equipment to Africa, Southeast Asia, and South America.

Understanding Polymeric and Porcelain Lightning Arresters

What Each Technology Actually Is

No matter what the housing is made of, a metal oxide surge arrester works through nonlinear zinc oxide varistor blocks. The blocks act like near-insulators when the voltage is normal. During a lightning strike or switching spike, resistance drops instantly, sending extra energy to earth. Once the transient is over, insulation returns to normal. Both types of housing come with this gapless system as standard.

The material of the container, on the other hand, affects field efficiency in almost every other way. Since the early 1900s, porcelain arresters have been used in power lines. They have been shown to be mechanically rigid, but their weight, brittleness, and ability to explode during pressure relief events are still problems that have been written about in IEC and IEEE literature.

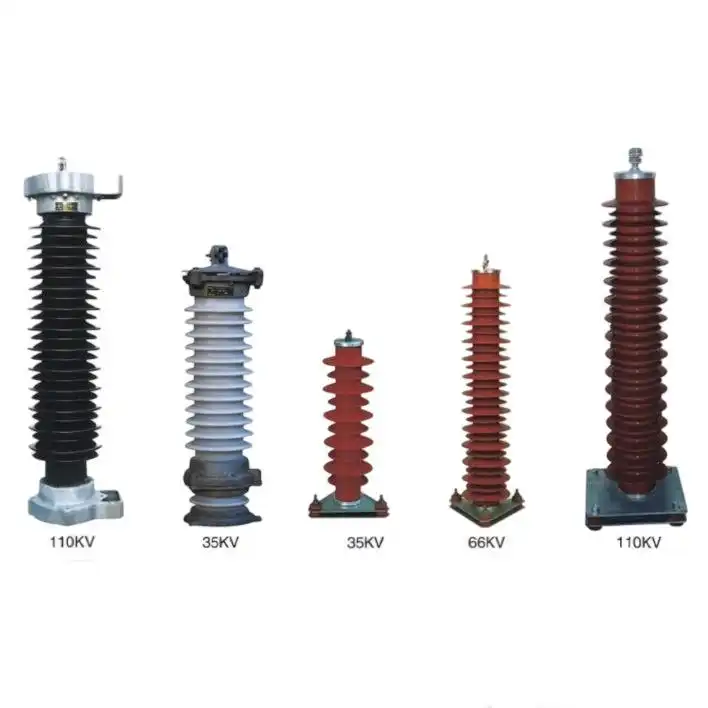

A polymeric lightning arrester has a composite polymer (usually high-temperature vulcanized silicone rubber) instead of a ceramic shell. Because silicone has a slippery surface, it naturally sheds water. This means that pollution layers cannot form a continuous electrical film across the creepage distance. This feature, which is well-documented in IEEE Std 1299 and IEC 60815, makes polymeric lightning arresters the best choice for environments near the coast, those with a lot of pollution from factories, and those high up.

Core Construction Compared

Getting to know the internal system helps buying teams choose the right unit. They both have the zinc oxide varistor stack inside them. In a porcelain unit, this stack is inside a sealed porcelain tube that has metal ends. In a polymeric lightning arrester, the stack is directly molded with silicone rubber and then given shed profiles to allow for creepage extension. It is also important that the sealing system is spread out along the housing instead of being concentrated at the two end flanges.

Design Features and Performance Comparison

Weight, Installation, and Environmental Resilience

One of the clearest ways to tell them apart is by their weight. It is possible for a 216 kV porcelain arrester assembly to weigh several hundred kilograms whenever its units are stacked. A similar polymeric lightning arrester unit with the same voltage class is much lighter, which lowers the cost of structure support and makes installation easier on-site. This is especially helpful for field teams working in remote substations like those in sub-Saharan Africa or the Indonesian archipelago.

Here is how the two technologies compare across key performance dimensions:

• Pollution tolerance: Silicone rubber can become slippery again after being contaminated. Once the shine wears off, porcelain loses it forever, so it needs to be washed often in areas with a lot of pollution. IEC 60815-3 says that silicone polymer housings can handle more pollution per unit creepage distance.
• Moisture sealing: A polymeric lightning arrester relies on an over-molded seal that is spread out over the whole body. Porcelain units depend on two end caps that are sealed with gaskets. Long-haul marine shipping, which is the usual way to get supplies to Africa and Southeast Asia, can damage these gaskets before they are installed because it subjects porcelain units to temperature cycles and shaking.
• Pressure relief behavior: When there is an internal fault, a porcelain arrester can rapidly break, sending clay pieces flying. A polymeric lightning arrester lets air out through ducts meant to relieve pressure, which causes the housing to collapse without breaking. In occupied substations, this difference is very important for safety.
• Response speed: The zinc oxide varistor core is the same in both kinds of casings, so the tightening response time is the same at the material level, which is usually less than 1 microsecond. In this case, differences in performance are caused by the quality of the varistor, not the type of housing.

These characteristics collectively explain why polymeric designs now represent the majority of new procurement in international substation projects according to market reports from T&D World and Cigré.

Advantages and Limitations in Industrial Applications

Where Each Arrester Type Excels

It is clear that polymeric lightning arresters are better in places where smog, high altitude, or moisture are issues. This is well shown by the Xi'an Xikai YH10W-216/562W polymeric lightning arrester, which has a rating of 216 kV, a DC reference voltage of ≥314 kV, a creepage distance of 31 mm/kV, and a dual-unit design. It was made to be used in high-altitude and heavy-pollution environments. You can use its triple-sealing process and operating range of -40°C to +85°C to protect against the two main types of failure that happen in export projects: moisture getting in during sea freight and heat stress in equatorial climates.

Porcelain arresters are still useful in indoor switchyards that are well-kept and don't pollute because they are mechanically rigid and have a history of good performance. In mature grid markets, some utilities still use porcelain units in old installations where the infrastructure for replacement is already in place.

Limitations deserve equal attention. If the quality of the housing isn't good, long-term UV exposure in harsh desert settings can slowly break down silicone in polymeric lightning arresters. This is another reason why IEC 60099-4 approval and verified material traceability are important when making purchase choices. The fragility of porcelain creates risks for both logistics and safety. For example, international EPC contractors often report problems with breaking items while being transported in project post-mortems.

Procurement Considerations for B2B Clients

Selecting the Right Arrester for Cross-Border Projects

Traders who put together full substation packages that include transformers, switchgear, disconnect switches, and surge protection must choose a polymeric lightning arrester that fits the voltage class, altitude, pollution category, and suitable standard of the target country. IEC 60099-4 sets the rules for metal oxide surge arresters without gaps, and suppliers should have to prove they meet this standard.

Before you place an order for a polymeric lightning arrester, you should make sure that the following things are true: the voltage rating and MCOV margin for the target system; the certified creepage distance against the pollution level classification of the installation site; the availability of models calibrated for altitudes above 1,000 meters; and the sealing test documentation that is relevant to sea-freight conditions. This last one is often needed for projects in East Africa, Andean South America, or highland Southeast Asia.

In mixed-procurement supply chains, lead time is also important. Stock can be delivered within 3 to 7 days from well-known makers for normal voltage classes ranging from 10 kV to 220 kV. Custom voltage or altitude-corrected versions usually need a bigger production window, so it's best to lock in specifications early on.

Case Studies and Industry Applications

Demonstrated Performance Across Project Types

In East African transmission projects, 110 kV and 220 kV polymeric lightning arresters have replaced porcelain units on new substation builds. This is because of high lightning ground flash density, requirements for heights above 2,000 meters, and a requirement by several national grid operators to reduce the risk of fragmentation. Because the units are lighter and easier to put together at ground level, project engineers always say that finishing takes less time.

In Southeast Asia, installing renewable energy sources is harder because the air along the coast is salty and the monsoons come and go often, polluting the environment badly. Installing polymeric lightning arresters at step-up substations for wind farms in this area has shown steady leakage current profiles over multiple tracking years, proving that silicone housing really does have a hydrophobic recovery property.

In transmission infrastructure projects in South America, dual-unit polymeric lightning arrester configurations at the 220 kV class—structurally similar to the YH10W-216/562W—have been chosen to meet the needs of seismic zones. This is because porcelain units pose an unacceptable risk of breaking during ground motion events.

Conclusion

Ultimately, the choice between a polymeric lightning arrester and a porcelain surge arrester comes down to the environment, the ease of installation, and the level of risk that is acceptable. Polymeric lightning arresters are better at protecting against pollution, relieving pressure safely, being more resilient in marine shipping, and being lighter when installed. These are all benefits that are directly relevant to the needs of substation projects in growing markets. Porcelain is still used in controlled, backwards-compatible applications. For procurement teams putting together export packages, IEC 60099-4 approved polymeric lightning arresters with proven creepage distances and closing performance are the safer and more cost-effective choice for most projects today.

FAQ

1. How long does a polymeric lightning arrester last compared to a porcelain model?

Polymeric lightning arresters are made to last about 25 years under standard working conditions if they are made well. Varistor cores last about as long in porcelain units, but housing degradation, especially glaze erosion in dirty environments, can shorten the time between effective service intervals. The age of both types of varistor depends more on how much energy they absorb over time than on the material of the building.

2. Does sea freight affect arrester performance?

Maritime shipping exposes people to changing temperature, shaking, and salt air. Units made of porcelain that have end-cap gasket seals are more likely to have their seals broken during long transit times. Polymeric lightning arresters with overmolded, spread closing systems are more physically resistant to these conditions, which is important for shipments to project sites in Africa or the Pacific.

3. What does creepage distance mean for project specifications?

It measures the length of the path along the insulation profile between the live and ground ends. The creepage distances need to be longer in places with more pollution. For Pollution Level IV (IEC 60815), they are usually 31 mm/kV or more. Before agreeing to a model, this number needs to be checked against environmental data from the target country.

Partner with Xi'an Xikai for Your Next Arrester Procurement

Xi'an Xikai sells polymeric lightning arrester products that are IEC 60099-4 certified and come in standard voltage classes and with verified creepage distances and altitude-corrected versions. Our tech team can help with full substation package setups. Get in touch with our trade experts at serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com. You can look at technical datasheets or get a bulk quote for your project at xaxd-electric.com.

References

1. IEEE Std 1299-1996 (R2008), IEEE Guide for the Connection of Surge Arresters to Protect Insulated, Shielded Electric Power Cable, IEEE Power & Energy Society, 2008.

2. IEC 60099-4:2014, Surge Arresters – Part 4: Metal-Oxide Surge Arresters Without Gaps for AC Systems, International Electrotechnical Commission, 2014.

3. IEC 60815-3:2008, Selection and Dimensioning of High-Voltage Insulators Intended for Use in Polluted Conditions – Part 3: Polymer Insulators for AC Systems, International Electrotechnical Commission, 2008.

4. Cigré Working Group A3.17, MO Surge Arresters: Stresses and Test Procedures, Cigré Technical Brochure 544, 2013.

5. Gorur, R. S., Cherney, E. A., & Burnham, J. T., Outdoor Insulators, Ravi S. Gorur Inc., 1999.

6. T&D World Magazine, Polymer vs. Porcelain: Arrester Housing Selection for Modern Transmission Systems, Informa Markets, 2019.
