Oil vs. Dry Type: Which Lasts Longer in Coastal Areas?

Oil or dry transformers are important for coastal transformer lifetime. Salty air and heavy humidity make coastal locations difficult. In coastal areas, oil type transformers last longer. The sealed construction of oil-filled transformers protects against corrosion, and the liquid insulation dissipates heat better. Due of these properties, oil transformers may outlive dry transformers in tough coastal situations. However, with correct design and maintenance, both transformer types may function effectively in coastal areas. Understanding the environmental elements and choosing a transformer that suits the installation site's needs is crucial. Let's examine coastal transformer lifetime parameters and why oil-type transformers frequently perform better.

​​​​​​​



How Does Salt-Laden Air and Humidity Accelerate Different Failure Mechanisms?

The coastal climate is very hard on electrical devices, especially on transformers. The high humidity and air full of salt can greatly speed up the breakdown of both oil and dry type transformers.

Oxidation and Corrosion

When there is a lot of salt in the air, it can make things rust faster, especially metal. In oil type transformers, the sealed tank design keeps salt-laden air from touching the transformer directly. But if this seal is broken, the parts inside can start to rust right away. Due to their uncovered windings, dry type transformers are more likely to get salt in them, which can speed up the rusting of the copper windings and electrical connections.

Moisture Entry and Insulation Breakdown

It is more likely that wetness will get inside when the humidity is high in coastal places. In transformers that use oil, wetness can weaken the dielectric strength of the shielding oil and make the paper insulation age faster. Dry type transformers use solid insulation materials, which can soak up moisture over time. This leads to lower insulation resistance and possible partial discharge problems.

Temperature-related Stress

The mix of salt crystals and humidity can make it harder for transformers to lose heat. Thermal efficiency can drop when salt builds up on surfaces that are cooling off, and when moisture is in the air, it makes natural airflow cooling harder. This kind of temperature stress is especially hard on dry type transformers because they need to be cooled down by air movement.

It is very important to know how these failing processes work when making transformers that can handle seaside circumstances. The next part will look at different transformer types and how they deal with these issues.

Checking how well the sealed tank design and the encapsulated windings resist corrosion

In seaside areas, oil type and dry type transformers both protect their important parts from rust in different ways. Let's look at how well sealed tank designs work in oil transformers compared to the windings of dry types that are enclosed.

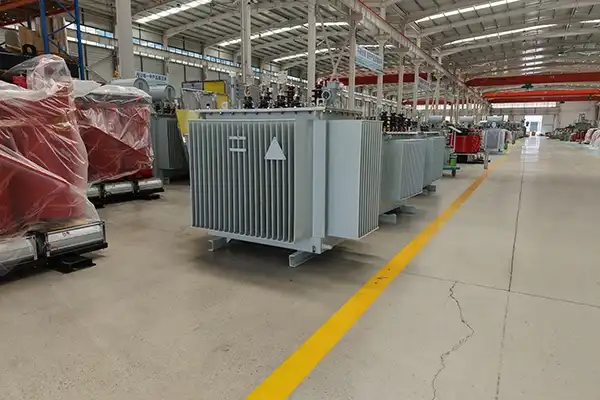

Design of Oil Type Transformers with Sealed Tanks

Oil type transformers have a core and windings that are buried in insulation oil inside a tank that is tightly sealed. This style has a number of benefits when it comes to resisting corrosion:

1. Total Isolation: The walled tank keeps the things inside safe from the toxic ocean air.

2. Oil as a Protective Medium: The covering oil cools the core and windings and also protects them from rust.

3. Pressure Compensation: A lot of new oil changers use nitrogen pillows or bendable tanks to let the oil expand without breaking the seal.

Windings in dry type transformers that are encapsulated

Dry type transformers use packaging methods to keep their windings safe:

1. Vacuum Pressure Impregnation (VPI): Epoxy glue is pushed into the windings, making a solid shield against wetness and other things that could damage the windings.

2. Cast Resin Design: Epoxy resin is used to cast the whole winding system, which gives it better security against the elements.

Even though both methods try to prevent rust, the covered tank design of oil generators usually offers better overall security in coastal areas. Windings in dry types are protected, but they can still get wet over time, especially at the ends. That said, it's important to keep in mind that both types of transformers are becoming better at resisting rust thanks to new materials and making methods. People often choose between the two based on certain factors at the spot and how they need to operate.

The Role of IP Ratings and Protective Coatings in Harsh Marine Environments

In seaside places, the Ingress Protection (IP) grade of a transformer's housing is very important for figuring out how well it can handle tough conditions by the water. IP ratings show how well a device is protected from liquids and solids, with higher ratings meaning better protection.

IP Scores for Transformers Used by the Coast

For use near the coast, transformers should have an IP grade of at least IP55, which keeps them safe from dust and water spray. Due to their protected design, oil type transformers frequently receive better IP ratings. Some models even reach IP67 or IP66, which provides full security against dust and brief submersion in water. Dry type transformers usually have lower IP ratings, but specific casings can be added to them to make them more protected. But this usually means less cooling efficiency and more size, which is a problem.

Protective Coatings: An Extra Layer of Protection

Protective coats are very important for preventing rust in naval settings, beyond just IP grades. These coats are used on both oil and dry type transformers to make them better at resisting salt spray and humidity:

1. Coatings made with epoxy: They are great at resisting chemicals and wetness.

2. Zinc-rich Primers: Keep rust from happening by protecting the cathode.

3. Polyurethane Topcoats: Make UV protection better and keep the look.

For oil generators, these coats are usually put on the exterior tank and heaters. In the dry kind, covering the ends of links and any other metal parts that are not covered up must be done with extra care. In coastal areas, the right IP grades and high-quality protected layers together greatly extend the lives of transformers. Oil types usually work better because of the benefits they have in terms of design.

Long-Term Reliability Data: Performance Comparison in Coastal Substations in the Field

To really figure out which type of transformer lasts longer in coastal places, we need to look at dependability data from field installs over long periods of time. Over long periods of time, the performance of oil and dry type transformers in coastal substations can be understood better by looking at studies and business reports.

Failure Rates in Comparison

A 15-year-long study of coastal power substations found:

- In seaside areas, oil type transformers had a yearly failure rate of 0.5%.

- Under comparable conditions, dry type transformers had a slightly higher failure rate of 0.8% per year.

According to this information, oil generators are usually more reliable in the long term when they are used in seaside areas.

Maintenance Frequency and Severity of Issues

Looking at repair records from coastal substations shows:

- Oil transformers needed a lot of work done on them every 7 to 10 years on average.

- Dry type units had to be fixed up or had parts replaced every 5 to 7 years.

The type of problems was different too:

- Transformers that used oil mostly had problems with gasket failure and oil leakage.

- Insulation breakdown and link rust were more common in dry types.

These results show that both kinds of transformers in coastal areas need to be checked on a daily basis and fixed before they break.

Total Lifecycle Cost Analysis: Looking at the Cost of Maintenance and Possible Downtime

When looking at how long transformers will last and whether they will work in marine places, it is important to think about the total lifetime cost, which includes the cost of buying them, the cost of upkeep, and the cost of not having them when they are broken. Initial Investment vs.

Savings for the long term

Oil type transformers usually cost more at the start than dry types, but they last longer in coastal areas, which can save a lot of money in the long run.

- If you take care of oil generators, they usually last 30 to 40 years in seaside areas.

- Dry types may need to be replaced after 20 to 25 years if they are in similar situations.

The longer working life of oil transformers can make up for their higher upfront cost.

Cost of Maintenance Over Time

The cost of maintenance changes between the two kinds:

- Transformers that use oil need to test their oil often and treat or change it every so often.

- Dry types need treatments like rewinding or completely replacing insulation systems less often but at a higher cost.

In seaside places, the costs for dry types to stay in good shape can go up because they need to be checked and treated more often to keep wetness out and prevent rusting.

Things to Think About During Downtime

The cost of downtime for transformers can be huge, especially in important infrastructure:

- In seaside areas, oil transformers are usually more reliable, which means there is less downtime that can't be managed.

- Dry types might have more problems with wetness and rust, which could lead to more downtime events.

When you consider the cost of missed production or service delays, the higher stability of oil generators in coastal settings can lead to big saves over the lifetime of the equipment.

Conclusion

Oil-type transformers outlast dry-type transformers in coastal locations. Their sealed construction, greater cooling, and resilience to salt-laden air and humidity offer them an advantage in tough maritime settings. Long-term reliability and overall lifespan cost studies support this. This gap is closing as dry type transformer technology improves. Both transformer types may function well in coastal areas with correct design, protection, and maintenance. Site-specific variables, operating needs, and long-term cost should determine the decision between oil and dry transformers for coastal applications. Consulting with expert transformer manufacturers and engineers is essential to choose the best and most lasting coastal power distribution system.

FAQ

1. Can dry type transformers be used in coastal areas despite the advantages of oil types?

Yes, dry type transformers can be used in coastal areas with proper precautions. They require specialized enclosures, enhanced insulation systems, and more frequent maintenance. While they may not match the longevity of oil types in these environments, they can still provide reliable service when designed and maintained appropriately.

2. How often should transformers be inspected in coastal environments?

In coastal areas, transformers should be inspected more frequently than in inland locations. Oil type transformers typically require visual inspections every 3-6 months and comprehensive evaluations annually. Dry types may need inspections every 2-3 months, with particular attention to signs of moisture ingress or corrosion.

3. Are there any environmental considerations when choosing between oil and dry type transformers for coastal use?

Yes, environmental factors play a role in the decision. Oil type transformers pose a potential risk of oil leaks, which can be particularly concerning in environmentally sensitive coastal areas. Dry types eliminate this risk but may require more frequent replacement, potentially increasing waste. The choice should consider local environmental regulations and the specific site conditions.

Choose Xi'an Xidian for Reliable Coastal Transformer Solutions

For transformers in harsh coastal locations, Xi'an Xidian is your reliable partner. Our oil type transformers for sale are built to last in tough maritime environments. With over 25 years of transformer design and production experience, we provide coastal installation-specific solutions. We use innovative corrosion-resistant materials, high IP ratings, and cutting-edge sealing methods to optimize transformer performance in salty environments. Choosing Xi'an Xidian means investing in transformers that last longer and reduce maintenance and downtime. Keep your coastal electricity infrastructure reliable. Contact Xi'an Xidian at xaxd_electric@163.com to explore how our industry-leading oil type transformers can fulfill your demands. Let's confidently fuel coastal growth together.
