Outdoor Disconnect Switch vs. Circuit Breaker: What’s the Difference?
2026-08-25 14:34:51
When specifying electrical protection for high-voltage substations, understanding the distinction between an outdoor disconnect switch and a circuit breaker is essential. An outdoor disconnect switch provides visible isolation of electrical circuits for maintenance safety, manually opening conductors without load-breaking capability. Circuit breakers, conversely, automatically interrupt fault currents under load, protecting equipment from damage. While both are critical in power distribution systems, they serve complementary—not interchangeable—roles. This guide clarifies these differences to help project managers and electrical engineers select appropriate devices for 110kV to 220kV substation projects, ensuring compliance with type test requirements and operational reliability standards that EPC contractors demand.
Understanding Outdoor Disconnect Switches and Circuit Breakers
What Is an Outdoor Disconnect Switch?

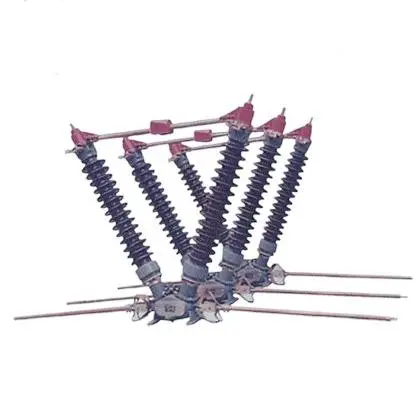

An outdoor disconnect switch, often called an isolator or disconnector, is a physical air gap between electrical circuits when switched off. These devices are designed for manual operation and provide maintenance personnel a visible method to verify circuit isolation prior to working on transformers, bus bars or other substation equipment. Our GW7 series outdoor disconnect switches are designed with a horizontal rotational mechanism rated from 252kV to 1100kV, with current capacity up to 6300A . Operating torque is reduced by a flip-type blade design and self-cleaning connections for dependable operation in contaminated conditions. External springs are used instead of shunting devices for the stationary contacts, therefore there is no danger of mistaken engagement while switching activities take place.
These switches are especially suitable for outdoor use at temperatures from -40°C to +55°C. The hot-dip galvanised steel bases are resistant to corrosion in coastal areas, and the monobloc aluminium alloy conductive rods offer excellent heat dissipation, which is important for high-altitude projects where the decreased density of the air decreases cooling performance. The earth switch is counterweight balanced, reducing the manual operating force by 40% and prolonging the component life at distant substations where maintenance access is uncommon.
Circuit Breaker Fundamentals

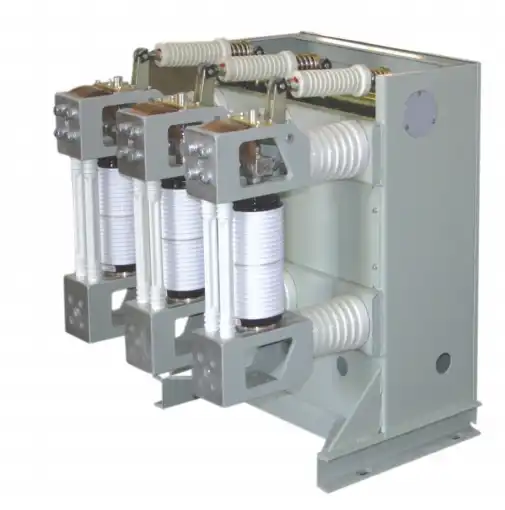

Circuit breakers are fundamentally different in that they automatically terminate fault currents. If this happens, internal processes detect the fault and extinguish the electrical arc in milliseconds, avoiding cascade failures . Modern vacuum and SF6 circuit breakers are capable of interrupting fault currents up to 63kA at transmission voltages and are coordinated with protective relays to isolate the damaged segment while keeping healthy circuits in operation. Indoor types are used for switchgear applications while outdoor types are used in air-insulated substations with disconnect switches.
Indoor and outdoor circuit breakers should be tested periodically for trip reaction time and contact integrity. Circuit breakers, unlike disconnect switches, must be able to tolerate the heat and mechanical demands that come with repeated fault interruption. This difference results in differing maintenance periods – disconnect switches are normally inspected every five years, whereas circuit breakers need functional testing every 12 to 24 months depending on duty cycle.
Core Functional Differences Between Outdoor Disconnect Switches and Circuit Breakers
Operational Roles in Power Systems
The operating logic clearly divides both devices: circuit breakers safeguard circuits by interrupting load current and fault current, whereas outdoor disconnect switches only offer safe isolation points when circuits are de-energized. If you open a disconnect switch under load you will get hazardous arcing that will damage equipment and injure workers. Interlocking methods avoid this . Circuit breakers must first open, shifting load away from the section, before disconnect switches may work to achieve visual isolation .
“When we commission substations, we put disconnect switches on both ends of circuit breakers so we can isolate from both sides. This configuration enables the replacement of circuit breaker components without de-energizing neighbouring bus sections. The phase-separated operating mode of the GW7B-363 model may independently manipulate poles for single-phase repair, thereby limiting the outage scope in crucial transmission corridors. Our earth switches have silver-inlaid copper contacts for low-resistance grounding during maintenance, in accordance with NEC Article 430 regulations for people safety.
Installation and Compliance Standards
These functional distinctions are mirrored in the wiring designs. Circuit breakers are connected to protective panels by current transformers and control cables; extra power is required to trip coils and monitoring circuits. Outdoor disconnect switches have simpler mechanical connections or motor operators with position indications accessible from control rooms . The GW7B-252 includes a three-phase mechanical linkage, so that the switching is synchronised. For higher voltage versions, such as the GW7B-550, phase-separated drives are used to reduce the structural stresses on the support insulators.
The IEC 62271-102 compliance standards include disconnect switch withstand voltages and mechanical durability – our products go through 10,000 operating cycles during type testing. The circuit breakers satisfy the requirements of IEC 62271-100 regarding short-circuit breaking capability and transient recovery voltage performance. International EPC projects’ procurement criteria often include IEC and local certifications. “Our GW7 series is approved in several markets, making it easier to execute projects across borders and easing utility acceptance testing.
Outdoor Disconnect Switch vs. Circuit Breaker: Procurement and Usage Considerations
Selection Criteria for Substation Projects
To find the correct blend, you need to examine a number of technical criteria that have a direct influence on project budgets and operational availability. The initial size is determined by load capacity. Outdoor disconnect switches must be certified to handle continuous current without overheating. Circuit breakers must be rated with sufficient breaking capacity to interrupt the worst-case fault current. High altitude locations or coastal areas have distinctive designs due to environmental factors. Our outdoor disconnect switches are plateau-type design and retain full ratings at 4000 metres altitude where lower air density increases corona and flashover threats. The GW7 series self-cleaning contacts and ice-breaking features are designed to overcome these obstacles with high pressure contact engagement that pierces surface contaminants.
Redundancy of devices. Criticality of power continuity. To safeguard sensitive operations, industrial facilities with such processes generally use duplicate circuit breaker schemes with separate protection systems in their substations. Conversely, rural distribution substations may have single circuit breakers with manual bypass disconnect switches, and so tolerate longer restoration periods to reduce costs. We propose that failure mode analysis be done during design reviews in an effort to balance capital investment against outage risk exposure.
Market Options and Procurement Channels
The high voltage disconnect switch market is dominated by the established manufacturers. There are also other Chinese providers like as Xi’an Xikai that offer competitive performance to cost ratios beyond typical brands, supported by State Grid operating expertise. Utilising 15 years of field experience from over 10,000 installed units, the GW7 series improves designs to prevent transmission mechanism binding, a key failure cause in previous horizontal rotary versions. Drive assemblies with stainless steel and composite bearings are corrosion resistant and do not need yearly lubrication, resulting in lifetime maintenance cost savings of around 30% over traditional designs.
Procurement channels differ depending on the project size. EPC contractors with several substations tend to choose certified supplier agreements that standardise requirements and simplify logistics. We work directly with manufacturers to adapt equipment to meet unique needs – we have produced sand-proof variations for work in the Middle East and seismic-proof models for installations throughout the Pacific Rim. Engineering procurement platforms enable competitive bidding, but the assessment of bids needs technical expertise to tell compliant offers apart from underspecified ones that result in delays in commissioning.
Advantages and Limitations in Industrial and Commercial Applications
Strengths of Outdoor Disconnect Switches
The fundamental benefit is still safety via visual separation. Maintenance staff may visually check open contacts before approaching dangerous areas, and do not need to rely on indication lights that can fail. This physical verification fulfils lockout-tagout methods needed by occupational safety legislation globally. The modular architecture of the GW7 decreases installation time by 30%, speeding construction timelines and reducing crane rental expenses during construction. Support insulator stacks are pre-assembled and sent to site ready to install, needing just base-plate levelling and torque verification during commissioning.
Asset life is extended in severe conditions. Our 72-hour salt spray test verifies corrosion resistance for coastal substations, and thermal imaging shows aluminium alloy conductors successfully disperse heat at maximum current. The incorporated hot-dip galvanised steel base avoids differential settling on concrete foundations and maintains alignment tolerances over decades. This design characteristic means replacements are needed less often since a well maintained unit will usually last over 40 years which is the life expectancy of transformers and bus bars.
Circuit Breaker Benefits and Trade-Offs
The main selling point of the circuit breaker is its automatic fault reaction. Sub-cycle interruption periods protect equipment from transient currents that may ruin transformers or generators. Selective coordination between upstream and downstream breakers isolates faults to the smallest feasible segment, maintaining service continuity to unaffected loads. This feature is vital in industrial complexes where process disruptions may result in large financial losses far surpassing the cost of replacing equipment.
The main drawback is the difficulty of maintenance. Circuit breaker internals need particular diagnostics. Contact wear assessment, SF6 gas purity test, vacuum bottle integrity test require qualified personnel and calibrated equipment. Outdoor disconnect switches are easier to inspect: the insulators can be visually inspected by general maintenance personnel, the contact surfaces can be cleaned and the mechanical linkage may be lubricated. This operational difference has an impact on the total cost of ownership, especially at distant sites where the technical support infrastructure is restricted.
Future Trends and Innovations in Electrical Isolation Devices
Smart Technology Integration
New developments put both device types in digital substation topologies. The smart outdoor disconnect switches of today include position sensors that communicate status information to SCADA systems in real time using IEC 61850 protocols. Optional IoT-enabled monitoring packages are available to monitor the number of operations and any aberrant vibration patterns that might indicate bearing wear so that repair can be scheduled before a failure occurs. This feature enables utility asset management techniques that are based on condition-based servicing rather than fixed-interval plans.
Circuit breakers are moving forward with greater diagnostics and self-monitoring. Embedded sensors record contact travel speed, trip coil current profiles and internal pressure trends, creating operating histories that help determine when to replace. These data streams are then analysed by predictive algorithms to predict remaining useful life to optimise capital expenditure planning. Energy economy advancements such as ultra-low power consumption trip mechanisms reduce battery maintenance in remote telecontrol applications.
Material Science Advancements
Material innovation improves the environmental performance of both gadget types. In earthquake-prone areas, porcelain is replaced with composite insulators, which provide better mechanical strength and are lighter, which makes it easier for the structure to bear the insulator's weight. Silver-tungsten contact alloys provide good electrical durability in disconnect switches without surface oxidation, with low resistance after thousands of cycles. These innovations allow for extended service intervals and better reliability metrics that EPC contractors appreciate when bidding projects with tight performance guaranties.
Utilities are taking a greater interest in climate resilience as severe weather is occurring more often. Advanced ice-breaking contact geometry and corrosion-resistant coatings are pushing the operating limitations, enabling standard designs to operate in previously marginal situations. These changes decrease the requirement for expensive bespoke engineering and thereby democratise access to dependable electrical infrastructure across many geographical settings.
Conclusion
Selecting between outdoor disconnect switches and circuit breakers requires understanding their complementary roles within substation protection schemes. Disconnect switches provide essential visible isolation for safe maintenance, while circuit breakers deliver automatic fault interruption protecting capital equipment. Modern designs like the GW7 series outdoor disconnect switch combine robust construction with reduced maintenance needs, addressing procurement priorities around operational reliability and lifecycle costs. As smart grid technologies evolve, both device types incorporate monitoring capabilities that enhance asset management strategies. Successful projects specify appropriate devices matched to load requirements, environmental conditions, and operational criticality—decisions best informed by manufacturer collaboration and field-proven performance data.
FAQ
1.Can an outdoor disconnect switch replace a circuit breaker?
No, these devices serve different functions that cannot be substituted. An outdoor disconnect switch creates isolation for maintenance but lacks load-breaking and fault-interrupting capability. Circuit breakers automatically interrupt fault currents under load, protecting equipment from damage. Both are required in properly designed substations—circuit breakers for protection, disconnect switches for isolation.
2.What safety codes govern outdoor disconnect switch installation?
NEC Article 430 addresses motor circuit disconnecting means, while Article 490 covers equipment rated above 1000V. IEC 62271-102 provides international standards for alternating current disconnect switches and earthing switches. These codes specify clearance distances, mechanical endurance requirements, and short-circuit withstand ratings. Always verify local authority requirements, as jurisdictions may adopt modified versions of national codes.
3.How often should outdoor disconnect switches be inspected?
Routine inspections typically occur every five years for transmission-class equipment in normal environments. Harsh conditions—coastal areas, industrial pollution, or high-altitude sites—may warrant three-year intervals. Inspection activities include insulator cleaning, contact surface examination, mechanical linkage lubrication, and torque verification on fasteners. After short-circuit events, immediate inspection confirms structural integrity even when the device was not directly involved in fault clearing.
Partner With Xi'an Xikai for Your High-Voltage Disconnect Switch Needs
Xi'an Xikai Medium & Low Voltage Electric Co., Ltd. stands ready to support your next substation project with proven outdoor disconnect switch solutions. Our GW7 series delivers the type test certifications and operational track record that EPC contractors require when specifying equipment for 110kV to 1100kV applications. Backed by ISO 9001/14001 certification and service to State Grid Corporation of China, we provide customized solutions addressing high-altitude creepage requirements, pollution performance, and mechanism reliability—the exact pain points procurement managers face during equipment selection.
Connect with our engineering team to discuss your project specifications. We offer tailored configurations for challenging environments, competitive pricing for bulk orders, and technical support throughout installation and commissioning. Reach us at serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com to request quotations, type test reports, or reference project documentation. Discover why leading contractors choose Xi'an Xikai as their preferred outdoor disconnect switch manufacturer for critical power infrastructure worldwide.
References
1. Institute of Electrical and Electronics Engineers, "IEEE Guide for the Application of High-Voltage Disconnect Switches," IEEE Standard C37.35-2019, 2019.
2. International Electrotechnical Commission, "High-Voltage Switchgear and Controlgear – Part 102: Alternating Current Disconnect Switches and Earthing Switches," IEC 62271-102:2018, 2018.
3. National Fire Protection Association, "National Electrical Code," NFPA 70, Article 490: Equipment, Over 1000 Volts, Nominal, 2023 Edition.
4. Electric Power Research Institute, "Transmission Line Reference Book: 345 kV and Above," Third Edition, EPRI Publication 1011974, 2012.
5. Cigré Working Group A3.22, "Technical Requirements for Substation Equipment Exceeding 800 kV AC," Cigré Technical Brochure 362, 2008.
6. U.S. Department of Energy, "Reliability Standards for the Bulk Electric Systems of North America," Federal Energy Regulatory Commission Order 890, 2007.
