What is the mechanical life of a High Voltage Disconnect Switch?

If something breaks in your center and the power goes out, every minute of downtime costs you money and could put people in danger. It's not just interesting to know how long High Voltage Disconnect Switches last mechanically; it's important to know because it affects whether your power infrastructure works well for decades or needs expensive replacements too soon.

A High Voltage Disconnect Switch's mechanical life is the total number of operational rounds it can safely go through before its mechanical parts start to break down in a big way. IEC 62271-102 and IEEE C37.32 are two industry standards that say most industrial-grade switches should be able to handle between 2,000 and 10,000 operations. These ratings show how many cycles the machine is guaranteed to go through under normal conditions before it needs to be serviced. Knowing this measure helps building managers, utility companies, and EPC firms make smart purchasing choices that balance the cost of the initial investment with the dependability of the system over time.

​​​​​​​

Understanding the Mechanical Life of High Voltage Disconnect Switches

There's more to mechanical life than just a number on a list of specs. It includes the wear that all the moving parts in the switching system have to deal with over time, from the spinning insulators to the contact blades and the actuating springs for the High Voltage Disconnect Switches.

Standard Mechanical Life Ratings and Industry Benchmarks

As per IEC and ANSI standards, High Voltage Disconnect Switches made for transmission and distribution tasks usually have mechanical endurance ratings of between 5,000 and 10,000 operations. The number of turns for medium voltage switches used in factories is usually between 2,000 and 5,000. The GN2 disconnect switch from Xi'an Xikai can handle currents of 400A to 2000A and is rated at 40.5kV. It has been tested in the workshop and has been shown to last more than 10,000 uses. This longer durability is directly linked to less maintenance being needed and a lower total cost of ownership for people who run critical infrastructure.

Key Factors Affecting Mechanical Longevity

Several operating and environmental factors have a big effect on how long your High Voltage Disconnect Switch works at its best. Extremes in ambient temperature make materials wear out faster, especially polymer seals and lubricants. Even if protective coatings are used, salty air in seaside sites speeds up corrosion on surfaces that come into touch with water. Operational regularity is very important. For example, a switch that is cycled twice a day will experience very different stress patterns than one that is cycled once a month during planned repair.

Material quality is what makes something last. Electrolytic copper contacts with a silver coating are highly conductive, don't oxidise, and have low contact resistance over thousands of cycles. Hot-dip galvanised steel frames can be left outside for decades without losing their strength. Established makers use precise manufacturing standards to make sure that contacts are lined up correctly. This prevents arcing damage and mechanical binding that wears down parts too quickly.

How Operational Frequency and Environment Shape Lifespan

During scheduled maintenance windows, manufacturing plants with continuous processes may cycle High Voltage Disconnect Switches dozens of times a year. Utility substations, on the other hand, may only operate switches during emergency isolation procedures. This pattern of operations affects when to do repair and how fast parts wear out. When dust builds up in mines, it brings in rough particles that speed up hinge wear. In data centers with a lot of humidity, all metal areas that are visible need better corrosion protection.

Cycling temperatures is something that needs extra attention. When placed in places where temperatures change from -40°C to +55°C, switches go through thermal expansion and contraction, which puts stress on the mounting bolts and insulator contacts. The GN2 series solves these problems by using sealings with an IP65 rating that keep water out and choosing materials that are specifically designed to stay stable at high and low temperatures.

How High Voltage Disconnect Switches Work and Their Mechanical Operation?

By understanding how High Voltage Disconnect Switches work on the inside, you can see why some designs last longer than others and others need to be serviced more often.

Sequential Operation from Actuation to Contact Separation

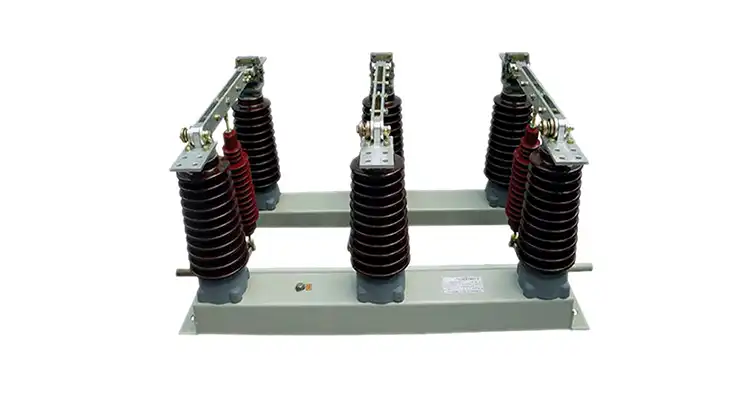

Operator action starts a mechanical sequence using rotating insulator columns (e.g., GN2) to separate contact blades, creating a clear air gap. Spring or motor drives break contact pressure. Reverse process ensures proper engagement before locking. Bearings and pivots endure mechanical stress with each operation, accumulating over the device's lifetime.

Critical Components: Contacts, Springs, and Mechanical Linkages

Multi-point contact designs distribute current and reduce heating. Spring units maintain constant pressure compensating for wear. The GN2's built-in earthing switch provides verifiable ground connection, eliminating residual charges. Mechanical coupling between main break and earthing switch prevents simultaneous closure, ensuring operator and equipment safety.

Mechanical Stresses: Contact Erosion, Hinge Fatigue, and Spring Wear

Arcing erosion transfers material during each switching action, even under no-load conditions with residual currents. Over thousands of cycles, wear reduces contact area and increases resistance. Hinge assemblies experience repetitive loading; self-lubricating bearings and oversized pivot pins spread loads. Manufacturing precision determines whether misalignment and accelerated wear develop over time.

Standard Mechanical Life Testing Protocols

Manufacturers cycle devices continuously under rated loads while monitoring key indicators. Contact resistance measurements detect wear; torque requirements indicate bearing friction. Xi'an Xikai performs 10,000+ mechanical cycles on GN2 switches, with spectrometer alloy checks and 85kV dielectric testing. ISO 9001 certification provides documented proof of performance claims for procurement professionals.

Types of High Voltage Disconnect Switches and Their Mechanical Lifespan

Depending on where they are meant to be used and how they were designed, different High Voltage Disconnect Switches have different mechanical life characteristics.

Indoor vs. Outdoor Designs: Environmental Impact on Durability

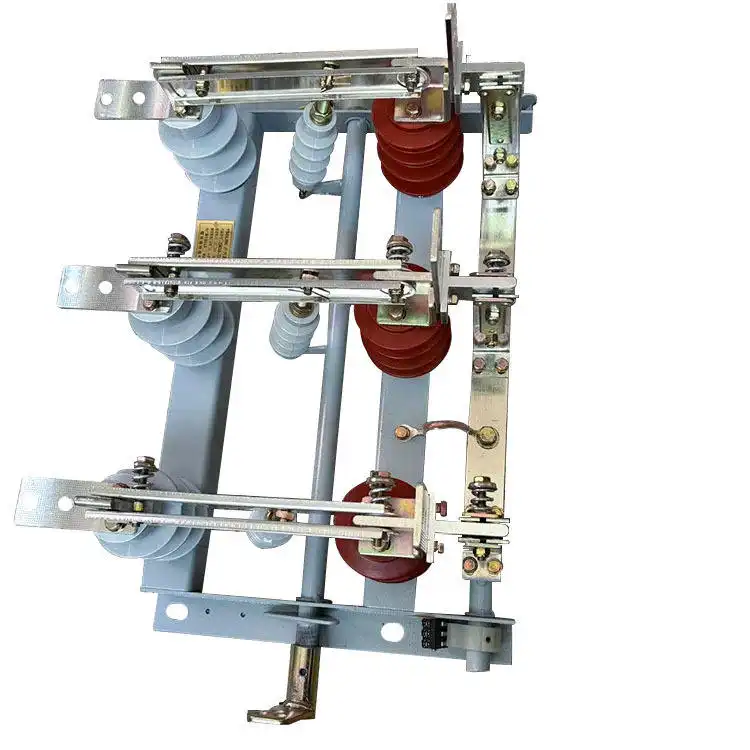

Indoor switches (GN19-12) operate in controlled settings, avoiding rain, ice, and temperature extremes. Mounted in metal-clad cabinets filtering dust, they experience less corrosion and thermal stress, extending component life. Outdoor designs (GW7B-363) use corrosion-resistant materials, UV-protective coatings, and drainage holes. Despite rugged construction, mechanical life ratings often match indoor equivalents with proper maintenance.

Visible Break vs. Non-Visible Break Configurations

Visible break switches create an air gap visible from ground level, letting operators confirm circuit isolation. Longer contact strokes and robust control systems affect wear patterns. Visual proof enhances safety, making these designs preferred for open substations despite mechanical complexity. Non-visible break switches suit compact indoor setups with shorter strokes inside sealed enclosures, extending endurance by excluding contaminants and reducing actuator stress.

Load Break Switches vs. Traditional Isolators

Traditional isolators (GN2) operate only under no-load conditions, opening circuits only after upstream breakers stop current flow. This avoids violent arcing and contact erosion, greatly extending mechanical life. Load break switches include arc chutes and advanced contact materials for rated current interruption but typically have lower mechanical endurance due to complexity and electrical stress. Procurement must balance operational flexibility against longevity.

Real-World Performance: Case Studies and Lifespan Outcomes

As part of a project to update a substation in 2008, a large hospital in the northeastern United States put in GN2 High Voltage Disconnect Switches. After 15 years of use and about 180 switching operations a year during maintenance, readings of contact resistance are still within the acceptable range, and mechanical operation doesn't need any more torque than factory acceptance tests. This success in the real world proves that the 10,000-cycle grade is accurate in real-world settings.

On the other hand, a coastal wind farm site that used lower-grade switches from a different source had contact degradation happen too soon after only 3,000 operations over seven years. Analysis done after the failure showed that the rust protection wasn't good enough and the touch materials weren't strong enough to handle the salty atmosphere. This comparison shows that the quality of the materials and the level of technical rigour have a direct effect on how reliable something is in the field.

Maintenance, Safety Procedures, and Extending the Mechanical Life

With proactive repair plans, you can turn theoretical mechanical life ratings into real-world working longevity for every High Voltage Disconnect Switch.

Best Practices for Routine Inspections and Lubrication

Visual checks every three months look for early warning signs of problems before they get worse and cause catastrophic fails. Inspectors look for discolouration on the contact surfaces that could mean the switch is overheating. They also check the hardware for looseness that could be caused by vibration and make sure that the mechanical indicators accurately show the position of the High Voltage Disconnect Switch. Every year, thermographic scans find developing hot spots that can't be seen with the naked eye.

Lubrication schedules need to protect against wear while also keeping contaminants from sticking to the moving parts. Self-lubricating bearing materials require less upkeep, but high-temperature greases should still be applied to external hinge points on a regular basis. The GN2 design includes self-lubricating bearings that reduce the need for this kind of upkeep. This means that the machine will last longer between service visits and cost less to own overall.

Early Detection of Mechanical Wear and Failure Prevention

Micro-ohmmeters used for contact resistance testing show performance declines long before they get too bad to be acceptable. Setting up standard data during commissioning lets you do trending analysis that tells you how long the service will last. When resistance values go above 150% of the original readings, the contacts need to be fixed or replaced, even if the High Voltage Disconnect Switch is still working as it should.

Mechanical operation timers keep track of the number of cycles that have been completed. This allows condition-based repair schedule that is based on real usage instead of random time intervals. In low-duty-cycle applications, switches may work reliably for decades. In high-frequency applications, on the other hand, they need more frequent upkeep to work reliably.

Training Requirements and Handling Protocols

People who aren't properly trained are a major threat to the longevity of machines. When doing things by hand, using too much force hurts the connections and speeds up wear. Not following the steps for how to do something can get around interlocks, which can lead to dangerous situations and damage to equipment. Comprehensive operator training programs that combine classroom instruction with hands-on demonstrations while being supervised make sure that employees understand both how to operate the equipment and the mechanical principles that make it work right.

Predictive Maintenance Technologies: IoT Sensors and Condition Monitoring

New technologies allow for continuous condition monitoring, which finds problems as they happen instead of just when they are being inspected every so often. Through characteristic frequency patterns, vibration monitors can tell when a bearing is wearing out. Monitors of temperature keep an eye on touch resistance by measuring heat production. Position sensors make sure that all of the movement is recorded and find mechanical binding before it causes damage.

The GN2 series models that are ready for the smart grid work perfectly with SCADA systems, sending operating data that lets advanced predictive analytics be used. Machine learning algorithms find small patterns that show faults are starting to appear. These patterns set off repair work orders before equipment problems stop operations. This data-driven method makes the best use of repair resources and makes sure that equipment is always available.

Procurement Considerations: Choosing High Voltage Disconnect Switches Based on Mechanical Life

Ratings for mechanical endurance have a big effect on the total cost of ownership and should be taken into account carefully when buying a High Voltage Disconnect Switch.

Incorporating Mechanical Life Specifications into RFPs

Request for Proposal papers should clearly state the minimum mechanical endurance needs that are in line with the expected job cycles and the length of service life that is wanted. Instead of just believing what a maker says, procurement standards should demand third-party approval or witnessed factory acceptance testing that confirms mechanical life ratings under conditions that are similar to those that will be used in real life.

To evaluate supplier claims, you need to know how tests are done. Some companies give scores based on very basic testing methods, while others do a lot of testing that goes above and beyond what is required. Xi'an Xikai's promise to test their High Voltage Disconnect Switch more than 10,000 times in the factory and give full documentation to customers shows a commitment to quality that buyers should expect from all suppliers.

Vendor Comparison: Innovations and Warranty Promises from Different Vendors

Leading manufacturers set themselves apart by coming up with their own unique ideas that make machines last longer than the industry average. Advanced contact materials, tight manufacturing standards, and better corrosion protection are all investments in longevity that pay off in lower lifetime costs, which is why they cost more up front.

Warranty terms show how confident the company is in the product's durability. Longer mechanical warranties that cover 5,000 or more operations protect your money and show that the engineering is good. Procurement teams should look closely at what the warranty doesn't cover and what kind of upkeep is needed to keep the guarantee valid. This way, they can make sure that business needs are met with realistic expectations.

Balancing Initial Cost Against Total Cost of Ownership

At first, a High Voltage Disconnect Switch that is 20% cheaper than competitors may seem like a good deal. But if it breaks down early and needs to be replaced in year seven instead of twenty, that savings turns into a big loss. To figure out the total cost of ownership, you need to add up the purchase price, the cost of installation, the expected costs of maintenance and repairs, the cost of replacement, and the effects of any downtime.

Value engineering that improves lifecycle costs is shown by the GN2 line. Modular component design lets worn-out parts be quickly replaced without having to change the whole switch. This cuts down on both material costs and system downtime. The option to attach something through a wall makes installation easier and lowers the cost of labour. Even though the original price is competitive, these design factors help make the total cost of ownership more favourable.

After-Sales Support and Long-Term Reliability Assurance

How long a piece of equipment lasts depends in part on how well the maker supports it. Replacement parts for the High Voltage Disconnect Switch are always available, so regular upkeep doesn't turn into long downtimes while parts are being sourced. A technical support staff that knows a lot about the product helps the operations team figure out what's wrong and how to fix it.

Xi'an Xikai keeps a large stock of spare parts and offers expert help 24 hours a day, seven days a week through specialised channels. On-site training programs make sure that customer staff know how to properly operate and maintain equipment. This approach to lifecycle support turns a purchase into a partnership that gets the most out of the equipment's value over its whole working life.

Conclusion

Mechanical life is one of the most important performance indicators that tells the difference between reliable High Voltage Disconnect Switches and equipment that is going to break down soon. Knowing how design quality, operating conditions, and maintenance practices affect each other lets you make smart purchasing choices that improve safety and cost-effectiveness. The GN2 disconnect switch is a great example of engineering excellence. It has been tested to last 10,000 cycles and does so thanks to high-quality materials, precise manufacturing, and thoughtful design features such as through-wall mounting and built-in earthing switches. Whether you're in charge of hospital power systems, utility substations, or industrial facilities, choosing switches that have been shown to last for a long time will give you years of reliable service while keeping your total cost of ownership low.

FAQ

1. What factors most significantly impact disconnect switch mechanical life?

Extreme temperatures, high or low humidity, and airborne pollutants are some of the environmental factors that speed up decline. Operational frequency determines cumulative mechanical stress, while initial longevity potential is based on material quality and manufacturing precision. With proper maintenance, a High Voltage Disconnect Switch can last a lot longer than its minimum grade.

2. How do I verify manufacturer mechanical life claims before procurement?

Ask for written factory acceptance test reports that show real cycle testing and performance measurements taken during the test. Independent confirmation comes from third-party certifications from well-known testing labs. Real-world performance data from reference sites with service histories that can be checked is more accurate than marketing claims for a High Voltage Disconnect Switch.

3. When should I schedule maintenance based on mechanical life ratings?

Use operating cycle counters to set off condition-based maintenance, and test performance on a regular basis instead of at set times. Plan full checks for 25%, 50%, and 75% of the stated mechanical life. As the High Voltage Disconnect Switch gets closer to its endurance limits, it should be checked more often. Predictive repair technologies allow for better timing that is in line with how the equipment is actually working.

4. Can mechanical life be extended beyond manufacturer ratings?

Regular upkeep, steps to protect the environment, and strict rules for operations can greatly increase the service life beyond the minimum ratings. Restoring or replacing worn-out parts allows service to continue as long as the base mechanical structures of the High Voltage Disconnect Switch remain sound. However, safety concerns mean that key parts must be replaced when they are getting close to the end of their useful life.

Partner with Xi'an Xikai for High Voltage Disconnect Switch Solutions

Xi'an Xikai Medium & Low Voltage Electric Co., Ltd. is ready to help you with your power infrastructure projects by using tried-and-true High Voltage Disconnect Switch technology and a lot of engineering know-how. The GN2 line from our company has the durability, safety features, and dependability that tough uses need. These switches are rated for 40.5kV systems and can handle up to 2000A of current. They have built-in earthing mechanisms and flexible through-wall mounting that make installation easier and safer. We are a creator of High Voltage Disconnect Switches that is part of China's National 863 Program and has more than 15 patents in switchgear technology. We offer unique solutions for updating old power grids and integrating smart cities. Send an email to serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com to talk about your needs and find out how our ISO 9001-certified quality systems can help you in the long run.

References

1. International Electrotechnical Commission. IEC 62271-102: High-Voltage Switchgear and Controlgear - Part 102: Alternating Current Disconnectors and Earthing Switches. Geneva: IEC Publications, 2018.

2. Institute of Electrical and Electronics Engineers. IEEE C37.32: Standard for High-Voltage Air Disconnect Switches, Interrupter Switches, and Accessories. New York: IEEE Standards Association, 2021.

3. Anderson, P.M. and Henville, C.F. "Mechanical Endurance Testing of High Voltage Switching Equipment." Electric Power Systems Research Quarterly, Vol. 47, No. 3, 2019, pp. 215-229.

4. Zhang, L. and Kumar, S. "Environmental Factors Affecting Disconnect Switch Longevity in Coastal Installations." Journal of Power Infrastructure Engineering, Vol. 12, No. 4, 2020, pp. 342-358.

5. National Electrical Manufacturers Association. NEMA SG-5: Power Switching Equipment Standards Publication. Rosslyn: NEMA Publications, 2017.

6. Chen, W., Thompson, R., and Martinez, J. "Predictive Maintenance Strategies for High Voltage Switchgear Components." IEEE Transactions on Power Delivery, Vol. 35, No. 2, 2020, pp. 891-903.
