Why Use a Polymeric Lightning Arrester for AC system?

Selecting a polymeric lightning arrester for AC system protection represents a strategic decision driven by technological advancement and practical necessity. These modern surge protection devices combine zinc oxide varistor technology with advanced polymer housing, offering superior performance compared to traditional porcelain designs. The lightweight construction, enhanced mechanical strength, and exceptional resistance to environmental degradation make polymeric arresters particularly valuable for electrical equipment exporters serving developing markets where harsh climatic conditions and pollution levels challenge conventional solutions.

Understanding Polymeric Lightning Arresters for AC Systems

Core Structure and Operating Principles

Metal oxide varistor (MOV) blocks are put inside silicone rubber or mixed polymer housings in polymeric lightning arresters for AC systems. Under normal circumstances, these zinc oxide elements keep their high resistance and work well as insulators. When lightning strikes or switching operations cause voltage surges, the varistor resistance drops very quickly, sending the extra current to ground safely before it hurts transformers, circuit breakers, or other important equipment.

With a maximum voltage of 216kV and a DC reference voltage of more than 314kV, the YH10W-216/562W Lightning Arrester is a good example of this technology. Its two-unit design gives you peace of mind, and the 31mm/kV creepage distance makes sure it works well in a wide range of conditions. The response time of less than 1 µs provides immediate protection, which is very important for keeping insulation from breaking down in AC systems that are sensitive.

Material Innovation Beyond Traditional Designs

Traditional ceramic arresters ruled the market for many years, but they were very fragile, which made shipping and installing them very dangerous. One crack could make the whole defensive function useless, which could lead to dangerous fault conditions. Metal oxide arresters made things work better, but they kept the clay housings that were easily broken by mechanical stress and pollution flashover.

This world changes because of polymer technology. Because the silicone rubber covering is so hydrophobic, water drops bead up and roll off instead of making conductive films. This trait still works even when surface pollution builds up in industrial areas near steel mills or near the coast where salt spray is common. Porcelain breaks when there are problems inside, but plastic housings have safety features that keep the pieces from exploding, saving people and equipment nearby.

Configuration Flexibility for Diverse Applications

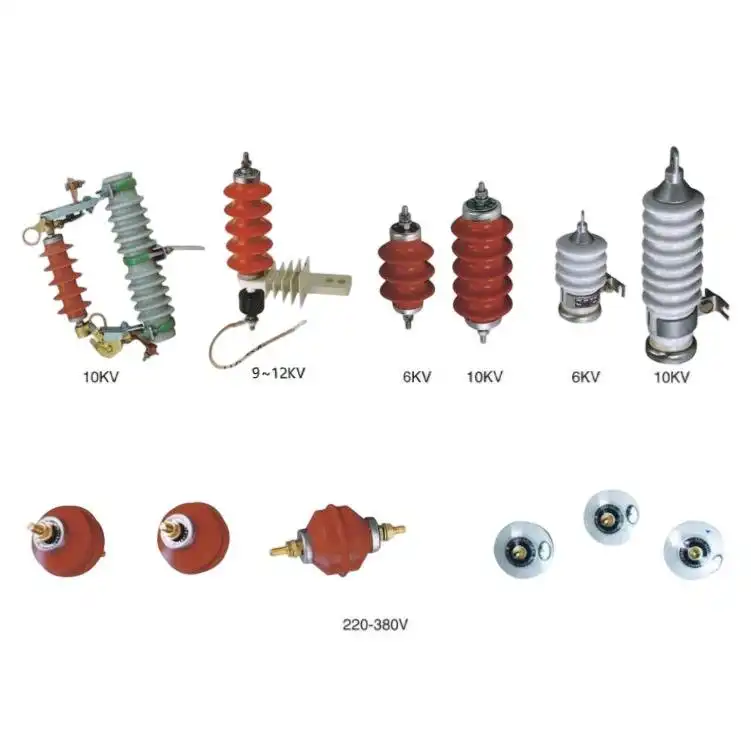

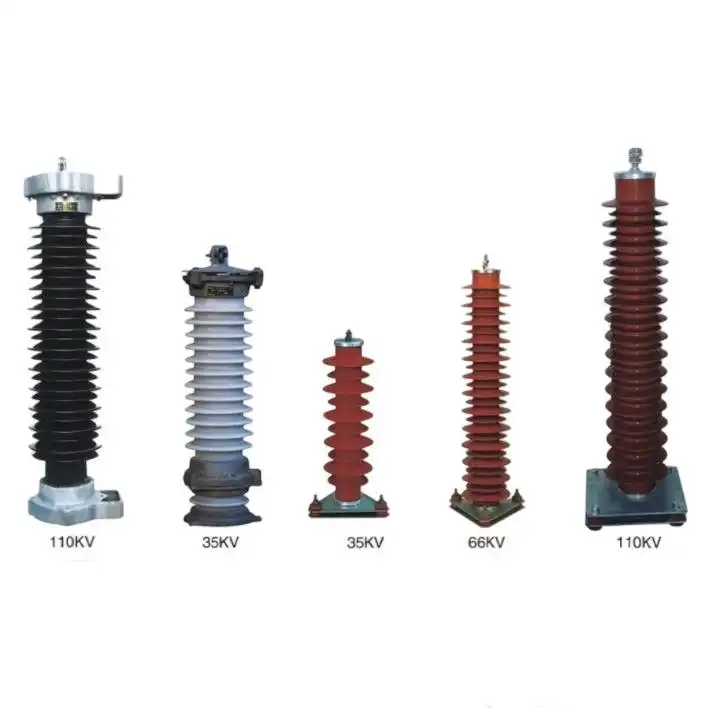

These days, polymeric lightning arresters for AC systems can handle voltages ranging from 12kV for distribution to 500kV or more for transmission lines. The modular design lets makers add varistor blocks based on the needs of the system while keeping the overall size small. This ability to be expanded is very helpful for companies that ship electrical equipment and put together full substation packages for markets in Africa, Southeast Asia, and South America, where voltage standards and height requirements are very different.

Why Choose Polymeric Lightning Arresters over Traditional Options?

Superior Environmental Resilience

Electrical dealing businesses that work with growing areas have to deal with some unique problems. A lot of the time, equipment is shipped by sea and is exposed to humidity and salt air for weeks before it is put in place in harsh environments. We've seen that standard porcelain arresters often come with moisture leakage at the sealing surfaces, which makes them less effective at protecting before they are turned on.

This weakness is not present in good polymeric lightning arresters for AC systems because they use a triple-sealing process. During manufacturing, the YH10W-216/562W goes thru strict waterproofing procedures that protect the internal varistor stack from any moisture in the environment. This reliable sealing performance directly answers the concerns of purchasing managers who can't afford field failures in faraway project sites where getting replacements is hard and costs a lot of time.

Weight Reduction and Installation Economics

A 216kV porcelain arrester usually weighs between 180 and 220 kg, so it needs special moving tools and strong fixing frames. The comparable polymeric lightning arrester for AC system weighs between 60 and 75 kg less, which is more than 60% less. Cost saves can be seen all along the supply chain thanks to this weight advantage. Shipping costs for containers go down, construction teams can do their jobs faster without having to use heavy equipment, and supporting buildings need less structural steel.

Exporters of equipment that bundles transformers, switches, and arresters like how weight reductions help them offer better prices. When bidding on complete substation projects in price-sensitive markets, the total amount of money saved by choosing polymeric lightning arresters for AC systems at different voltage levels can decide who wins the bid.

Enhanced Safety During Fault Conditions

When traditional arresters have problems inside, they can explode and send dangerously fast pieces of porcelain flying. This puts repair workers in great danger and can damage nearby equipment, turning a problem with one part into a substation loss that spreads to other parts. Safe pressure relief features of polymeric designs stop this from happening by using controlled venting systems that change the internal pressure without breaking the housing.

How to Select the Right Polymeric Lightning Arrester for Your AC System

Voltage Rating and System Compatibility

It is important that the rated voltage (Ur) and the system's continuous operating voltage (MCOV) match up. If the main voltage in a transmission system is 220kV, a 216kV polymeric lightning arrester for AC system like the YH10W-216/562W is a good choice. The DC reference voltage of ≥314kV gives enough room for short-term overvoltages that might happen when switching operations or single-phase ground problems happen.

Trading experts who work with more than one country have to deal with different electricity standards. A lot of African countries follow IEC rules, while some Latin American areas use IEEE rules. Making sure that arresters have IEC 60099-4 certification makes sure that they can be sold in a lot of places and makes the customs clearance process easier.

Creepage Distance Calculations

The amount of pollution has a direct effect on the needed creepage distance, which is the smallest way along the insulator surface between parts that are conductive. The 31mm/kV rating of high-quality polymeric lightning arresters for AC systems works in places with a lot of smog, which is called Level IV by IEC standards. Coastal sites, cement plants, and petrochemical plants all make pollution that makes shielding less effective. If there isn't enough creepage space, tracking and eventually flashover happen. This is especially likely when it's warm and pollution soaks up the water.

When buying equipment for highland areas, procurement managers should ask the manufacturer for advice on how to adjust the ratings for altitude. For installations above 1,000 meters, the creepage distance needs to be longer to make up for the lower air density that affects the strength of the external insulation.

Installation and Routine Maintenance Protocols

When installed correctly, polymeric lightning arresters for AC systems last longer and work better as barriers. Brackets for mounting must provide strong support while still letting the material expand and contract. Low-impedance paths are needed for ground lead connections. Usually, less than 5 ohms are needed at the grounding terminal. High ground resistance makes it harder for current to flow during surges, which raises the residual voltage and could damage equipment.

Regular maintenance checks the case for damage, makes sure the mounting hardware is tight, and uses thermography to look for strange heating patterns that mean the inside is breaking down. Modern polymeric lightning arresters for AC systems age well, so maintenance times can be extended to two to three years under normal working conditions. This lowers the overall cost of maintenance over the life of the product compared to porcelain designs that need to be inspected every year.

More and more, advanced installations use communication-based tracking tools that keep an eye on leakage current and count surge activities. These tools let you know early on when something is breaking down, so you can use condition-based replacement methods instead of time-based schedules. This technology is especially useful for electrical trade companies that offer complete projects with long warranties.

Leading Brands and Supplier Insights in Polymeric Lightning Arresters

Certification Standards and Quality Assurance

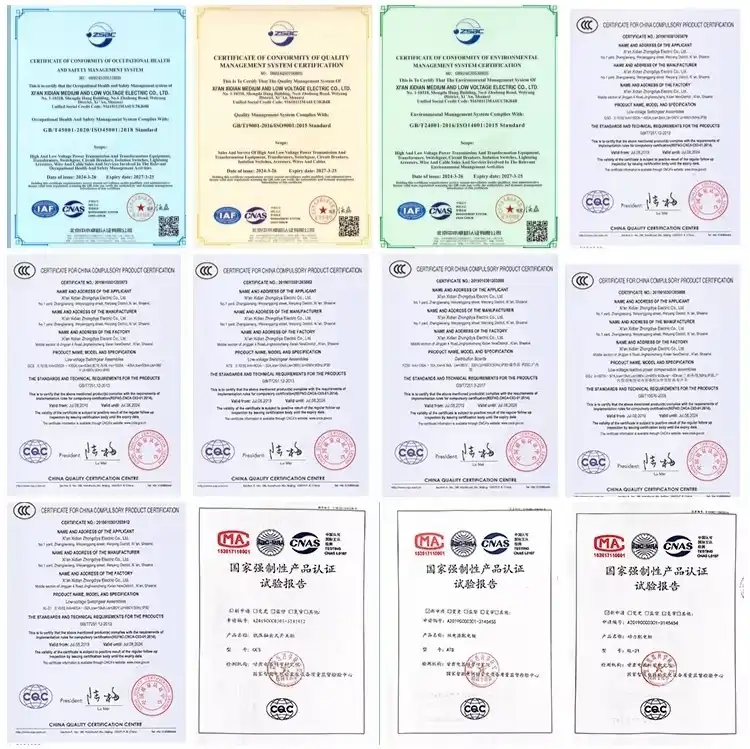

IEC 60099-4 sets international performance standards for metal oxide arresters that don't have any gaps. These standards cover electrical properties, mechanical tests, and durability in harsh environments. Reputable manufacturers put their polymeric lightning arresters for AC systems thru a lot of tests, such as high-current impulse withstand tests that simulate direct lightning strikes, pressure relief device functionality checks, and accelerated aging tests that make years of service last only weeks in the lab.

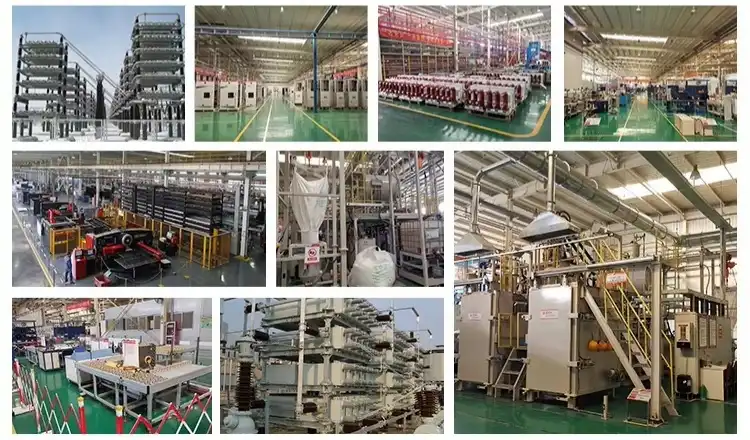

Xi'an Xikai Medium & Low Voltage Electric Co., Ltd. keeps a close eye on quality throughout the whole production process. Testing the raw material makes sure that the zinc oxide is pure before the varistor block forms. Every unit that is put together is tested against a DC reference voltage to make sure that the U1mA values meet the requirements, which are usually ≥314kV for 216kV rated arresters. Testing for partial discharge makes sure that the insulation inside is still good. The acceptance thresholds are usually less than 10pC at 1.05 times the continuous operating voltage. These strict quality controls show that the company is dedicated to making surge protection devices that work reliably in a wide range of working conditions.

Evaluating Supplier Capabilities

Exporters of electrical equipment rely on their suppliers being reliable in ways other than the quality of their products. Delivery predictability determines how well a project stays on schedule—delayed arrester shipments can stop whole substation commissioning schedules in their tracks. For normal ratings, we suggest that procurement teams look at factory capacity, inventory practices, and written wait times for special specs.

The ability to provide technical help is just as important. When customers have unique system settings or environmental conditions, suppliers who offer application engineering help trade companies figure out how to meet their requirements. Support teams that speak more than one language make communication easier. This is especially important when Asian manufacturers are working with end users in Africa or Latin America.

Warranty terms show that the manufacturer is confident. Standard coverage lasts 18 to 24 months from the date of shipment. However, leading suppliers protect established trading partners for 36 months or more. Knowing what the warranty doesn't cover, especially when it comes to improper installation or usage beyond the rated limits, keeps claims from going to court.

Future Trends and Innovations in Polymeric Lightning Arresters

Smart Monitoring Integration

When surge security and digital tracking come together, they make intelligent polymeric lightning arrester for AC system designs that can check on their health in real time. Embedded sensors keep track of factors like the amount and phase angle of leaked current, the number of surge events with time stamps, and the state of the housing surface thru built-in moisture detection. This information is sent to substation control systems thru RS485 interfaces that use the Modbus-RTU protocol. This lets repair plans be made ahead of time, which cuts down on unexpected power outages.

Utilities in developed markets are requiring smart tracking capabilities more and more. This is a trend that is slowly spreading to big building projects in developing areas. As customers become more sophisticated, companies that export electrical equipment that are ready to offer these integrated solutions gain a competitive edge.

Advanced Polymer Formulations

The silicone rubber compounds used in arrester housings are getting better all the time thanks to progress in material science. Better UV protection makes things last longer in warm areas where strong sunlight speeds up the breakdown of materials. New versions keep their hydrophobicity longer when exposed to industrial pollution, which means they don't need to be cleaned as often and don't cost as much to maintain. Some companies are looking into self-healing polymer technologies that can fix small cracks on the surface before they get worse and cause the structure to fail.

Environmental Sustainability Initiatives

The global push for sustainable electricity infrastructure has an effect on how polymeric lightning arresters for AC systems are designed and made. End-of-life recycling programs make it possible to get back zinc oxide and aluminum parts, which cuts down on waste that ends up in landfills. More and more, water-based sealants are being used instead of solvent-based ones in manufacturing processes. This reduces the release of volatile organic compounds. The carbon footprint of production facilities is smaller when they use energy-efficient curing ovens and electricity from renewable sources.

Companies that are on the cutting edge of business know that environmental credentials make them more appealing when they are competing for projects that development banks that focus on sustainability will fund. Working with companies that can show they are improving the environment in measured ways makes bids stronger and improves your long-term market position.

Conclusion

Polymeric lightning arresters for AC systems are the best way to protect current AC systems from surges, especially when they are used in export applications that serve growing markets. Their better resistance to environmental factors, ease of installation, and safety features address the main concerns of companies that trade in electrical equipment. The YH10W-216/562W is a great example of how advanced design can offer solid performance in a wide range of working situations while still achieving the standards for international approval. By choosing high-quality polymeric lightning arrester for AC system products from well-known brands, you can be sure that the project will be successful, that your valuable electrical assets will be protected, and that you will build long relationships with customers who value reliable infrastructure solutions.

FAQ

1.What operational lifespan can we expect from polymeric lightning arresters?

Quality polymeric lightning arresters for AC systems usually work well for 25 to 30 years if they are installed and specified correctly. The good age performance comes from stable zinc oxide varistors and UV-resistant rubber housings that don't break down in the environment. Monitoring leakage current on a regular basis lets you know early on when something is breaking down inside, so you can replace it before it loses its protective power. Operating conditions have a big effect on how long something lasts. Installations in clean, normal climates may last more than 30 years, but installations in areas with a lot of pollution or high temperatures may only last 20 to 25 years.

2.How do polymeric arresters compare to traditional metal oxide designs in surge protection effectiveness?

The surge clamping performance of both technologies is the same because they use the same zinc oxide varistor elements. The main difference is not in how well they protect, but in the materials used to make the houses. Polymeric lightning arrester for AC system designs work best in dirty places because their slippery surfaces stop pollution flashover that damages porcelain units. The lighter weight and stronger construction make installation safer and lower the structure needs without affecting the electricity performance.

3.Are polymeric arresters suitable for extreme weather installations?

Of course. The YH10W-216/562W works successfully in temperatures ranging from -40°C to +85°C, so it can be used in both cold places and hot deserts. Better creepage distances can handle coastal salt fog and humid tropical climates. The sealed construction keeps out water during the rainy season, which is a problem that traditional designs have in tough settings.

Partner with Xi'an Xikai for Premium Polymeric Lightning Arrester Solutions

When electrical equipment exports need a complete polymeric lightning arrester for AC system security, Xi'an Xikai Medium & Low Voltage Electric Co., Ltd. is ready to help. Our production skills include making plateau-type equipment that can be installed up to 4,000 meters above sea level. This will make sure that your projects work no matter what the weather is like. We know what trading workers in Africa, Southeast Asia, and South America need, from IEC 60099-4 licensing to reasonable price structures that let them bid on successful projects. Our technical team helps with applications for complicated system setups, and our well-established logistics skills make sure that deliveries happen on time, which is important for meeting substation commissioning deadlines. Send an email to serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com to talk about your unique needs. As a reliable supplier of polymeric lightning arresters for AC systems, we offer the quality, certification, and service that turn procurement problems into competitive advantages.
