Porcelain Type SF6 Circuit Breaker Working Principle Explained

At the heart of modern high-voltage power systems lies a critical protection device that combines advanced gas insulation with time-tested materials. A porcelain type SF6 circuit breaker uses sulfur hexafluoride gas sealed within robust porcelain housings to interrupt fault currents swiftly and reliably. This combination delivers exceptional dielectric strength—approximately 2.5 to 3 times that of air—while the porcelain structure provides mechanical durability and environmental resistance essential for outdoor substations operating in demanding climates. Understanding how these components work together helps procurement professionals select equipment that balances performance, longevity, and total cost of ownership for 126kV to 145kV transmission networks.



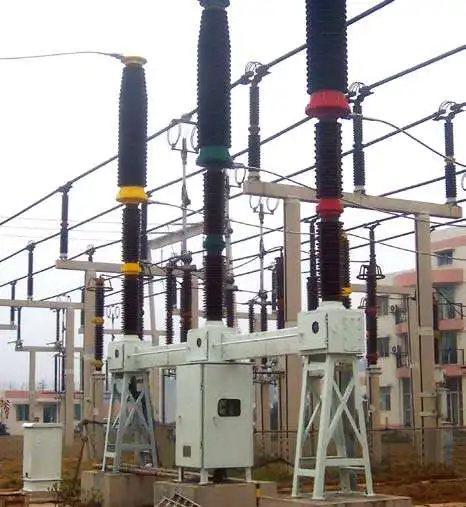

Understanding the Porcelain Type SF6 Circuit Breaker

Core Components and Their Roles

In addition to looking nice, the porcelain housing has other uses. This is the main barrier that keeps energized conductors from touching ground potential. It can handle constant operating voltages and pollution deposits that would normally cause tracking. The non-porous glaze on the material stops water from getting in, which could hurt the insulation over many years of use.

These ceramic columns' interrupter cells contain SF6 gas, which stops the arc. The gas is chemically stable at high and low temperatures, quenches arcs well, and returns to full insulating strength within milliseconds of fault currents ending. Because dielectric rebounds fast, circuit breakers can tolerate multiple switching operations without failure.

Fundamental Operating Principle

If the transmission network fails, protective switches send trip indications to the circuit breaker's functioning section. Pushes interrupter chamber connections apart. Current across an ionised gas channel creates an electrical arc. Puffer or self-blast mechanism in breaker sends SF6 gas across arc. At the AC system's intrinsic current zero crossing, the gas quickly cools the arc column by transmitting heat and grabbing free electrons.

This process is assisted by the porcelain framework's outer insulation and alignment of fixed and moveable contacts. For 126kV and 145kV applications, our LW25 series triple-break design spreads voltage stress across several porcelain column interrupter units. For short-circuit currents up to 40kA, this arrangement reduces voltage difference at each break, prolonging contact life and enhancing interruption stability.

Material Synergy in Harsh Environments

Outdoor substations are affected by -30°C to 50°C temperature variations, factory haze, coastal sea spray, and UV radiation. The vitrified surface of porcelain resists these environmental influences better than many other materials. The material doesn't degrade under UV radiation or after repeated heating and cooling. It works for decades.

At 20°C, the interrupter chambers seal the SF6 gas at 0.5–0.6 MPa. Modern designs avoid 0.5% annual leakage using welded seals and improved gasket materials. This ensures that the gas insulates and stops electricity for the whole 25-year breaker life. If leakage exceeds permitted levels, pressure monitoring systems alert operators. This helps them do preventive maintenance before the system fails.

Advantages and Common Challenges of Porcelain Type SF6 Circuit Breakers

Key Operational Benefits

• Reliable Outdoor Use: Even with pollution layers, porcelain insulators retain dielectric integrity after decades of field use. The flat, glazed surface sheds water, preventing continuous electrical lines and flashovers. This reduces unexpected outages and equipment maintenance expenses.
• Excellent Interrupt Performance: SF6 gas allows tiny interrupters to halt massive fault currents. The LW25 series can bear 40kA breaking currents at 126kV and 145kV. This makes it suitable for transmission networks and big industrial operations. The gas can recover, therefore the breaker may execute many close-open processes during fault clearing cycles without cooling down.
• Older air-blast or minimum-oil breakers need contact maintenance, whereas SF6 interrupters are sealed for life and don't. Inspection plans concentrate on exterior items like porcelain, bolts and gas pressure rather than interrupter chambers. This reduces maintenance expenses and wasted work time due to equipment failure.
• Flexible Mechanism Options: Certain working situations and preferences demand various activation methods. While closing, motor spring mechanisms charge the closing spring and prepare the opening spring. Instead of pressurised nitrogen, hydraulic systems store energy in disc springs, thus they function at all temperatures. Compressed air opens and springs shut pneumatic designs, allowing for fast reaction in frequent switching activities. For each project, the optimum mechanism may be used to ensure the breaker works with substation control systems.

Addressing Operational Challenges

Porcelain Type SF6 Circuit Breaker porcelain columns must be handled gently when shipping and assembled on-site. The material is weak and may be destroyed by impacts, particularly in earthquake-prone areas. Use shock-absorbing packing, secure the item during shipment, and follow installation torque standards to minimise these dangers. We mechanically test assemblies, including shipping-like vibration profiles, throughout manufacture. This ensures units reach at project locations undamaged.

• Managing SF6 Gas: Well-maintained systems release little gas annually, but monitoring is still important. Remote-indicating pressure gauges let operators monitor gas density 24/7. Technical teams must use ultrasonic detectors or laser-based imaging to find leaks when pressure drops below certain thresholds. Replacement of the seal usually fixes small leaks, but if there is a lot of pressure loss, the chamber may need to be emptied and refilled, requiring trained workers and gas handling equipment.
• Environmental regulations: Because SF6 causes global warming, environmental rules are tightening. Gas supply, pollution, and leak reduction measures are the responsibility of utilities. By choosing equipment with low leakage rates that can be verified by factory testing and acceptance standards, companies may achieve their legal obligations and reduce their environmental impact.
• Porcelain Surface Maintenance: Porcelain doesn't normally become filthy, however regions with a lot of factory or shore pollution may need to be cleaned to maintain insulation. Cleanings for scheduled outages help prevent pollution flashovers in adverse weather. Chips or cracks that might spread under electrical stress are also inspected. This kind of damage is uncommon in properly placed troops.

Our approach to making products and helping customers is shaped by these things. Giving detailed installation guides, helping with commissioning on-site, and keeping essential spare parts on hand are some of the things that project managers can do to make deploying porcelain SF6 technology in a variety of settings easier.

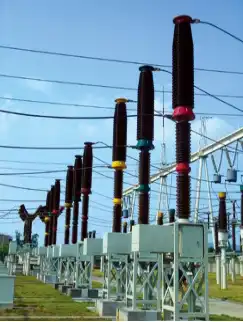

Porcelain Type SF6 Circuit Breaker vs Other Circuit Breakers: Informed B2B Decisions

Porcelain vs Polymer Housings

Polymer-housed breakers are sold because they are lighter and less destructible. However, porcelain has benefits. Unlike polymers, which degrade after 25–30 years, ceramics survive 40 years or more. The inert surface of porcelain doesn't break down rapidly in high-pollution or UV-radiated environments, which may influence its water-repellency.

Weight is crucial while installing anything, but it becomes less important with time. Porcelain bulk decreases vibrations, reducing mechanical stress on internal parts while switching. Modern designs like our LW25 series endure roughly 10,000 operations or more because to these solid qualities.

SF6 vs Vacuum Interruption Technology

Most medium-voltage (up to 40.5kV) installations use vacuum circuit breakers, and more and more 72.5kV installations do too. Their sealed interrupters don't need much upkeep and take away any worries about dealing gas. At higher levels, however, vacuum technology is limited by the way things are built. To get values of 126kV or 145kV, vacuum bottles must be linked in series, which makes things more complicated, costs more, and adds more ways for things to go wrong.

At these voltage levels, Porcelain Type SF6 Circuit Breaker units work very well. They come in small single-break or double-break designs that have been tested in the field. Because the gas has a higher electrical strength, the pole spacing can be smaller, which is very helpful in substations that don't have a lot of room or when upgrading old facilities. SF6 technology is better for applications that need 40kA or higher short-circuit ratings because it breaks capacity more efficiently as it scales.

Operating Mechanism Selection

Motor-driven charging needs electricity, so spring mechanisms work best in places with steady AC power sources. The self-charging function during closing gets rid of the need for manual work between processes, which makes fault-clearing routines more efficient. Compared to hydraulic or pneumatic systems, they need less upkeep, which lowers their lifetime costs, but they may cost a little more at first.

Hydraulic actuation gives constant force over a wide range of temperatures and doesn't need systems that use compressed air. The disk spring energy storage design gets rid of nitrogen tanks, which could be an upkeep problem, and it makes the system more reliable in cold weather. This method works well for utilities that work in remote areas where installing compressed air infrastructure would be hard.

Pneumatic designs have the quickest working times—they can open in less than 40 milliseconds—which makes them useful for situations where fault separation needs to happen quickly. But they depend on air compressor systems, which need to be maintained. Utilities that already have a system for compressed air can use it to add pneumatic features to their tools without spending a lot of money.

Availability of utilities, ambient conditions, required operating speed, and maintenance capabilities are some of the site-specific factors that affect the best choice. Our expert teams work with project managers to look at these factors and suggest setups that meet both short-term performance needs and long-term operational goals.

Procurement Guidance for Porcelain Type SF6 Circuit Breakers

Quality Assurance and Standards Compliance

All circuit breakers should pass IEC 62271-100 and other national standards via type testing at recognised laboratories. Request official test results on short circuit breakdown, dielectric withstand voltage, mechanical durability, and temperature increase. These publications demonstrate that plans fulfil public scores.

Factory acceptance testing is supplementary verification. Before shipping, witness testing checks individual manufacturing units for appropriate assembly and operation. Contact resistance (micro-ohm levels for excellent contact alignment), SF6 gas leaks (annual leakage less than 0.5%), and partial discharge (insulation integrity with readings below 5 picocoulombs at rated voltage) are key tests.

Quality control in production is as vital as product testing. ISO 9001 and ISO 14001 certifications demonstrate organised quality management and environmentally sustainable manufacturing. Tracking documentation from suppliers should link items to inspection data. This allows field issues to be traced.

Evaluating Supplier Capabilities

• Production capacity: Large substation projects with tight delivery timeframes may need 10–15 breaker units. Make sure manufactures produce enough to fulfil project deadlines without sacrificing quality. Visit factory locations to see manufacturing and quality control.
• Technical Support: High-voltage equipment installation, starting, and repair for a Porcelain Type SF6 Circuit Breaker need expertise. Suppliers should provide installation manuals, commissioning procedures, and maintenance guidelines in your technical teams' language. On-site commissioning helps ensure quality and provides maintenance workers new skills.
• To ensure equipment longevity, spare parts such operating mechanism parts, seal kits and SF6 gas should always be accessible. Make sure purchasing contracts include spare part costs and delivery timelines. This prevents escalating expenses or longer lead times following equipment delivery.
• After-Sales Service: Fix timeframes for technical issues and emergencies. How effectively does the supplier's service network cover your company area? Remote diagnostics, which analyse working data to discover new issues, prevent unexpected breakdowns.

Contract Considerations

• Performance Guaranties: Contracts should include minimum performance parameters like breaking strength, mechanical endurance, and maximum SF6 leakage rates, as well as ways to fix problems if the delivered equipment fails acceptance testing. Before finalizing agreements, make sure that testing protocols and acceptance criteria are well-defined.
• Terms of the Warranty: Standard warranties usually last for 18 to 24 months from the date of commissioning or 30 months from the date of shipment, whichever comes first. Talk about getting longer warranties for important parts like the operating mechanisms. This could give you coverage for up to five years. Know what the guarantee doesn't cover—damage caused by bad fitting or use usually isn't covered.
• Delivery and Logistics: Porcelain parts need to be carefully packed and moved around. Set clear rules for packaging, make sure that shipping risks are shared fairly, and think about getting insurance for fragile packages. Plan delivery times around building stages to avoid storage problems on job sites.
• Payment Terms: Suppliers need to balance their cash flow needs with buyer safeguards. Down payments (20–30%), progress payments (30–40%) based on manufacturing milestones, and retention amounts (10–20%) released after successful commissioning are all common structures. Letters of credit protect transactions that take place between countries.

Working with well-known sellers like Xi'an Xikai Medium & Low Voltage Electric Co., Ltd. makes purchasing easier by using their tested production skills, wide range of products, and many years of project experience in many different types of situations.

Future Trends and Sustainability in Porcelain Type SF6 Circuit Breaker Technology

Addressing Environmental Concerns

Gas management is crucial because SF6 causes 23,500 times as much global heat as CO2 over 100 years. Manufacturers limit their environmental effect in several ways. New composite gasket and welded joint sealing methods reduce high-end leakage rates to less than 0.1% per year. Gas monitoring systems discover tiny leaks early to correct them before major spills.

Research is ongoing on additional gases for the Porcelain Type SF6 Circuit Breaker. Mixtures of SF6, nitrogen, and fluoronitrile appear promising. These approaches reduce global warming while maintaining interruption performance. Changes to infrastructure are difficult because new gases may need different interrupter designs and pressure ratings. Purchasers should monitor these developments and prepare to replace equipment with newer, safer technologies when they become more popular.

Gas recycling solutions save maintenance and shutdown waste. Specialised service companies clean SF6 from obsolete equipment to standards and utilise it in new units. Initial procurement contracts should include decommissioning plans to ensure gas is handled properly when equipment is retired.

Smart Grid Integration

Modern substations require more than circuit protection. Operating data is needed for planned maintenance and grid improvement. Digital monitoring systems may be added to new or present breakers to monitor mechanism performance, contact wear, SF6 gas pressure and temperature, and interruption duty.

SCADA systems and asset management platforms employ condition-based repair plans using this data. Utilities only service equipment when tracking indicates new issues, not on scheduled dates. This strategy reduces maintenance costs and prevents unanticipated issues via early detection.

IoT enables trained professionals to remotely test breaker units without visiting the location. Operations personnel get real-time status reports from mobile applications to identify issues. Companies who manage assets in several locations and on hard terrain benefit from these characteristics.

Lifecycle Cost Optimization

The total cost of ownership includes a lot more than just the purchase price. It includes the costs of installation, running the business, doing maintenance, and eventually shutting down. More and more, these lifetime factors are being taken into account when making procurement choices instead of just looking at beginning costs.

During standby and switching operations, energy-efficient operating mechanisms use less power. Even though the savings per breaker may not seem like much, they add up when large fleets of equipment are used for decades. Modular designs make repairs easier by letting you change parts without taking the whole breaker apart. This cuts down on the time and money needed for upkeep and repairs.

Longer periods between repair are very valuable. If you check your equipment every five years instead of once a year, you'll save money on direct repair costs and planned downtime, which means less lost production. Our LW25 line gets 25-year check intervals for sealed parts, which is an example of this method.

It's also important to think about residual value. Breakers that are well taken care of keep their secondary market value, which lowers the cost of replacement when equipment is upgraded. This surplus value is kept safe by picking designs with well-established service networks and ongoing help for spare parts.

Conclusion

By mixing strong materials with cutting edge technology, Porcelain Type SF6 Circuit Breaker units have been shown to work well in high-voltage transmission systems. These parts are necessary in 126kV and 145kV substations around the world because they can withstand harsh outdoor conditions and provide reliable fault protection. Procurement success requires understanding operating principles, evaluating technology tradeoffs, verifying quality through rigorous acceptance testing, and partnering with suppliers capable of supporting equipment throughout its lifecycle. As rules about the environment get stricter and grid modernization speeds up, utilities and EPC companies can choose breakers that have low emissions, digital tracking, and the lowest lifecycle costs. This will help them be successful in the long run.
