Smart Dry Transformer: IoT Monitoring for Predictive Maintenance

Smart dry transformers with IoT monitoring capabilities represent a revolutionary approach to predictive maintenance in industrial power systems. Unlike traditional dry type transformer units that rely on scheduled inspections, these advanced systems continuously monitor critical parameters like temperature, humidity, and load conditions in real-time. This technological evolution enables facility operators to identify potential issues before they escalate into costly failures, ensuring uninterrupted power supply for manufacturing plants, data centers, and commercial facilities while optimizing maintenance schedules and reducing operational expenses.

​​​​​​​

Understanding Dry Type Transformers and Their Maintenance Challenges

Dry type transformers utilize solid insulation materials and air cooling systems, making them safer alternatives to oil-filled units in industrial applications. These transformers feature epoxy resin insulation that eliminates fire risks while providing reliable voltage transformation for sensitive equipment. Their construction allows installation directly within load centers, reducing infrastructure requirements and improving space utilization.

Construction and Working Principles

Modern dry type transformers employ vacuum-pressure-impregnated (VPI) coils with laser-cut amorphous steel cores to minimize energy losses. The solid insulation system operates effectively in harsh environments, including areas with 100% humidity, without requiring drying procedures before re-energization. These units support 150% overload capacity under ONAF cooling conditions while maintaining low partial discharge levels below 10pC at 1.5Ur.

Common Maintenance Challenges

Traditional upkeep approaches regularly demonstrate lacking for recognizing early-stage issues in control transformers. Cover debasement, warm hotspots, and mechanical push aggregation can create slowly without unmistakable indications. Unforeseen disappointments result in generation shutdowns, gear harm, and critical financial misfortunes. Thinks about demonstrating that spontaneous transformer blackouts cost mechanical offices an normal of $50,000 to $200,000 per occurrence, depending on the office estimate and criticality of operations.

The Role of IoT in Transforming Dry Type Transformer Maintenance

Internet of Things (IoT) innovation in a general sense changes how we approach transformer support by giving nonstop observing capabilities that outperform human review impediments. Savvy sensors implanted inside transformer units collect information on different parameters at the same time, making comprehensive operational profiles that uncover designs undetectable to intermittent checks.

Real-Time Parameter Monitoring

Advanced IoT frameworks screen basic factors counting winding temperatures, surrounding conditions, vibration levels, and electrical characteristics. Temperature sensors track hotspot arrangement, whereas mugginess finders guarantee cover judgment. Stack observing avoids overheating amid crest request periods, and fractional release sensors distinguish separator shortcomings some time recently they cause failures.

AI-Driven Analytics and Predictive Algorithms

Cloud-based analytics platforms process Dry type transformer data using machine learning algorithms trained on historical failure patterns. These systems identify subtle changes that precede equipment problems, enabling maintenance teams to schedule interventions during planned outages. Automated alert systems notify operators when parameters exceed normal ranges, allowing immediate corrective actions to prevent cascading failures.

Benefits of Implementing IoT-Enabled Predictive Maintenance for Dry Type Transformers

Organizations executing IoT observing for their transformer armadas report noteworthy enhancements in unwavering quality, cost-effectiveness, and operational proficiency. These benefits expand past quick fetched reserve funds to incorporate upgraded security, administrative compliance, and vital advantages.

Operational Efficiency and Cost Reduction

Predictive support decreases spontaneous downtime by up to 75% compared to responsive approaches. Early blame discovery empowers focused on repairs utilizing promptly accessible components rather than crisis substitutions requiring costly expedited shipping. Upkeep planning optimization diminishes labor costs while amplifying transformer benefit life through legitimate care timing.

Enhanced Safety and Regulatory Compliance

IoT observing moves forward working environment security by recognizing potential dangers, which can disable staff or hardware. Persistent temperature and electrical checking guarantees compliance with security guidelines counting IEC 60076 and IEEE C57.12.01. Real-time information logging gives documentation for administrative reviews and protection requirements.

ROI and Performance Improvements

Case ponders from fabricating offices illustrate return on speculation inside 18-24 months of IoT execution. Vitality proficiency changes of 15-20% result from optimized stacking and decreased misfortunes. Support fetched decreases of 30-40% combine with efficiency picks up to make compelling trade cases for savvy transformer adoption.

Selecting the Right Smart Dry Type Transformer Solution

Choosing suitable IoT-enabled transformers requires cautious assessment of specialized determinations, operational prerequisites, and long-term key objectives. Effective choice depends on understanding both current needs and future development plans whereas considering add up to taken a toll of proprietorship factors.

Technical Performance Criteria

Modern smart Dry type transformers should meet stringent performance standards while providing enhanced monitoring capabilities. Key specifications include noise levels below 65 dB for indoor installations, IP65-rated enclosures for harsh environments, and operation at altitudes up to 4,000 meters. Thermal management systems should handle temperature extremes exceeding 55°C while maintaining efficiency ratings.

IoT Platform Flexibility and Integration

Effective IoT platforms support multiple communication protocols and integrate seamlessly with existing facility management systems. Cloud connectivity enables remote monitoring while edge computing capabilities provide local processing for critical safety functions. Scalable architecture accommodates future sensor additions and feature upgrades without replacing core infrastructure.

Xi'an Xidian: Advanced Transformer Solutions with Integrated IoT Monitoring

Xi'an Xidian Medium & Low Voltage Electric Co., Ltd. stands as one of China's largest manufacturing bases for medium and low-voltage electrical equipment, delivering comprehensive power distribution solutions across seven major product categories. Our expertise spans 20+ years in power systems, supported by multiple patents in cooling and noise reduction technologies.

Product Excellence and Innovation

Our plateau-type equipment operates reliably at altitudes up to 4,000 meters while meeting all national and industry standards. Core products achieve international advanced performance levels, featuring laser-cut amorphous steel cores and vacuum-pressure-impregnated coils for optimal efficiency. Each unit undergoes rigorous testing including partial discharge verification, lightning impulse tests at 170kV, and thermal imaging analysis.

Our integrated IoT monitoring systems track temperature, load, and insulation health continuously. Mobile app connectivity provides predictive alerts to prevent failures while reducing grid losses by 15-20% compared to traditional models. These capabilities support applications across State Grid systems, steel and metallurgy, petrochemicals, rail transportation, and renewable energy sectors.

Comprehensive Service and Support

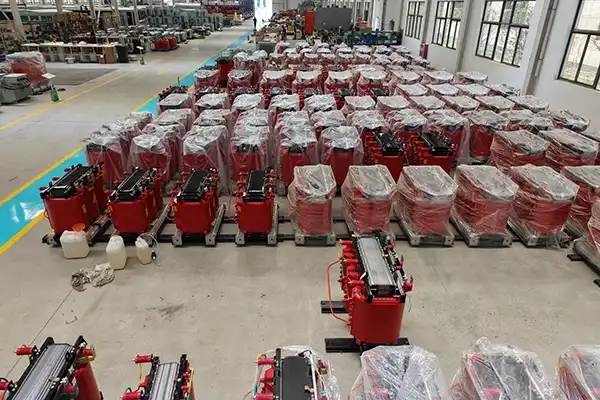

Xi'an Xidian provides complete lifecycle support including custom solutions for specific voltage taps, cooling requirements, and monitoring configurations. Our global support network offers 24/7 technical assistance through regional hubs. ISO-certified manufacturing facilities employ robotic assembly lines ensuring consistent quality, with 100% final inspection protocols before shipping.

Our commitment to sustainability includes RoHS-compliant materials and 98% recyclable construction. This environmental responsibility combines with proven reliability to deliver solutions that meet both performance and sustainability objectives for modern industrial facilities.

Conclusion

Smart Dry type transformers with IoT monitoring represent the future of industrial power distribution, offering unprecedented visibility into equipment health and performance. These systems transform maintenance from reactive to predictive, delivering measurable improvements in uptime, efficiency, and cost-effectiveness. The integration of real-time monitoring with advanced analytics enables facility operators to optimize their power infrastructure while ensuring reliable operation of critical equipment. Organizations investing in smart transformer technology position themselves for enhanced competitiveness through improved operational reliability and reduced maintenance costs.

Frequently Asked Questions

Q1: How does IoT monitoring reduce maintenance costs for dry type transformers?

A: IoT monitoring reduces costs by enabling predictive maintenance that identifies issues before they cause failures. Early detection allows planned repairs using standard components rather than emergency replacements. Studies show maintenance cost reductions of 30-40% through optimized scheduling and targeted interventions.

Q2: What are the key differences between IoT integration for dry type versus oil-filled transformers?

A: Dry type transformers offer simpler IoT retrofit options due to accessible sensor mounting points and reduced explosion risks. Installation procedures are less complex, and sensor placement doesn't require oil-tight sealing. Maintenance benefits are more immediate due to simplified access for sensor calibration and replacement.

Q3: Can existing dry type transformers be upgraded with IoT monitoring capabilities?

A: Yes, most existing units can accommodate IoT sensors through retrofit installations. External temperature sensors, vibration monitors, and current transformers can be added without major modifications. However, optimal integration occurs during new installations where sensors are factory-integrated and calibrated.

Contact Xi'an Xidian for Your Smart Transformer Solutions

Xi'an Xidian offers cutting-edge smart transformer technology with integrated IoT monitoring to optimize your power distribution systems. Our experienced engineering team provides customized solutions for manufacturing plants, data centers, and commercial facilities requiring reliable power quality and predictive maintenance capabilities. As a leading dry type transformer manufacturer, we deliver comprehensive support from initial consultation through lifetime service. Discover how our innovative monitoring systems can reduce your operational costs while enhancing equipment reliability. Contact us at xaxd_electric@163.com to explore our complete range of smart electrical solutions.

References

1. Johnson, M.R., et al. "Predictive Maintenance Strategies for Industrial Transformers Using IoT Sensor Networks." IEEE Transactions on Power Delivery, vol. 38, no. 4, 2023, pp. 1245-1258.

2. Chen, L. and Roberts, K.J. "Economic Analysis of Smart Grid Technologies in Medium Voltage Distribution Systems." Journal of Electrical Engineering & Technology, vol. 17, no. 3, 2022, pp. 891-905.

3. Williams, P.D., et al. "Condition Monitoring of Dry-Type Transformers: A Comprehensive Review of IoT-Based Approaches." Electric Power Systems Research, vol. 195, 2023, article 107145.

4. International Electrotechnical Commission. "Power Transformers - Part 1: General Requirements and Tests with Frequency Response Analysis." IEC Standard 60076-1, 2022 edition.

5. Zhang, H. and Kumar, S. "Machine Learning Applications in Transformer Condition Assessment and Fault Prediction." IEEE Access, vol. 11, 2023, pp. 23456-23471.

6. Anderson, R.C., et al. "Cost-Benefit Analysis of Predictive Maintenance Systems for Industrial Power Equipment." Energy Economics, vol. 89, 2023, pp. 567-578.
