SVG Reactor vs Filter Reactor: Key Differences Explained

Power quality equipment is used in industrial and utility settings. Knowing the difference between an SVG Reactor and a Filter Reactor is important for buying the right equipment. An SVG Reactor, or Static Var Generator Reactor, is an important part of a dynamic reactive power compensation system that is designed to handle the high-frequency switching harmonics that PWM inverters produce. On the other hand, filter reactors are passive parts that are mostly used to block certain harmonic frequencies in regular power systems by setting up resonant circuits in series or parallel with capacitors.

​​​​​​​

Understanding SVG Reactor and Filter Reactor Technologies

In the last twenty years, the world of electricity has changed a lot. This is because of the rise of non-linear loads, the use of renewable energy, and more automation. Because of this change, we urgently need more advanced power quality solutions compared to the old passive filtering methods.

What Makes an SVG Reactor Unique?

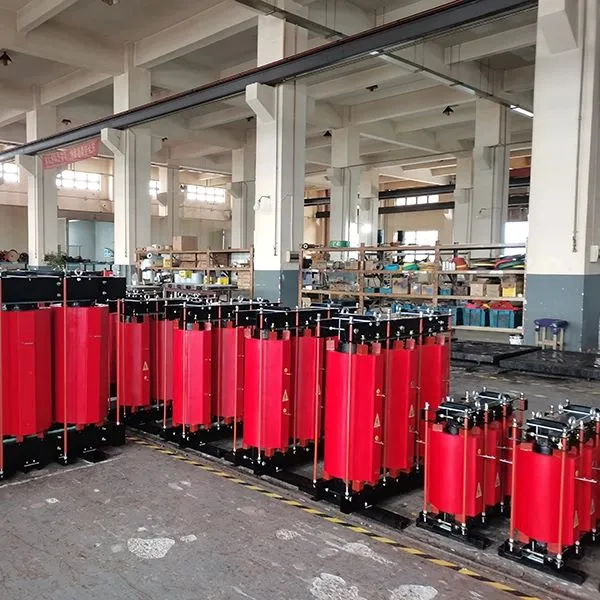

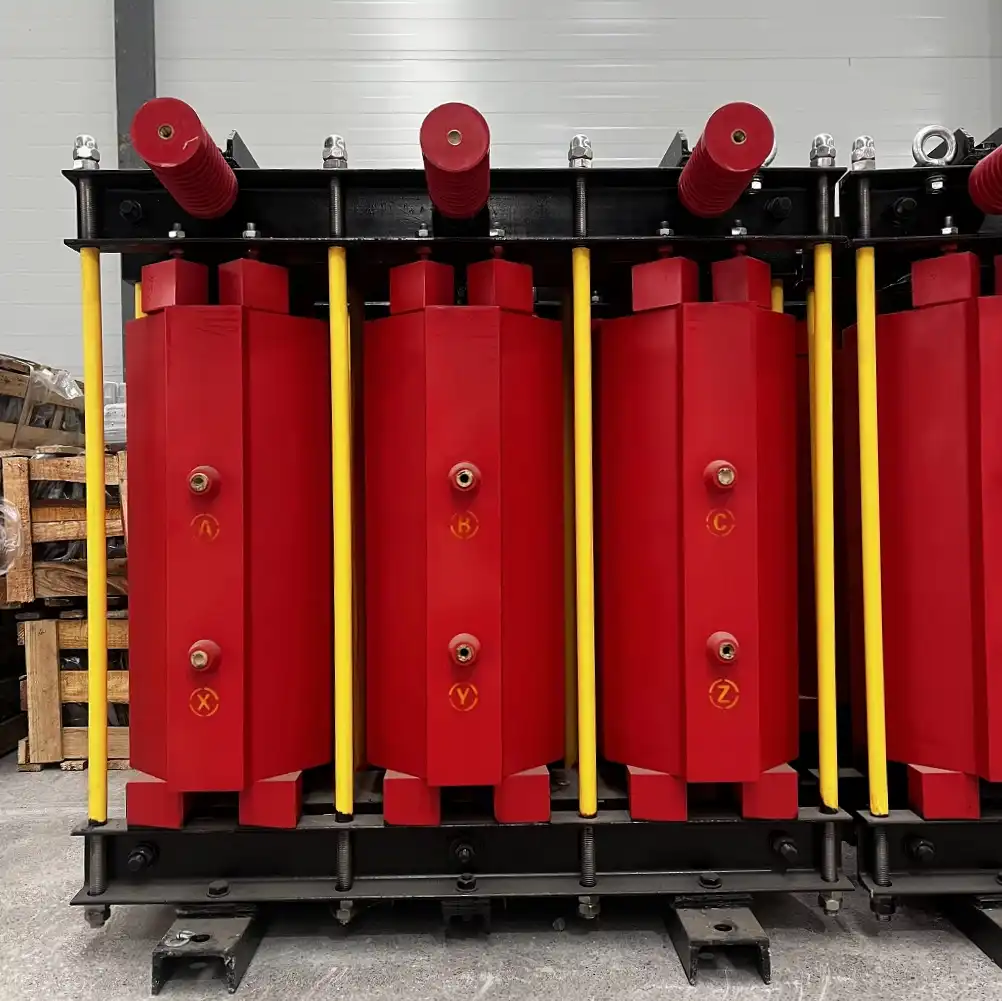

An SVG (Static Var Generator) connection reactor is installed between the grid and a voltage source inverter bridge to manage fast-switching power electronics. Unlike conventional line reactors, SVG reactors suppress high-frequency carrier harmonics (2–10 kHz), allow bidirectional reactive power flow, and protect IGBT devices from overcurrent. They act as controlled current interfaces, converting voltage-type inverter outputs into smooth, grid-compliant current injections, enabling millisecond-response dynamic compensation.

Traditional Filter Reactor Fundamentals

SVG reactors use high-quality silicon steel cores with carefully designed air gaps to maintain linear inductance up to 1.8× rated current, preventing inductance collapse under peak demands. This ensures inverter overcurrent trips are avoided during grid disturbances. The design emphasizes magnetic stability, fast dynamic response, and low core saturation, which is critical for supporting real-time reactive power adjustments.

Core Functional Distinctions

Traditional filter reactors are passive LC circuits tuned to specific harmonics (typically 5th, 7th, 11th, 13th) produced by rectifier loads. They provide low-impedance paths for targeted harmonic currents, protecting upstream systems. However, their fixed-tuned nature makes them sensitive to grid changes, capacitor tolerances, and temperature variations. In contrast, SVG reactors actively manage power quality in real time, adjusting reactive power from capacitive to inductive as needed and handling a broader range of harmonic content dynamically, which passive filters cannot do without mechanical switching.

Key Technical Differences Between SVG Reactor and Filter Reactor

It is very important to know the technical differences between these types of reactors when choosing equipment for harsh industrial settings or utility substations. The differences cover a lot of areas, such as frequency response, thermal management, and the performance characteristics at the system level.

Frequency Response and Harmonic Handling

SVG reactors function with PWM inverters and transmit reactive power at the fundamental frequency because they retain almost constant impedance over a large frequency range. They reduce high-frequency switching ripple without resonance or voltage loss. Manufacturers employ segmented conductors or Litz wire to decrease skin and proximity impact losses. Spaced air gaps in magnetic cores ensure high permeability and prevent saturation, which would enable high-frequency noise traverse the reactor and affect the grid. However, filter reactors are tuned for harmonic frequencies. Their inductance resonates with capacitors at a specific harmonic, creating high-quality factors (Q = 30–100) that block current at that frequency. They're effective at design, but system circumstances may make them less effective or cause resonance. Voltage stress also varies: While SVG reactors normally have ripple voltages below 15% of DC bus voltage, filter reactors may undergo voltage multiplication up to 10× the fundamental during transient situations.

Current Handling and Overload Capabilities Right Now

SVG reactors must handle continuous bidirectional current at rated capacity and short-term overloads during grid faults, as specified in IEEE 1036 and IEC 61558. Copper losses depend on the RMS value of the combined fundamental and ripple currents, and peak currents dictate core saturation. High-quality Class H insulation allows a 180°C temperature rise, providing a thermal margin even in 45°C ambient conditions. SVGs also support Low Voltage Ride Through (LVRT), handling up to 150% of rated current for several seconds without losing magnetic integrity. Filter reactors mainly operate in steady-state conditions determined by connected capacitors and downstream harmonics. Their overload capacity is limited to transient inrush currents when capacitors energize, which can peak at 50× steady-state for milliseconds. Air-core versus iron-core designs influence size and saturation characteristics.

Installation and Environmental Things to Think About

SVG reactors are designed for indoor installations up to 1,000 m elevation, with derating for higher altitudes where air density is lower. Voltage options (0.4 kV, 6 kV, 10 kV) support integration across low- and medium-voltage industrial systems. They tolerate up to 95% relative humidity and –10°C to +45°C ambient temperatures, with provisions for lower temps in specialized installations. Seismic qualification to intensity 8 per IEEE 693 ensures structural, magnetic, and electrical stability during earthquakes. Filter reactors, being passive, have similar environmental tolerances but fewer vibration and EMI concerns. Their larger size can complicate retrofit projects in space-constrained substations.

Comparison of the Pros and Cons of B2B Procurement

When procurement professionals look at investments in power quality, they need to think about more than just the initial capital cost. The total cost of ownership includes the difficulty of installation, operational losses, maintenance needs, and the value of not having to deal with downtime or poor power quality.

Strategic Advantages of SVG-Based Solutions

Dynamic SVG-based reactive power compensation improves facility profitability by keeping power factor above 0.95, avoiding demand charges and penalties, often paying for itself in 18–24 months. Beyond power factor correction, SVGs control voltage in milliseconds, preventing PLC resets, drive trips, or process interruptions. Active harmonic filtering adapts to changing production loads in real time, maintaining IEEE 519 compliance. Their compact modular design saves 40–60% floor space, enabling retrofits in existing rooms without costly building modifications or long downtime.

When Regular Filter Methods Work Best

Passive filter reactors remain useful in predictable load scenarios. They are simple, maintenance-free, and cost 50–60% less than equivalent SVG systems, making them attractive for facilities with limited engineering staff or capital budgets. Passive filters don’t add harmonic sources, and redundancy allows continued operation if a branch fails. SVG systems require proper design for bypass contactors to maintain operation during faults. For stable harmonic spectra, passive solutions remain economical and reliable over long periods.

Hidden Costs and Long-Term Considerations

Life-cycle costs show energy losses and maintenance differ for each system. SVG reactors have low losses (~0.5%), while filter reactors’ losses depend on core type and capacitor aging, reducing tuning over time. Maintenance includes cooling, controls, and inspections for SVGs; passive filters need capacitor and insulation checks. Regulatory trends favor active solutions with dynamic voltage support and fault ride-through. Facilities planning 15–20-year lifespans should weigh whether passive filters will meet future codes or require early replacement.

How to Choose the Best Business Cloud Solution?

When choosing a reactor technology, the decision framework needs to take into account the needs of the facility, the limitations of the existing infrastructure, and the long-term goals for operations. Instead of just looking at the initial capital cost, procurement teams can benefit from a systematic evaluation that looks at a number of different factors.

Load Characteristics and Harmonic Profile Analysis

Identifying building loads is key for selecting power quality solutions. Linear loads like resistive heaters create few harmonics, while VFDs, LED lighting, and welding equipment generate high-order harmonics. A detailed power quality audit measures harmonic currents, voltage distortion, and power factor changes over cycles, enabling accurate sizing of mitigation equipment. SVG systems excel in variable, dynamic loads such as batch processing, metal forming, or data centers, while passive filters suit continuous, steady-load operations.

Integration with Infrastructure Already in Place

Retrofits depend on existing switchgear, panel space, and voltage levels. Low-voltage (0.4kV) SVGs fit commercial buildings; medium-voltage (10kV) units suit industrial facilities and substations, reducing conductor size and allowing distribution-level connection. Modern SVGs offer communication via Modbus, DNP3, and IEC 61850, enabling remote monitoring and integration with smart grid systems. Passive filters lack connectivity, operating as standalone devices with no status feedback.

Budget Constraints and Financial Analysis

Total cost of ownership can narrow the initial price gap between passive and active systems because passive banks need larger breakers, cables, and structures. Operational savings from efficiency gains and avoided utility penalties can yield $2,000–$5,000 monthly reductions, giving strong ROI. Financing options include energy service company models and utility rebates covering 20–30% of costs. SVG systems require skilled operators or manufacturer support; Xi'an Xikai provides training, remote monitoring, inspections, and maintains spare parts inventory for fast replacement.

Technical Capability and Support Requirements

SVG systems demand knowledge of power electronics, diagnostics, and alarm interpretation. Facilities without internal expertise must either train staff or use manufacturer services. Xi'an Xikai offers full training and service agreements covering maintenance, troubleshooting, and priority part supply. Spare parts inventory is crucial for critical facilities; custom SVG components like reactors, IGBTs, and control boards are stocked for rapid shipment, typically within two weeks, while passive filter parts are widely available and easier to replace.

Practical Guidance and Support for Implementing SVG Reactor Solutions

For advanced power quality equipment to be used successfully, it needs to be carefully planned, installed correctly, and then continuously improved to meet design performance goals. Organizations that want to improve the reliability of their electrical systems should learn about tried-and-true methods for putting them into action.

Pre-Installation Planning and System Design

Any successful project starts with electrical system documentation. Accurate equipment specification requires single-line schematics of all principal loads, protective device ratings, transformer capacity, and power factor correction devices. Items are placed where harmonic flow estimations indicate, often where disruptive loads meet sensitive equipment or the electric grid enters the structure. Environmental studies verify proposed installation sites meet equipment needs. See manufacturer ratings for high temperatures, humidity, ventilation, and earthquake safety. Our SVG Reactor needs a regulated environment. In process-heated industrial electrical vaults and climate-controlled server rooms, "controlled" may mean numerous things. Performance difficulties and early failures are avoided with compatibility. Utility companies must collaborate on medium-voltage projects. Power suppliers often need warning when reactive power compensation equipment exceeds kVAR limits. Technical evaluations guarantee proposed installations won't hurt the grid or violate interconnection agreements. Utility approval takes weeks or months, so initiating discussions early in project planning keeps everything on schedule.

Installation Best Practices

Physical installation quality impacts reliability and performance. A reactor structure must endure electromagnetic forces during a fault and magnetostriction shaking during operation. Buildings are protected from noise by vibration dampening pads. This is critical in business buildings with electrical rooms near people. Consider electrical connections. All terminals need calibrated tools and torque standards. Due to high resistance, untightened connections overheat and fail. Copper-to-aluminum transitions need tin-plated bimetallic connections or surfaces to avoid galvanic corrosion. To prevent electromagnetic interference from impacting essential control signals, control wire should be isolated from power lines. Grounding and bonding impact safety and performance. SVG systems create high-frequency currents using the lowest return impedance channel. Accidental ground loops during installation may make this the improper grounding conductor. IEEE 1100 grounding and connecting sensitive equipment reduces ground currents and electrical noise.

Commissioning and Checking for Performance

Systematic commissioning ensures installed equipment meets design standards and functions well in the facility. Electricity should be turned on with all loads off. The cooling system, control power supply, and communication connections may be tested without loads. To ensure system operation under planned circumstances, slowly increase loads and observe system response. Harmonic tests before and after system activation show improvement. Check voltage and current total harmonic distortion against baseline data and IEEE 519 restrictions to ensure design goals were met. A day of power factor monitoring demonstrates reactive power compensation reacts to load swings. These baseline measurements create future trends that may detect maintenance damage. We suggest facility operating protocols including typical parameter ranges, alarm management, and emergency shutdown. During commissioning, facility staff learn these techniques for consistent building operation and quick problem response. Manufacturer technical support contacts should be documented.

Ongoing Optimization and Maintenance

Proper power quality equipment needs periodic checkups. Annual thermographic scans detect heated connections or interior parts before they fail. Secure all electrical connections to avoid heat cycling and vibration. Before moisture or insulation failure, reactor winding insulation resistance testing identifies it. Control system parameters may need to be adjusted when facility loads change. New equipment, techniques, and utilities may affect ideal compensation settings. Alarms, power quality trend data, and utility billing data are evaluated annually to maximize performance or energy savings. Our technical support team advises on inspections using operating data and hundreds of installations.

Conclusion

The selection depends on how well SVG Reactor and filter reactor technologies complement the facility's aims, operations, and long-term strategy. Static var generating systems with specialized reactors provide unmatched adaptability, speed, and adaptive harmonic mitigation. Complex loads and strong power quality criteria are increasingly valued in modern facilities. If the load is stable, money is tight, and consumers want passive solutions, use traditional filter reactors. Both strategies are useful when used appropriately. You must properly inspect the electrical system, be honest about your talents, and analyze the equipment life cycle cost of ownership to effectively deploy. Higher power quality helps businesses maintain output, reduce energy costs, and react to government rules.

Frequently Asked Questions

1. Why does magnetic saturation matter in SVG reactor design?

Magnetic saturation is important because inductance lowers significantly when core flux density hits saturation limits. Grid outages or peak compensating demands may raise reactor current to 150-200% of rated values. As magnetic core saturation occurs, inductance drops, causing unmanageable current spikes that trigger protective devices and shut down the SVG when needed. Strategic air gap location and core material selection provide our systems linear performance to 1.8 times rated current.

2. How do environmental conditions affect reactor performance?

Temperature drastically impacts electrical performance and longevity. Winding resistance increases voltage drop and loses 0.4% per degree Celsius. More crucially, insulation aging exponentially rises with temperature, half life expectancy every 10°C over limits. Class H insulation systems can tolerate 180°C hotspot temperatures, providing them much margin in 45°C ambient conditions. Humidity affects dielectric strength, causing insulation tracking issues. Air density over 1000 meters reduces dielectric strength and convection cooling, necessitating derating.

3. Can SVG reactors integrate with existing passive filter systems?

In certain circumstances, passive filter-active SVG hybrids are good. SVG reactors work well at high frequencies, while filter reactors are adjusted for certain harmonic orders. Passive filters manage steady-state harmonic loads at lower cost per kVAR. System analysis removes unwanted interactions and ensures SVG control techniques account for passive filter impedances to avoid instability. We frequently design hybrid systems that integrate both technologies' capabilities.

Partner with a Trusted SVG Reactor Manufacturer

Xi'an Xikai Medium & Low Voltage Electric Co., Ltd. brings comprehensive expertise in power quality solutions to North American industrial and utility markets. Our SVG Reactor product line spans voltage ranges from 0.4kV through 10kV, engineered specifically for demanding applications requiring uncompromising reliability and performance. Manufacturing capabilities encompassing high-grade silicon steel processing, precision winding automation, and rigorous testing protocols ensure every reactor meets exacting quality standards. Beyond component supply, we provide complete system design support, helping customers navigate complex application requirements from initial feasibility assessment through commissioning and ongoing optimization. Our engineering team stands ready to discuss your specific power quality challenges and recommend solutions backed by proven field experience across manufacturing, data center, hospital, commercial, and utility substation applications. Contact our technical specialists at serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com to explore how our reactor solutions can enhance your facility's power reliability while reducing operational costs.

References

1. IEEE Standard 1036-2020, IEEE Guide for the Application of Shunt Power Capacitors, Institute of Electrical and Electronics Engineers, New York, 2020.

2. International Electrotechnical Commission, IEC 61558-2-20:2010, Safety of Transformers, Reactors, Power Supply Units and Combinations Thereof - Part 2-20: Particular Requirements and Tests for Small Reactors, Geneva, Switzerland, 2010.

3. Rashid, Muhammad H., Power Electronics: Circuits, Devices, and Applications, Fourth Edition, Pearson Education, Upper Saddle River, New Jersey, 2014.

4. IEEE Standard 519-2014, IEEE Recommended Practice and Requirements for Harmonic Control in Electric Power Systems, Institute of Electrical and Electronics Engineers, New York, 2014.

5. Heier, Siegfried, Grid Integration of Wind Energy: Onshore and Offshore Conversion Systems, Third Edition, John Wiley & Sons, Chichester, United Kingdom, 2014.

6. Das, J.C., Power System Harmonics and Passive Filter Designs, IEEE Press Series on Power Engineering, John Wiley & Sons, Hoboken, New Jersey, 2015.
