Techniques for Controlling Iron Loss and Temperature Rise in Dry-type Reactors
2026-05-21 15:41:04
When handling the quality of the power in factories, data centers, or utility systems, it is very important to pick the right reactive power adjusting equipment. Dry-type Iron Core Reactors are a good choice because they work well, are safe, and don't hurt the environment. These units do not use oil to cool down; instead, they use air cooling and solid shielding. This means they can be used inside and in environmentally friendly places. To protect tools, improve power quality, and lower long-term costs, buying teams, engineers, and building workers need to know how they are made, how they work, and what they can be used for.
 |
 |
Understanding Iron Loss and Temperature Rise in Dry-Type Reactors
The Mechanics Behind Iron Loss
In the heart of a Dry-type Iron core Reactor, sheets of grain-oriented silicon steel are stacked and glued together to keep eddy current losses as low as possible. When engineers cut the core into pieces, they make sure that each piece has air holes in it. Since the iron core is magnetic, it can be tuned very precisely, allowing it to soak up harmonic currents before they spread through the network. With this design, the linear inductance stays the same even when there are a lot of loads on it, and the energy loss is kept to a minimum.
Sources of Temperature Rise
With either natural or controlled air flow, the temperature rise in a Dry-type Iron Core Reactor can be controlled. As long as the air flow is always on, the temperature rise should not be more than 95°C. With this mild heat, the close equipment isn't as stressed by the heat, and air can flow more easily than with options that use oil to cool, which need their own cooling systems. Localised saturation can't happen if you handle heat properly, and the system will always work the same way, even if conditions change.
Industry Standards and Thermal Limits
The thermal class number of the insulation tells you the highest temperature that it can reach during operation. Class F insulation (155°C) works well in most indoor settings, while Class H insulation (180°C) provides a higher safety margin for error in hot areas or situations where you need to handle excessive power. When measuring temperature rise, it is important to note the type of cooling used, such as natural airflow versus forced air, since these have a significant impact on maintaining safety thresholds and overall thermal Dry-type Iron Core Reactors performance.
Proven Techniques for Controlling Iron Loss in Dry-Type Reactors
Advanced Core Material Selection
Choosing the right core materials is very important for lowering eddy current and hysteresis losses. Layered cores made of stacked pieces of grain-oriented silicon steel are used in modern designs. Because of these materials, the Dry-type Iron Core Reactor can achieve an inductance density that is 60–70% higher than air-core options. Manufacturers can make units that are more efficient (usually between 98.5% and 99.2%) while taking up less room and costing less to build by using high-quality magnetic materials.
Optimized Core Geometry and Air-Gap Design
Core shape optimisation is done by engineers who carefully cut core pieces with air holes into groups. The split structure keeps the magnetic field from becoming too strong, so the reactor always works the same way, even when the load changes. Because this design has a limited magnetic flux, the Dry-type Iron Core Reactor can be put in metal cases without causing unwanted flowing currents in nearby structures. This lowers vibration and the noise that comes with it even more.
Manufacturing Process Innovations
In advanced manufacturing, vacuum pressure is used to soak windings in epoxy glue. This makes a shield that keeps water out and can handle changes in temperature and stress. By adding glass fibres to the structure, it gets stronger. This lets the coil handle short-circuit forces that are more than 100 times the maximum current. When the lid is closed this way, there is almost no partial discharge activity. This makes the insulation safer and makes sure the Dry-type Iron Core Reactor lasts longer in tough industrial settings.
Strategies for Managing Temperature Rise Effectively
Natural and Forced Cooling Optimization
Thermal performance is sustained through either natural or managed air flow (AN or AF). Natural airflow provides a reliable and cost-effective solution for standard environments, while forced air cooling enables higher power densities and more compact installations. These cooling configurations ensure that the temperature rise of a Dry-type Iron Core Reactor is strictly controlled, typically staying below 95°C under rated load conditions, which minimizes thermal stress on adjacent electrical components and improves system's Dry-type Iron Core Reactor longevity.
Intelligent Monitoring and Predictive Maintenance
Embedded sensors that track temperature, shaking, and partial discharge activity in real time are a trend in technology that will continue to grow. Industrial IoT protocols let these sensors send data to centralised management systems. Machine learning algorithms look at these thermal trends and can tell when the Dry-type Iron Core Reactor needs maintenance before it changes the quality of the power. This proactive method helps with Industry 4.0 goals and keeps sensitive data center storage or medical life-support systems from going down without warning.
Installation Best Practices
Installation instructions are very important for cutting down on the time it takes to set up and avoiding damage from bad handling or connection mistakes. Manufacturers often send people out into the field to watch the initial activation to make sure everything is working right and to record baseline temperature measures for later use. When choosing a site, it's important to leave enough space for cooling, especially in urban substations or electrical rooms on high floors where space is limited, so that heat doesn't build up around the Dry-type Iron Core Reactor.
Comparing Dry-Type Reactors with Other Reactor Types Regarding Thermal and Iron Loss Control
Dry-Type Versus Oil-Immersed Reactors
With a Dry-type Iron Core Reactor, there are no fire risks or environmental problems that come with oil-immersed types. Regular fluid analysis, filters, and leak tracking are needed for oil-filled units. On the other hand, dry-type designs don't need dissolved gas analysis or fluid refills. In the past, oil-immersed systems were used for higher voltages. These days, dry-type systems are better for indoor setups near people because they don't need special fire suppression or liquid containment systems.
Performance Characteristics of Cast Resin Alternatives
A Dry-type Iron Core Reactor has a much higher inductance density than options that use air cores. They don't have a magnetic core, so they make strong random magnetic fields that can heat up nearby metal structures without permission. Because of this, air-core reactors need copper windings that are a lot bigger and a lot more space around them when they are installed. The iron core design, on the other hand, keeps the magnetic flux in a smaller area. This reduces unwanted electromagnetic radiation and makes it possible to put in electrical rooms that are already there.
Leading Manufacturers and Technology Benchmarks
Well-known companies offer a lot of scientific information, like detailed sketches and test results from outside sources that prove they meet international standards. Reliable providers keep a stock of standard ratings and can also make adjustments for special needs, like high altitudes or corrosive environments. To make sure a Dry-type Iron Core Reactor will work for a long time, buying teams should look at the manufacturer's test results that show stable inductance and high thermal efficiency across the whole working range.
Maintenance Tips and Best Practices to Sustain Performance
Routine Inspection Protocols
Systematic maintenance for a Dry-type Iron Core Reactor includes visual checks Dry-type Iron Core Reactors for dirt on the surface, thermal imaging to find hotspots that mean connections are weak, and regular tests of insulation resistance. Since there is no oil, maintenance is simpler and does not involve handling hazardous fluids. Annual visual inspections and thermal surveys are sufficient for most units operating within rated parameters, with more detailed insulation testing conducted every three to five years to verify dielectric integrity.
Preventive Load Management
Linearity requirements ensure that the reactor speed stays the same even when the load changes. High-quality designs can handle short-term overloads, such as motor starts or capacitor switching states, by maintaining rated reactance up to 1.35 times the standard current without getting too hot. Effective load management keeps the Dry-type Iron Core Reactor within its recommended thermal limits, ensuring that transformers are less stressed and capacitors last longer, ultimately extending the service life of the entire power system.
Strategic Component Replacement and Supplier Partnerships
Establishing relationships with responsive technical teams minimizes downtime when questions arise during routine modifications or system repairs. Suppliers provide simulation modeling and application engineering assistance to specify the optimal reactor configuration for specific power quality objectives. Ongoing support includes troubleshooting assistance and the availability of replacement parts, ensuring that a Dry-type Iron Core Reactor can reach its expected service life of more than 25 years with predictable wear patterns.
Conclusion
Dry-type Iron Core Reactors deliver essential power quality management across diverse industrial, commercial, and utility applications. Their oil-free construction eliminates environmental hazards while providing reliable harmonic filtering, reactive power compensation, and current limiting functions. Compared to alternative technologies, they offer balanced performance combining compact dimensions, contained magnetic fields, and straightforward maintenance requirements. Successful specification requires careful analysis of electrical parameters, environmental conditions, and supplier capabilities. As power systems grow more complex with renewable energy integration and increasing electronic loads, these reactors continue evolving through materials innovation and smart monitoring technologies that enhance operational visibility and reliability.
FAQ
1. How does controlling iron loss improve power quality?
Controlled iron loss ensures that the reactor can be tuned very precisely to soak up harmonic currents—specifically the 5th, 7th, 11th, and 13th harmonics—before they spread through the network. By reducing these distortions, the Dry-type Iron Core Reactor prevents sensitive process controls from tripping and helps facilities avoid extra charges from power companies for bad power quality. This stabilization allows computers, imaging equipment, and storage systems in data centers or hospitals to stay safe even when the load changes.
2. What are the key indicators of reactor overheating?
Key operational indicators of overheating include thermal imaging revealing hotspots at weak connections and visual surface contamination that impedes airflow. If a Dry-type Iron Core Reactor is operating outside its recommended thermal class (such as Class F or Class H), it may experience nuisance tripping of protective devices or increased audible noise from thermal stress. Implementing continuous monitoring for temperature and vibration can provide early warnings, preventing emergency failures that stop production or harm solid-state parts in storage systems.
3. Can reactors be customized for specific temperature control requirements?
Yes, manufacturers routinely customize reactance percentages, voltage ratings, and thermal classes to match specific application needs. Custom designs for a Dry-type Iron Core Reactor can accommodate unusual dimensions, specialized mounting configurations, or extreme environmental conditions, including high altitude and corrosive atmospheres. Suppliers provide simulation modeling during the quotation phase to demonstrate how custom reactance numbers or multi-step filter configurations will perform under specific site-specific thermal and electrical constraints.

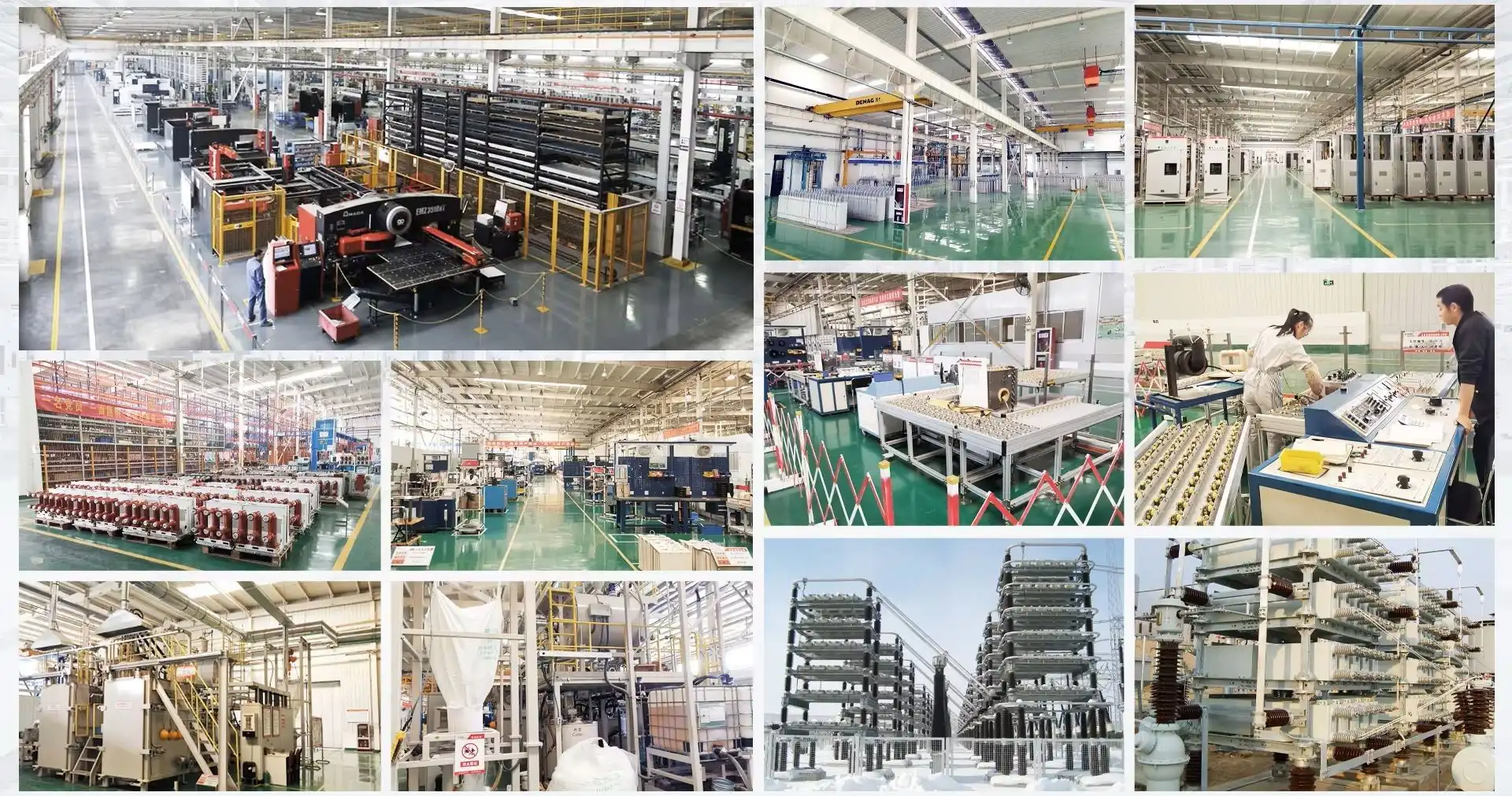

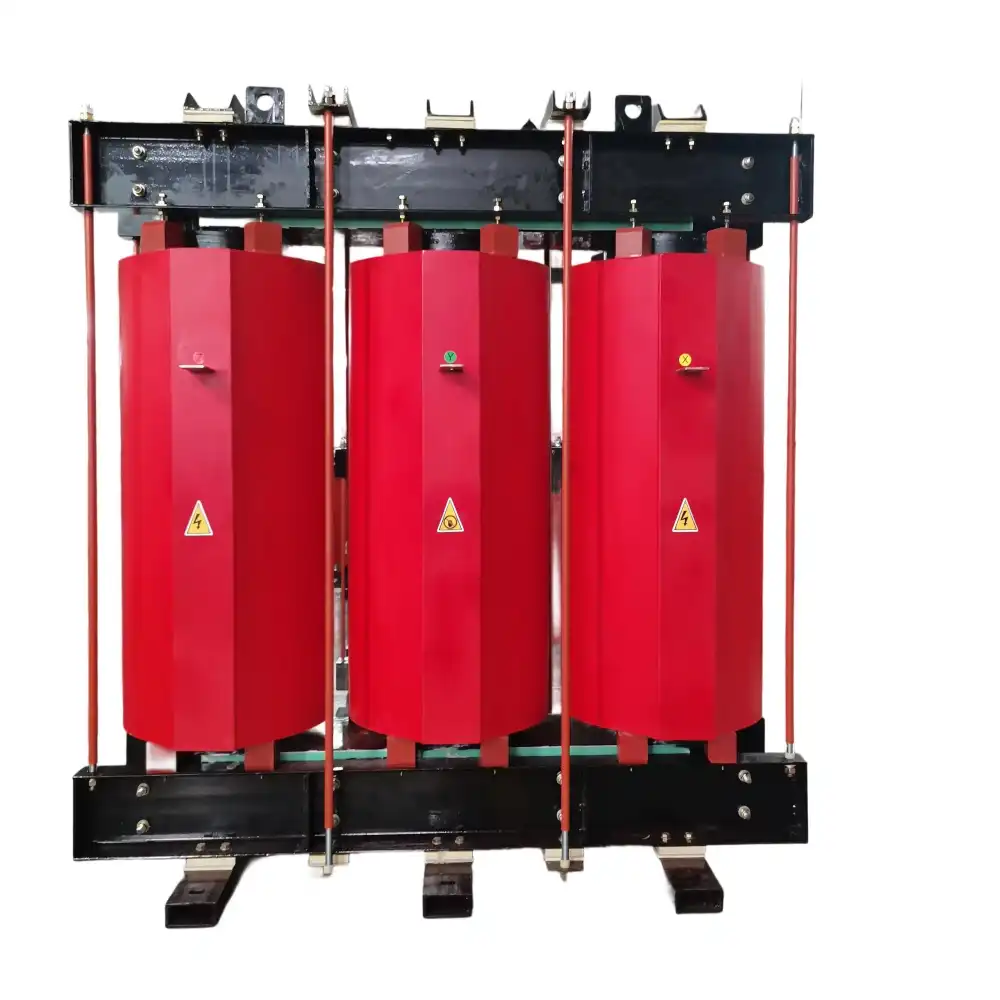

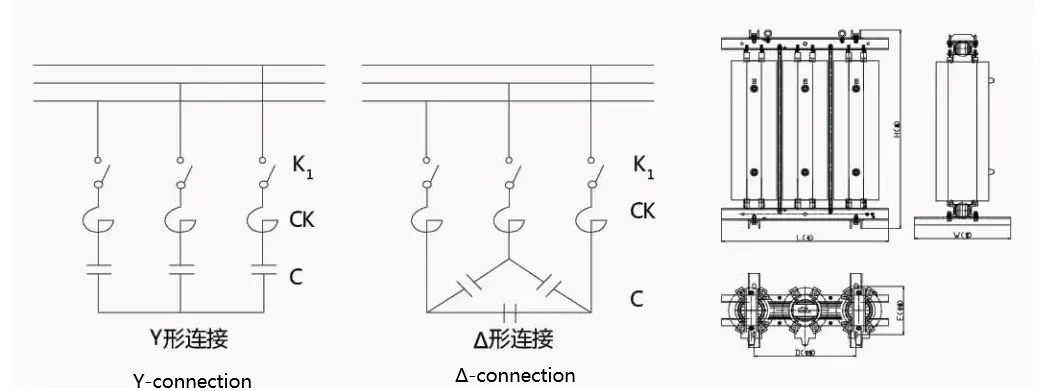

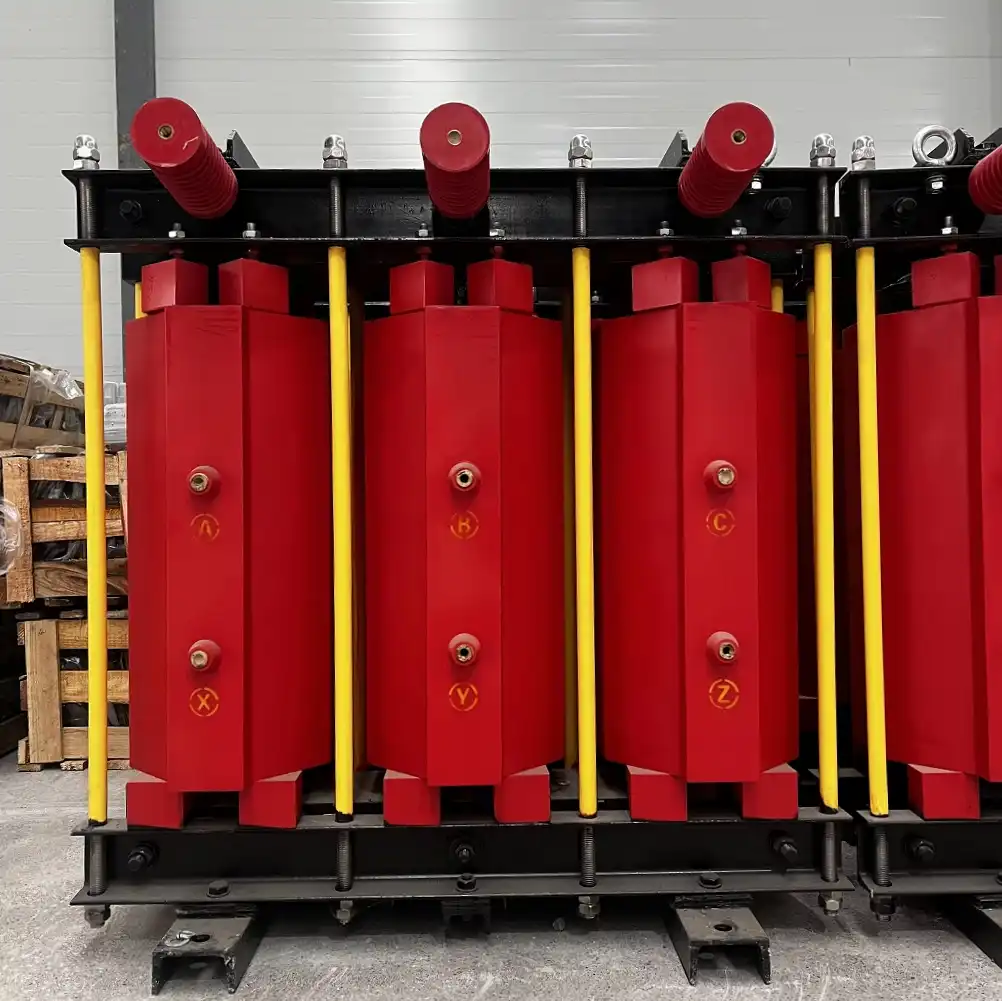

Partner with Xi'an Xikai for High-Performance Dry-type Iron Core Reactor Solutions
Xi'an Xikai delivers engineered power quality solutions through our advanced CKSC series, designed specifically for demanding industrial and utility applications. Our vacuum-cast epoxy resin technology ensures superior moisture resistance and mechanical strength, while segmented air-gap cores achieve noise levels below 75 dB—critical for urban substations and commercial installations. As a trusted Dry-type Iron Core Reactor manufacturer with over 500 installations across 20 countries, we combine proven reliability with customization capabilities, meeting voltage requirements up to 110kV. Our technical team provides comprehensive support from specification development through commissioning, backed by 30+ patents in thermal management and noise reduction. Contact our specialists at serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com to discuss your power quality challenges and receive tailored reactor solutions that enhance system stability while meeting stringent safety standards.
References
1. Institute of Electrical and Electronics Engineers. IEEE Standard C57.16-2011: Standard for Requirements, Terminology, and Test Code for Dry-Type Air-Core Series-Connected Reactors. IEEE Standards Association, 2011.
2. International Electrotechnical Commission. IEC 60076-6: Power Transformers - Part 6: Reactors. IEC Publications, 2017.
3. Chapman, Stephen J. Electric Machinery Fundamentals, Fifth Edition. McGraw-Hill Education, 2012.
4. Sen, P.C. Principles of Electric Machines and Power Electronics, Third Edition. John Wiley & Sons, 2014.
5. National Electrical Manufacturers Association. NEMA ST 20: Dry-Type Transformers for General Applications. NEMA Standards Publication, 2018.
6. Kulkarni, S.V. and Khaparde, S.A. Transformer Engineering: Design, Technology, and Diagnostics, Second Edition. CRC Press, 2013.
