Top Active Power Filters for Energy Efficiency in 2026

In 2026, improved active power filter systems lead industrial power quality control. These smart devices actively reduce harmonic distortions and reactive power imbalances that weaken equipment and raise energy expenses. Leading manufacturers offer modular, scalable systems with real-time compensation technology to boost efficiency in factories, data centers, hospitals, and utility substations. Maintaining uptime and bottom-line profitability requires the correct harmonic mitigation solution as regulatory standards tighten and operational demands increase.

Understanding Active Power Filters and Their Role in Industrial Energy Efficiency

Clean, reliable electricity is unprecedentedly difficult for modern industrial operations. Variable frequency drives, switching power supplies, and LED lighting systems pump harmonic currents into distribution networks, causing equipment overheating, nuisance breaker trips, and low transformer longevity. This requires advanced power quality equipment.

How Active Power Filters Work

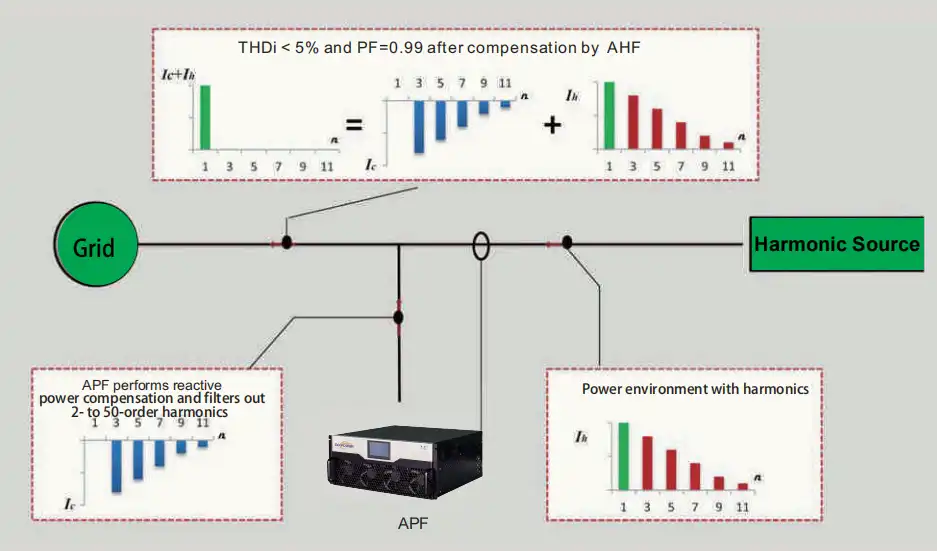

Active power filter technology differs from passive LC filter banks. Advanced systems analyze harmonic spectrums in real time by monitoring load currents through high-speed current transformers. The inverter module injects precisely calibrated compensation currents—equal in magnitude but opposite in phase—to cancel harmonics at the point of common coupling when the control processor detects distortion. This dynamic response responds rapidly to changing load circumstances, unlike passive components.

Resonance and harmonic amplification difficulties affect conventional capacitor banks, yet active technology works even at low voltage. Unlike passive filters tuned to specific frequencies, these intelligent devices condition power across the 2nd to 50th order harmonic spectrum.

Types of Power Quality Solutions

Three primary architectures serve industrial applications:

• Shunt-connected systems in parallel with the load are most frequent. These devices are great at correcting current harmonics and supporting reactive power. This adaptable method works best in varied machinery manufacturing plants.
• Voltage harmonics and notching are addressed by series-connected filters between source and load. To avoid malfunction and data corruption, data center and medical imaging electronics need this voltage management.
• Performance and affordability are optimized by hybrid combinations of active electronics and passive LC components. Utility substations with megawatt loads use hybrid topologies for economic harmonic mitigation across large distribution networks.

Impact on Energy Efficiency and Compliance

Harmonic distortion reduces energy efficiency in numerous ways. Distorted currents raise RMS values without useful work, leading to higher I²R losses in cables, transformers, and switchgear. Facilities with 20% THD use 8–12% more energy than clean sinusoidal operation. Regulatory compliance encourages adoption beyond efficiency. IEEE Standard 519-2014 limits harmonic current at common coupling, while IEC 61000-3-12 regulates equipment emissions. Utility companies frequently enforce power quality restrictions in service agreements, penalizing customer installations that disrupt the grid. Properly specified harmonic compensation systems, such as Active Power Filter, safeguard sensitive processes from voltage disturbances and ensure compliance.

Top Active Power Filters in 2026

Established manufacturers offer proven solutions with vast field experience in the power quality market, which has evolved. Understanding the landscape helps procurement experts choose operationally relevant systems.

Leading Manufacturers and Their Solutions

Schneider Electric integrates EcoStruxure-connected harmonic filters into energy management ecosystems. IoT dashboards let facility managers track power quality and usage statistics with these solutions. Facilities may expand with its modular architecture, which scales from 30A to 600A per cabinet. Commercial real estate operators with several properties like the easy interaction with building management systems. Siemens' Sitop power quality portfolio draws on decades of industrial automation engineering. Their global service network covers 200 countries, ensuring local technical assistance and timely replacement parts availability for mission-critical installations. Case studies from car assembly plants show 40% neutral conductor overheating reduction and 15% transformer loss reduction after deployment.

ABB's PQF series handles compensating currents over 1000A for utility-scale applications. Advanced grid-support capabilities like voltage regulation and flicker mitigation let transmission substations integrate renewable energy. With five-year power electronics warranties, their comprehensive warranty packages reduce financial risk for significant capital investments. Eaton offers wall-mounted small units for retrofit applications in space-constrained locations that are easy to deploy. Their flame-retardant capacitor technology meets NFPA 70 fire requirements without electrical rooms, simplifying hospital and retail center installation. Operating noise is below 45dB thanks to acoustics, allowing installation near occupied.

Critical Selection Criteria

Besides brand reputation, technology affects long-term satisfaction. Compensation effectiveness relies on reaction time. Modern IGBT-based inverters can keep up with robotic welding equipment's sub-millisecond demand changes. Old thyristors allow distortion spikes due to transient occurrences. Overload capacity influences system resilience. Industrial motor starters and transformer energisation cause inrush currents. Quality units can withstand surge currents up to 100 times rated capacity without annoyance, preserving protection continuity under abnormal situations. Modular installations are future-proof. Rack-mounted systems enable module expansions as production lines increase, avoiding expensive system upgrades. Increasing industrial operations benefit from flexibility. Maintenance is cheaper with diagnostics. Spectral analysers and event recorders identify power quality problems before they cause downtime, allowing predictive maintenance and decreasing emergency calls.

Procurement Insights: Buying Guide and Cost Considerations for Active Power Filters

Technical performance and ownership cost must be considered when buying harmonic mitigation solutions. Understand initial investment and lifespan costs to make informed purchase decisions.

Cost Structures and Pricing Factors

Systems scale by amperage rating, affecting compensation capacity and cost. Large manufacturing complexes may require 600A or more harmonic current compensation across many locations, while entry-level installations require 100A. Advanced features include predictive algorithms, remote monitoring connectivity, and integrated power factor correction, which cost more than compensation-only devices, such as Active Power Filter. Brand positioning impacts pricing. Established manufacturers with vast certification portfolios and global service networks charge more, while upstart vendors offer competitive alternatives with less support. Procurement experts must balance upfront savings with long-term support issues.

Evaluating Supplier Credibility

Dependable manufacturers show devotion with quality indicators. ISO 9001 for quality management and ISO 14001 for environmental systems verify international process standards. CE marking for European compliance, UL listing for North American safety, and CCC for Chinese standards check product compliance with regional electrical codes. Manufacturing quality control distinguishes premium from inexpensive suppliers. Tests include 72-hour burn-in cycles and 100% load validation before shipment find latent faults that might cause field failures. Supplier evaluation should include testing procedure documentation.

Warranties show manufacturer confidence in product longevity. Strong design margins are indicated by three to five years of power electronics coverage and longer periods for passive components. To minimize downtime, clarify warranty servicing procedures, including response times and whether replacements require factory return or advance exchange.

Total Cost of Ownership Analysis

Purchase price is merely one lifecycle cost. System architecture determines installation costs. Floor-standing cabinets require foundation construction and long conduit runs, while wall-mounted compact units require less labor and materials. Electrical tie-ins and service interruptions during commissioning increase retrofit costs in existing facilities.

Maintenance costs affect operating budgets. Quality systems with overdesigned thermal management and conservative components need only annual checks. Budget options with low cooling capacity age components faster, requiring frequent capacitor replacements and expensive inverter repairs. Saving energy reduces ownership expenses. Harmonic correction systems that improve efficiency by 10% in 500 kW facilities save a lot of money annually. Ask for energy modeling to estimate consumption reductions based on your load profile when reviewing proposals.

Installation, Maintenance, and Limitations of Active Power Filters

After equipment selection, successful implementation includes adequate installation and realistic performance expectations.

Installation Best Practices

System compatibility is checked before installation. Use portable analyzers to assess harmonic levels, voltage distortion, and reactive power needs in power quality audits. Baseline data ensures system sizing and post-installation verification standards. Choice of location affects performance and longevity. Installation of compensating systems near harmonic sources reduces distribution system exposure to distorted currents. Thermal derating is prevented by adequate ventilation; power electronics need clearances specified in installation guides to sustain output. Heat above 40°C requires oversizing or additional cooling.

Grounding and conductor size are important in electrical integration. Undersized cables cause voltage drop and decrease regulation effectiveness by carrying harmonic compensating currents. Ground fault protection coordination prevents nuisance tripping during inverter high-frequency switching events. Commissioning checks load spectrum operation. Energize the system under typical conditions to verify compensation currents cancel load harmonics. Spectrum analyzer tests at common coupling should indicate THD reduction to system design targets.

Preventive Maintenance Strategies

Regular maintenance prevents unexpected failures and extends equipment life. Verifying cooling systems ensures fans work and heat sinks are dust-free. Thermal performance is maintained without conductive junk via compressed air cleaning. Before failures, capacitor bank monitoring indicates degradation. Measure capacitance and dissipation factors and replace units outside manufacturer specifications. Bulging or discolored cases signal imminent failure.

Operating parameters and error records are analyzed by control system diagnostics. Systems track power semiconductor operating hours for predictive replacement assistance. Manufacturer software upgrades fix bugs and improve functionality. Power quality checks show effectiveness. Annual harmonic levels are compared to baseline data to detect slow degradation that would not be observed until equipment fails.

Technical Limitations and Complementary Solutions

Active compensating technology succeeds within design boundaries but struggles in extreme applications. Maximum compensation current limits capacity—loads generating harmonics over system ratings need parallel units or higher-capacity versions. Due to response bandwidth limits, transients above 3 kHz may need further filtering.

Source impedance impacts performance. Voltage distortion from weak utility connections with high impedance challenges even advanced compensating algorithms. Hybrid designs using active electronics and passive LC networks frequently perform better. Cost sometimes favors alternatives. Conventional passive filters may work for small installations with consistent load patterns and restricted budgets, sacrificing flexibility. Comprehensive active compensation benefits large facilities despite higher initial investment.

Company Introduction and Product & Service Information

Xi'an Xidian Medium & Low Voltage Electric Co., Ltd. customizes power quality solutions to boost industry energy efficiency. Our products solve problems in North American and global industries, utilities, commercial real estate, and infrastructure. For small retrofits to big industrial complexes, our active power filters are rack-mounted and wall-mounted modular. High efficiency in low-voltage circumstances is achieved by preventing resonance and harmonic amplification with sophisticated technology. They maintain power quality by responding to changing load profiles in real time using dynamic harmonic suppression.

A reliable performance during power sags, swells, and frequency variations requires robustness against grid fluctuations. Renewable energy sources add unpredictability to utility substations, making this feature useful. Power factor penalties and distribution infrastructure losses are eliminated, lowering energy costs for our clients. We follow strict production standards and test every unit before shipment with ISO 9001 and ISO 14001 certifications. Our devices are silent and use flame-retardant capacitors, making them suitable for hospitals and data centers. Our technical support throughout the equipment lifecycle helps clients with system design, installation, and staff training, building long-term sustainable energy management relationships.

Conclusion

Technical performance, lifecycle costs, and supplier reliability must be considered when choosing harmonic mitigation technology in 2026. Active power filter solutions protect equipment and reduce energy waste for dynamic industrial loads with unsurpassed flexibility and efficacy. Leading manufacturers offer proven systems with substantial field expertise and strong support infrastructure. When assessing suppliers, procurement professionals should focus quality control, certifications, and case study outcomes. Effective installation and maintenance improve ROI and ensure decades of reliability. Power quality management is an operational necessity due to changing regulations and equipment sensitivity.

Frequently Asked Questions

1. What distinguishes active from passive power filters?

Fixed inductors and capacitors tuned to harmonic frequencies provide static compensation that cannot respond to changing loads in passive filters. Active Power Filter systems inject compensating currents in real time to cover the whole harmonic spectrum regardless of load variations using power electronics and intelligent controls. Active technology continuously monitors and adjusts to avoid resonance amplification if grid conditions change.

2. How do these systems improve power factor beyond harmonic reduction?

Modern compensating systems address harmonic current distortion and fundamental frequency reactive power. Inverter technology that provides harmonic cancellation currents also supplies leading or lagging reactive current for unity power factor. This dual capability removes utility penalties and reduces distribution system current magnitude, minimizing resistive losses and releasing capacity for productive loads.

3. What equipment longevity should procurement teams expect?

Quality systems with conservative design margins and thermal management last 15-20 years. IGBTs and control boards need replacement after 10-12 years, depending on duty cycle and operating temperature. Due to dielectric degradation, capacitor banks must be replaced every 5-7 years. Routine maintenance detects problems before cascading breakdowns, extending equipment life.

Partner with Xi'an Xidian for Advanced Power Quality Solutions

With established Active Power Filter solutions for tough industrial applications, Xi'an Xidian, an active power filter manufacturer, can solve your harmonic mitigation and energy efficiency problems. Our technical staff uses decades of power system experience to make budget-friendly solutions that meet performance needs. Our modular systems reduce energy costs and scale to your demands in manufacturing, utility, and commercial sectors.

Engineering firms, facility managers, and procurement professionals can work with our experts. Discuss your power quality needs with our specialized staff at serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd.com. Our consultation method includes on-site examinations, harmonic analysis, and clear performance prediction proposals. We provide active power filter solutions backed by international certifications, rigorous quality control, and responsive technical support throughout your equipment's operational life.
