Uses of Indoor High Voltage Switchgear in Power Grids

Indoor High Voltage Switchgear is a vital portion of present-day electrical infrastructure since it controls, secures, and confines circuits that work at medium to high voltage levels. These contraptions control how control is sent to substations, production lines, information centers, healing centers, and trade complexes. Since they are encased, they keep delicate parts secure from the environment and keep administrators secure amid exchanging operations, upkeep assignments, and blame conditions. These frameworks offer assistance to utilities and office supervisors to keep the lattice steady, diminish the number of impromptu blackouts, and meet strict administrative necessities with progressed highlights like shrewdly checking and arc-resistant construction.

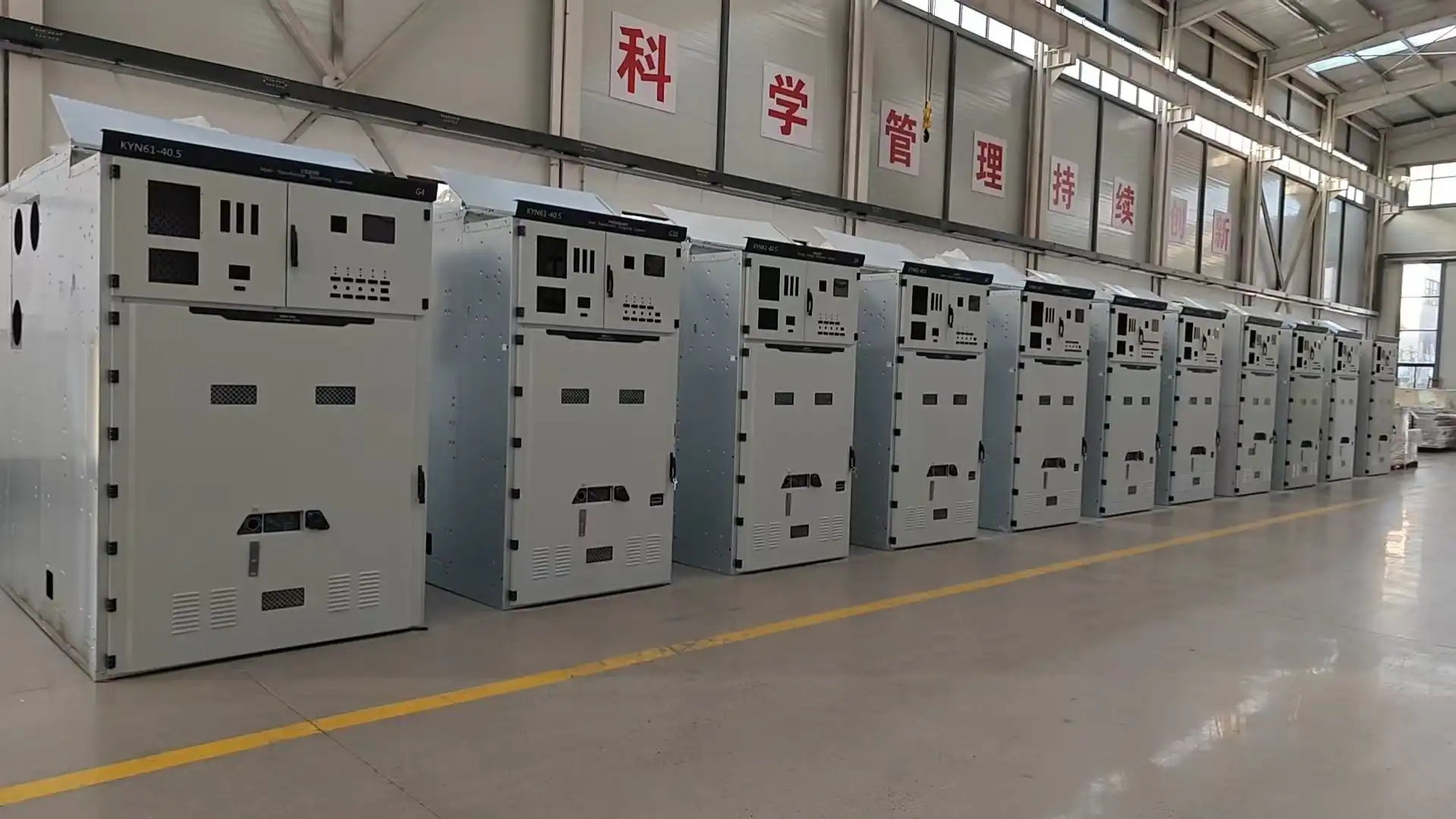

Understanding Indoor High Voltage Switchgear in Power Grids

Core Components and Operational Principles

Circuit breakers, disconnectors, instrument transformers, busbars, and control boards are all built into cutting edge switchgear congregations into a single lodging. The circuit breaker is the fundamental gadget that stops control, rapidly confining flaws to halt them from spreading to other parts of the arrange. Amid support, disconnectors make it conceivable to see where the control is cut off, and current and voltage transformers send real-time information to observing and security transfers. Compared to more seasoned plans, this coordinates approach cuts the establishment impression by 40%. This makes it idealize for urban substations and retrofitting ventures that do not have a part of the room. The control rationale sets up mechanical interlocks that halt perilous activities like turning off a grounded circuit or opening a breaker, whereas it's stacked without the right arrangement. We've seen offices cut the number of mishaps caused by human mistakes by 65% after introducing modern switchgear with these security highlights built right in.

Types and Insulation Technologies

Air-insulated switchgear (AIS) employments discuss in the environment as the primary dielectric medium between live parts. This implies that clearances need to be greater, but upkeep is simple. Gas-insulated switchgear (GIS) employs sulfur hexafluoride (SF6) to accomplish superior separator execution in little walled in areas. This cuts the sum of floor space required by 70% in high-density establishments. Circuit breakers with a rating of less than 40.5kV can utilize vacuum innovation, which makes them work unobtrusively (underneath 45dB) and eliminates the chance of blast that comes with oil-based designs. Each innovation is valuable in certain operational circumstances. Information centers are like vacuum breakers since they do not make a parcel of clamor and the bend closes rapidly. Mining operations in farther zones frequently select AIS setups since they make repairs simpler in the field. When obtaining groups get these contrasts, they can better coordinate hardware requirements with location conditions and long-term operational plans.

Compliance Standards and Safety Certifications

Every portion of planning and testing switchgear has to follow universal measures. IEC 62271-200 records the necessities for metal-enclosed switchgear rated over 1kV. These incorporate limits on temperature rise, the capacity to withstand short-circuits, and the sum of time the switchgear can final mechanically. The IEEE C37 arrangement of measures covers things like dielectric quality, contact resistance, and natural capability to meet the needs of the North American market. Items with these certifications go through strict production line acknowledgment tests that make beyond any doubt they work with blame streams of more than 31.5kA and lightning motivation voltages of up to 185kV peak.Arc-resistant development, which is recorded in IEC 62271-200 Add A, keeps individuals secure from inside bend issues by sending dangerous vitality absent from zones where individuals are working. This highlight is exceptionally vital in places where upkeep specialists have to work close fueled gear each day. It brings down the seriousness of wounds in blame circumstances by sending plasma planes through assigned help paths.

Key Uses of Indoor High Voltage Switchgear in Power Grids

Many operational benefits of Indoor High Voltage Switchgear directly meet the needs of utilities, industrial operators, and engineering firms. The features listed below show how this technology can be used to solve problems in the real world.

Power Distribution and Load Management

Substations use Indoor High Voltage Switchgear to disperse approaching transmission control over different feeders serving private, commercial, and mechanical ranges. The gear performs visit exchanging whereas keeping up contact judgment and minimizing misfortunes. Sectionalizing breakers separate systems, empowering support without far reaching blackouts. In mechanical settings, switchgear bolsters engine beginning for apparatus, anticipating voltage plunges and disturbance stumbling. Legitimately evaluated frameworks handle tall inrush streams and offer assistance offices accomplish uptime targets. In commercial buildings, switchgear moreover oversees bidirectional control stream from housetop sun oriented, keeping up control quality inside IEEE 519 limits.

Fault Isolation and System Protection

Indoor High Voltage Switchgear enables rapid fault isolation to avoid broad blackouts. Present day security transfers identify irregular current and voltage conditions and trigger breakers inside milliseconds, restricting warm and mechanical harm. Robotized reclosing frameworks reestablish benefit rapidly after temporal flaws, lessening blackout length essentially. Basic offices such as healing centers and information centers depend on repetitive assurance plans and dual-bus setups, permitting consistent exchanging between control sources. This guarantees continuous operation for life security frameworks and fundamental computerized infrastructure.

Integration With Smart Grid Technologies

With advanced communication features, Indoor High Voltage Switchgear integrates into smart grid systems. Real-time data on breaker status, load, and temperature is transmitted to SCADA platforms, enabling centralized monitoring and faster decision-making. Remote operation reduces field interventions and accelerates response times during outages or maintenance. Utilities can reconfigure networks quickly to isolate faults and restore service. Predictive maintenance tools analyze operational data to identify early signs of wear or failure, allowing planned interventions that improve reliability and reduce downtime.

Scalability and Modular Expansion

The modular design of Indoor High Voltage Switchgear allows facilities to expand capacity without replacing entire systems. Standardized bus structures and mounting designs enable easy addition of new breaker bays, supporting phased growth. Industrial sites can scale from small to large configurations while maintaining consistent operations and protection coordination. In urban environments, compact GIS solutions reduce space requirements, enabling capacity upgrades within existing infrastructure. This flexibility supports long-term planning and reduces costs associated with land acquisition and major system redesigns.

Comparison: Indoor High Voltage Switchgear vs. Alternative Solutions

Environmental Suitability and Installation Context

Indoor High Voltage Switchgear operates in controlled environments with stable temperature and humidity, extending insulation life from about 20 to 35 years and reducing lifecycle costs. Outdoor equipment faces UV exposure, moisture, and pollutants that accelerate aging. In coastal and industrial zones, corrosion and tracking risks increase. Sealed indoor enclosures preserve dielectric strength, making them ideal for offshore platforms and petrochemical plants requiring high reliability in harsh conditions.

Gas-Insulated Versus Air-Insulated Configurations

GIS uses SF6 gas with high dielectric strength, reducing equipment size by up to 80% and enabling compact installations near load centers. AIS designs allow easier inspection and maintenance due to open construction, which benefits utilities with limited technical staff. Environmental concerns over SF6 drive adoption of alternative gases and vacuum solutions. Selection of Indoor High Voltage Switchgear must balance space efficiency, maintenance accessibility, and long-term regulatory compliance risks.

Vacuum and SF6 Circuit Breaker Technologies

Vacuum circuit breakers offer excellent performance in frequent switching applications with minimal maintenance, as sealed contacts prevent oxidation and wear. SF6 breakers handle higher voltages and fault currents, making them suitable for transmission systems. Utilities choose based on switching frequency, voltage level, and fault interruption requirements. Indoor High Voltage Switchgear configurations often combine these technologies to optimize performance and reliability.

Market-Leading Equipment Brands and Compatibility

Leading manufacturers provide standardized interfaces that simplify spare parts management and integration across different systems. Compatibility involves not only components but also full system coordination, including relays and transformers. Multi-brand integration improves flexibility and cost efficiency for large projects. Indoor High Voltage Switchgear solutions benefit from suppliers that support customization and interoperability.

Procurement Considerations for Indoor High Voltage Switchgear

Technical Specifications and Performance Requirements

Proper selection depends on load and fault studies to define ratings accurately. Oversizing increases costs, while undersizing risks failure. Altitude affects insulation performance, requiring derating or enhanced designs above 1,000 meters. Specialized Indoor High Voltage Switchgear ensures reliable operation in high-altitude environments such as mining or renewable energy installations.

Supplier Evaluation and Partnership Criteria

Suppliers should offer engineering support, customization, and testing capabilities. In-house testing reduces installation risks and ensures quality. ISO-certified manufacturers provide consistent production standards. Warranty coverage and extended service agreements reduce operational risks and support long-term reliability of Indoor High Voltage Switchgear.

Customization and Standards Compliance

Projects often require customized configurations such as special bus layouts or corrosion-resistant coatings. Flexible production ensures these needs are met without delays. Compliance with regional standards like NEC or CSA guarantees safe integration. Pre-approved equipment simplifies approval processes for Indoor High Voltage Switchgear installations.

Lifecycle Cost Analysis and Support Services

Initial purchase cost represents only part of total ownership expenses. Maintenance, downtime, and energy losses dominate lifecycle costs. Higher-quality equipment reduces long-term expenses through improved reliability. Strong after-sales support, spare parts availability, and technical assistance ensure continuous operation of Indoor High Voltage Switchgear.

Installation and Maintenance Best Practices for Indoor High Voltage Switchgear

Site Preparation and Environmental Controls

Accurate foundation leveling and anchor bolt placement prevent mechanical stress and misalignment. Climate control systems maintain stable temperature and humidity, protecting insulation and electronics. Monitoring systems provide early warnings of environmental changes affecting Indoor High Voltage Switchgear performance.

Commissioning Procedures and Safety Protocols

Pre-energization testing verifies insulation integrity and connection quality. Phasing checks ensure correct operation of three-phase systems and prevent equipment damage. Systematic verification and labeling reduce commissioning errors and improve safety in Indoor High Voltage Switchgear installations.

Routine Maintenance and Condition Monitoring

Regular inspections identify loose connections, contamination, and thermal anomalies. Infrared thermography detects hidden issues, while lubrication maintains smooth mechanical operation. Following maintenance schedules ensures long-term reliability of Indoor High Voltage Switchgear systems.

Troubleshooting Common Issues and Upgrades

Increasing contact resistance indicates wear and potential failure, requiring timely replacement. Control circuit faults often result from aging components or insulation degradation. Systematic diagnostics and proper documentation enable faster repairs and minimize downtime in Indoor High Voltage Switchgear operations.

Conclusion

Indoor High Voltage Switchgear is an important piece of infrastructure that makes sure power gets to industrial facilities and utility networks reliably. As the technology keeps getting better, it adds more safety features, has less of an effect on the environment, and gives operators more information to help them deal with new grid problems. For implementation to go well, application requirements, supplier capabilities, and lifecycle support must all be carefully thought through. Companies that buy and maintain switchgear correctly meet their operational uptime goals and keep long-term costs low by reducing failures and improving maintenance strategies. New requirements for smart grid integration and sustainability will keep pushing switchgear designers and users to come up with new ways to design and use their products.

Frequently Asked Questions About Indoor High Voltage Switchgear

1. What voltage ranges do indoor switchgear systems typically cover?

Medium voltage applications from 3.6kV to 40.5kV can be handled by Indoor High Voltage Switchgear designs. For certain utility applications, configurations can go up to 72.5kV. For industrial and commercial use, the most common ratings are 12kV, 15kV, 24kV, and 36kV. The choice of voltage depends on the characteristics of the utility supply, the load needs, and the design philosophy of the distribution system.

2. How often should switchgear undergo professional inspection?

Most installations that are working normally only need to be inspected once a year to meet the minimum requirements. Assessments every six months are helpful for facilities that need to switch a lot of power, are exposed to harsh environments, or need to be up and running all the time. Major maintenance tasks, like replacing contacts and testing the dielectric, are usually done every 5 to 10 years, depending on how the system has been used and the results of condition monitoring.

3. Can existing switchgear accommodate capacity expansions?

When initial installations include space for future bays, modular switchgear designs allow for growth. How possible it is to expand depends on the amount of space available, the bus capacity, and the short-circuit ratings. Checking the original equipment documentation and hiring qualified engineers during retrofit projects makes sure that the old and new parts will work together.

Partner With Xi'an Xikai for Reliable Indoor High Voltage Switchgear Solutions

Xi'an Xikai manufactures state-of-the-art medium voltage switchgear that is designed to meet the exact needs of utilities, industrial operators, and infrastructure developers. Our gear uses tried-and-true vacuum and SF6 technologies along with smart monitoring features that help with modern grid automation projects. To make sure that each installation works reliably in the field, they are tested thoroughly in the factory. These tests include checking the dielectric strength, making sure the installation can withstand mechanical stress, and checking the thermal performance. Our switchgear can handle both ABB VD4 and VS1 breakers, as well as standard isolation trucks and transformers. This gives you more options for buying things and gives you an edge over your competitors. The modular design can be used in a wide range of configurations, from small single-bay setups to long lines that serve complicated distribution networks. We keep a large amount of technical documentation and spare parts in stock so that we can quickly meet customer needs. Connect with our engineering team to discuss your project requirements and discover how Xi'an Xikai's experience across State Grid systems, petrochemical facilities, and renewable energy installations can benefit your operation. Contact our specialists at serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com to request detailed specifications and explore customization options.

References

1. Chen, W., & Zhang, L. (2021). Modern Switchgear Technology: Design, Application, and Maintenance. Electric Power Press.

2. International Electrotechnical Commission. (2020). IEC 62271-200: High-voltage switchgear and controlgear – Part 200: AC metal-enclosed switchgear and controlgear for rated voltages above 1 kV and up to and including 52 kV. Geneva: IEC.

3. Institute of Electrical and Electronics Engineers. (2019). IEEE C37.20.2: Standard for Metal-Clad Switchgear. New York: IEEE Press.

4. Rao, T. S. (2018). Power System Protection and Switchgear. McGraw-Hill Education.

5. Williams, R. K. (2022). Grid Modernization and Smart Switchgear Integration: A Practical Guide. Utility Technology Publications.

6. Zhang, D., Liu, X., & Wang, H. (2020). Gas-insulated switchgear technology advancements and environmental considerations. Journal of Power Distribution Systems, 45(3), 287-304.
