What Is SF6 Circuit Breaker Working Principle Explained?

When there is an electrical issue in your building, you require security that can act in milliseconds. SF6 Circuit Breakers securely and viably halt high-voltage streams by utilizing sulfur hexafluoride gas, which is an effective separator and arc-quencher. The fundamental thought behind it is that SF6 is exceptionally great at catching free electrons amid arcing, which lets particles recombine rapidly and the dielectric return to typical. This strategy makes it much simpler for the breaker to put out electrical bends than utilizing discuss or oil. This secures a vital foundation while lessening the number of substations and the sum of upkeep that needs to be done.

Understanding How SF6 Circuit Breakers Function

The Core Components Behind the Technology

An SF6 Circuit Breaker is built from a few coordinated components that guarantee dependable high-voltage operation. The center component is the gas chamber filled with sulfur hexafluoride beneath controlled weight, serving both as a separator and arc-quenching medium. Settled and moving contacts isolated quickly amid deficiencies, driven by spring, pressure-driven, or pneumatic working instruments. Spouts direct SF6 gas stream over the bend zone, whereas weight sensors persistently screen gas thickness to guarantee execution steadiness. Outside porcelain or composite insulin give separator and natural security, particularly in open-air substations exposed to contamination, humidity, and unforgiving climate, guaranteeing long-term operational reliability.

The Arc Interruption Process Step by Step

When a blame happens, the SF6 Circuit Breaker gets a trip flag, and contacts start to isolate, forming a high-temperature bend surpassing 20,000°C. The SF6 gas quickly assimilates free electrons due to its solid electronegativity, deionizing the plasma. As the cylinder or self-blast framework strengths gas through the circular segment zone, it cools and quenches the bend. At current zero-crossing in AC frameworks, the medium rapidly reestablishes dielectric quality inside microseconds, avoiding re-ignition. This quick recuperation guarantees steady interference execution and makes SF6 innovation exceedingly successful for high-voltage systems requiring secure and controlled bend extinction.

Properties That Make SF6 Exceptional

SF6 Circuit Breaker execution depends on sulfur hexafluoride’s interesting physical and chemical properties. It has tall dielectric quality, fabulous warm conductivity, and solid arc-quenching capacity. The gas remains chemically steady beneath ordinary conditions, avoiding oxidation and inner degradation seen in oil-based frameworks. It performs reliably over wide temperature ranges and dispenses with fire dangers due to its non-flammable nature. Appropriate for voltages from 12kV to 800kV, SF6 frameworks maintain fixed gas conditions for decades, decreasing support needs. These properties guarantee tall, unwavering quality, security, and proficiency in mission-critical control foundation applications.

Types of SF6 Circuit Breakers and Their Applications

Puffer Type Designs

Puffer-type SF6 Circuit Breakers utilize a cylinder instrument connected to the moving contact. During operation, the cylinder compresses SF6 gas interior a barrel, releasing high-pressure gas through a spout over the bend way. This strategy is broadly utilized in transmission frameworks from 72.5kV to 550kV due to its solid intrusion capability. Higher blame streams require more noteworthy mechanical vitality and optimized gas stream, regularly planned utilizing computational fluid elements. These breakers are commonly utilized in substations, ensuring transformers and transmission lines, particularly in high-duty exchanging applications such as capacitor banks and reactor switching systems.

Self-Blast and Thermal Expansion Types

Self-blast SF6 Circuit Breakers utilize bend vitality to create gas pressure for interference. As the bend warms the enclosed gas, warm development makes pressure that drives SF6 over the circular segment way, diminishing mechanical vitality requirements compared to puffer plans. This increments component life expectancy and proficiency. These breakers are particularly compelling in generator security and mechanical applications with visit exchanging. Cross-breed frameworks combine puffer and self-blast standards to optimize execution over diverse blame levels, guaranteeing solid operation beneath both low-load exchanging and tall short-circuit interference conditions.

Single-Pressure and Double-Pressure Configurations

Single-pressure SF6 Circuit Breakers keep up uniform gas weight all through the framework, regularly working at 5–7 bar supreme. This disentangles plan, progresses unwavering quality, and decreases support prerequisites, making it the overwhelming present-day setup for transmission and conveyance systems. Double-pressure frameworks, once broadly utilized, depended on isolated tall- and low-pressure chambers but have to a great extent been phased out due to complexity and higher upkeep requests. Whereas still displayed in bequest establishments, cutting-edge procurement emphatically favors single-pressure plans for moved forward proficiency, security, and lifecycle benefits.

Real-World Applications Across Industries

SF6 Circuit Breakers are broadly utilized in utility networks, mechanical plants, and basic infrastructure due to their tall unwavering quality. In control systems, they secure substations and guarantee steady transmission from urban centers to country feeders. In information centers, they defend UPS frameworks where blackouts cause major monetary misfortunes. Mechanical offices utilize them to ensure automation systems, whereas clinics depend on them for continuous control of life-support hardware. They are moreover fundamental in renewable energy systems, overseeing voltage fluctuations in wind and sun based plants, and are esteemed in mining and petrochemical situations for stability and long service intervals.

​​​​​​​

Advantages of SF6 Technology Over Alternative Solutions

Superior Performance Compared to Vacuum Breakers

Vacuum breakers perform well in medium-voltage systems up to 40.5kV, but SF6 Circuit Breakers outperform them at higher voltages. Vacuum technology may cause switching overvoltages due to current chopping, which can damage capacitive equipment like transformers and cables. SF6 provides smoother interruption with lower transient stress, making it ideal for capacitor switching and high-voltage networks. Its superior dielectric recovery prevents restrikes and improves system stability. While vacuum technology is limited above 145kV, SF6 systems reliably operate up to 800kV, making them essential for transmission-scale applications.

Benefits Beyond Air-Blast and Oil Technologies

Air-blast systems require large compressors and complex infrastructure, increasing maintenance and energy use. SF6 Circuit Breakers eliminate this with compact, self-contained gas systems that reduce space requirements and simplify substation design. Compared to oil breakers, SF6 avoids fire hazards, oil disposal issues, and environmental contamination. Oil systems also require frequent maintenance and produce noise and emissions. SF6 technology operates quietly, cleanly, and with minimal maintenance over lifespans exceeding 30 years, significantly reducing operational risk and total lifecycle cost.

Maintenance Simplicity and Extended Service Intervals

Modern SF6 Circuit Breakers are designed for long-term reliability, often rated for over 10,000 mechanical operations without major servicing. Sealed gas systems eliminate the need for routine refilling, and inspections are typically required only every 5–7 years. Major components may last over 25 years. Continuous gas density monitoring provides early warning of potential issues. Routine maintenance focuses on mechanical parts like lubrication and linkage checks, while sealed interrupters remain untouched. This significantly reduces downtime and lowers total ownership cost compared to conventional technologies.

Environmental and Safety Considerations

SF6 is a potent greenhouse gas, but modern SF6 Circuit Breaker systems minimize environmental impact through advanced sealing that limits leakage to below 0.1% annually. Gas recovery systems ensure proper capture during maintenance. Alternative gas mixtures are being developed to reduce environmental impact further. Despite concerns, SF6 remains non-toxic and non-flammable, providing strong safety advantages over oil-based systems. Compliance with IEC standards and proper handling procedures ensures safe operation, while trained personnel and recovery systems prevent unnecessary emissions and maintain environmental responsibility.

Selecting the Right SF6 Circuit Breaker for Your Project

Key Performance Parameters to Evaluate

Selecting an SF6 Circuit Breaker requires matching system voltage, current, and fault capacity requirements. Rated voltage must exceed system maximums with safety margins, such as using 126kV units for 110kV systems. Interrupting capacity must handle calculated fault currents, typically between 31.5kA and 63kA for utilities. Rated current must support present and future load growth. Operating mechanisms—spring, hydraulic, or pneumatic—affect performance and maintenance. Spring systems offer reliability, while hydraulic designs provide faster reclose capability in certain applications.

Understanding Supplier Capabilities and Support

Supplier capability is critical for long-term success of SF6 Circuit Breaker installations. Engineering support ensures correct specification, while commissioning services guarantee proper installation. Long-term spare parts availability prevents obsolescence in systems designed for 30–40 years of operation. Warranty terms reflect product reliability and reduce procurement risk. Technical training ensures proper operation and maintenance. Emergency support, including rapid parts delivery and 24/7 assistance, minimizes downtime in critical infrastructure applications.

The Xi'an Xikai LW25 Outdoor Porcelain Type Solution

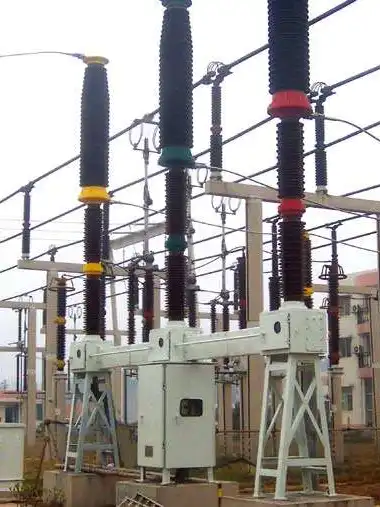

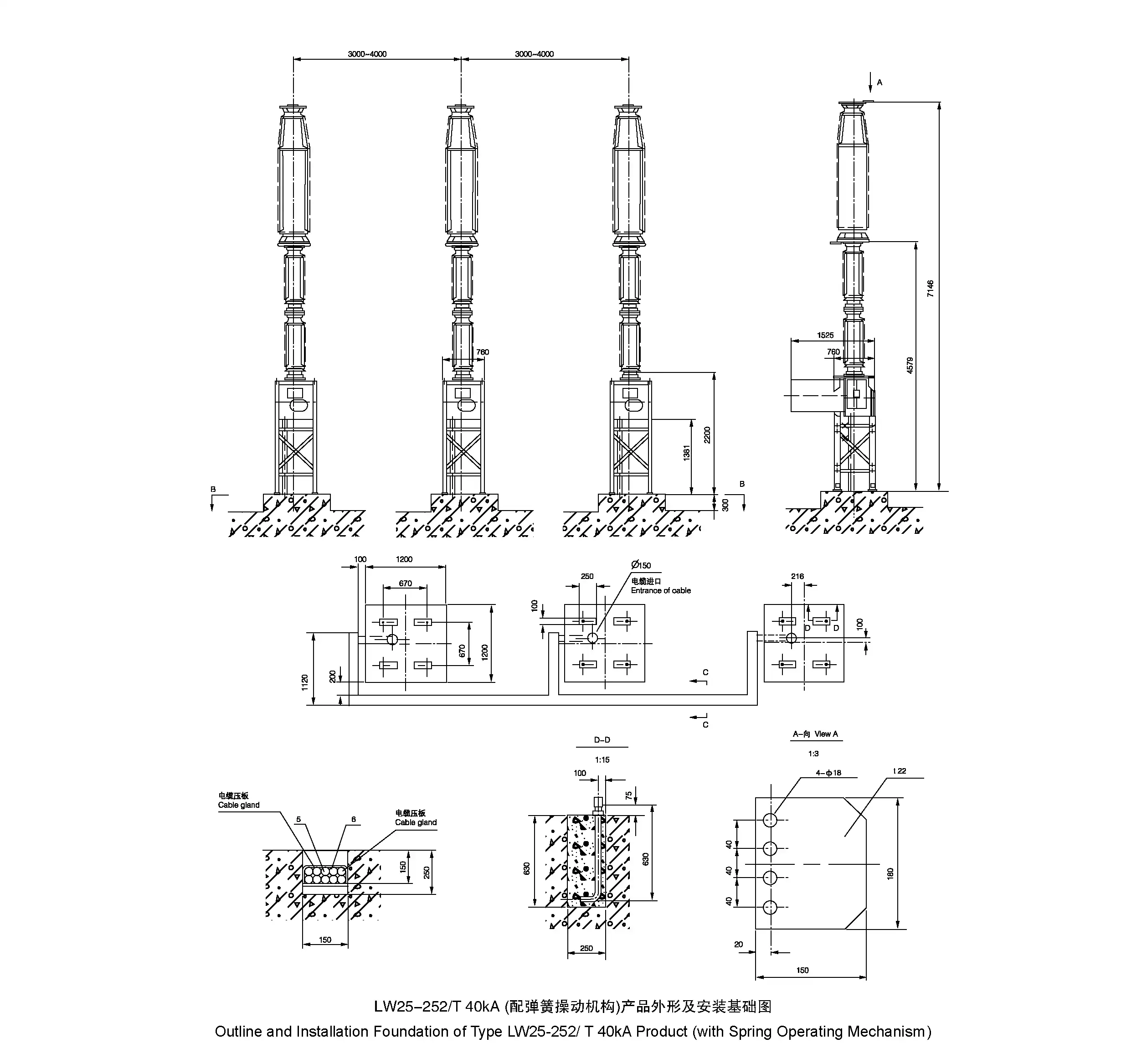

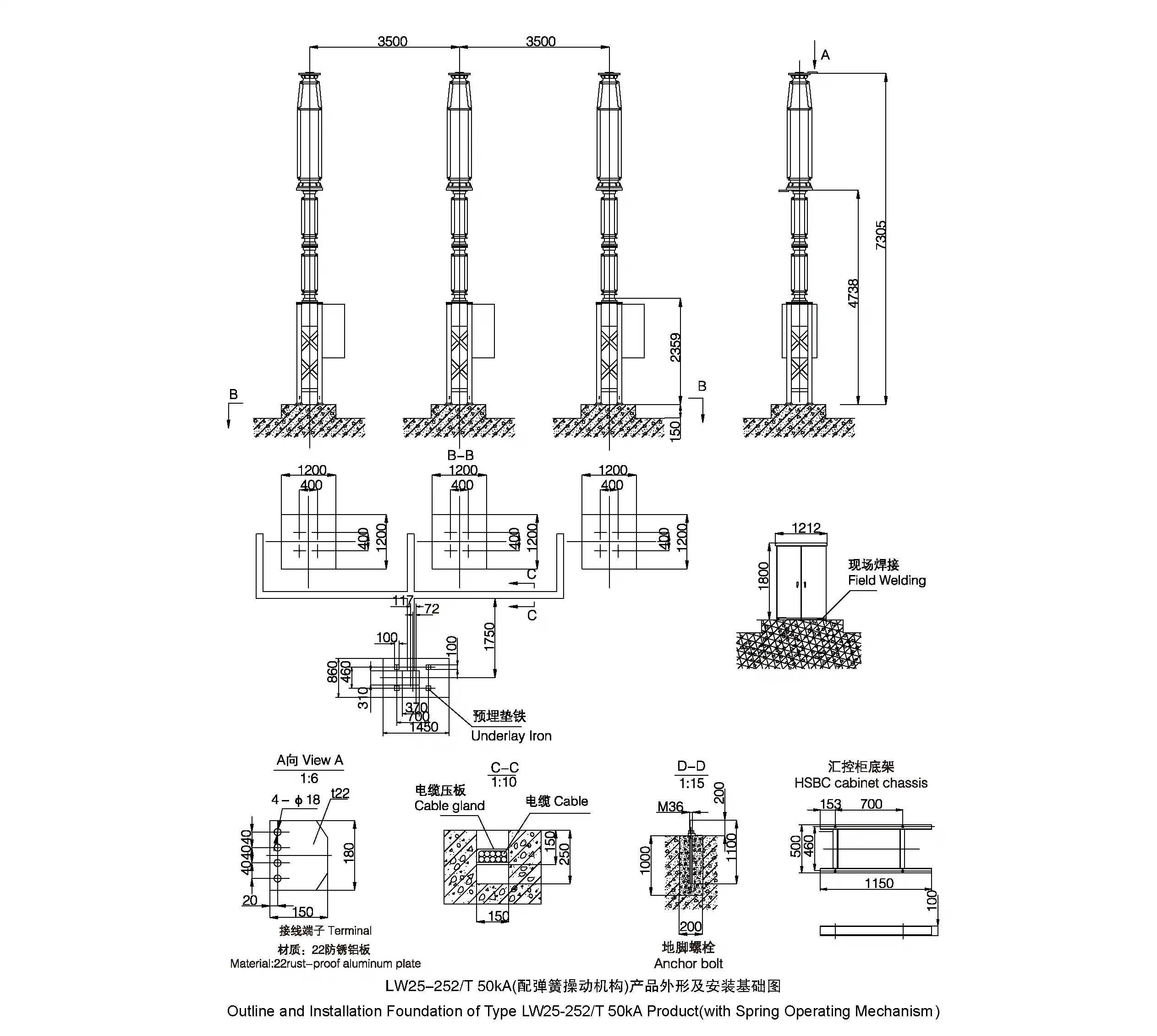

The LW25 Outdoor Porcelain Type SF6 Circuit Breaker by Xi'an Xikai Medium & Low Voltage Electric Co., Ltd. is designed for 126kV–145kV systems with current ratings from 2000A to 4000A. It uses a triple-break interrupter design for high reliability and fast fault clearance. Operating mechanisms include spring, hydraulic, and pneumatic options for flexible integration. The porcelain housing ensures durability in harsh environments such as coastal, desert, and industrial zones. Integrated SCADA monitoring enables real-time tracking of SF6 pressure and operational status, while extensive factory testing ensures performance reliability under extreme conditions.

Best Practices for Reliable SF6 Circuit Breaker Operation

Preventive Maintenance Strategies

Effective maintenance of SF6 Circuit Breakers begins with scheduled inspections aligned with manufacturer recommendations. Annual visual checks assess insulation integrity, contamination, and corrosion. Mechanical systems are inspected for overheating and wear, while electrical connections are tightened to prevent overheating. Gas density monitoring is essential, with alarms triggered if pressure drops below safe levels. Operation counters track switching cycles, guiding maintenance timing. Lubrication and mechanical adjustments ensure smooth operation, while timing tests and contact resistance measurements detect early faults and prevent system failures.

Troubleshooting Common Issues

The most common SF6 Circuit Breaker issue is gas leakage, detected through pressure monitoring or portable SF6 sensors. Leaks often occur at seals or gaskets and may require replacement or repair. Gas decomposition due to arcing requires filtration or replacement after long service periods. Mechanical failures such as incomplete operation or abnormal noise indicate worn springs or linkage issues. Hydraulic or motor-driven systems may also experience electrical faults. Contact erosion from frequent fault interruption may require premature replacement to maintain performance and safety.

Safety Protocols for Gas Handling

SF6 handling requires trained personnel due to its asphyxiation risk in confined spaces. Adequate ventilation and oxygen monitoring are essential in enclosed substations. Gas recovery systems prevent emissions and allow reuse after purification. Recovered gas must be tested for purity, moisture, and decomposition byproducts before reuse. Proper protective equipment is required during maintenance. Compliance with safety regulations ensures both environmental protection and personnel safety. Accurate gas tracking records support regulatory reporting and demonstrate responsible operational management of SF6 Circuit Breaker systems.

Conclusion

SF6 Circuit Breakers protect high-voltage electrical systems better than any other type because they can stop arcs faster, are smaller, and need less maintenance. Understanding how sulfur hexafluoride works—how its unique properties allow for quick current interruption and dielectric recovery—helps you choose the right equipment. The best solutions for transmission networks, industrial facilities, and critical infrastructure are found by comparing technologies, looking at different types of breakers, and working with experienced suppliers. Using the right safety and maintenance procedures will increase the dependability and longevity of assets while also taking care of the environmental issues that come with SF6 technology.

Frequently Asked Questions

1. How does an SF6 circuit breaker compare to vacuum technology for medium voltage applications?

For distribution systems up to 40.5kV, vacuum circuit breakers work well because they are small and reliable. SF6 Circuit Breaker designs, on the other hand, work best with higher voltages and switching capacitive loads like capacitor banks or cable networks. During capacitive switching, vacuum breakers can cause current chopping and restrikes, which can lead to harmful overvoltages. Insulation systems are safer when SF6 technology is used because it has soft interruption features. Above 145kV transmission voltages, vacuum technology can't be used because of how it's built, but SF6 works well at higher voltages.

2. What maintenance does an SF6 circuit breaker require during its operational life?

These days, sealed designs don't need much work. Monitoring gas pressure gives you a constant look at your health; stable pressure means everything is working right. Mechanical parts need to be checked on a regular basis. Every 5 to 7 years, the operating mechanisms should be oiled, the contact resistance should be measured, and the timing of operations should be checked. Unlike oil breakers, which need to have their oil tested and replaced on a regular basis, SF6 systems keep the quality of the gas throughout their entire life when everything is normal. Most maintenance is done by adjusting the mechanisms instead of stopping chamber service.

3. Can existing substations accommodate SF6 circuit breaker retrofits?

Of course. Older air-blast or oil circuit breakers can be replaced in existing substations thanks to SF6 technology's small footprint. Careful checking of the dimensions makes sure that the mechanical fit is correct, and the electrical specifications must match the needs for system voltage and fault current. Because they don't need compressed air or hydraulic systems, spring-operated mechanisms make integration easier. Retrofits make things more reliable while also making maintenance easier, without having to spend a lot of money on building additions.

Partner with Xi'an Xikai for Proven High-Voltage Protection Solutions

Xi'an Xikai Medium & Low Voltage Electric Co., Ltd. can help you with all of your SF6 Circuit Breaker needs when it comes to electrical protection. Our engineering team has decades of experience designing, making, and fixing high-voltage switchgear for use in renewable energy, utilities, and factories. Our dedication to quality is shown by the LW25 Outdoor Porcelain Type SF6 Circuit Breaker, which has been certified by ISO 9001 and has been through strict testing procedures. If you need a reliable SF6 circuit breaker manufacturer for new construction projects, upgrades to substations, or replacement units, we can make solutions that fit your voltage, current, and environmental needs. Talk to one of our technical experts at serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com about your project needs and find out how our tried-and-true technology protects the world's most important infrastructure.

References

1. IEEE Standard C37.04-2018, "IEEE Standard for Ratings and Requirements for AC High-Voltage Circuit Breakers with Rated Maximum Voltage Above 1000V," Institute of Electrical and Electronics Engineers, 2018.

2. IEC 62271-100:2021, "High-voltage switchgear and controlgear – Part 100: Alternating current circuit-breakers," International Electrotechnical Commission, 2021.

3. Flurscheim, Charles H., "Power Circuit Breaker Theory and Design," Institution of Engineering and Technology, London, 1982.

4. Smeets, René P.P., et al., "Switching in Electrical Transmission and Distribution Systems," John Wiley & Sons, Chichester, 2015.

5. Ravindran, Mohan, "Power System Protective Relaying and SF6 Gas Circuit Breaker Technology," CRC Press, Boca Raton, 2019.

6. Naidu, M. S. and Kamaraju, V., "High Voltage Engineering," McGraw-Hill Education, New Delhi, Fifth Edition, 2013.
