Why Oil Type Transformer Has Higher Efficiency Explained
2026-05-06 16:57:28
Superior thermal management through liquid insulation is the key to oil type transformer efficiency. The dielectric mineral or manufactured oil does two things: it gets freed of the heat that is made amid operation, and it also keeps the power from flowing between the windings. This plan moves forward cooling, which brings down center misfortunes by 15–30% compared to other choices. This is done by diminishing hotspots that harmed execution. Cold-rolled grain-oriented silicon steel centers and optimized oil circulation pathways accomplish effectiveness evaluations of over 98.5% at the evaluated stack. This straightforwardly leads to lower operational costs and longer hardware life in a wide range of mechanical settings.
 |
 |
Understanding Oil Type Transformers and Their Efficiency
What Makes Oil-Filled Transformers Different

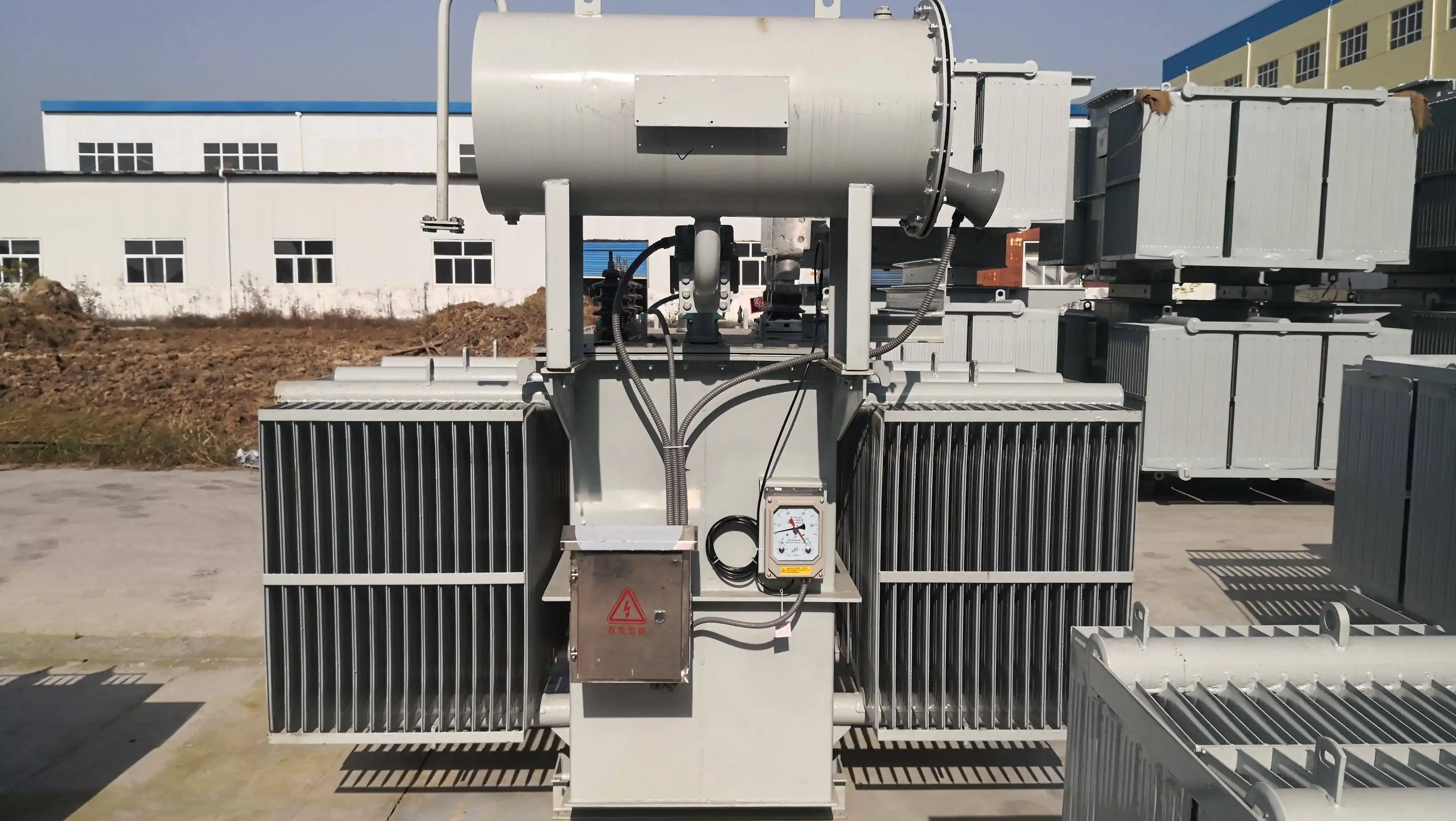

Oil type transformer units encase centers and windings in fixed steel tanks filled with protection fluid that both protects and exchanges warm. Oil circulates to carry heat from conductors to outside radiators or balances. Mineral oil is broadly utilized for taken a toll and unwavering quality, whereas manufactured or bio-based liquids offer improved fire resistance. These fluids give tall dielectric quality, regularly 30–70 kV over small holes, empowering compact plans. Warm conductivity of 0.12–0.14 W/m·K guarantees effective warm exchange, keeping up secure working temperatures.
Core Efficiency Drivers in Oil-Cooled Designs
Efficiency in an Oil type transformer depends on center materials, winding plan, and warm steadiness. Grain-oriented silicon steel minimizes hysteresis and vortex current misfortunes to approximately 0.1–0.3% of appraised capacity, improved by laser space control. Copper windings decrease resistive misfortunes, ordinarily 0.5–1.2% at full stack, whereas oil guarantees uniform cooling and anticipates hotspots. Steady oil circulation keeps up temperature rise inside 55–65°C over encompassing, protecting electrical execution. This adjust guarantees high effectiveness over changing stack conditions.
Oil Circulation and Heat Management Systems
Cooling design directly affects Oil type transformer efficiency. Natural circulation uses density differences: hot oil rises, cools in radiators, and returns, suitable up to ~2,500 kVA without extra energy use. Forced systems employ pumps and fans to increase cooling for higher loads and ambient temperatures. Sensors regulate cooling dynamically, optimizing energy use. Conservators manage oil expansion while preventing moisture ingress via silica gel breathers. These systems maintain oil quality, ensuring long-term thermal and dielectric performance.
Performance Optimization Through Advanced Cooling Methods
Natural vs. Forced Oil Circulation Systems
Natural circulation in an Oil type transformer offers simplicity and high efficiency due to no moving parts. Heat-driven convection adapts automatically to load changes, avoiding parasitic losses. However, capacity is limited as heat removal becomes insufficient at higher ratings. Forced systems use pumps and fans to maintain consistent cooling regardless of load, enabling ratings above 100 MVA. Though auxiliary equipment consumes 0.3–0.8% power, improved cooling reduces resistance losses, increasing overall efficiency by 2–3%.
Maintenance Practices That Preserve Peak Performance
Maintaining oil quality is critical for Oil type transformer efficiency. Annual dissolved gas analysis detects early faults such as overheating or arcing. Filtration and vacuum degassing remove moisture and contaminants, restoring dielectric strength. Inspections identify blocked radiators or leaks, while thermography reveals hotspots. Bushing tests detect insulation degradation early. Continuous monitoring systems track moisture, gas levels, and temperature in real time, triggering alarms. This proactive maintenance prevents efficiency loss and extends service life.
Radiator Design and Conservator Tank Functions
Radiator design strongly influences Oil type transformer cooling efficiency. Tubular or corrugated fin structures maximize heat exchange surface area, reducing operating temperatures. Conservator tanks allow oil expansion while isolating it from air, preventing contamination. Breathable systems filter incoming air, maintaining oil purity. Proper sizing avoids overheating or oil loss. Efficient thermal management ensures low electrical resistance and stable performance, preserving long-term efficiency and reliability.
Comparing Oil Type Transformer with Other Transformer Types
Oil-Immersed vs. Dry-Type Efficiency Comparison
Oil type transformer systems outperform dry-type units in efficiency due to superior cooling. Air’s lower heat transfer capability requires larger cores and conductors, increasing losses. Dry units typically achieve 97.5–98% efficiency, while oil-cooled designs exceed this by 0.5–1%. At partial loads, oil systems maintain better efficiency curves, reducing annual energy consumption by 10–15%. Though dry types offer fire safety and easier disposal, their shorter lifespan offsets these benefits in total cost analysis.
Mineral Oil vs. Synthetic Insulating Fluids
Mineral oil remains common in Oil type transformer applications due to cost-effectiveness and reliable insulation. However, synthetic esters offer higher fire resistance with flash points above 300°C and improved environmental safety, though at higher cost. Silicone fluids provide extreme thermal stability but are expensive. Natural esters balance biodegradability and performance, gaining popularity in green projects. Fluid choice impacts safety, compliance, and lifecycle cost while maintaining similar efficiency levels.
Application Suitability for Heavy Industrial Loads
Oil type transformer designs excel in industrial environments due to high overload capacity and thermal resilience. Oil absorbs short-term heat spikes, allowing operation at 120–150% capacity during demand surges. Strong mechanical support protects windings under high fault currents. Sealed tanks prevent contamination from dust or moisture, ensuring durability in harsh conditions. Stable operation across -40°C to +55°C makes them suitable for extreme environments like mines or chemical plants.
Procurement Insight: Choosing the Right Oil Type Transformer for Your Business
Evaluating Technical Specifications for Efficiency
Procurement teams should evaluate Oil type transformer efficiency using IEC 60076 or IEEE C57 standards. Loss curves across load ranges are more important than peak efficiency values. Cooling types—ONAN, ONAF, and OFAF—must match load demands to avoid inefficiency. Voltage regulation via tap changers, especially OLTC systems, ensures stable output under varying conditions. Proper specification ensures optimal energy performance and reliability.
Quality Certifications and Compliance Requirements
Compliance ensures Oil type transformer compatibility and safety. Standards like IEC 60076 define performance, while ISO 9001 confirms quality management. Certifications such as CE, UL, and CCC verify market compliance. Factory and type testing validate performance, including insulation and temperature rise. Environmental rules like EcoDesign and RoHS influence material selection and efficiency. Proper documentation reduces operational and regulatory risks.
Sourcing Strategy for Reliable Supply Partners
Reliable suppliers reduce project risk. Experienced manufacturers like Xi’an Xikai provide consistent quality and customization options. Integrated production ensures timely delivery and adherence to specifications. After-sales support, training, and long warranties enhance lifecycle value. Customization—such as voltage ratings, environmental protection, or seismic design—ensures application fit. Strong supplier partnerships improve reliability and project success.
Maintenance and Safety for Sustained Efficiency
Oil Testing and Condition Monitoring Programs
Regular testing maintains Oil type transformer efficiency. Dissolved gas analysis identifies faults early, while dielectric and chemical tests assess oil condition. Testing frequency depends on load levels. Online monitoring tracks moisture, temperature, and gases continuously, enabling immediate response. This predictive approach prevents failures and maintains optimal performance.
Early Detection of Leaks and Failure Indicators
Routine inspections detect early issues in an Oil type transformer. Oil leaks, discoloration, or radiator deformation signal problems. Acoustic monitoring identifies internal faults, while thermography detects hotspots. Establishing baseline readings during commissioning allows accurate comparison over time. Early detection reduces repair costs and prevents major failures.
Fire Prevention and Environmental Safety Protocols
Safety systems protect Oil type transformer installations from fire and environmental risks. Containment structures prevent oil spills, while suppression systems control fires quickly. Proper spacing reduces hazard spread. End-of-life disposal requires recycling or safe treatment of oil and materials. Planning for environmental compliance minimizes long-term liabilities and ensures safe operation.
Conclusion
Oil type transformers are more efficient because they use advanced thermal management to combine high-performance core materials with liquid cooling systems that work well. Gains in efficiency of 0.5% to 2% save a lot of money on energy costs over many years of use while also leaving less of an impact on the environment. Proper maintenance that keeps the oil quality high and the cooling system working keeps equipment running at its best for as long as it's supposed to. The best procurement decisions are made by using selection criteria that balance efficiency requirements with application needs, environmental conditions, and total ownership costs. Industrial facilities, utility companies, and engineering firms can all benefit from working with experienced manufacturers that can provide custom solutions and full technical support.
Frequently Asked Questions
1. What efficiency improvement can industrial facilities expect?
Medium-voltage oil type transformers that are cooled by oil usually get between 98.5 and 99% efficiency at full load, which is 0.5 to 1% better than similar dry-type units. This means that total losses will go down by 15 to 30 percent. When compared to less efficient options, a 1,000 kVA unit that runs continuously saves between 8,000 and 25,000 kWh per year, which means lower operating costs and carbon emissions. How much you save depends on your load profile and the price of electricity.
2. How long do oil-filled transformers operate reliably?
If you keep up with the maintenance, the design service life should last 30 to 40 years. Some important factors are testing and filtering the oil once a year, making sure the load is right for the rating, and controlling the ambient temperature. Units that work in controlled environments and have their conditions checked regularly often last longer than their design life. Long-term overloading, dirty oil, or water getting in can speed up the aging process, which shows how important it is to stick to a maintenance schedule.
3. Can these units be used for renewable energy tasks?
Modern designs can handle the different ways that wind and solar installations load and unload. Strong voltage regulation systems keep the output stable even when the input voltage changes quickly. Overload protection handles short-term surges from inverter-based power generation. Low-loss designs with losses of less than 3% at 30% load are the most efficient when renewable output is low. Following grid interconnection standards, such as IEEE 1547, makes sure that the integration goes smoothly.
Partner with Xi'an Xikai for Superior Oil Type Transformer Solutions
As a reliable oil type transformer supplier, Xi'an Xikai Medium & Low Voltage Electric Co., Ltd. is ready to meet your needs in a wide range of demanding industrial settings. Our manufacturing skills cover custom voltage configurations from 10kV to 110kV input levels. Our optimized core designs cut no-load losses by 30% while maintaining 99% operational efficiency. Enclosures with an IP55 rating can work reliably in harsh environments ranging from -40°C to +55°C. This makes them ideal for use in coastal, mining, and renewable energy installations. Send an email to serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com to talk to our technical team about getting specifications that meet your needs. Visit xaxd-electric.com to look at our wide range of products, which are backed by IEC 60076, ISO 9001, and CE certifications, as well as our 24/7 technical support and 10-year warranty.
References
1. International Electrotechnical Commission. "Power Transformers - Part 1: General." IEC 60076-1, 2011.
2. Institute of Electrical and Electronics Engineers. "IEEE Standard General Requirements for Liquid-Immersed Distribution, Power, and Regulating Transformers." IEEE C57.12.00, 2015.
3. Heathcote, Martin J. "The J&P Transformer Book: A Practical Technology of the Power Transformer." 13th Edition, Elsevier, 2007.
4. Harlow, James H. "Electric Power Transformer Engineering." 3rd Edition, CRC Press, 2012.
5. European Commission. "Commission Regulation (EU) 2019/1783 on Ecodesign Requirements for Medium Power Transformers." Official Journal of the European Union, 2019.
6. Myers, S. D., Kelly, J. J., and Parrish, R. H. "A Guide to Transformer Maintenance." Transformer Maintenance Institute Technical Publications, 2010.
