As a mechanical isolation device, a Disconnect Switch physically separates electrical circuits from their power source. This makes a clear discussion crevice to make beyond any doubt that the circuits are totally turned off during maintenance or a crisis. In contrast to circuit breakers, which consequently halt blame streams, these separation gadgets, as it were, work only when there is no or an extremely small load on them. They give a vital security obstruction for individuals working on electrical systems. Moving and settled contacts that are mechanically isolated make an adequate clearance to withstand the framework voltage without arcing. This makes it beyond any doubt that downstream gear in mechanical plants, substations, and commercial offices can be made to come to a safe stop.

Understanding Disconnect Switches: Definition and Working Principle
Core Components and Mechanical Operation

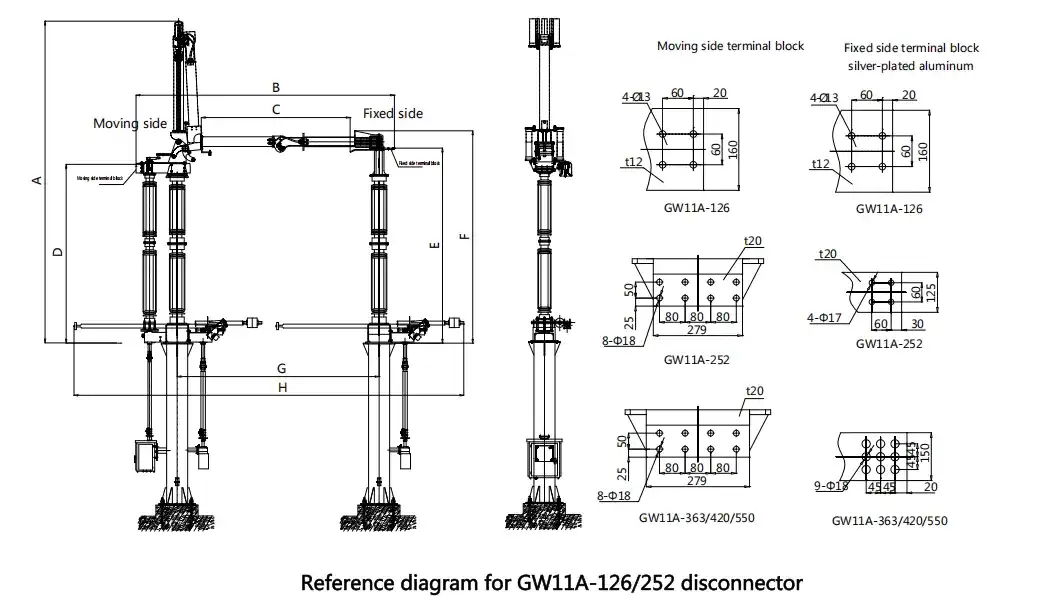

Every Disconnect Switch consists of a moving edge, settled contact, working handle or actuator, and protection underpinnings. When working, the edge physically isolates from the settled contact, making a disc-shaped separator hole that stops current stream indeed beneath the voltage. In high-voltage plans like GW11, pantograph linkages increment division in compact spaces. Porcelain or polymer insulin give establishing separation, whereas creepage separations are designed to anticipate flashover in contaminated or humid environments.
How Isolation Differs from Protection
Disconnect Switches differ fundamentally from circuit breakers. Breakers detect faults using thermal or magnetic systems and interrupt high fault currents using SF6, vacuum, or other arc-quenching technologies. In contrast, Disconnect Switches operate only when current is already near zero and cannot extinguish arcs under load. Using them incorrectly under load can cause dangerous arc flash events. Therefore, upstream breakers must first isolate current before the switch is operated for safe maintenance conditions.
Visible Break for Safety Verification
A key safety feature of Disconnect Switch systems is the unmistakable break, permitting administrators to affirm confinement outwardly. Open-air units give clear edge position perceivability, whereas indoor forms utilize markers or assessment windows. Advanced frameworks too coordinated mechanical interlocks that avoid hazardous arrangements, such as closing earthing switches some time recently full separation. These interlocks work freely under control, guaranteeing security indeed amid control failures or system failures.
Types of Disconnect Switches and Their Applications
Fused vs. Non-Fused Configurations
Fused Disconnect Switches integrate current-limiting fuses to provide both switching and overcurrent protection in a compact design. They are commonly used in transformer feeders, motor circuits, and data centers where space is limited and high reliability is required. Non-fused types are used where upstream protection already exists, improving efficiency and reducing losses. However, fused units require replacement after fault events, while non-fused systems rely on external breakers and relays for protection coordination.

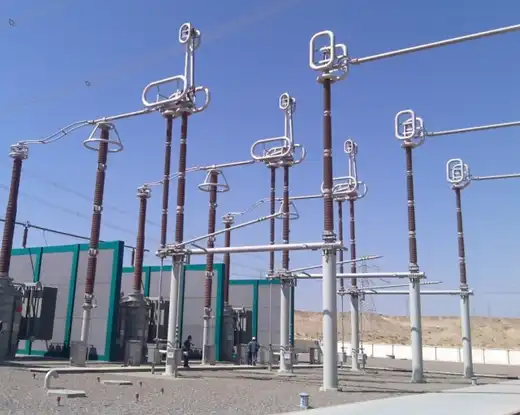

Indoor Enclosures vs. Outdoor Ratings
Indoor Disconnect Switches use lighter enclosures with simpler sealing, suitable for controlled environments like electrical rooms or industrial buildings. Outdoor versions require stronger protection against UV, corrosion, temperature extremes, and dust. Designs like GW11 use lightweight aluminum conductors, sealed transmission systems, and reinforced insulation for harsh climates. Temperature ratings and environmental conditions such as Arctic cold or desert heat require special materials, lubricants, and UV-resistant components to ensure long-term operational reliability.
Load Break Capability for Operational Flexibility
Load break Disconnect Switches can interrupt moderate operational currents using arc-control mechanisms, unlike standard isolators. They use arc chutes and fast mechanical separation to safely break inductive or capacitive loads. This allows utilities and industries to reroute power without full shutdowns. However, they are not designed for high fault currents like circuit breakers. Applications include manufacturing lines, commercial buildings, and distribution systems where operational continuity is critical.

Benefits and Safety Features of Disconnect Switches
Regulatory Compliance and Standards Adherence
Disconnect Switch designs must comply with standards such as IEC 62271, IEEE C37.32, and NEC requirements to ensure safe operation under fault conditions. These certifications verify mechanical strength, thermal endurance, and electrical performance. Additional testing, such as load endurance and mechanical cycling, ensures long-term reliability. Compliance reduces legal risk and ensures equipment meets global utility and industrial safety expectations under standardized testing procedures.
Lockout/Tagout Integration
Lockout/Tagout systems ensure safe maintenance by physically isolating energy sources. Disconnect Switches include padlock hasps, locking handles, and interlocked mechanisms to prevent accidental energization. Multiple workers can apply individual locks, ensuring no operation occurs until all tasks are complete. Advanced systems also include mechanical interlocks that enforce grounding before unlocking, preventing unsafe energization. These features significantly reduce workplace electrical accidents and comply with OSHA safety requirements.
Arc Flash Mitigation Strategies
Arc flash risks are reduced through remote operation, increased working distance, and controlled switching mechanisms. Motorized Disconnect Switches or extended operating handles allow operators to remain outside hazardous zones. Insulation design, such as horizontal breaks, directs arc energy away from personnel. Arc-resistant enclosures and fast separation mechanisms further reduce exposure energy. These strategies ensure safer switching operations in medium- and high-voltage environments where fault energy levels can be extremely high.
Maintenance Best Practices for Longevity
Regular maintenance extends the life of Disconnect Switch equipment. Key practices include infrared thermography to detect overheating, lubrication of mechanical parts, and periodic cleaning of insulation surfaces. Contact resistance monitoring helps identify early degradation, while torque checks ensure mechanical stability. Proper documentation of switching cycles and maintenance history allows predictive maintenance planning. These measures improve reliability and reduce unexpected failures in long-term industrial operation.
How to Choose the Right Disconnect Switch: Procurement Guide
Evaluating Ampacity and Voltage Ratings
Proper sizing of a Disconnect Switch requires considering load current, future expansion, and safety margins. Industry practice typically uses 125–150% of calculated load to ensure reliability under temperature rise and harmonic distortion. Voltage ratings must exceed system nominal levels to handle switching surges and lightning impulses. Short-circuit ratings are also critical, ensuring the switch can withstand mechanical forces during fault conditions without structural failure.
Brand Comparison and Certification Verification
Different manufacturers offer varying strengths in design, cost, and application focus. Global brands provide proven reliability across industrial and utility environments, while regional manufacturers may offer cost advantages. Certifications such as UL, CSA, CE, and ISO 9001 ensure compliance with international safety and quality standards. Verified nameplate certification is essential, as documentation alone does not guarantee tested performance of the actual equipment.
Customization Options for Specific Requirements
Standard Disconnect Switch designs cover most applications, but customization is often needed for extreme environments such as high altitude, seismic zones, or corrosive industrial sites. Adjustments may include creepage distance, insulation design, or mounting flexibility. Bulk procurement agreements and standardized configurations reduce cost and simplify maintenance logistics. Custom engineering ensures compatibility with site-specific constraints while maintaining performance and compliance requirements.
Disconnect Switch vs Other Switchgear: Decision-Making Matrix
Isolation Devices vs. Load Break Switches
Basic Disconnect Switches provide isolation only, while load break switches add limited arc interruption capability for operational switching. Load break designs allow utilities to reroute power without full shutdown, improving system flexibility. However, they cost more and require more maintenance due to arc wear. Isolation switches are cheaper and used where switching under load is not required, making selection dependent on operational needs and system design priorities.
Molded Case vs. Fusible Isolation Units
Molded case switches are compact and cost-effective for low-voltage systems but limited in high-current applications. Fusible units provide fast fault protection by limiting current and clearing faults quickly, protecting downstream equipment. However, they require fuse replacement after operation. Non-fused systems paired with electronic relays offer advanced diagnostics and flexibility, commonly used in critical infrastructure like hospitals and data centers where reliability and monitoring are essential.
Fused vs. Non-Fused Selection Criteria
Fused Disconnect Switches are ideal for inductive loads like transformers and motors, handling inrush currents and preventing false trips. Non-fused systems rely on upstream protection and reduce maintenance complexity. The best selection depends on full system coordination rather than individual components. Proper engineering design ensures cost efficiency, protection reliability, and operational safety while balancing maintenance needs and system architecture.
Conclusion
To choose the right isolation devices, you need to think about technical specs, operational needs, and your budget, as well as having a full understanding of how system protection coordination works. The basic idea behind physical contact separation creates clear safety gaps, but the specifics of how they are implemented—from fused to non-fused configurations to indoor to outdoor ratings—hugely affect how well they work in certain situations. Load break capability is worth the extra cost for manufacturing facilities that value uptime and flexibility. Utility substations, on the other hand, focus on fault withstand capacity and reliability in basic isolation designs.
Advanced safety features, such as lockout/tagout rules, arc flash protection, and the ability to operate from a distance, keep people safe during routine switching tasks that used to hurt a lot of people. Regular maintenance based on written instructions increases the useful life of equipment and lets you know about problems before they break. Working with skilled manufacturers that offer full technical support and the ability to customize makes sure that installations meet both current needs and the needs for future growth, which supports the long-term success of operations.
Frequently Asked Questions
1. Can isolation devices be used instead of circuit breakers in electrical systems?
No, these devices have very different purposes, even though they look a lot alike. Circuit breakers detect and interrupt fault currents automatically through thermal or magnetic sensing, protecting cables and equipment from overload damage. Isolation switches can't find faults or stop arcs; they can only work when there is no load, which lets maintenance workers see where the safety gaps are. In properly designed systems, both parts are usually present: breakers provide automatic protection, and isolation devices make it safe for people to access equipment that has been turned off. Trying to use one instead of the other creates unsafe conditions that break electrical codes and put people at risk of being electrocuted.
2. What maintenance frequency suits industrial electrical systems?
Inspection schedules are based on the duty cycle and operating environment. Installations inside that are clean and don't need to be used very often may only need visual checks and basic functional tests once a year. In harsh outdoor conditions with lots of switching, thermographic surveys should be done every three months to find hot spots before they break. Moving parts should also be oiled and insulator surfaces should be cleaned every six months. In addition to formal annual servicing, manufacturing facilities that are constantly exposed to dusty or corrosive environments can benefit from informal checks that are done once a month. In the end, equipment manufacturers give specific advice based on how the machine was designed, and smart operators set up trending databases that show whether standard intervals need to be changed based on how fast things break down over years of use.
3. Do outdoor switches reliably work in all kinds of weather?
When properly specified, high-quality outdoor designs that are made to withstand the elements will work reliably in temperatures ranging from -40°C to +60°C. The GW11 High Voltage Disconnect Switch shows this ability by having aluminum alloy conductors that don't rust in salty coastal air, enclosed mechanisms that keep sand out in desert climates, and flexible joints that can handle earthquakes without damage. But specifications need to be carefully thought out for extreme conditions. For example, installations in the arctic need special lubricants and heating elements, and UV exposure that is very strong needs stronger polymer stabilizers. If you just label something "outdoor rated" without knowing how the environment at your site affects it, it could break down early. Working with manufacturers who have experience with similar situations makes sure that the right materials are chosen and that the design features match the real-world deployment challenges.
