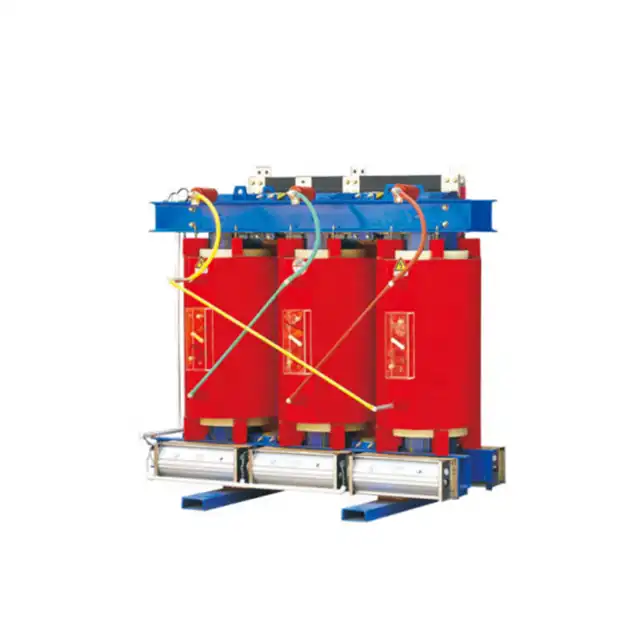

What Is Dry Type Transformer Working Principle Explained?

A dry type transformer is an electrical dispersion gadget that doesn't utilize fluid coolant. In step, it employments discuss or strong cover materials. These transformers alter the voltage of power by utilizing electromagnetic induction. To keep the essential and auxiliary windings electrically partitioned, they utilize Cast tar or Vacuum Weight Impregnated (VPI) separator frameworks. Not at all like oil-filled options, these units do not pose any fire or natural dangers, which makes them ideal for places where security rules do not permit combustible fluids. Knowing this working guideline makes a difference, office supervisors select gear that works as much as conceivable whereas still following strict security rules.

​​​​​​​

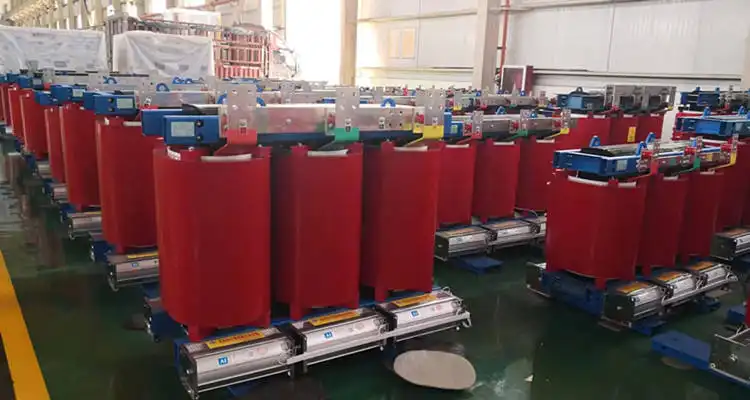

Understanding Dry Type Transformers

Core Structure and Design Philosophy

At Xi'an Xikai, the design philosophy of Dry type transformer hardware centers on security, natural assurance, and simple support. These air-cooled transformers utilize covered silicon steel centers with copper or aluminum windings and do not depend on oil for cover or cooling. This permits coordinate establishment in healing centers, information centers, and production lines without extraordinary fire concealment rooms. Vacuum Weight Impregnation (VPI) fills windings with epoxy gum, evacuating discuss voids and moving forward separator quality against dampness, warm, and vibration. The covered center diminishes vortex current misfortunes, whereas accuracy winding guarantees steady attractive flux. The result is compact, secure, and solid execution for present day control dissemination systems.

Primary Types and Industrial Applications

Two main constructions define Dry type transformer applications: cast gum and VPI sorts. Cast gum models typify windings in epoxy, advertising tall mechanical quality and security from dirt, moisture, and destructive situations, making them suitable for coastal or chemical plants. Their IP54–IP65 evaluations guarantee strength in unforgiving conditions. VPI transformers are more compact and productive at high temperatures, making them perfect for space-limited establishments like production lines and information centers. Gum impregnation beneath vacuum improves dielectric quality whereas keeping up warm adaptability. In spite of the fact that somewhat more costly, VPI units are favored where space efficiency and dependable execution legitimize the investment.

Safety and Environmental Advantages

A key advantage of Dry type transformer systems is the disposal of combustible oils, eliminating fire dangers and disentangling administrative compliance. NFPA benchmarks permit the establishment of interior possessed buildings without fire vaults or sprinkler systems, decreasing development costs and complexity. Naturally, these transformers dodge PCB defilement and oil spill dangers, meeting transfer and observing requirements. About all materials, counting copper, steel, and aluminum, are recyclable. This decreases perilous squander classification and rearranges natural detailing. As a result, office directors benefit from more secure establishments, lower protection costs, and simpler compliance with natural controls while supporting sustainability goals.

Working Principle of Dry Type Transformers

Electromagnetic Induction Fundamentals

The operation of a Dry type transformer is based on Faraday's Law of electromagnetic induction. Rotating current in the essential winding makes a time-varying attractive field in the covered center, which induces voltage in the auxiliary winding. Voltage change takes after the proportion of coil turns between essential and auxiliary windings. For case, 13,800V connected to a 1,000-to-100 turn proportion produces 1,380V yield. In genuine applications, engineers must consider center immersion, impedance matching, and resonant mutilation to keep up proficiency and anticipate performance losses in demanding electrical systems.

Voltage Transformation Process

Energy exchange in a Dry sort transformer happens through attractive coupling or maybe through coordinate electrical association, giving galvanic separation for security and proficiency. Tall coupling coefficients over 0.98 guarantee negligible vitality loss. When the stack increments, auxiliary current creates a restricting attractive field, inciting the essential winding to draw extra current. This self-regulating behavior keeps up a steady voltage yield without outside control frameworks. It guarantees reliable execution beneath changing stack conditions and secures delicate electronic hardware from voltage variances in mechanical and commercial environments.

Cooling and Insulation Systems

Cooling in a Dry sort transformer depends on air-natural or air-forced circulation to scatter heat. Plans are designed for surrounding temperatures up to 55°C whereas keeping winding temperatures inside Course F or H cover limits. Epoxy tar cover is flame-retardant (UL94 V-0), self-extinguishing inside seconds, making strides in fire security. The framework also performs dependably beneath 100% stickiness without corruption. Not at all like oil-filled units, these transformers can be restarted quickly after natural presentation, disposing of drying time and progressing operational adaptability in basic applications.

Critical Performance Parameters

A Dry type transformer typically ranges from 15kVA to 2,500kVA and supports voltages from 480V to 13,800V. High-quality insulation ensures partial discharge levels below 10 picocoulombs, preventing long-term corona damage. Noise control is also important, with standard units operating below 50 dB, suitable for hospitals, offices, and schools. Custom acoustic designs can reduce noise further to 45 dB. These performance factors make dry type transformers ideal for environments requiring stable, quiet, and reliable power distribution.

Comparing Dry Type Transformers with Other Transformer Types

Safety Considerations and Fire Risk

Compared to oil-filled units, Dry type transformer systems eliminate fire risks caused by flammable insulating fluids. Oil-based transformers can produce explosive gases during faults, requiring fireproof vaults and strict safety infrastructure. In contrast, epoxy insulation remains solid under electrical stress and does not support combustion. This significantly reduces fire hazards in populated buildings. Insurance costs are lower, and regulatory approval is simpler. Facility operators also avoid risks related to oil leakage, environmental contamination, and thermal runaway events.

Maintenance Requirements and Lifecycle Costs

Oil-filled transformers require frequent testing for dissolved gases, moisture, and dielectric degradation, leading to high maintenance costs over time. In contrast, Dry type transformer systems only need visual inspections, thermal imaging, and insulation resistance checks, reducing maintenance workload by up to 60%. They also eliminate issues like oil leakage, gasket failure, and disposal costs. With fewer components requiring service, operational downtime is significantly reduced. Over a 25-year lifespan, this results in lower total cost of ownership and improved operational efficiency.

Efficiency and Operational Performance

Modern Dry type transformer designs achieve efficiency levels of 99.2%–99.5%, comparable to or better than oil-filled models. High-grade electrical steel minimizes core losses, while optimized winding reduces copper losses. This improves overall grid efficiency by 15–20% compared to older systems. Voltage regulation between 2% and 4% ensures stable output for sensitive equipment such as medical systems and industrial automation. High short-circuit tolerance and strong impulse resistance further enhance reliability in demanding electrical environments.

Maintenance and Installation Best Practices

Site Preparation and Installation Procedures

Proper installation of a Dry type transformer begins with environmental assessment, including temperature, humidity, altitude, and ventilation checks. High-altitude sites require derating or enhanced cooling systems. Adequate clearance ensures airflow and maintenance access. Foundations must support full equipment weight and meet seismic standards. Leveling within tight tolerances prevents mechanical stress. Installation planning includes rigging, electrical connection, and commissioning to minimize downtime and ensure safe integration into existing electrical infrastructure.

Routine Inspection and Testing Protocols

Routine maintenance for a Dry type transformer includes annual visual inspections for insulation damage, overheating signs, and airflow blockage. Thermal imaging detects hot spots indicating overload or connection issues. Insulation resistance tests verify dielectric integrity, with low readings signaling moisture or contamination. Power factor testing helps identify insulation aging. Continuous temperature monitoring ensures early detection of abnormal conditions. These preventive measures improve reliability and extend operational lifespan.

Troubleshooting Common Issues

Overheating in a Dry type transformer is often caused by poor ventilation, harmonic loads, or overload conditions. Solutions include improved cooling or upgrading to higher-capacity units. Excess noise may indicate loose laminations or mechanical vibration. Harmonic distortion from modern electronic loads can be mitigated using K-rated transformers. Vibration analysis and remote diagnostics help identify mechanical issues early. Preventive correction reduces downtime and avoids major equipment failures.

Procurement Considerations for Dry Type Transformers

Matching Specifications to Application Requirements

Selecting a Dry type transformer requires matching voltage, load capacity, and growth projections. Common configurations include 13.8kV–480V for industrial use and 4.16kV–208V for commercial buildings. Harmonic analysis determines whether standard or K-rated models are needed. Environmental protection ratings such as NEMA 1 or NEMA 3R depend on installation conditions. Factors like altitude, temperature extremes, and corrosion exposure also influence final specifications and derating requirements.

Evaluating Supplier Credentials

Qualified suppliers of Dry type transformer systems must comply with IEC, IEEE, NEMA, UL, and CSA standards. Type test reports verifying temperature rise, short-circuit strength, and impulse performance are essential. ISO 9001 certification ensures consistent manufacturing quality. Xi'an Xikai’s automated production systems enhance reliability and traceability. Supplier experience, engineering support, and factory audits provide additional assurance of product quality and long-term performance reliability.

Total Cost of Ownership Analysis

The purchase cost of a Dry type transformer represents only a portion of its lifecycle expense. Energy efficiency, maintenance savings, and downtime reduction significantly impact total cost. Even a 1% efficiency improvement can save thousands annually in energy costs. Reduced maintenance compared to oil-filled systems further lowers operational expenses. Lead times, warranties, and spare parts availability also influence procurement decisions. Strong after-sales support ensures long-term reliability and system continuity.

Conclusion

To choose the right voltage conversion equipment, you have to balance technical performance, safety requirements, and cost. Electrical distribution devices that are cooled by air have many great benefits, such as better fire safety, less maintenance, being better for the environment, and more operational flexibility. Knowing how electromagnetic induction works to change voltage lets you make smart specification choices that meet the needs of the facility.

We at Xi'an Xikai are dedicated to providing reliable power distribution solutions based on our twenty years of engineering experience. Our thorough testing protocols, patented cooling technologies, and global support infrastructure give you peace of mind throughout the lifecycle of your equipment. Our technical teams work with procurement professionals to make sure that specifications and project outcomes are the best they can be. This is true whether they are updating old infrastructure, increasing production capacity, or designing new facilities.

FAQ

1. What lifespan can facility managers expect from resin-insulated electrical equipment?

Without maintenance, a decent air-cooled unit should last 25–30 years. Annual inspections using thermal imaging and insulation resistance testing detect issues early. Solid insulation systems cost less and require less downtime than liquid-filled options since they don't need fluid analysis. By loading within nameplate limitations and enabling airflow, service life is enhanced. Extreme temperatures, humidity, and pollution influence longevity. Always monitoring temperature, our technologies alert operators to circumstances that might accelerate aging. Plan replacements based on insulating power factor trends to prevent unexpected failures.

2. How do K-factor ratings address non-linear load concerns?

LED lighting, variable frequency drives, and switched-mode power supply are common in modern structures. Harmonic currents from these loads boost the temperature above fundamental frequency predictions. Lights and motors use K-4 loads, which normal transformers can handle. K-13 ratings enable modest harmonic content from energy-efficient devices. K-20 requirements manage heavy nonlinear loads in data centers and modern manufacturing. Choosing the proper K-factor prevents system overheating, neutral conductor overload, and insulation failure. IEEE 519 harmonic analysis analyzes distortion and specifies. Oversizing capacity by 15–25% increases thermal buffer in case load changes suddenly.

3. What advantages justify higher initial costs compared to oil-filled options?

Despite costing more to acquire, air-cooled equipment has a lower total cost of ownership over 25 years. Not testing, filtering, and removing oil saves $800–$1,200 annually. Installation is simpler without transformer vaults or fire suppression, saving $15,000 to $30,000. Fire risk reduction lowers insurance prices. Less downtime from simpler maintenance lowers manufacturing costs. Simplifying environmental compliance reduces penalties and repair expenses. Making items energy efficient cuts utility costs. These savings generally cover the higher initial costs within 5–7 years, yielding a net positive return during equipment life.

Partner with Xi'an Xikai for Reliable Power Distribution Solutions

Xi'an Xikai Medium & Low Voltage Electric Co., Ltd. stands as one of China's largest manufacturing bases, offering comprehensive system integration services for electrical distribution infrastructure. Our Dry type transformer portfolio encompasses 7 major categories spanning high/low-voltage switchgear, resin-insulated voltage conversion equipment, vacuum circuit breakers, instrument transformers, and prefabricated substations. As a reliable dry-type transformer manufacturer, we deliver customized solutions meeting the demanding requirements of industrial plants, data centers, hospitals, and utility substations. Our engineering teams collaborate with procurement professionals to optimize specifications, ensuring equipment matches application requirements while maximizing value. We offer customizable voltage taps, enhanced cooling configurations, and integrated monitoring systems tailored to project needs. RoHS-compliant materials and 98% recyclable construction support corporate sustainability initiatives. Contact our technical specialists at serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com to discuss your power distribution requirements. Visit xaxd-electric.com to explore our complete product range and request detailed specifications for your next project.
